TONEWINNER AD-99D Class AB Stereo Amplifier Bluetooth 2x290W 4 Ohm

As imposing in appearance as it is in power, the Tonewinner AD-99D is a powerful, versatile and robust Class AB stereo integrated amplifier. It delivers a pure and delicate sound, with a beautiful dynamic and richness of sound. It uses two balanced modules equipped with Toshiba transistors. It is completed by an efficient and reliable power supply stage and by a particularly complete connectic.

Average votes for this product
5.0 / 5

By buying this product you get 159 loyalty points


Yes, notify me when available !
Reference : 17347
New product

1 590,00 €tax incl.

1 325,00 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Tonewinner AD-99D

Class AB Stereo Amplifier Bluetooth 2x290W 4 Ohm

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

As imposing in appearance as it is in power, the Tonewinner AD-99D is a powerful, versatile and robust Class AB stereo integrated amplifier. It delivers a pure and delicate sound, with a beautiful dynamic and richness of sound. It uses two balanced modules equipped with Toshiba transistors. It is completed by an efficient and reliable power supply stage and by a particularly complete connectic.

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

A powerful Class AB amp

The two amplifier modules of the AD-99D are placed on both sides of the device, on the side walls of the amplifier, directly leaning against the large heat sinks. These embed four pairs of Toshiba TTC5200 and TTA1943 transistors to deliver a power of 2x 190W under 4Ω or 2x 290W under 8Ω. A reliable architecture capable of a musical and lively sound reproduction.

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω
Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

AD1955 DAC

With many digital inputs, the Tonewinner AD-99D also has a dedicated digital to analog conversion section. This one uses a DAC AD1955 24bit 192kHz chip, allowing it to decode efficiently the digital streams in order to provide the most faithful sound possible.

From integrated amplifier to power amp

The Pre-Out output and the Amp In input of the AD-99D, which are connected to each other for operation as an integrated amplifier, can be disconnected. In this case, the AD-99D becomes an independent power amplifier and can be integrated into a more complex system.

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

A consistent power supply

The power supply stage of the Tonewinner AD-99D is mainly composed of a large 550VA toroidal transformer as well as a module integrating eight large filter capacitors for a total capacity of 69400pF. This allows to provide all the circuits with a clean electrical signal and to meet important and sudden energy needs.

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

Total insulation

Each section of the Tonewinner AD-99D is physically isolated from the others to greatly limit interference that can affect signal quality.

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω

An abundance of connectivity

With its many inputs, the AD-99D is very versatile. It will be able to integrate without difficulty into the vast majority of audio systems. It offers, as inputs, USB-B (USB Audio) and USB-A (USB Host), a slot for Micro SD card, HDMI ARC, optical and coaxial for the digital section as well as stereo RCA for the analog part. This connectivity is completed by a Bluetooth wireless connectivity, allowing to easily broadcast its music remotely, from a smartphone or a tablet for example.

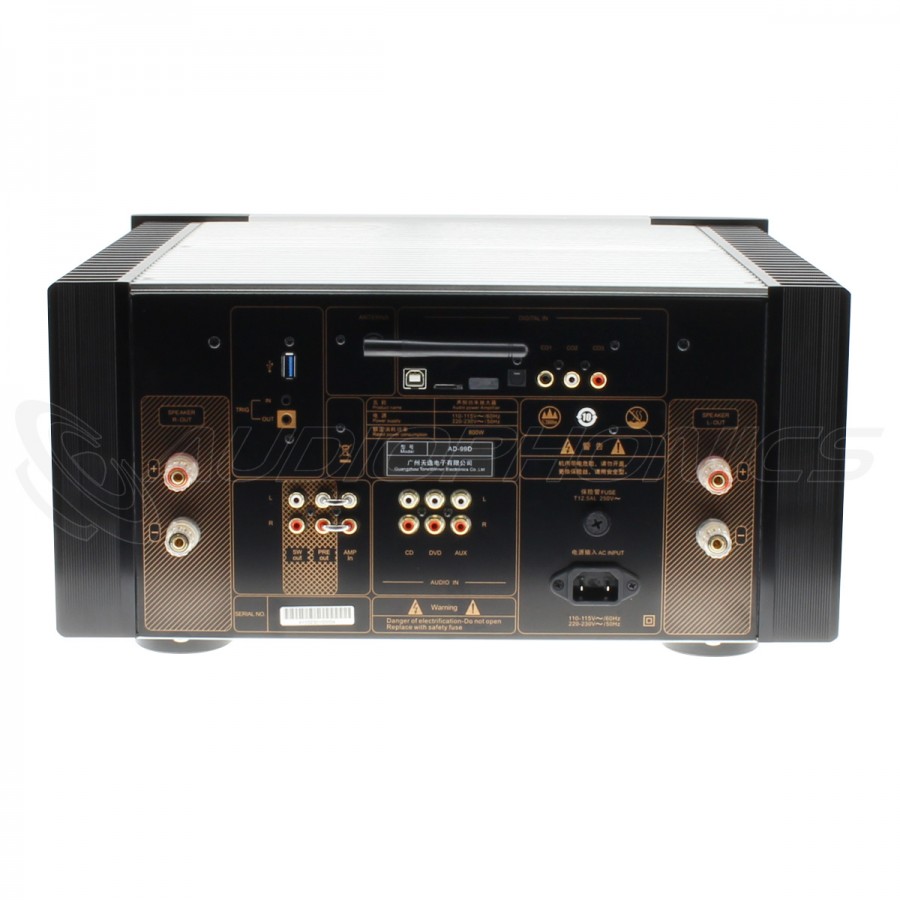

Tonewinner AD-99D Amplificateur Stéréo Class AB Bluetooth 2x290W 4Ω
1USB-A input (USB Host)
2Bluetooth antenna
3USB-B input (USB Audio)
4Micro SD slot
5HDMI ARC input
6Optical Toslink input
7Coaxial inputs
812V trigger input/output
9Right channel speaker output
10Subwoofer output
11Pre-Out output
12Amp-In input
13Stereo RCA inputs
14Power input
15Left channel speaker output

Technical characteristics

Specifications
Product typeAmplifier
Amplification typeClass AB
Number of channelsStereo (2)
InputsBluetooth
1* USB-B (USB Audio)
1* Slot Micro SD
1* HDMI ARC
1* Optical Toslink
3* Coaxial
1* USB-A (USB Host)
3* Stereo RCA
1* 12V Trigger input
OutputsSpeaker terminals
1* Subwoofer output on stereo RCA
1* 12V Trigger output
Output power2*290 @ 4Ω
2*190 @ 8Ω
Tone controlBass
Treble
THD≤ 0.01% (1kHz)
Input impedance10kΩ
Channel separation≥ 80dB
SNR≥ 100dB (A-Weighted)
Frequency response10Hz-90kHz (+1/-3dB)
Frequency response10Hz-90kHz (+1/-3dB)
Gain> 42dB
General
Supply voltage110-230VAC 50/60Hz
Dimensions (L*P*H)445*456*218mm
Net weight24.1kg
ColorBlack and silver
Package1x Tonewinner AD-99D
1x Remote control (CR2016 battery not included)
1x Power cable

Data sheet
InputMicro SD
InputUSB
InputSPDIF
InputBluetooth
InputHDMI
InputRCA
InputOptical
OutputSpeaker terminal
OutputSubwoofer
ColorBlack
ColorSilver
Channel2.1
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipTransistors
Power (W)290.0
