Module Interface Entrée I2S vers Sortie HDMI
Viewed products
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)

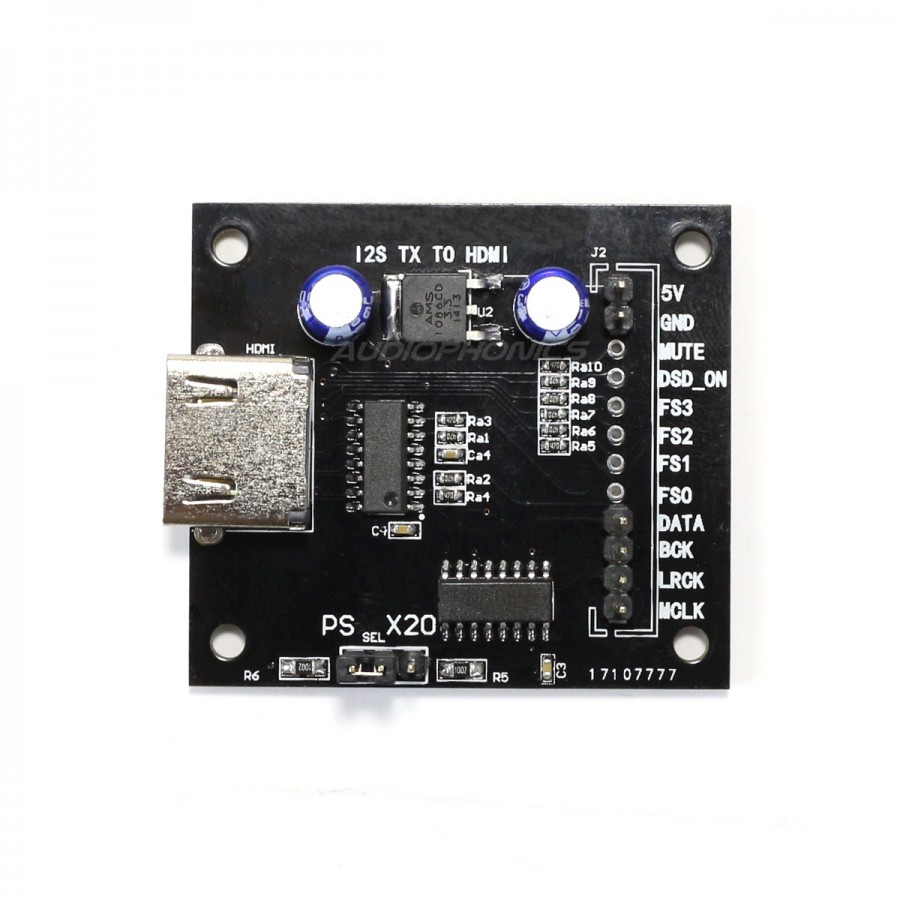

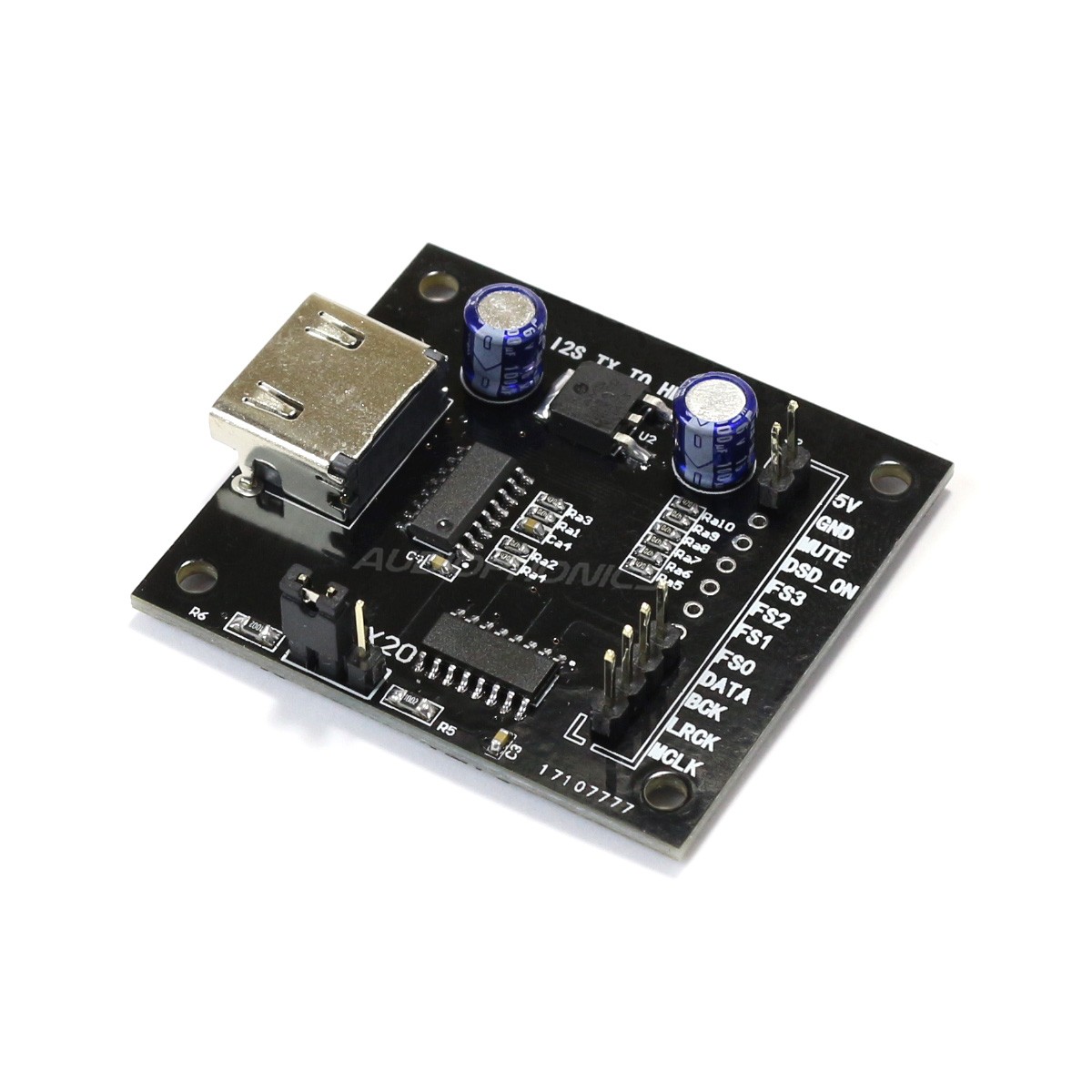

I2S to HDMI Interface Module
This module will allow you to add an interface with i2S input and HDMI output to your DIY project. The interface is DSD compatible (DSD_ON connection).

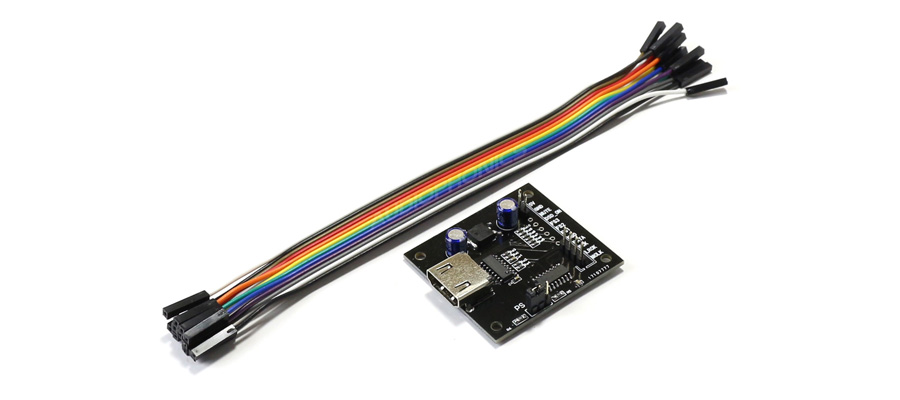

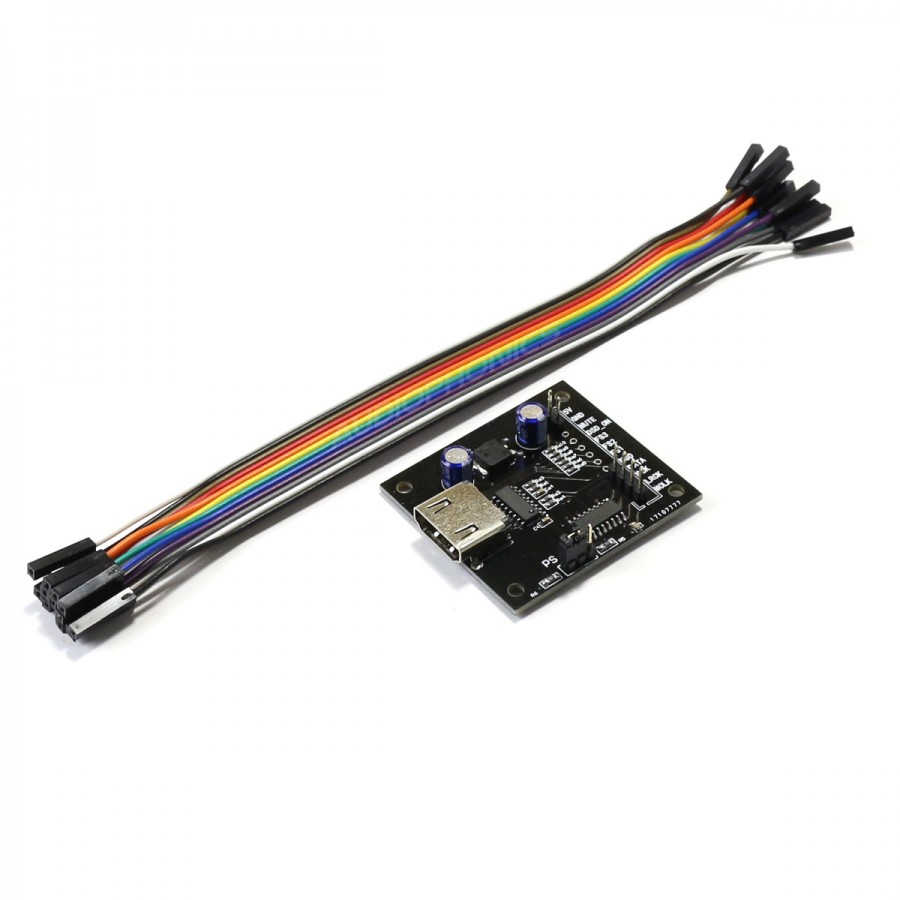

The module comes with a set of 12 flexible jumpers for wiring.
The module has a jumper marked PS and X20. By selecting the PS option, the interface will work with PS Audio DACs. By selecting X20, the interface will work with Gustard DACs.
Technical characteristics
| Specifications | |
|---|---|
| Input | I2S (to be wired) |
| Output | HDMI |
| DSD | Yes (to be wired) |
| Power supply | DC 5V (to be wired) |
| Center distances | 35 x 41mm |
| Dimensions | 48 x 43 x 12mm |
| PCB Color | Black |
