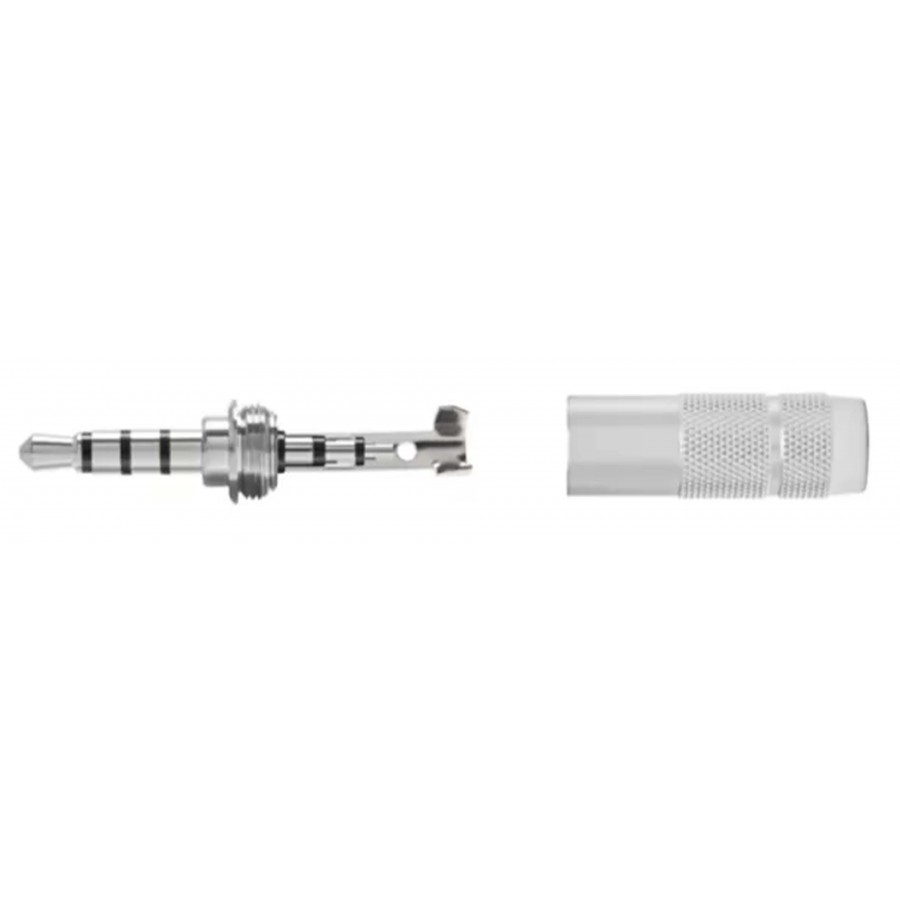

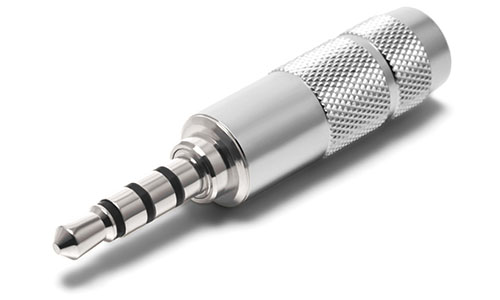

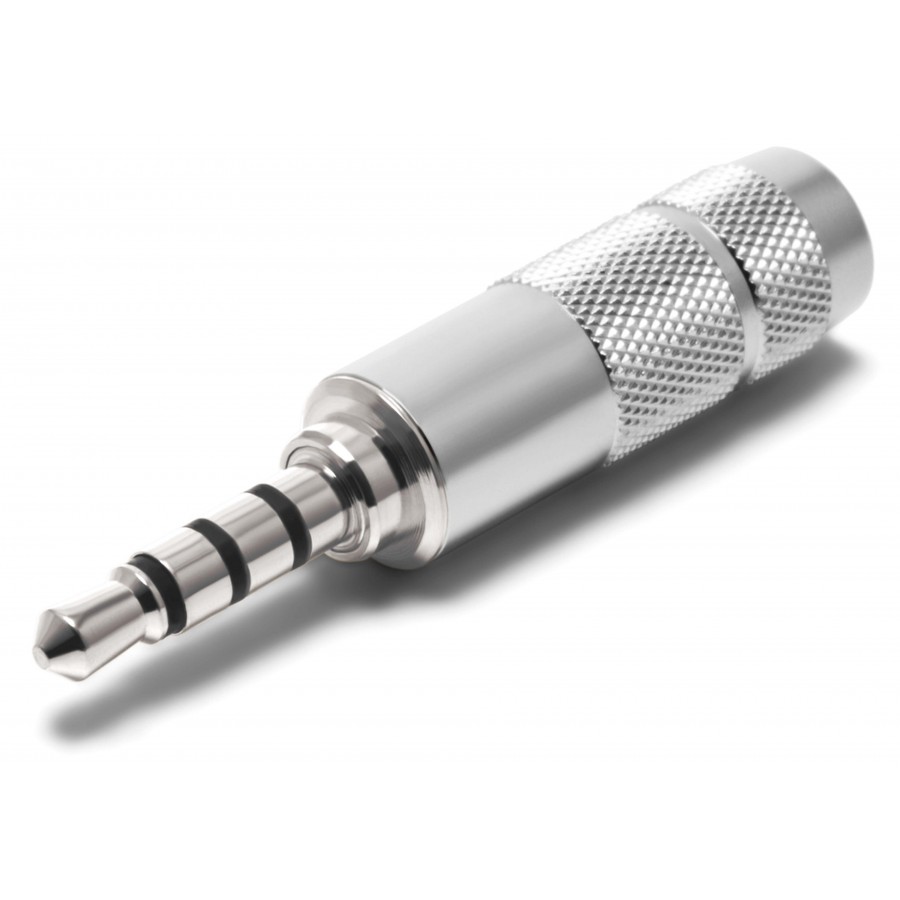

Oyaide P-3.5/4SR Jack 3.5mm Connector 4-Pole Silver/Rhodium-Plated

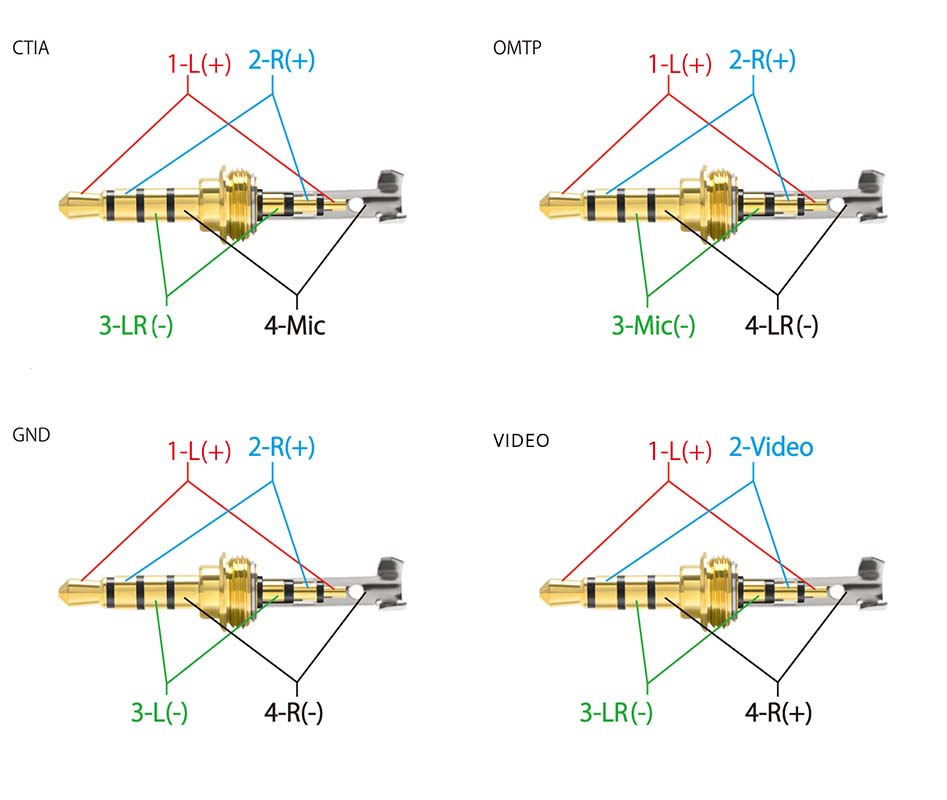

The Oyaide P-3.5/4SR connector is a 3.5mm jack connector with silver and rhodium-plated contacts for optimal conductivity. It has 4 poles, allowing it to be used for many applications (CTIA, OMTP, GND, CVBS video) depending on the wiring method, and is solder-mounted. Its machined brass body and satin chrome plating make it a sturdy, durable, and attractive connector.
Technical characteristics
| Specifications | |
|---|---|
| Product type | 3.5mm jack connector |
| Number of poles | 4 |
| Contacts material | Copper alloy |
| Contacts plating | Silver / Rhodium |
| Body material | Machined brass with satin chrome finish |
| Max. cable diameter | Ø4mm |
| Mounting | To sold |
| General | |
|---|---|
| Package | 1x Oyaide P-3.5/4SR |
| Max cable diameter (mm) | 4.0 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 4 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Silver |
| Contacts Plating (Connector) | Rhodium |
