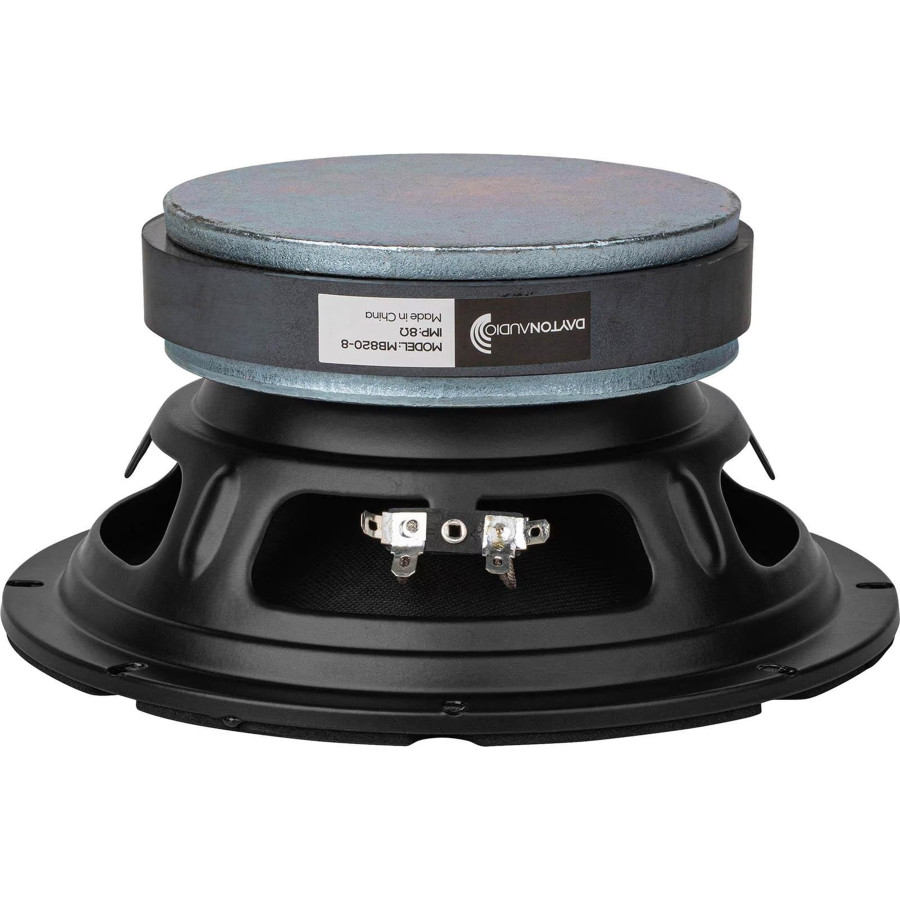

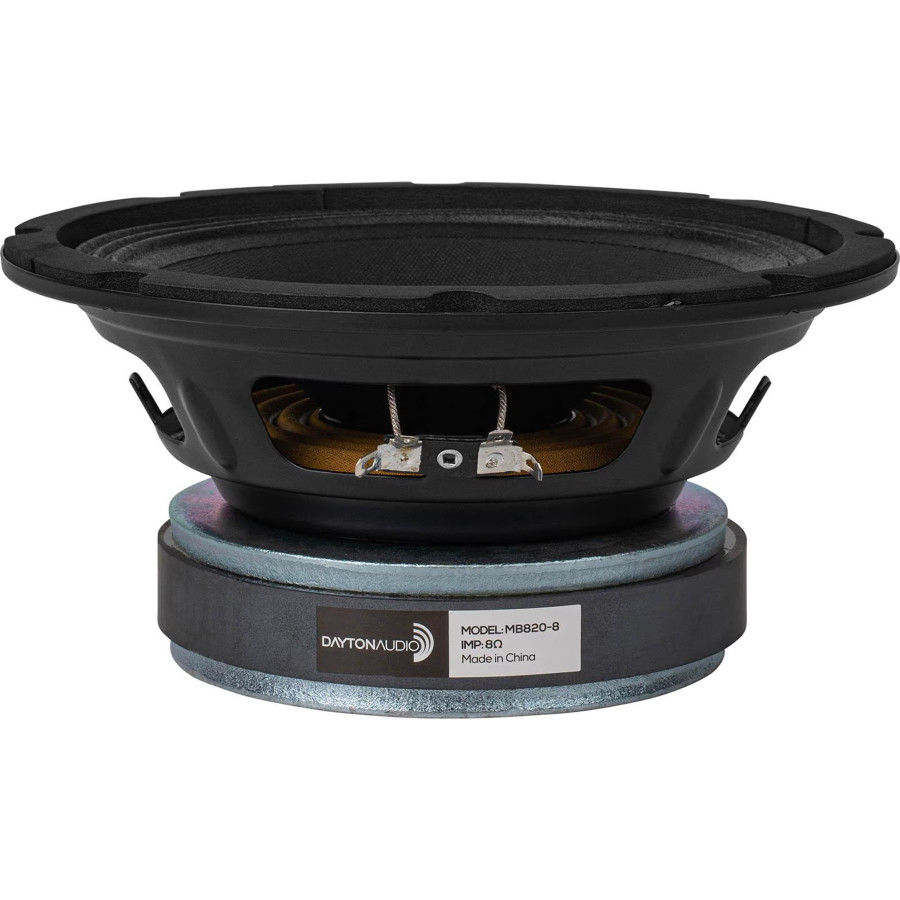

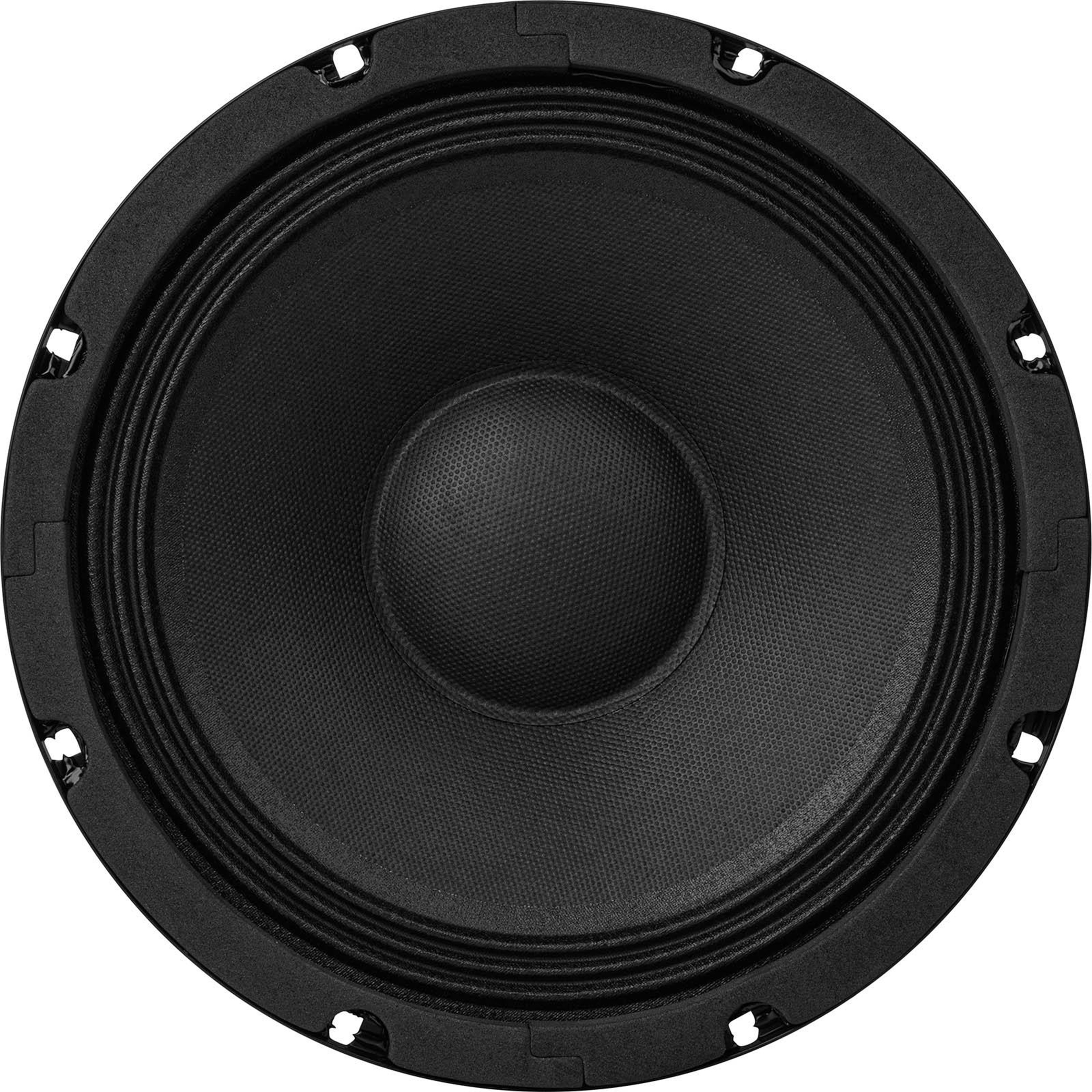

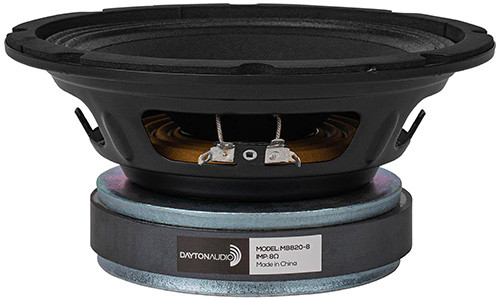

Dayton Audio MB820-8 Speaker Driver Midbass 200W 8 Ohm 94dB 100Hz-7.5kHz Ø20.32cm
The Dayton Audio MB820-8 is a bass midrange speaker of 20.32cm (8"), with an impedance of 8Ω, designed for two- or three-way professional loudspeakers. Its power handling of 200W RMS (400W maximum), its sensitivity of 94dB (2.83V / 1m) and its usable response from 100 to 7500Hz allow it to produce high levels while covering a wide frequency range.
Its lightweight paper cone, its cloth surround and its 40 oz ferrite motor with a 5.08cm (2") voice coil promote low-distortion dynamic reproduction. With a maximum linear excursion of 4mm, it fits equally well into PA loudspeakers as into hi-fi, automotive or musical instrument systems, particularly for bass and keyboard.
Technical specifications
| Specifications | |
|---|---|
| Product type | Bass midrange speaker |
| Impedance | 8Ω |
| Sensitivity | 94dB 2.83V/1m |
| Frequency response | 100Hz-7.5kHz |
| Voice coil diameter | 5.08cm (2") |
| Nominal diameter | 20.32cm (8") |
| Power | RMS: 200W MAX: 400W |
| Thiele-Small parameters | |
|---|---|
| Resonance frequency (Fs) | 69Hz |
| DC resistance (Re) | 5.26Ω |
| Voice coil inductance (LE) | 1.04mH |
| Mechanical quality coefficient (Qms) | 3.83 |
| Electromagnetic quality coefficient (Qes) | 0.52 |
| Total quality coefficient (Qts) | 0.46 |
| Compliance equivalent volume (Vas) | 0.56ft³ |
| Mechanical compliance of suspension (Cms) | 0.26mm/N |
| Force factor (BL) | 9.57T·m |
| Total moving mass + air load on the diaphragm (Mms) | 20.9g |
| Max linear excursion (Xmax) | 4mm |
| Diaphragm surface area (Sd) | 208.9cm² |
| Materials | |
|---|---|
| Diaphragm | Paper |
| Surround | Cloth |
| Frame | Steel |
| Magnet | Ferrite |
| Voice coil wire | CCA |

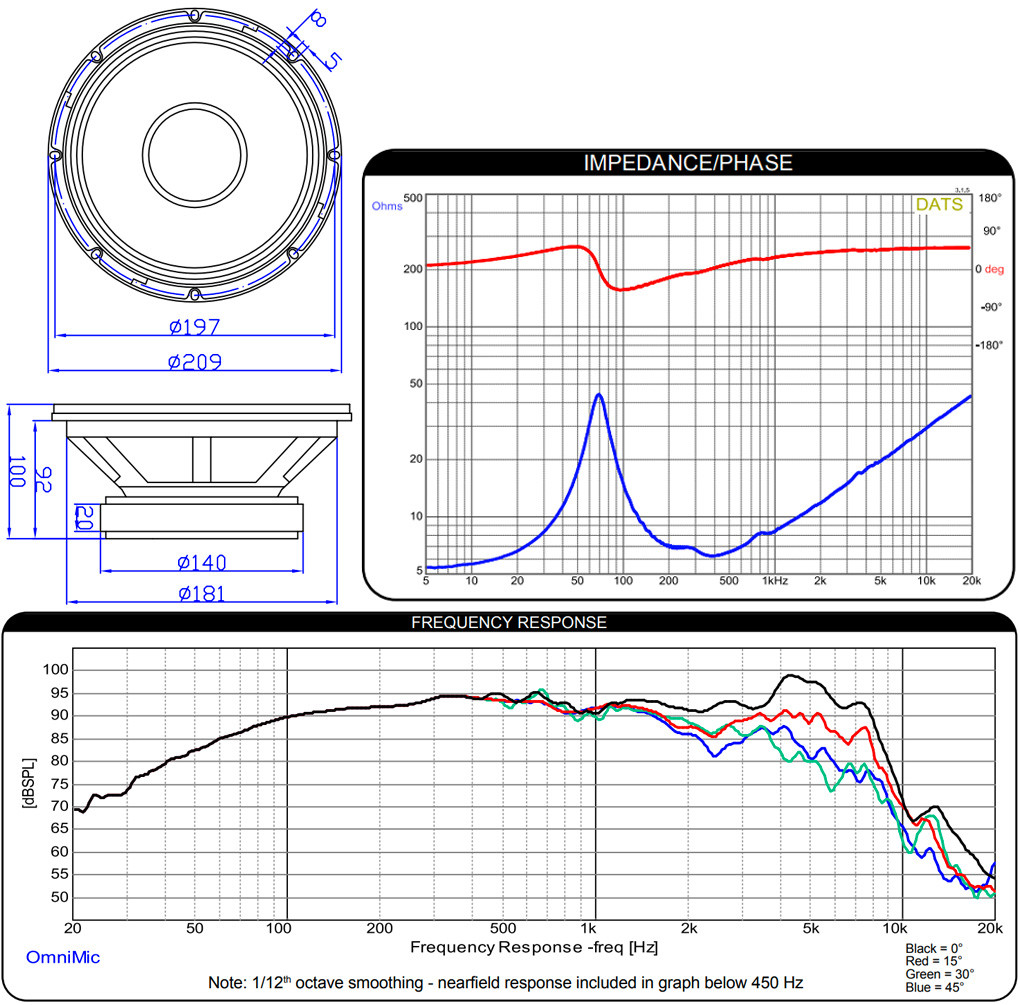

| Mounting informations | |
|---|---|
| Total external diameter | 8.22" |
| Cutout diameter | 7.13" |
| Depth | 3.6" |
| Number of mounting holes | 8 |
| General | |
|---|---|
| Weight | 3.6kg |
| Package | Sold individually |
| Speaker Power (W RMS) | 200.0 |
| Speaker Type | Midbass |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 203.2 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 94.0 |
| Max Linear Excursion (Xmax) (mm) | 4.0 |
| Lowest frequency (Hz) | 100 |
| Highest frequency (Hz) | 7500 |
