DAYTON AUDIO RS180P-8 Reference Speaker Driver Midbass Paper 60W 8 Ohm 90dB 45Hz - 8000Hz Ø18cm

Dayton audio RS180P-8 Woofer Reference 17cm
Average votes for this product
4.0 / 5

By buying this product you get 6 loyalty points

Yes, notify me when available !
Reference : 8497
New product

62,50 €tax excl.

Including 0,25 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans
More info

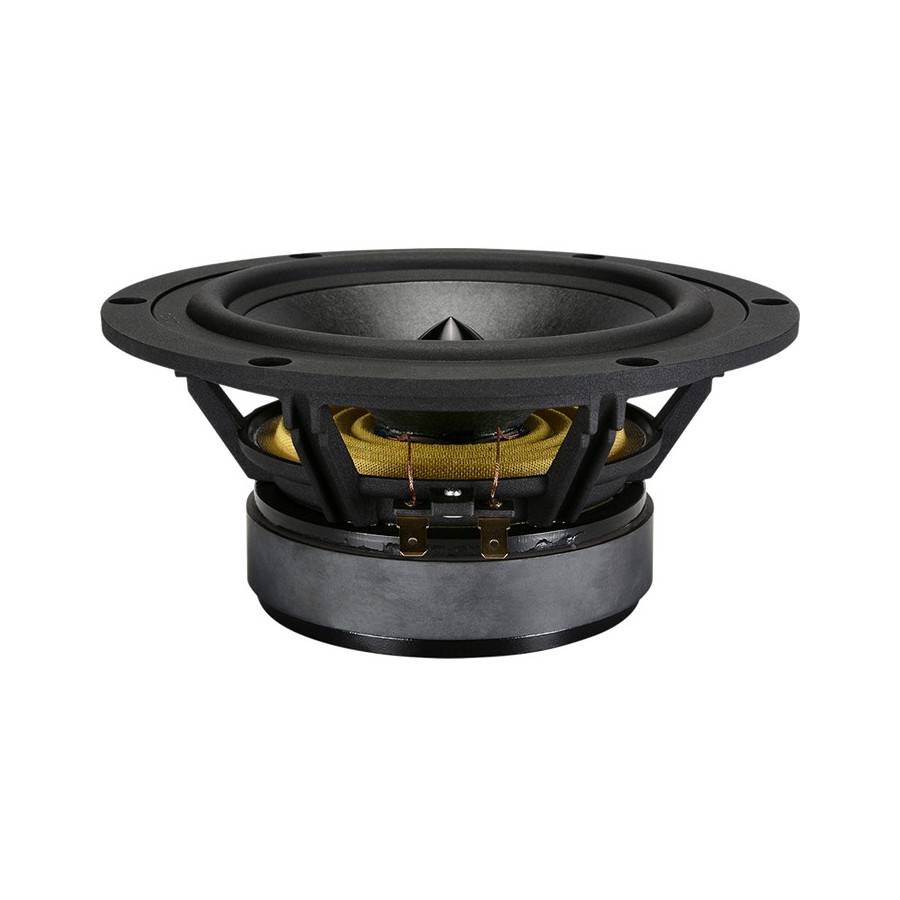

Dayton audio RS180P-8 Woofer Reference 8 Ohm 17cm
Range"Reference Series"of DAYTON AUDIO is now available with a paper cone!
These pieces feature a patented paper cone combining natural paper pulp, synthetic Kevlar® and fiberglass to create the perfect combination.

These speakers use a low distortion motor system and a rigid aluminum cone.
The reference series can surpass woofers that cost several times the price!

Low distortion and high excursion capabilities provide exceptional clarity, detail and dynamics.
This woofer features a black and sturdy anodized cone, a 6-hole chassis, a rubber suspension, a solid aluminum phase part, and gold spring terminals.


  • Nominal diameter: 7 "/ 17cm
  • Power handling (RMS): 60 watts
  • Puissance (max): 90 watts
  • Impedance: 8 ohms
  • Sensitivity: 89 dB @ 1W / 1m
  • Frequency response: 45 - 8000 Hz.
  • Voice Coil Diameter: 1.5 "
  • Resistance DC (Re): 6.4 ohms
  • Voice Coil inductor (Le): 0.84 mH
  • Resonant Frequency (Fs): 48 Hz
  • Mechanical Q (QMS): 1.45
  • Q electromagnetic (SEQ): 0.41
  • Q total (Qts): 0.32
  • Area of ​​the cone (Sd): 29.14 cm2
  • Cone / Diaphragm Material: Kevlar Paper / Cone
  • Contour material: Rubber
  • Materials: Ferrite / Cast aluminum
  • Overall Outside Diameter: 7.125 "
  • Overall Depth: 3.25 "
  • Baffle Cutting Diameter: 5.75 "
  • # Mounting holes 6

Data sheet
Speaker Power (W RMS)60.0
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)180.0
Diaphragm typePaper
Efficiency / Sensitivity (dB)90.0
Max Linear Excursion (Xmax) (mm)6.0
Lowest frequency (Hz)45
Highest frequency (Hz)8000
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
Bon rapport qualité prix, bonne fabrication.
This review has been posted for DAYTON AUDIO RS180P-8 Reference Speaker Driver Midbass Paper 60W 8 Ohm 90dB 45Hz - 8000Hz Ø18cm
