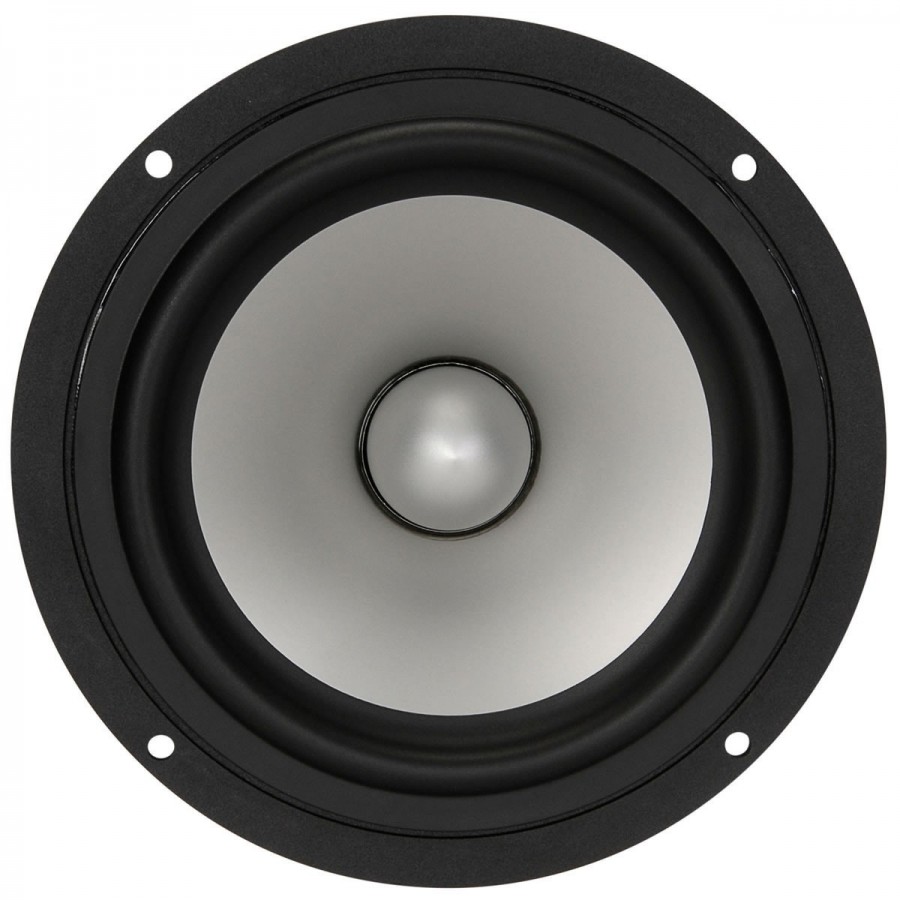

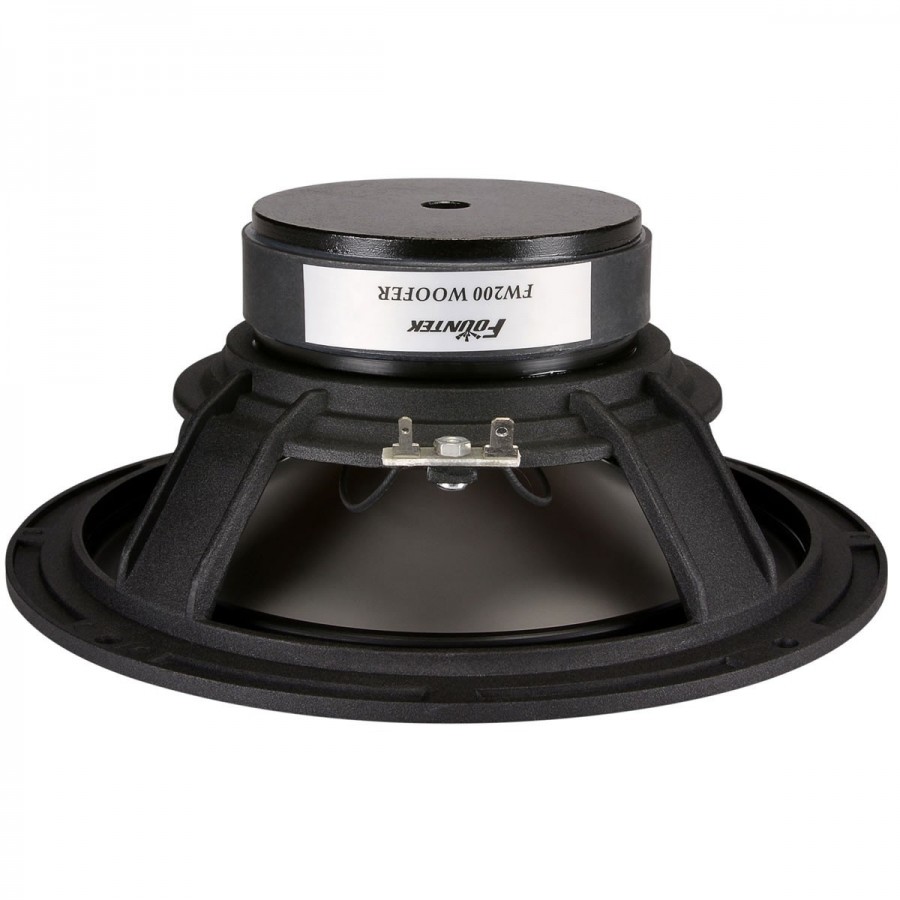

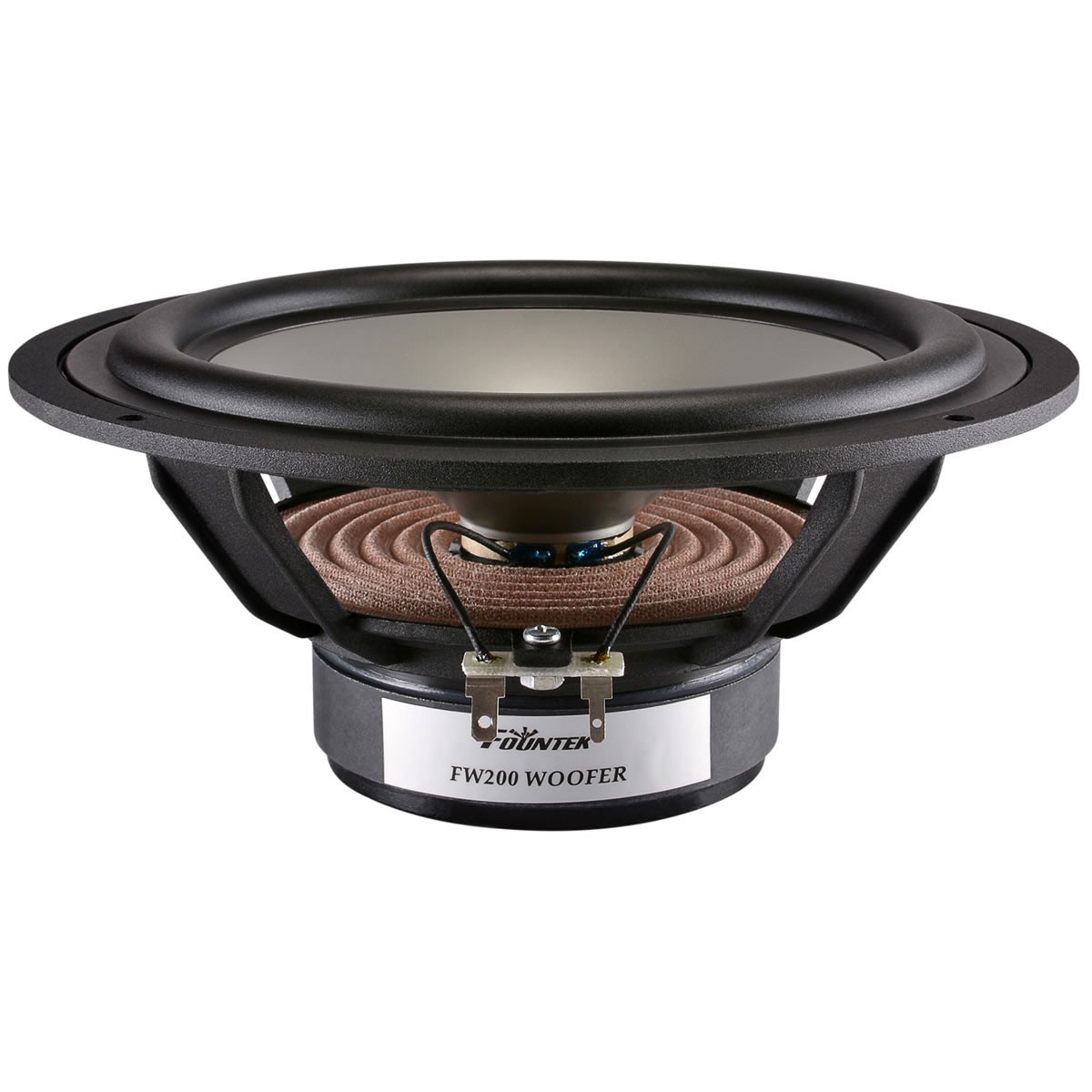

FOUNTEK FW200 Speaker Driver Midbass 75W 8 Ohm 88dB 35Hz - 3000Hz Ø20cm

FOUNTEK FW200 Haut parleur Médium 20cm

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Reference : 5928
New product

39,92 €tax excl.

Including 0,25 € for green tax
This product is no longer in stock
Produit garantie 2 ans

More info

This model has been replaced by its big brother, the FOUNTEK FW222.

he Fountek FW200 woofer is a rugged woofer with an attractive aluminum cone, a high-strength cast aluminum frame and a motor structure optimized for low distortion .

The result is a clean, neutral bass to midrange sound with no coloration from paper, Kevlar or carbon diaphragms. Its low resonance of 35 Hz allows you to obtain high quality bass in a small volume.





Specifications

Magnet system

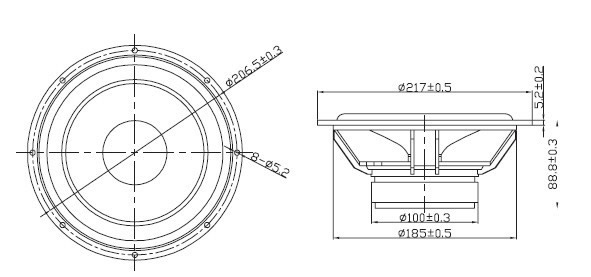

Overall Dimensions

217x88.8mm

Magnet system type

ferrite

Net.Weight

1.7Kg

Magnetic Gap Height

5.8mm

Nominal Power Handlng

75 W

B Flux Density

1.0T

Nominal Impedance

8 Ohms

Bl Product

6.83Tm

Sensitivity 1W/1M

88dB

Max Linear Excursion

4.35mm+/-

Frequency Response

35-3,000Hz

T/S Parameter



Resonant frequency

35.7Hz

Cms

0.948mm/N

Voice Coil

Sd

213.8cm^2

Voice Coil Diameter

36mm

Vas

61.6 litre

Voice Coil Height

14.5mm

Mmd

19.129gm

Voice Coil Former

aluminum

Mms

20.927gm

Voice Coil Wire

copper

Qms

2.258

Number of Layers

2

Qes

0.683

DC Resistance

6.8 Ohms

Qts

0.525



https://www.audiophonics.fr/images2/5928/5928_FOUNTEK200_2.jpg



https://www.audiophonics.fr/images2/5928/5928_FOUNTEK200_3.jpg


Data sheet
Speaker Power (W RMS)75
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (cm)200
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)88
Xmax (mm)4
Lowest frequency35
Highest frequency3000
