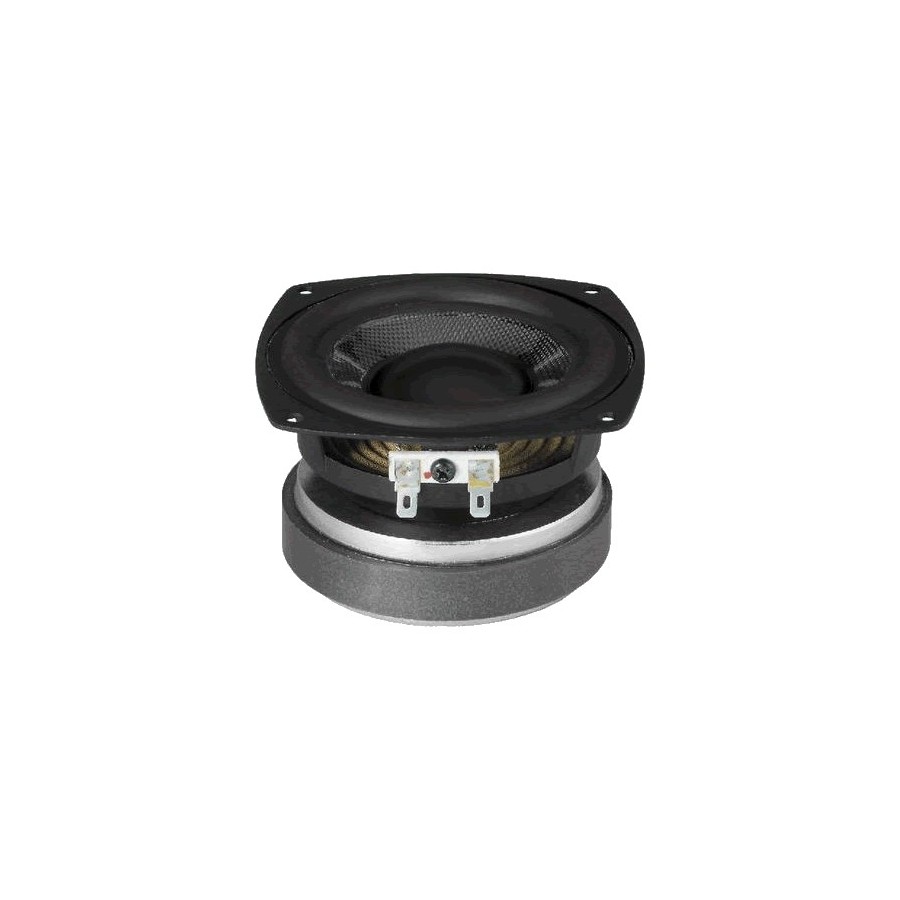

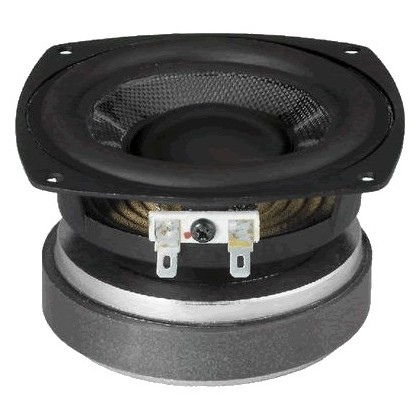

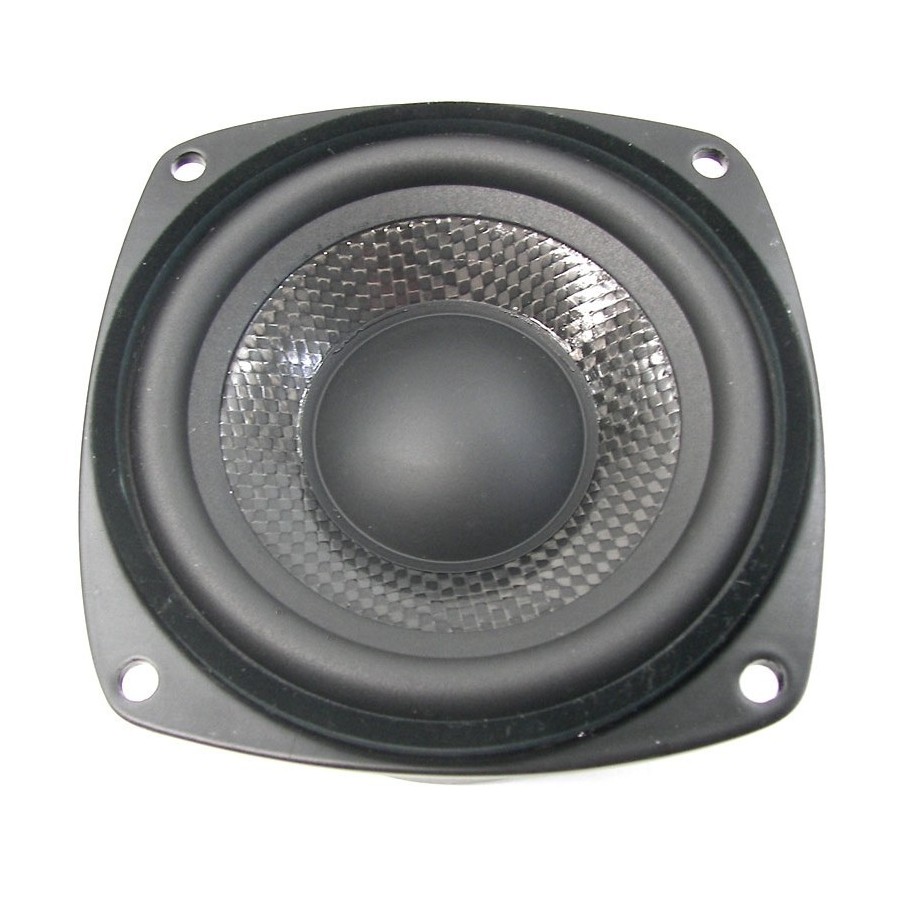

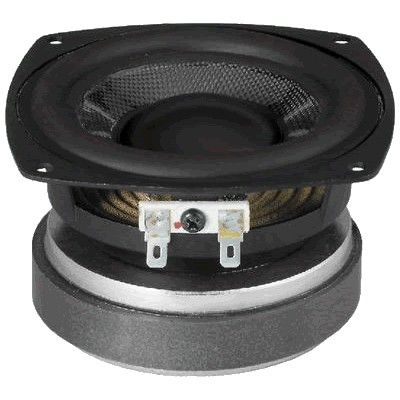

MONACOR SPH-100C Speaker Driver Midbass 30W 8 Ohm 84dB Ø10cm

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 827
New product

69,90 €tax incl.

58,25 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info
50 W MAX , 8 Ω Hi-Fi Mid-Bass Loudspeaker

This carbon diaphragm loudspeaker provides a high level of bass for its diameter. It will be suitable for the design of small volume speakers of high quality.
Speakers Speakers
src = "http://www.monacor.com/global_img/blank.gif" alt = "" width = "10" height = "1" />
Impedance (Z)8 Ω
Resonance frequency (fs)50 Hz
Maximum bandwidthf3-6000 Hz
Freq. cut. (fmax).2000 Hz
Maximum power50 W MAX
Rated power (P)30 W RMS
Pressure sound. (1W / 1m)84 dB
Compliance susp. (Cms)1.45 mm / N
Moving mass (Mms)7 g
Mechanical resistance (Rms)0.6 kg / s
Mechanical overvoltage. (Qms)3.53
Electrical overvoltage (Qes)0.50
Fact. total surge (Qts)0.44
Volume equ. (VAS)6 l
DC resistance. (Re)6 Ω
Inductance coil. (The)0, 65 mH
Coil diameter25.5 mm
Coil holderKapton
Height winding14 mm
Air gap height6 mm
Linear Excursion (X MAX )± 4 mm
Transmitting surface (Sd)54 cm 2
Flight. air displaced (Vd)21.6 cm 3
Force factor (BxL)5.1 Tm
Ref. (No)0.1%
Magnet diameter90 mm
Magnet Weight10.7 oz.
cuttingØ 98 mm
<sVerdana; font-size: small; "> Mounting Depth50 mm
Dimensions106 x 106 mm
Weight0.85 kg
Recommended Min Volume
<img src = "http://www.monacor.com/global_img/blank.gif" alt = "" width = "10" height = "1" />
closed2.5 l
bass reflex6 l

[Img-20592-left-thickbox_default]


Data sheet
Speaker Power (W RMS)30
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)100.0
Diaphragm typeCarbon kevlar
Efficiency / Sensitivity (dB)84.0
Max Linear Excursion (Xmax) (mm)4.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)6000
