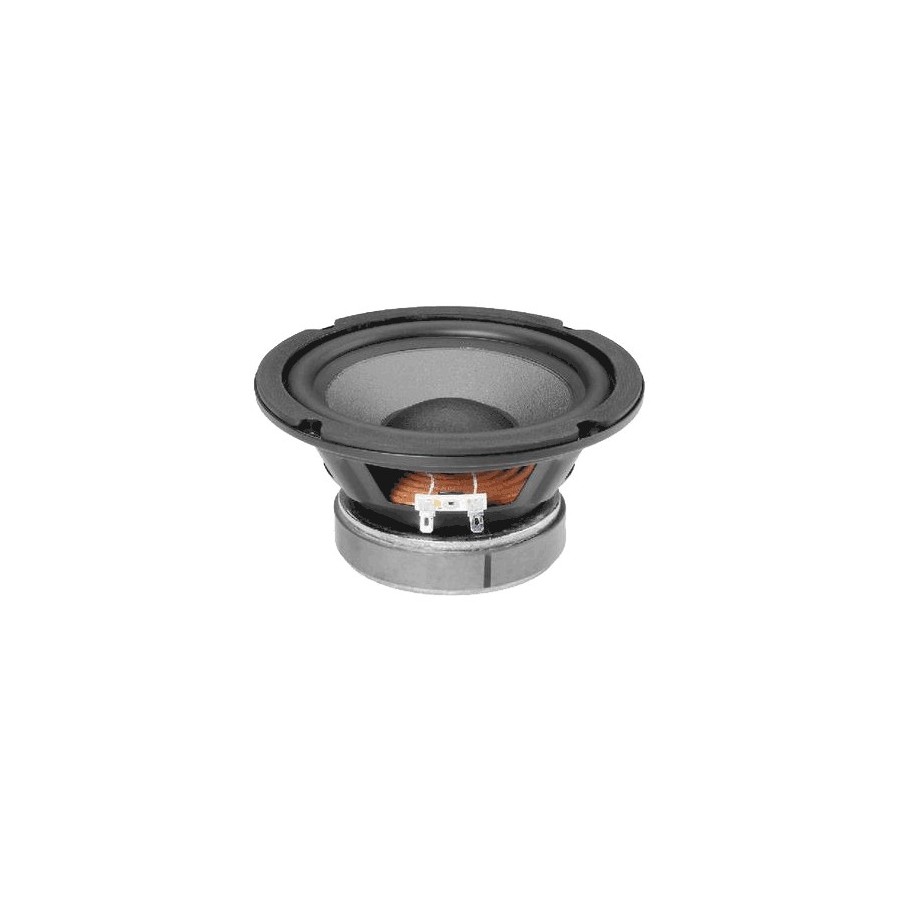

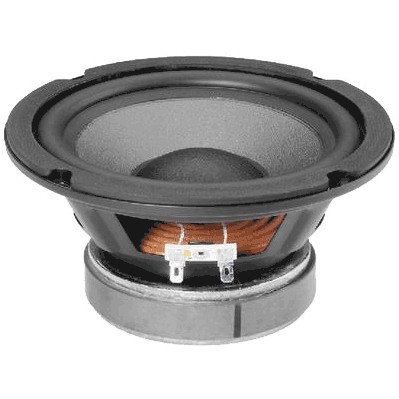

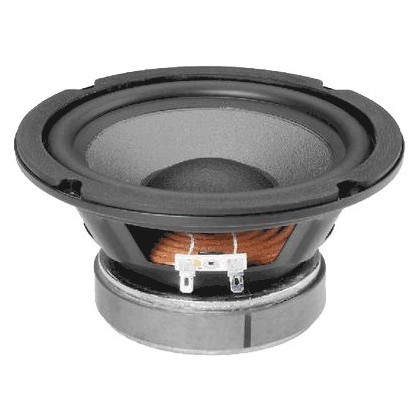

MONACOR SPH-170TC Speaker Driver Midbass 2x40W 2x8 Ohm 88dB Ø16.6cm

Monacor SPH-170TC
No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points

Reference : 838
New product

56,90 €tax incl.

47,42 € tax excl.
Including 0,30 € for green tax

- +

Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty
More info
 Bass-mid-speaker, 2 x 60 W MAX , 2 x 8 Ω

Double coil, polypropylene membrane, good attenuation of mediums, for small subwoofer or speakers 2 ways.

Klang + Ton 6/00

"A good speaker!"

 Impedance (Z) 2 x 8 Ω
 Resonance frequency (fs) 33 Hz
 Maximum bandwidth f3-5000 Hz
 Freq. cut. (fmax). 3000 Hz
 Maximum power 2 x 60 W MAX
 Rated power (P) 2 x40 W RMS
 Pressure sound. (1W / 1m) 88 dB
 Compliance susp. (Cms) 1.38 mm / N
 Moving mass (Mms) 16 g
 Mechanical resistance (Rms) 1.1 kg / s
 Mechanical overvoltage. (Qms) 2.98
 Electrical overvoltage (Qes) 0.48
 Fact. total surge (Qts) 0.41
 Volume equ. (VAS) 31 l
 DC resistance. (Re) 2 x 7.5 Ω / 3.8 Ω
 Inductance coil. (The) 2 x 0.6 mH / 0.6 mH
 Coil diameter 25.5 mm
 Coil holder Kapton
 Hwinding author 10.5 mm
 Air gap height 6 mm
 Linear Excursion (X MAX ) ± 2.25 mm
 Transmitting surface (Sd) 127 cm 2
 Flight. air displaced (Vd) 28.6 cm 3
 Force factor (BxL) 5.2 Tm
 Ref. (No) 0.2%
 Magnet diameter 100 mm
 Magnet Weight 13.3 oz.
 cutting Ø 142 mm
 Mounting depth 82 mm
 Dimensions Ø 166 mm
 Weight 1.4 kg
 Recommended Min Volume
 closed 16 l
 bass reflex 36 l
Data sheet
Speaker Power (W RMS)40.0
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)166.0
Diaphragm typePolypropylene
Efficiency / Sensitivity (dB)88.0
Max Linear Excursion (Xmax) (mm)2.2
Lowest frequency (Hz)N/A
Highest frequency (Hz)5000
