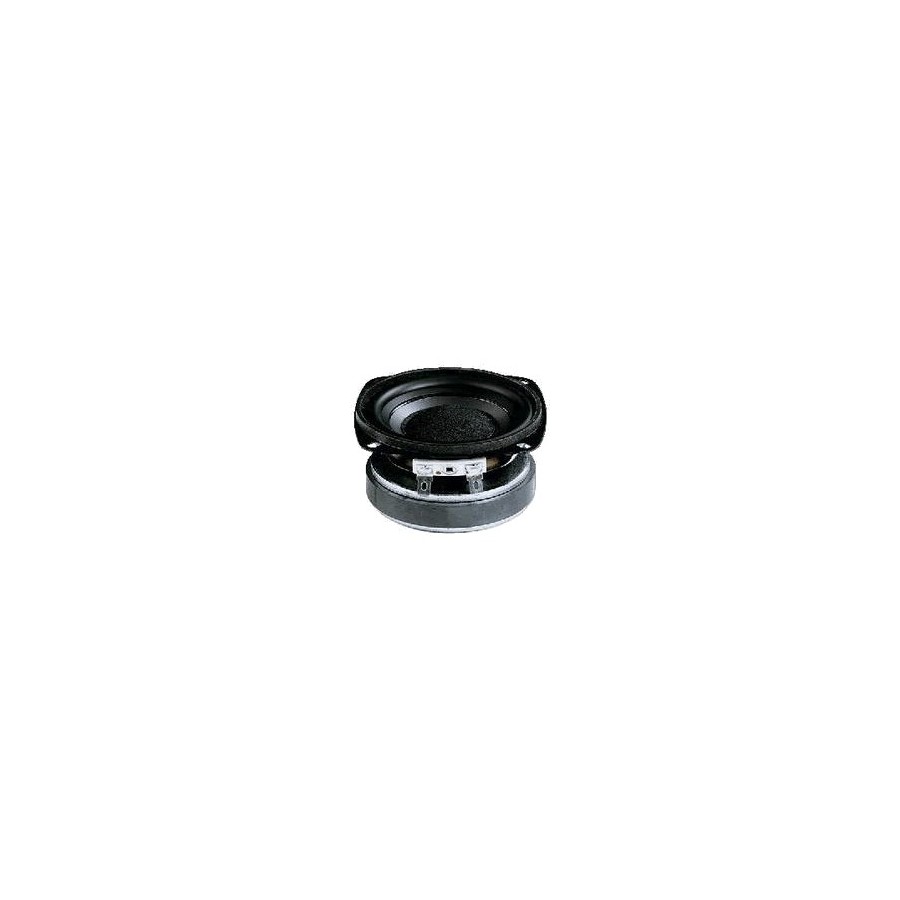

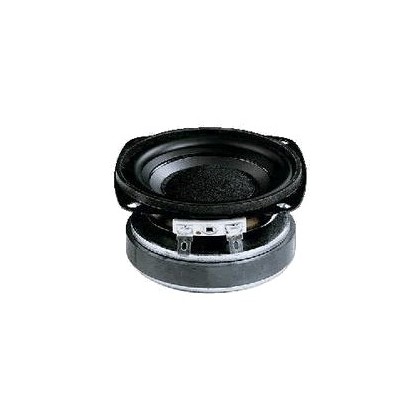

MONACOR SPH-75/8 Speaker Driver Midbass 15W 8 Ohm
![[GRADE A] AUNE S17 PRO Discrete Class A Balanced Headphone Amplifier / Preamplifier 7500mW @32Ω Black](https://www.audiophonics.fr/69093-thumb_default/aune-s17-pro-black.jpg)
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
30 Watt MAX , 8 Ω (/ 8) and 4 Ω (/ 4) Hi-Fi Miniature Bass Subwoofers
Polypropylene membrane, rubber suspension, oversized magnet with decompression hole, for small speakers, eg in surround.
| Speakers Speakers | ||
| Impedance (Z) | 8 Ω | |
| Resonance frequency (fs) | 85 Hz | |
| Maximum bandwidth | f3-16,000 Hz | |
| Maximum power | 30 W MAX | |
| Rated power (P) | 15 W RMS | |
| Average sound pressure (1 W / 1 m) | 83 dB | |
| Compliance susp. (Cms) | 1.3 mm / N | |
| Moving mass (Mms) | 2.7 g | |
| Mechanical overvoltage. (Qms) | 3.9 | |
| Electrical overvoltage (Qes) | 0.65 | |
| Fact. total surge (Qts) | 0.56 | |
| Volume equ. (VAS) | 1.9 l | |
| DC resistance. (Re) | 6.2 Ω | |
| Force factor (BxL) | 34 Tm | |
| Inductance coil (The) | 0.15 mH | |
| Coil diameter | 20.5 mm | |
| Coil holder | Kapton | |
| Linear Excursion (X MAX ) | ± 0.75 mm | |
| Transmitting surface (Sd) | 32 cm 2 | |
| Magnet Weight | 5.4 oz. | |
| Weight | 0.4 kg |
