HIDIZS S8 PRO ROBIN Portable Headphone Amplifier DAC Silver

HIDIS S8 PRO ROBIN Portable Headphone Amplifier DAC 2x CS43131 Balanced 32bit 384kHz DSD256 Silver New
The S8 Pro Robin from Hidizs is a portable balanced DAC and headphone amplifier combo based on two Cirrus Logic CS43131 converter chips and capable of delivering 160mW + 160mW at 32 Ω. Furthermore, the device supports sampling rates up to PCM 32 bit 384kHz and DSD256. Moreover, this device has dual balanced and unbalanced outputs to suit all applications.

No customer reviews yet, login to write a review.

By buying this product you get 7 loyalty points


Yes, notify me when available !
Reference : 19341
New product

79,00 €tax incl.

65,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

HIDIZS S8 PRO ROBIN Portable Headphone Amplifier DAC 2x CS43131 Balanced 32bit 384kHz DSD256 Silver

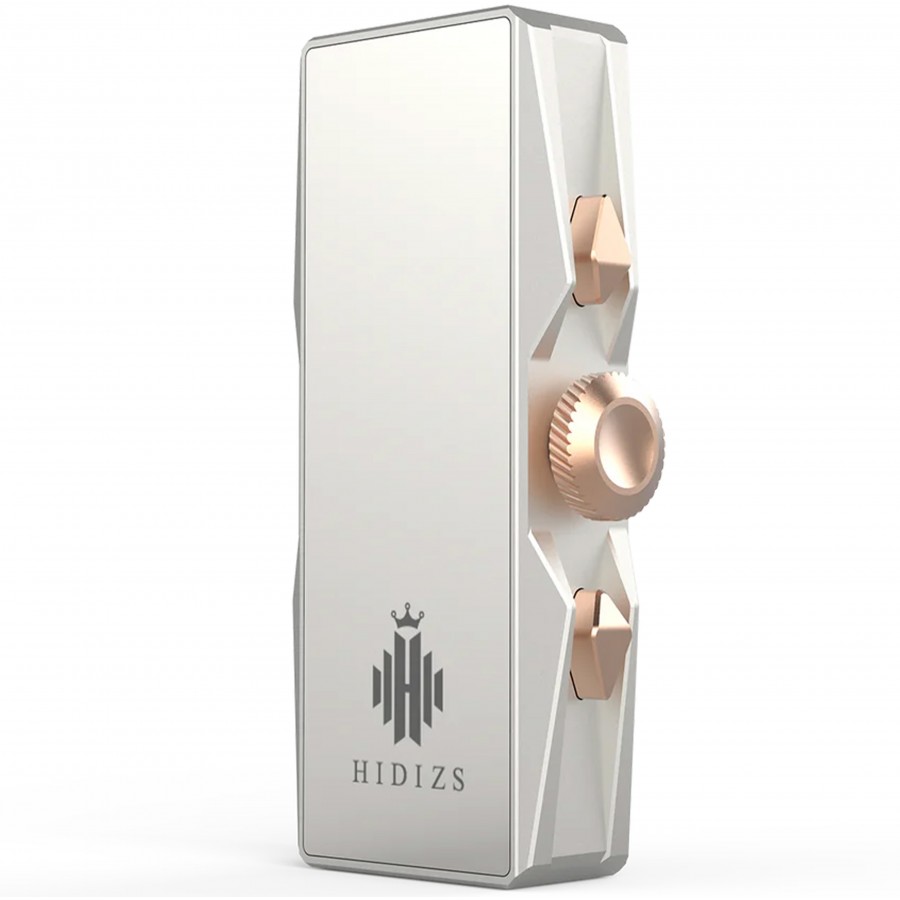

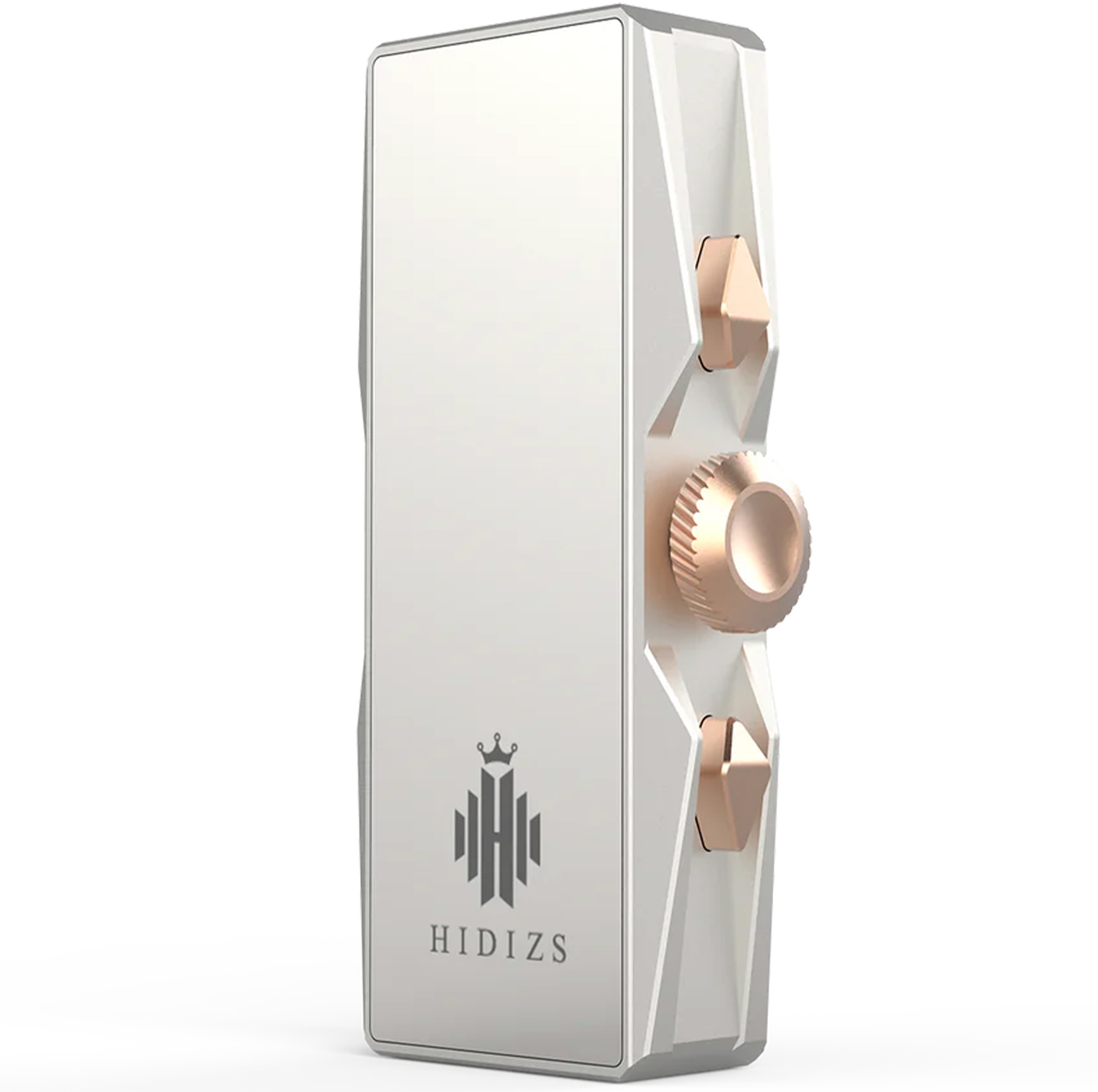

HIDIZS S8 PRO ROBIN : Front view

The S8 Pro Robin from Hidizs is a portable balanced DAC and headphone amplifier combo based on two Cirrus Logic CS43131 converter chips and capable of delivering 160mW + 160mW at 32 Ω. Furthermore, the device supports sampling rates up to PCM 32 bit 384kHz and DSD256. Moreover, this device has dual balanced and unbalanced outputs to suit all applications.

HIDIZS S8 PRO ROBIN : CS43131 chip

Hidizs S8 Pro Robin : Dual DAC architecture

The Hidizs S8 Pro Robin features a symmetrical dual 32-bit DAC architecture, powered by two CS43131 chips from Cirrus Logic. Single-end output power is up to 80mW+80mW@32Ω, and balanced output up to 160mW+160mW@32Ω. The CS43131's 32-bit oversampling module uses mismatch shaping technology to eliminate distortion caused by on-chip component desynchronisation. Proprietary digital interpolation filters support five tuning filters with pseudo-linear phase and ultra-low latency, minimising pre-echo and ringing artefacts. Cirrus Popguard technology also eliminates unwanted output noise on power-up and power-down.

Hidizs S8 Pro Robin : Balanced and single-ended output

The Hidizs S8 Pro Robin offers two outputs: an single-ended 3.5 mm jack and a balanced 4.4 mm jack. This dual output not only exploits the DAC's balanced architecture to the full, but also allows it to be adapted to all usage scenarios.

HIDIZS S8 PRO ROBIN : example of use
HIDIZS S8 PRO ROBIN : white and black version

Hidizs S8 Pro Robin : Low noise and distortion

The Hidizs S8 Pro Robin stands out for its very low noise and distortion measurements. The balanced output has a harmonic distortion of just 0.0006%, a signal-to-noise ratio of 128dB and crosstalk of 110dB. The unbalanced output has a harmonic distortion of 0.0005%, a signal-to-noise ratio of 125dB and a crosstalk of 74dB.

Hidizs S8 Pro Robin : Great flexibility of use

The S8 Pro Robin has a USB-C input, guaranteeing excellent compatibility with a wide range of platforms, including Windows, Mac OS, iPad OS, Android, iOS and Harmony OS. Furthermore, the presence of 6 effect filters means that the S8 Pro Robin can adapt to any situation: wired headphones, Bluetooth headphones, active/passive speakers or Bluetooth speakers, this device will be able to get the best out of it.

Technical characteristics

Specifications
Product typePortable headphone amplifier and DAC
DAC Chip2x CS43131
Supported sampling ratesPCM up to 32 bit 384kHz
Native DSD up to DSD256
Input1x USB-C
Outputs1x Single-ended Jack 3.5mm
1x Balanced Jack 4.4mm
Compatible OSWindows, Mac OS, iPad OS, Android, iOS
SINGLE-ENDED HEADPHONE OUTPUT
Output power2x80mW @ 32Ω
Frequency response20Hz - 45kHz
Signal-to-noise ratio (SNR)125dB
Crosstalk74dB
Total harmonic distortion (THD)0.0005%
BALANCED HEADPHONE OUTPUT
Output power2x160mW @ 32Ω
Frequency response20Hz - 45kHz
Signal-to-noise ratio (SNR)128dB
Crosstalk110dB
Total harmonic distortion (THD)0.0006
General
Body materialCNC machined aluminum
Dimensions58 × 23 × 11mm
Weight17g
ColorSilver

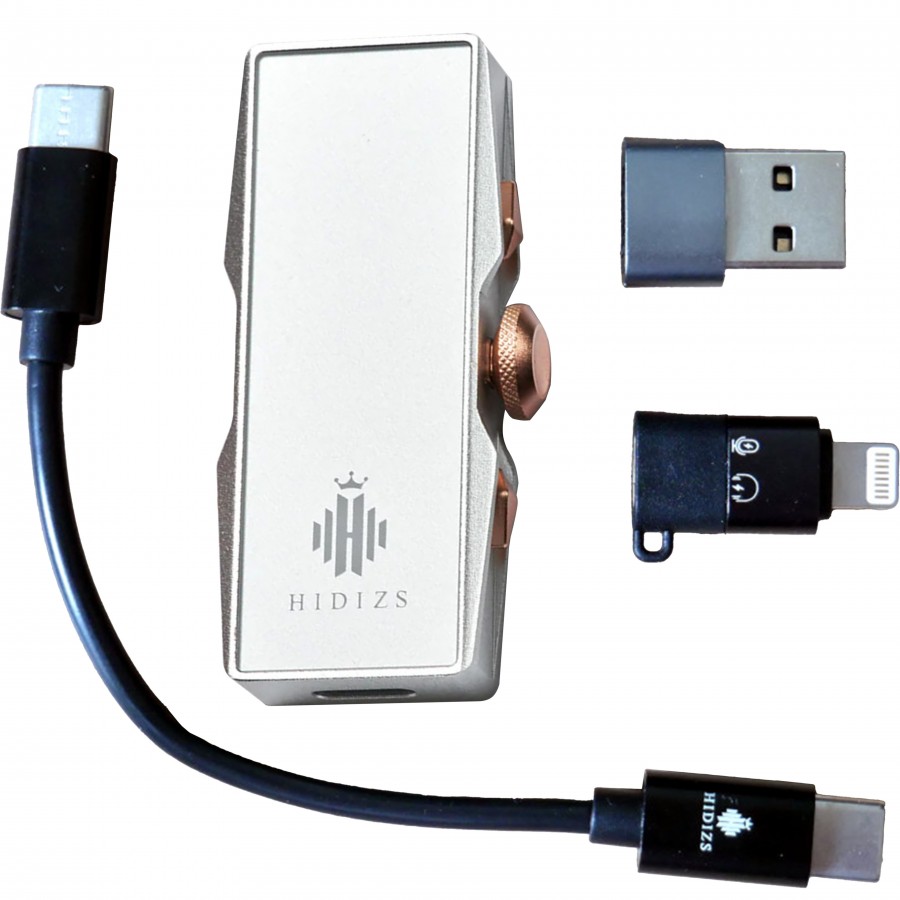

Package1x Hidis S8 Pro Robin
1x USB-C cable
1x USB-C to USB-A adapter
1x USB-C to Lightning adapter

Data sheet
InputUSB
OutputJack 3.5mm
OutputJack 4.4mm
DAC / ADC ChipCS43131
Max sampling rateDSD256
Max sampling rate384kHz
ColorSilver
ClassN/A
NetworkingNo
Remote ControlNo
