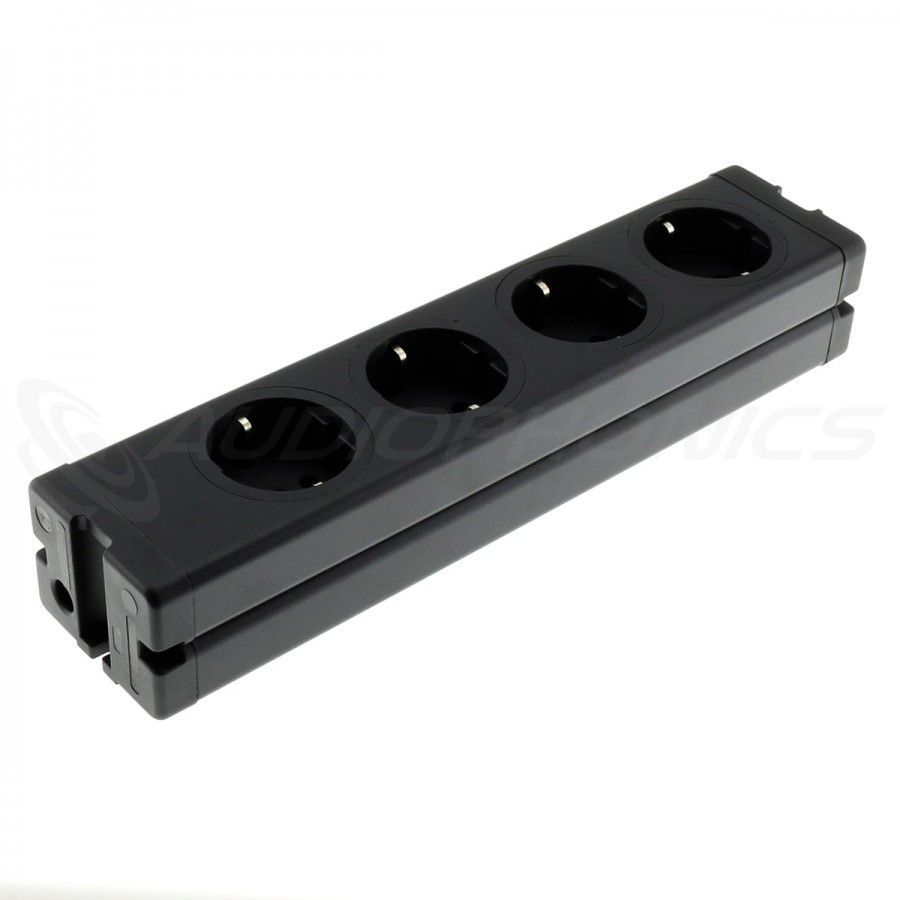

DIY Aluminum 4 ports Schuko Power Strip Black

Multiprise DIY aluminium 4 ports Schuko

Average votes for this product
4.1 / 5

By buying this product you get 3 loyalty points


Reference : 3450
New product

38,25 €tax excl.

Including 0,01 € for green tax

- +

Shipping date: 27-09-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

DIY Power Strip

Aluminium, 4 Schuko Ports, Black

Multiprise DIY Aluminium 4 Ports Schuko Noir

This DIY 4-port Schuko grounded power strip has a very good design quality, ideal for cleanly powering a HiFi audio system. The power supply rails are made of Copper alloy with large sections (about 6mm²) ensuring a very good conductivity. All components are integrated in a robust black aluminium housing.

The great feature of this power strip is that it is delivered without mains cable, so that you have the choice of this important element.

This power strip is supplied without mains cable, which must be purchased separately. For many high-end power cables, the cable entry of the power strip will need to be enlarged to 9mm diameter.

Technical characteristics

Specifications
Product typeDIY Power strip
Number of Schuko plugs4
Ground
Conductor rails materialCopper alloy (Brass)
Case materialAluminium + Plastic (power strip tip)
Dimensions (LxWxH)270 x 60 x 45mm
Origin of manufactureGermany
Power cableSold separately, to be assembled
ColorBlack
Weight900g
Multiprise DIY Aluminium 4 Ports Schuko Noir

Dismantling the power strip

The method of disassembling the mains cable for installation of the mains cable is as follows:

      Dismantle the 4 Schuko sockets by removing the central screw on each one.
      Open the power strip in 2 by separating the upper and lower parts of the socket.
      Unscrew the ground nut inside the power strip. This will allow you to slide the plugs.
      Once the first plug has been removed, you will find a terminal block with a screw on the top of the rails.
Dismantle the 4 Schuko sockets by removing the central screw on each one.

Data sheet
Number of sockets4
FilteringNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.1 / 5
9 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Bonne qualité
Multiprise de bonne qualité mais le montage du câble secteur n'est pas évident...j'ai bien mis 2 heures pour
monter cette satanée Multiprise !!
Un petit tutoriel serait le bienvenue
 (0)
 (0)
This review has been posted for DIY Aluminum 4 ports Schuko Power Strip Black
Note :
 3/5
Date :
Le branchement des deux cosses Ph & N n'est pas très génial et empêche de remettre la prise la plus proche. J'ai préféré souder ces deux fils au milieu de chaque barrette. Une fois cette modif faite, bon produit.
 (0)
 (0)
This review has been posted for DIY Aluminum 4 ports Schuko Power Strip Black
Note :
 5/5
Date :
A ce prix, il n'y a rien d'autre d'aussi sérieux...But you must Do It Yourself.
 (0)
 (0)
This review has been posted for DIY Aluminum 4 ports Schuko Power Strip Black
Note :
 4/5
Date :
Casse tête
Belle fabrication, restituton en fonction du câble choisi, robuste, peu encombrant, excellent prix.
Mais un casse tête à démonter et à remonter, un enfer. Simplissime sûrement pour la deuxième, mais que de temps et d'agacement pour y arriver, je déconseille ++ . Il existe une version supérieure et montée... Plus jamais ça.
Il suffirait seulement d'avoir un vrai schéma de démontage et de câblage fourni ...
PS je suis une personne calme et minutieuse.
 (0)
 (0)
This review has been posted for DIY Aluminum 4 ports Schuko Power Strip Black
Note :
 5/5
Date :
Astuce de cablage:
Montée avec un câble Yarbo ( ça date!), j'ai coupé la gaine noire(à l'entrée de la prise), gaine que j'ai remplacée par un morceau de gaine thermo qui s'adapte aux 2 diamètres : ça rentre tout juste! et c'est aussi solide .
 (1)
 (0)
This review has been posted for DIY Aluminum 4 ports Schuko Power Strip Black
