MUNDORF BS140 Copper Wire Ferron Core Coil 18mH

Mundorf BS140 coils are high performance models for low frequency filtering. The core is made of Feron which is heat treated after production. This treatment gives it an optimal internal structure for good magnetic characteristics with very low losses and low distortion.

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 2766
New product

64,90 €tax incl.

54,08 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

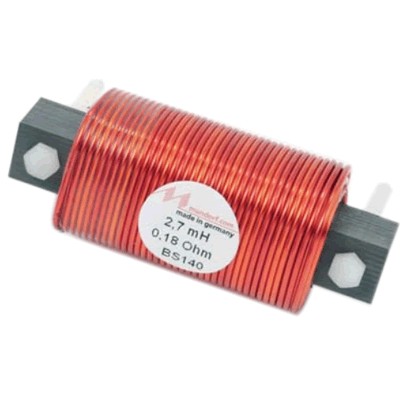

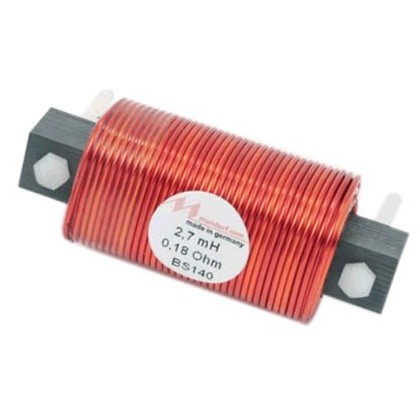

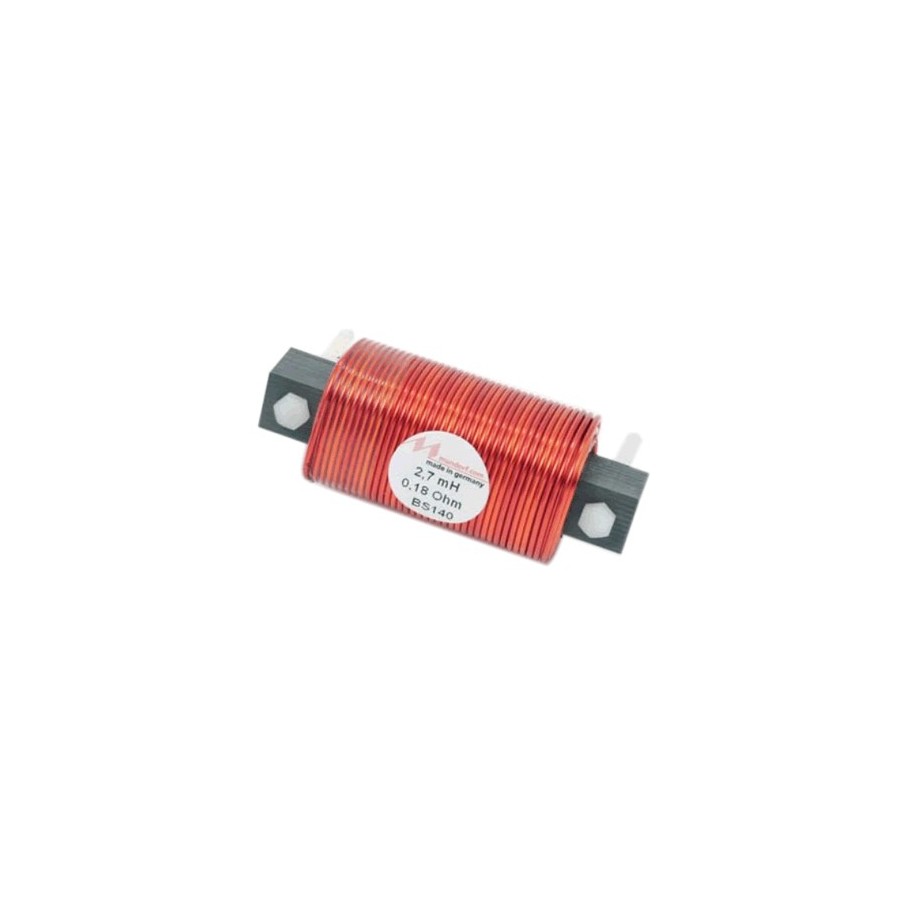

Mundorf BS140 Wire Coil

Copper Coil Feron Core 18mH

Mundorf BS100 Wire Coil Bobine Cuivre Noyau Feron

Mundorf BS140 coils are high performance models for low frequency filtering. The core is made of Feron which is heat treated after production. This treatment gives it an optimal internal structure for good magnetic characteristics with very low losses and low distortion. Their power handling is also higher than conventional ferrite core coils. The "Baked Varnish" finish of the BS71, BS100 and BS140 series allows to limit vibrations and to use a maximum wire diameter for a reduced electrical resistance.

Technical characteristics

Specifications
Product typeCoil
Inductance18mH
Resistance0.54Ω
Conductor materialCopper
Tolerance±3%
DimensionsL = 130mm
T/B = 18mm
A = 115mm
W = 99mm
M = 6mm
Mundorf BS100 Wire Coil Bobine Cuivre Noyau Feron

Data sheet
Inductance (mh)18.0
