DENAFRIPS ARCE Network Player Digital Transport Silver
By buying this product you get 121 loyalty points
Denafrips Arce Network Player Digital Transport Roon Bridge HQPlayer NAA Airplay DLNA 32bit 384kHz DSD256 Silver
The Denafrips Arce is a digital transport network player that prioritizes sound quality above all else. This remarkable device supports Roon Bridge, HQPlayer NAA, AirPlay, and DLNA, meeting the needs of audiophiles looking for a variety of playback options. It also offers smooth playback of local files via USB, SD card, and NAS, allowing users to effortlessly enjoy their music library. The network connection is made via the RJ45 Ethernet port, while the signal output can be made via numerous digital ports: AES/EBU, coaxial, Toslink optical, or I2S LVDS via HDMI. Other connectors allow you to connect an external clock or play local files via USB Host or TF card slot. The Arce is capable of delivering up to 32bit 384kHz and DSD256 via its I2S output, providing ultra-high-resolution streaming to the DAC in your Hi-Fi system.
The Denafrips Arce is not autonomous in network playback (it cannot directly access streaming services) and requires the use of a third-party application (such as BubbleUPnP, Mconnect, Roon, or Audirvana, for example) for music control and playback.

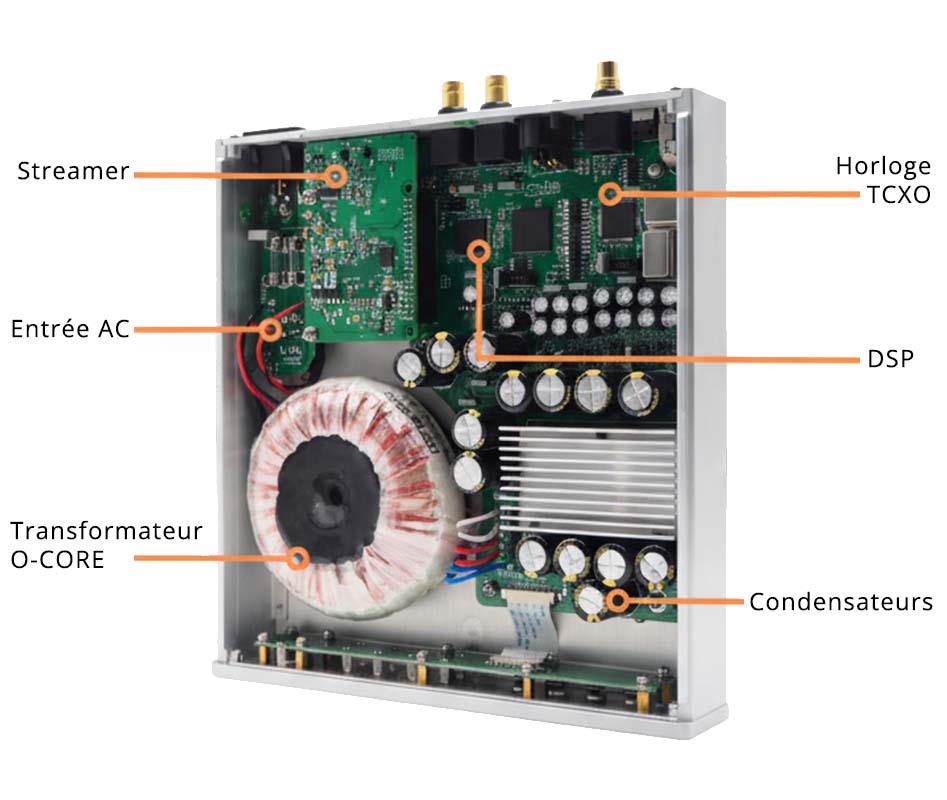

Denafrips Arce's architecture
Streamer
Proprietary streamer module developed by Denafrips with AMR Cortex quad-core processor and high-quality quartz oscillator.
AC power input
Deliberate design to eliminate the EMI filter for sound quality adjustment exclusive to new Denafrips products.
O-CORE Transformer
O-Core 60VA shielded transformer, manufactured in-house by Denafrips using high-purity copper.
TCXO clock
Temperature-compensated crystal oscillators for digital signal processing.
DSP
Benefits from Denafrips' years of experience in digital signal processing, integrated into an FPGA chip. Galvanic isolation via optocoupler.
Capacitors
OEM electrolytic capacitors compliant with Denafrips specifications. High-bias linear power regulator.

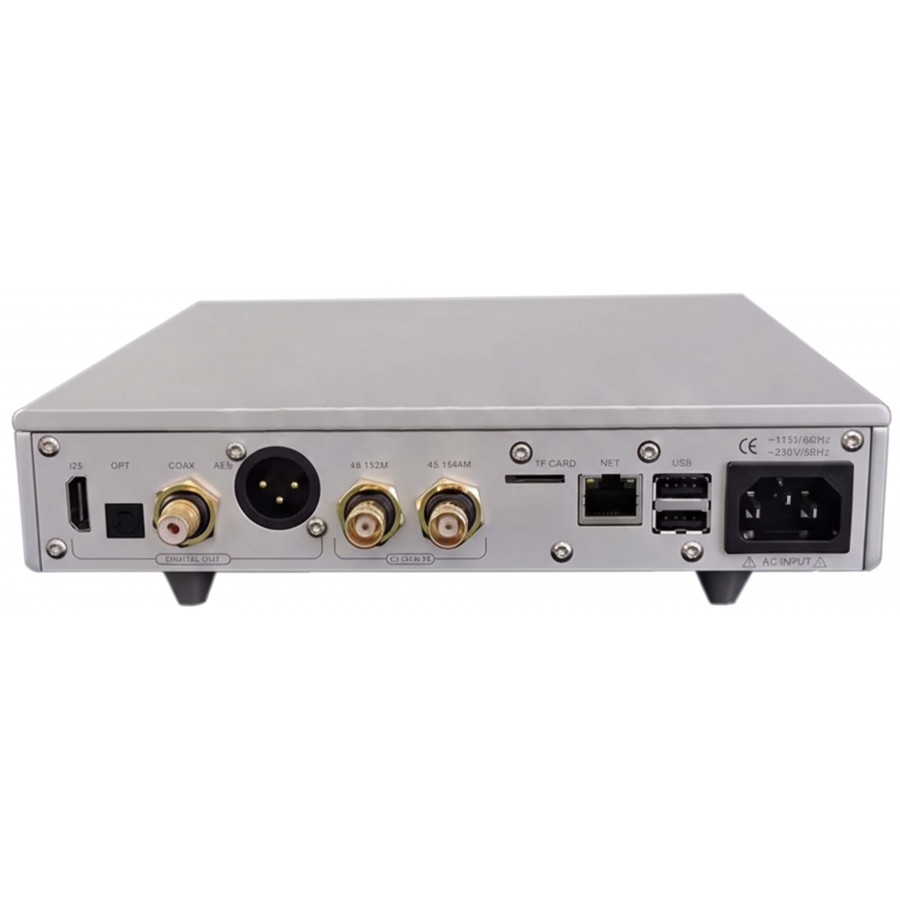

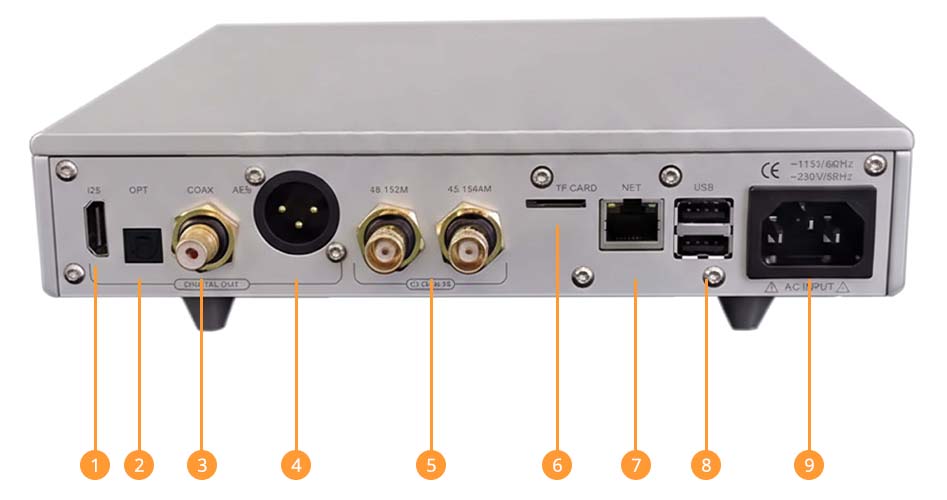

The Denafrips Arce's connectivity
| 1 | I2S output via HDMI LVDS |
| 2 | Toslink optical output |
| 3 | Coaxial output |
| 4 | AES/EBU output |
| 5 | External clock inputs 49.152M/45.1584M |
| 6 | TF card slot |
| 7 | RJ45 Ethernet port |
| 8 | 2x USB Host Port |
| 9 | AC power input |

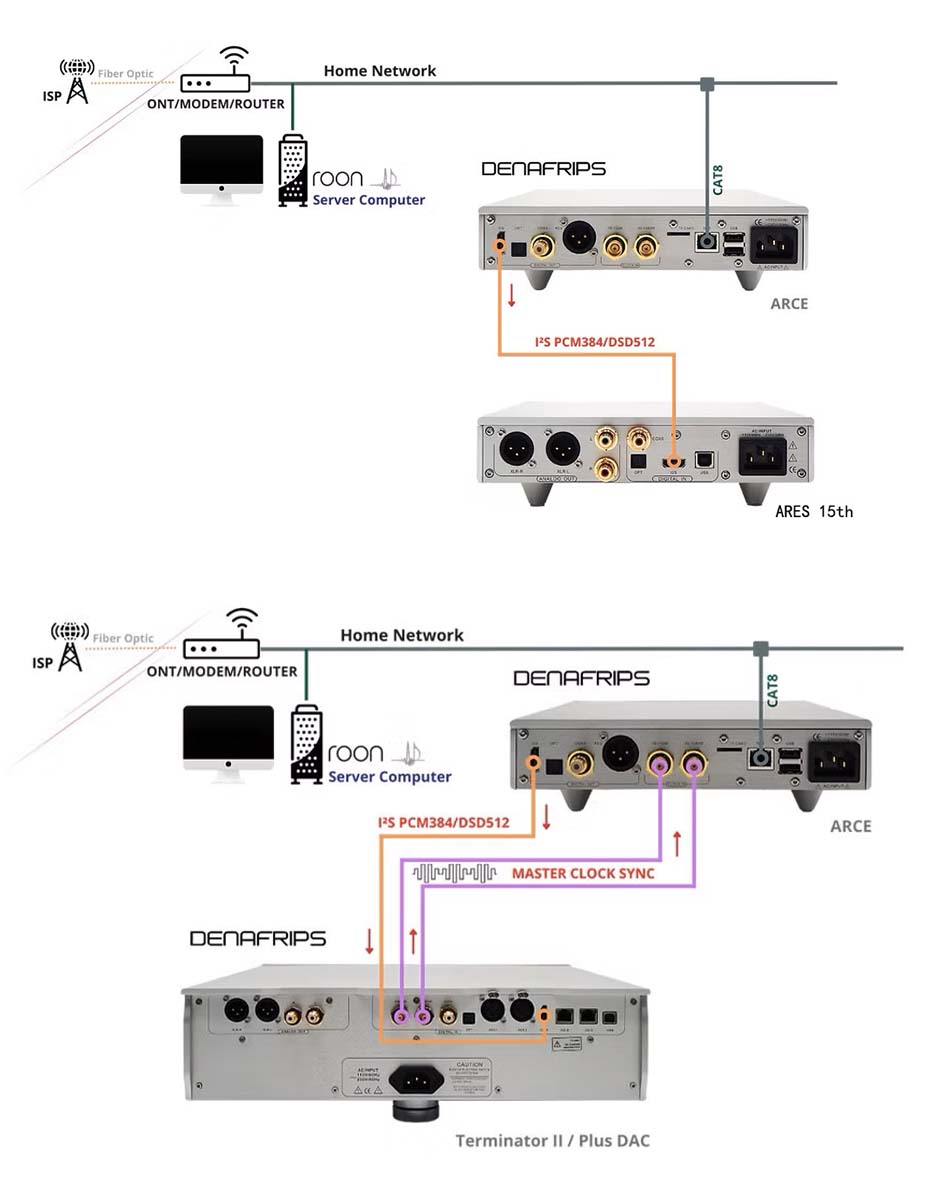

Examples of Denafrips Arce connections
Technical characteristics
| Specifications | |
|---|---|
| Product type | Network player Digital transport |
| Ethernet | RJ45 |
| Inputs | Ethernet TF card slot 2x USB Host ports |
| Outputs | 1x I2S via HDMI LVDS 1x Toslink Optical 1x Coaxial 1x AES/EU Output |
| Supported sample rates | Optical Toslink, coaxial, AES/EBU outputs: PCM up to 24bit 192kHz, DSD DoP64 I2S output via HDMI: PCM up to 32bit 384kHz, DSD DoP64, DSD up to DSD256 |
| Supported streaming protocols | Roon Bridge, HQPlayer NAA, Airplay (16/44.1kHz), DLNA (16/44.1kHz) |
| General | |
|---|---|
| Power supply | AC115V/60Hz, AC230V/50Hz |
| Energie consumption | ≤ 20W |
| Dimensions | 215 x 230 x 45mm |
| Weight | 3.5kg |
| Color | Silver |
| Package | 1x Denafrips Arce 1x Remote |
| Input | USB |
| Input | RJ45 |
| Input | Micro SD |
| Output | Optical Toslink |
| Output | Coaxial SPDIF |
| Output | I2S LVDS via HDMI |
| Output | AES/EBU |
| DAC / ADC Chip | NC |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Silver |
| Remote Control | No |
| Streaming services & Network protocols | DLNA |
| Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
| Streaming services & Network protocols | AirPlay |
| Streaming services & Network protocols | HQPlayer NAA |
