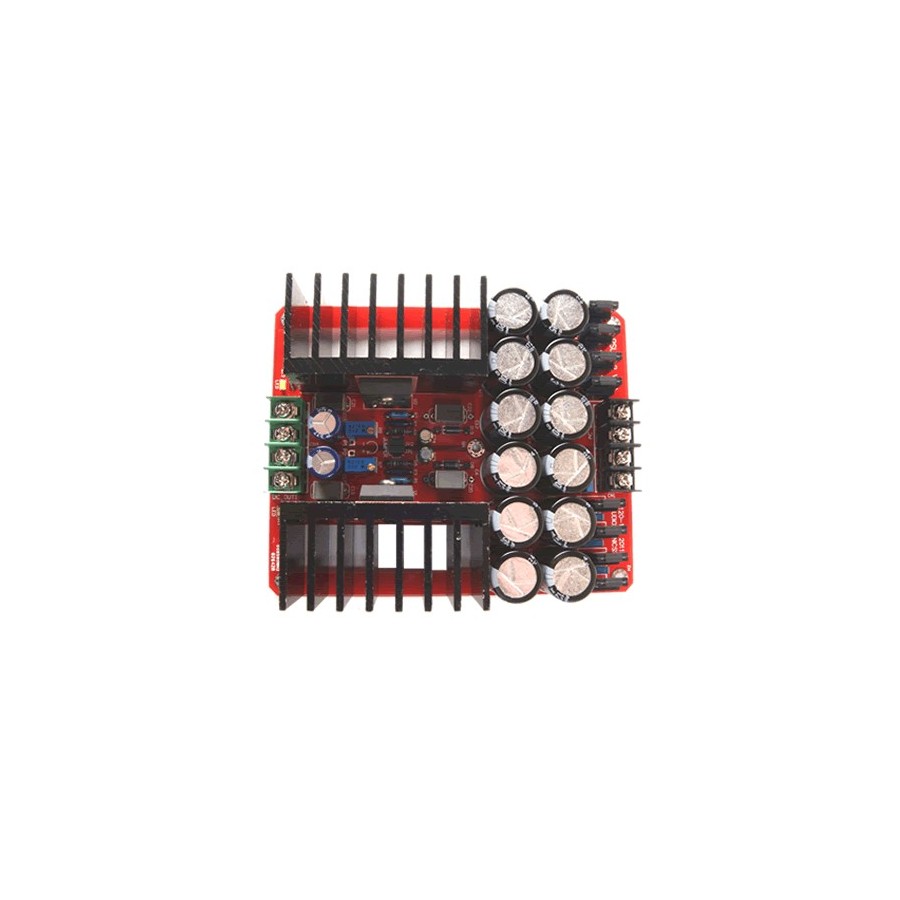

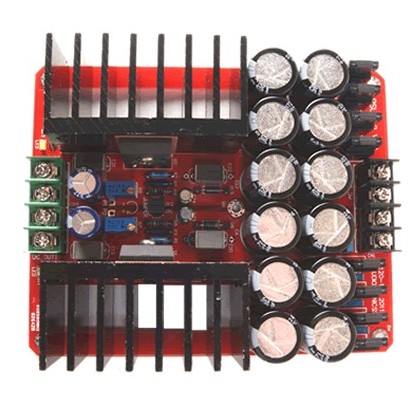

AUDIOPHONICS PSUD2 - Dual Controlled DC Power Module

AUDIOPHONICS PSUD2 - Dual Controlled DC Power Module

This card allows powering two to four TA amp amplifier modules TA2020 or TA2024

The AUDIOPHONICS reference module D2 has been designed to power one to two amplifiers or other 12V audio circuits
Example: Amplifier TA2020 or TA2024, DAC707, Musiland NG27, NG98 ...

But a potentiometer + a jumper allow to adjust the voltage of 4 to 24V from an alternating current source whose value is between 5 and 22V AC, respectively.br>This module is delivered assembled and calibrated to 12V DC, in this configuration it is necessary to use a transformer of 30 to 60VA and a voltage of 12VAC

Its particularly rigorous design and the quality of its components make it an excellent choice for powering a circuit-based digital amplifier T-Amp TRIPATH, or any other high fidelity low voltage components such as some DAC, headphone amps, portable digital audio players, etc ...
As many devices as it contributes to improve the sound quality.

Features:/ Strong>

• Integrated discharge resistance
• Output Voltageadjustable by potentiometers + jumpers: (Transformer voltage must match)
  • Jumper On: Adjustable from 4 to 14V
  • Jumper Off: Adjustable from 14 to 24V

Specifications:

• Output Voltage:/ Strong>Variable from 4 to 24V (Either up to 2x24V or + 24 / -24V)
• Max. Output current:Approximately 2.5A continuous rail
• Maximum connectable musical power: Approximately 60W per rail
• Dimensions: 100 x 125 x 32mm
• Weight:270g
• Transformer voltage:4 to 20V AC (10 / 12V AC for 12VDC output)
