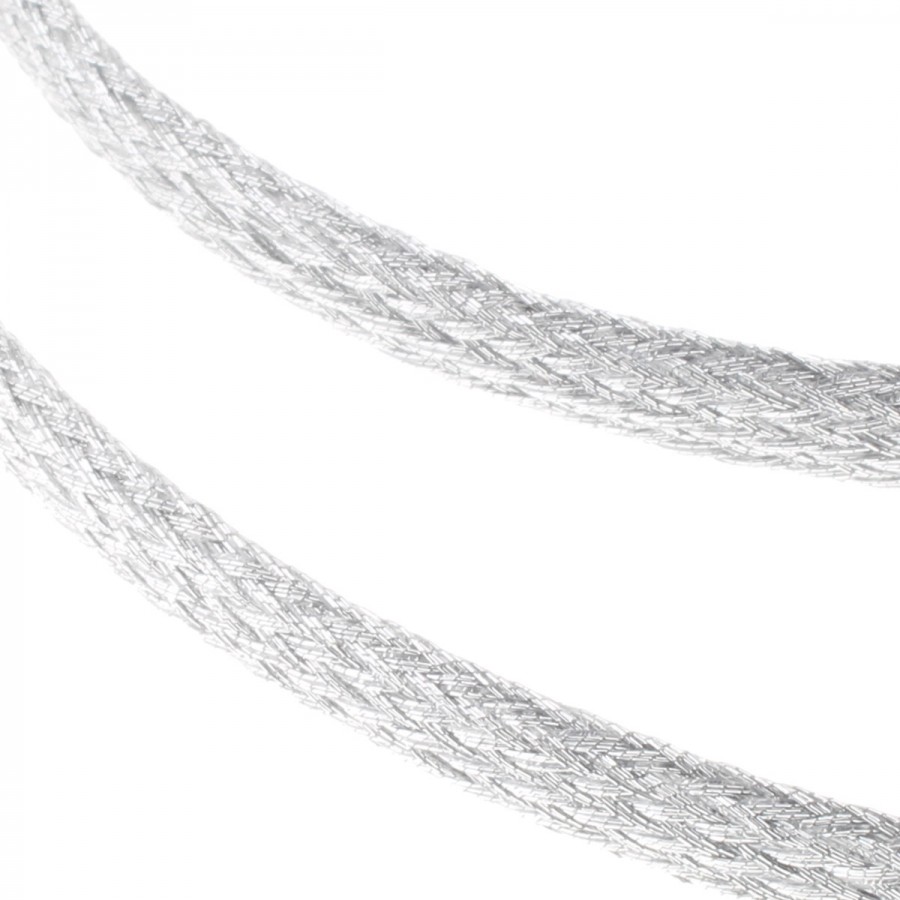

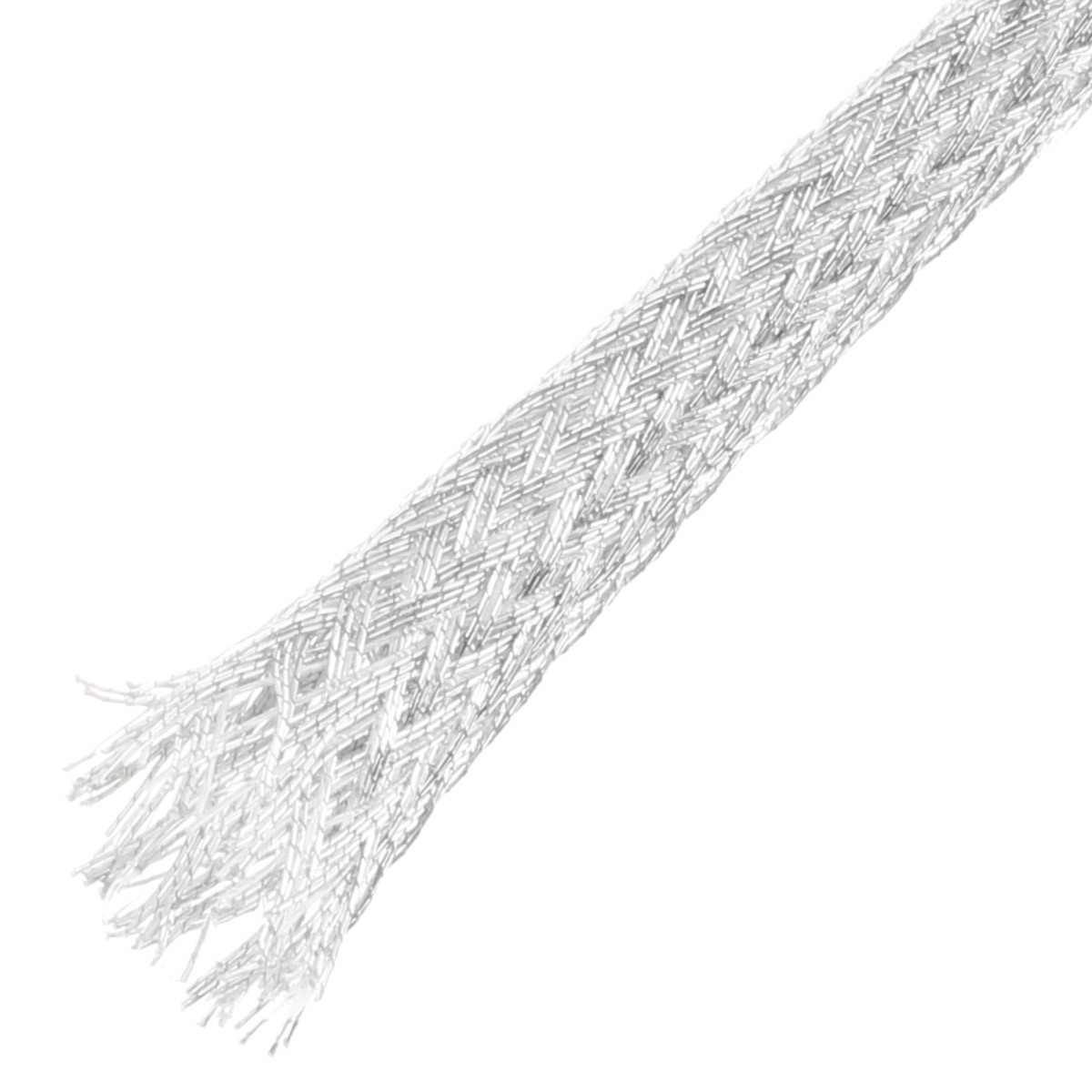

Braided Sheath Extensible PVC Silver 4-9mm
This Elecaudio PS-04 braided sleeving is made of PVC and can be used in a wide variety of applications. Thanks to its expandability and unique braiding, it allows a quick and easy installation on large connectors and cables that may have irregular shapes.
Its melting temperature is 160°C. It has good dielectric properties as well as excellent tensile strength and elasticity. Its versatility is such that it is used in fields as varied as the automotive industry, computers, underwater diving, electronics, electrical harnesses, audiovisual and even certain military applications.
Depending on the cable diameter, the effective sheath length can be reduced by up to 20%.
SHEATH LENGTH ACCORDING TO CABLE DIAMETER | |
---|---|
Cable diameter | Required sheath length |
Ø4mm | 1m |
Ø6mm | 1.08m |
Ø8mm | 1.15m |
Ø10mm | 1.3m |
Specifications | |
---|---|
Product type | Braided sheath |
Suitable cable diameter | 4 - 9mm |
Material | PVC |
Color | Silver |
Temperature resistance | -40°C / +125°C |
Fusion temperature | 160°C |
Quantity | Sold by meter |
