NL8902AN Dual OPA SOIC-8 (Unit)

New
The NL8902 is a very high-quality JFET input audio operational amplifier inspired by the MUSES range. Its specifications are suitable for high-end audio, but its price also makes it cost-effective for entry-level products.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 21193
New product

1,90 €tax incl.

1,58 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 09-10-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

NL8902AN Dual OPA SOIC-8 (Unit)

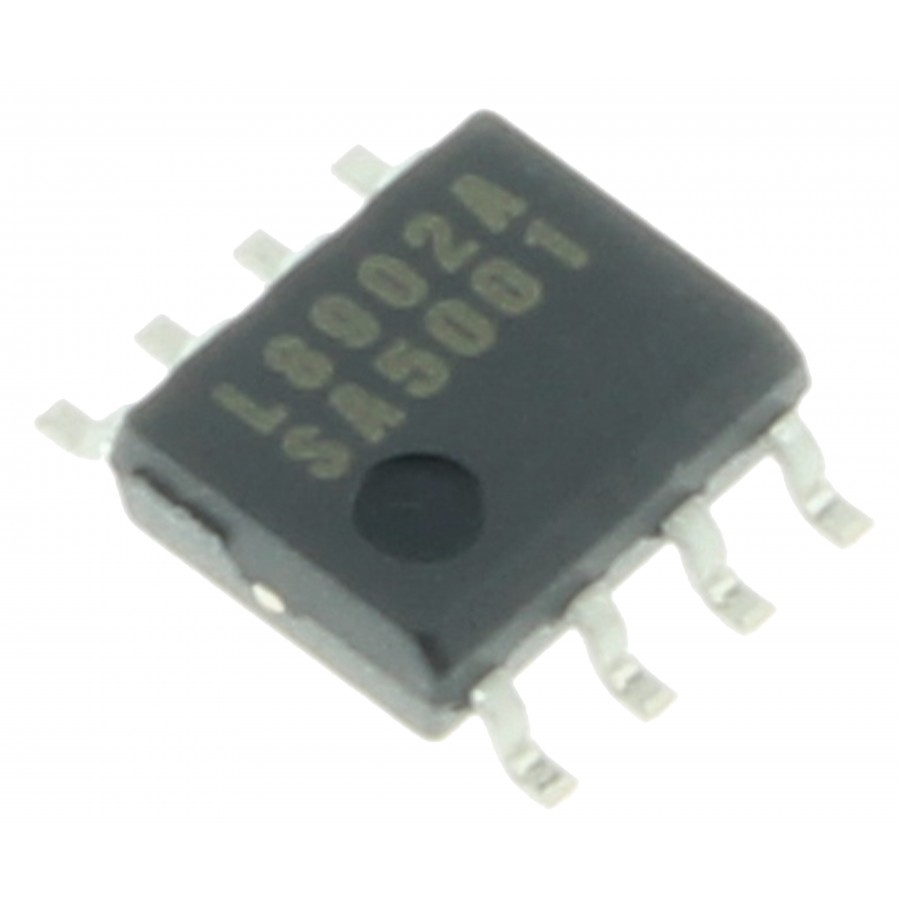

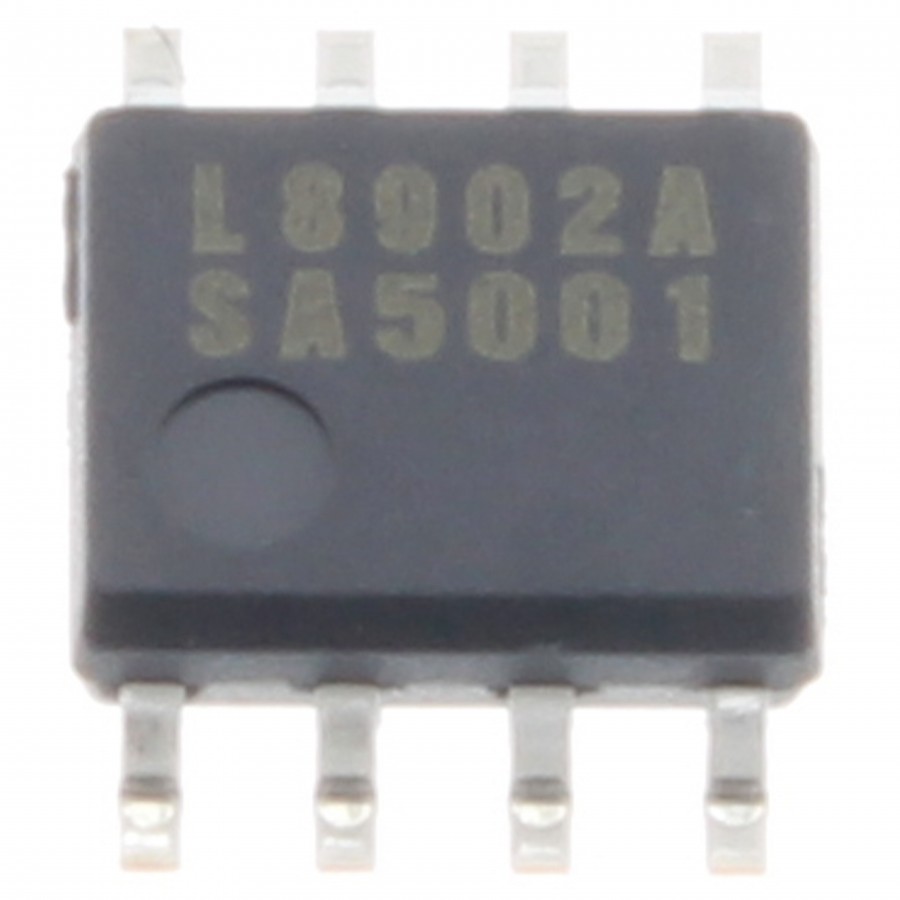

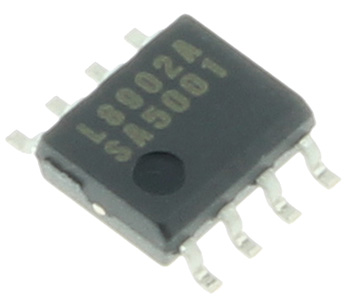

Photo of the NL8902AN OPA


The NL8902 is a very high-quality JFET input audio operational amplifier inspired by the MUSES range. Its specifications are suitable for high-end audio, but its price also makes it cost-effective for entry-level products.

The product features high immunity to electromagnetic interference and is not easily affected by external noise, resulting in clear and stable sound quality. The design also prevents phase inversion even when the input voltage exceeds the common-mode input voltage range, maintaining stable output even in the event of sudden input variations. It offers unity gain stability and can be used in a wide range of circuit designs.

Available here in a compact EMP 8 package, its excellent heat dissipation performance allows for mounting in confined spaces, improving equipment miniaturization and design flexibility. In addition, its excellent heat dissipation performance enables stable operation even at high output power.

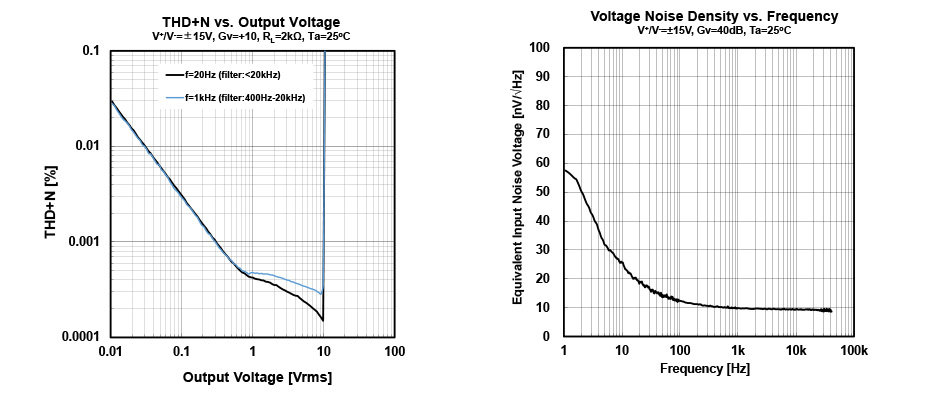

THD+N measurements of the NL8902AN OP amp

Technical characteristics

Specifications
Product typeDual OPA
FormatSOIC-8 (EMP-8)
Supply Voltage (min)±4V
Supply Voltage (max)±16V
Input Offset Voltage0.8mV
Input Offset Current0.005nA
Input Bias Current-
Supply Current2.6mA
Gain Bandwidth9MHz
Slew Rate20V/μs
Noise10nV/√Hz
General
PackageSold by unit

Data sheet
OPA TypeDual
