DAYTON AUDIO DMA105-PR Aluminium Passive Radiator 37.9Hz Ø10.2cm

DAYTON AUDIO DMA105-PR Aluminium Passive Radiator 37.9Hz Ø10.2cm
The DMA105-PR of Dayton Audio is a passive radiator of 10.2cm in diameter. This is an excellent solution for a bass boost in smaller speakers. This small passive radiator has everything you would expect from larger models, including an adjustable mass, an Aluminium cone and a rubber surround.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 13746
New product

10,75 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 25-11-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Dayton Audio DMA105-PR

Aluminium Passive Radiator 37.9Hz Ø10.2cm

Dayton Audio DMA105-PR Radiateur Passif Aluminium 37.9Hz Ø10.2cm

The DMA105-PR of Dayton Audio is a passive radiator of 10.2cm in diameter. This is an excellent solution for a bass boost in smaller speakers. This small passive radiator has everything you would expect from larger models, including an adjustable mass, an Aluminium cone and a rubber surround. Visually identical to the Dayton Audio DMA range of wideband speakers, this DMA105-PR can also be used with any other small speaker that requires reinforcement in low frequencies. The included threaded rod and butterfly nut at the rear of the diaphragm make it easy to add mass to adjust the passive radiator to your project.

Dayton Audio DMA105-PR Radiateur Passif Aluminium 37.9Hz Ø10.2cm

In general, a passive radiator must have at least twice the air displacement (Vd) of the system's active loudspeaker/subwoofer. To calculate the air displacement: Vd = Sd x Xmax

Operation of a passive radiator

The passive radiator (or passive loudspeaker) is integrated into a box with an active loudspeaker. This passive radiator, while at first glance it may look like a "classic" loudspeaker, does not actually have any engine parts. Thus, there will be no coil, magnet or power supply in its design. Similarly, it will not be electrically connected to a power amplifier.

To diffuse sound, the passive radiator will use the air pressures and depressions induced by the active loudspeaker in the body to vibrate its membrane and produce a sound, thus providing deep bass. Its resonance frequency is determined by its mass and the air contained in the enclosure. It will therefore be possible to vary its resonance frequency on many models and tune it to the speaker by adding mass.

Fonctionnement d'un radiateur passif

Technical characteristics

Specifications
Product typePassive radiator
Speaker seriesDMA
Nominal diameterØ10.2cm (4")
Resonant frequency (Fs)37.9Hz
Mechanical quality coefficient (Qms)7.8
Compliance equivalent volume (Vas)0.089ft³
Mechanical compliance of suspension(Cms)0.6mm/N
Diaphragm mass inc. airload (Mms)29.3g
Max linear excursion (Xmax)9ml
Surface area of cone (Sd)54.1cm²
Frame materialPolymer

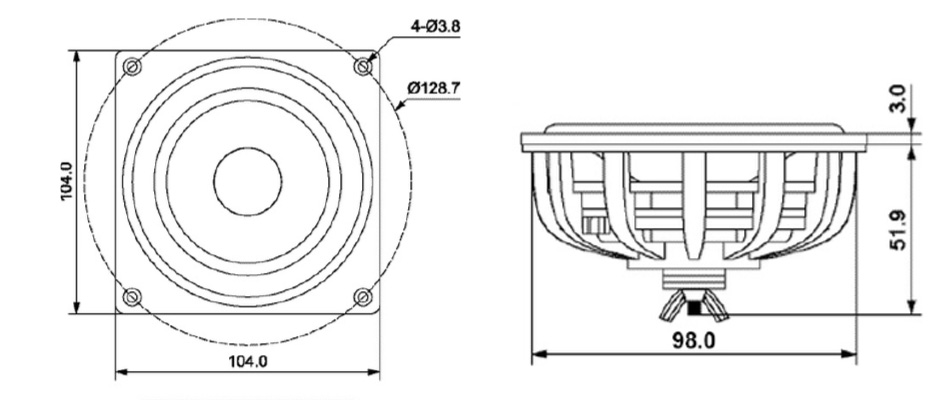

Mounting informations
Total external dimensions104 x 104mm
Cutout diameter98mm
Depth55mm
Number of fixation holes4

Data sheet
Speaker TypePassive Radiator
Loudspeaker diameter (cm)102
Diaphragm typeAluminium
Xmax (mm)9
