DD TC35 PRO EYE Adapter Headphone Amplifier DAC USB-C Hi-Res ES9281AC 32bit 768kHz DSD512 MQA 6cm

DD TC35 PRO EYE Adapter Headphone Amplifier DAC USB-C Hi-Res ES9281AC 32bit 768kHz DSD512 MQA 6cm
The DD TC35 Pro Eye is a USB-C male to 3.5mm female adapter, integrating a DAC and headphone amplifier ES9281AC. It is therefore ideal for use with a smartphone that does not have a headphone output.

Average votes for this product
5.0 / 5

By buying this product you get 8 loyalty points


Reference : 15414
New product

89,00 €tax incl.

74,17 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

DD TC35 Pro EYE

Adapter Headphone Amplifier DAC USB-C Hi-Res ES9281AC 32bit 768kHz DSD512 MQA 6cm

DD TC35 Pro Eye Adaptateur Amplificateur Casque DAC USB-C Hi-Res ES9281AC 32bit 768kHz DSD512 MQA 6cm

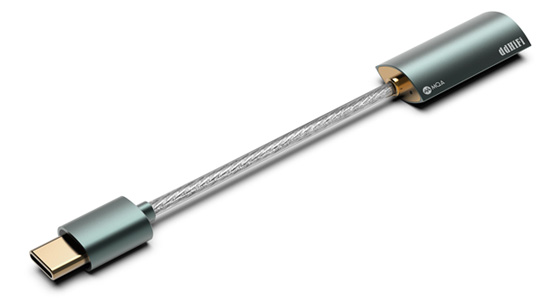

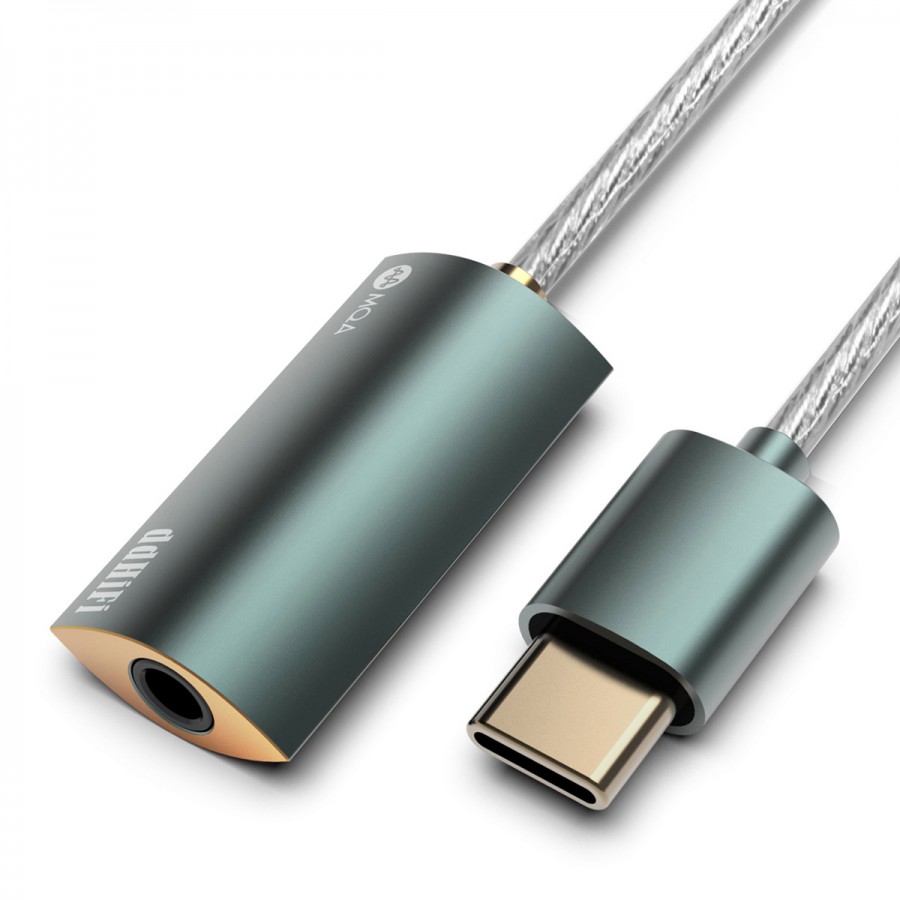

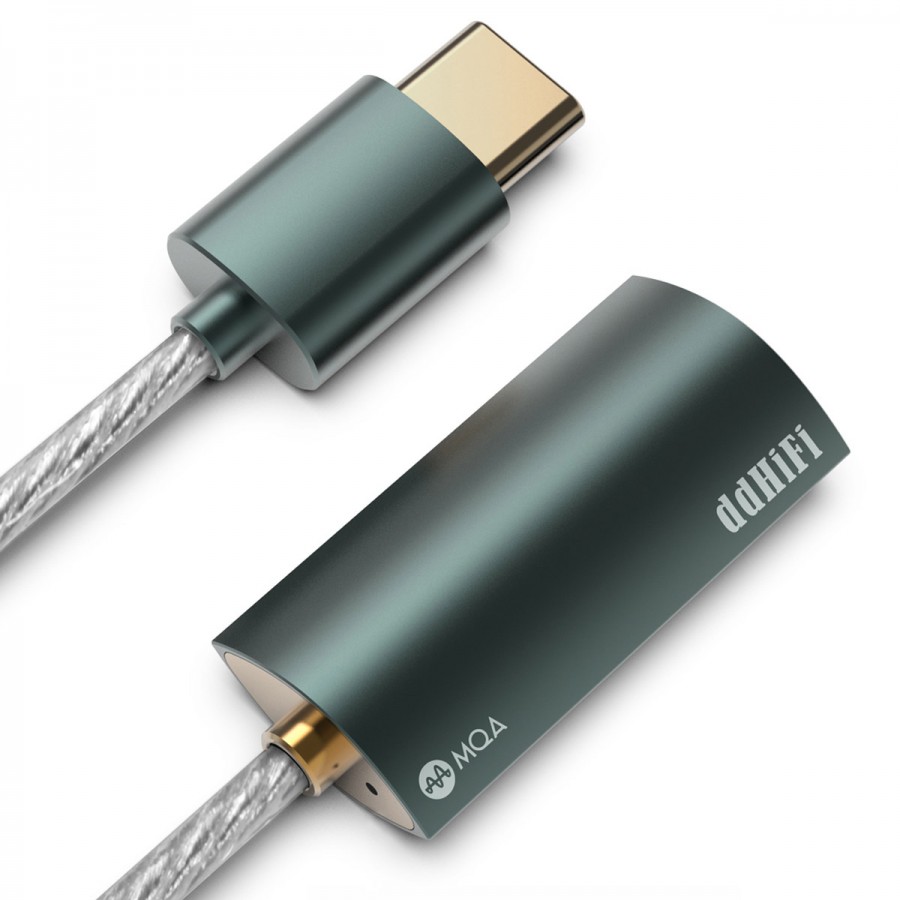

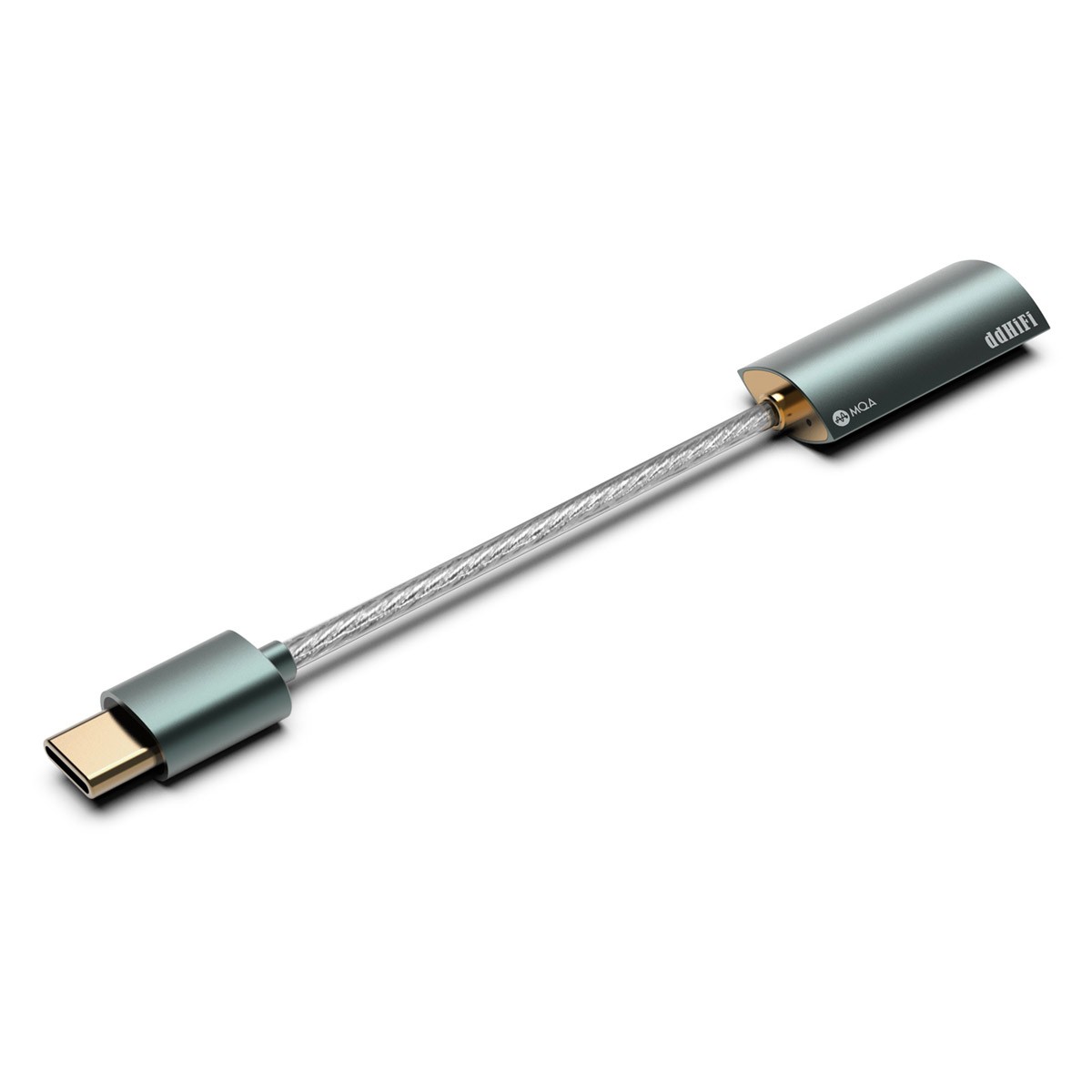

The DD TC35 Pro Eye is a USB-C male to 3.5mm female adapter, integrating a DAC and headphone amplifier ES9281AC. It is therefore ideal for use with a smartphone that does not have a headphone output. High quality, it supports high sampling rates, up to PCM 32bit 768kHz and DSD512, but also MQA files (Master Quality Authenticated) for a high quality sound reproduction. An indicator light on the side of the 3.5mm jack allows you to easily identify the sample rate of the file being played.

  • Red : PCM 44.1/48kHz
  • Blue : PCM 88/384kHz
  • Green : PCM 705/768kHz
  • Yellow : DoP
  • White : Native DSD
  • Purple : MQA

The DD TC35 Pro Eye also has the ability to automatically detect the impedance of your smartphone to adjust its gain level.

Finally, the TC35 Pro Eye's cable incorporates silver-plated OCC copper conductors, ensuring perfect conductivity for optimal signal transmission. Each conductor is insulated with a PTFE sheath and the whole cable is covered with a TPE sheath to considerably limit the impact of interference on the signal.

Technical characteristics

Specifications
Product typeUSB-C / Jack 3.5mm adapter
Headphone amplifier & DAC
DAC ChipES9281AC
Input1x Male USB-C
Output1x Female Jack 3.5mm
Frequency response20Hz - 40kHz @ 0.032dB
Output power≥ 30mW @ 16Ω
≥ 62mW @ 32Ω
≥ 7mW @ 600Ω
SNR-118dB
THD+N0.0004%
Supported sampling ratesPCM up to 32bit 768kHz
DSD up to DSD512
MQA
General
Dimensions30 x 14.8 x 7mm
Weight5.8g
Cable length6cm

Data sheet
InputUSB
OutputJack 3.5mm
ColorGray
Remote ControlNo
Contacts Material (Connector)N/A
