DD TC44C Portable Balanced DAC 2x CS43131 USB-C 32bit 384kHz DSD256

DD TC44C Portable Balanced DAC 2x CS43131 USB-C 32bit 384kHz DSD256

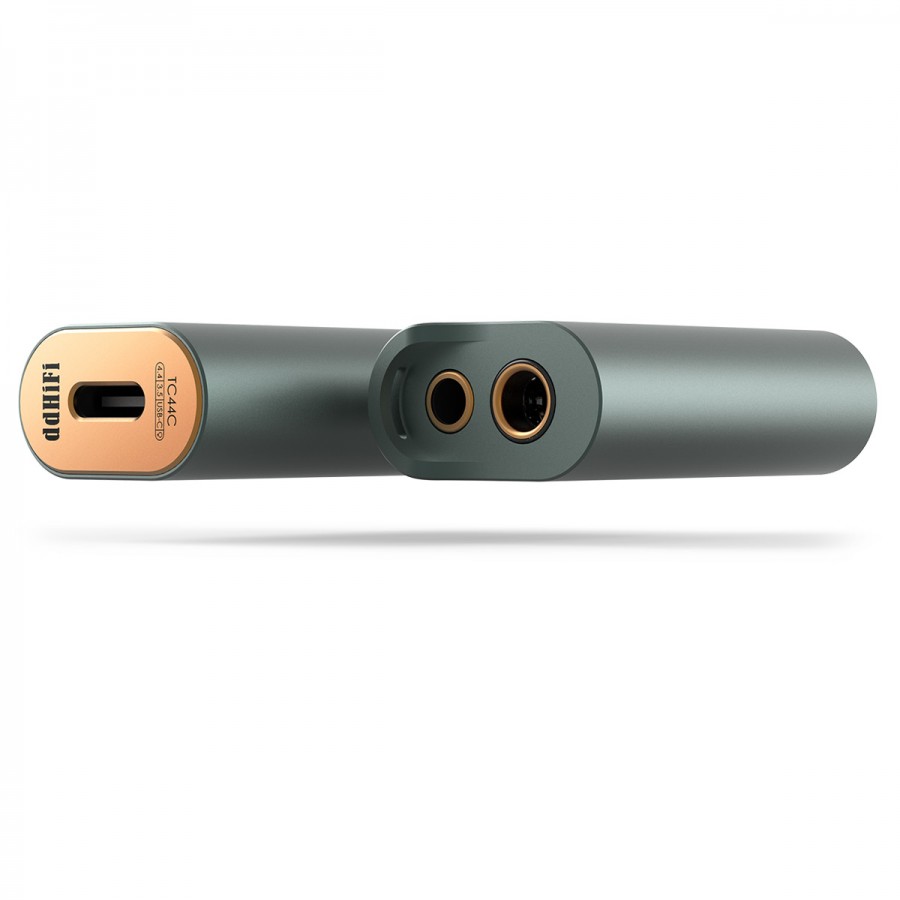

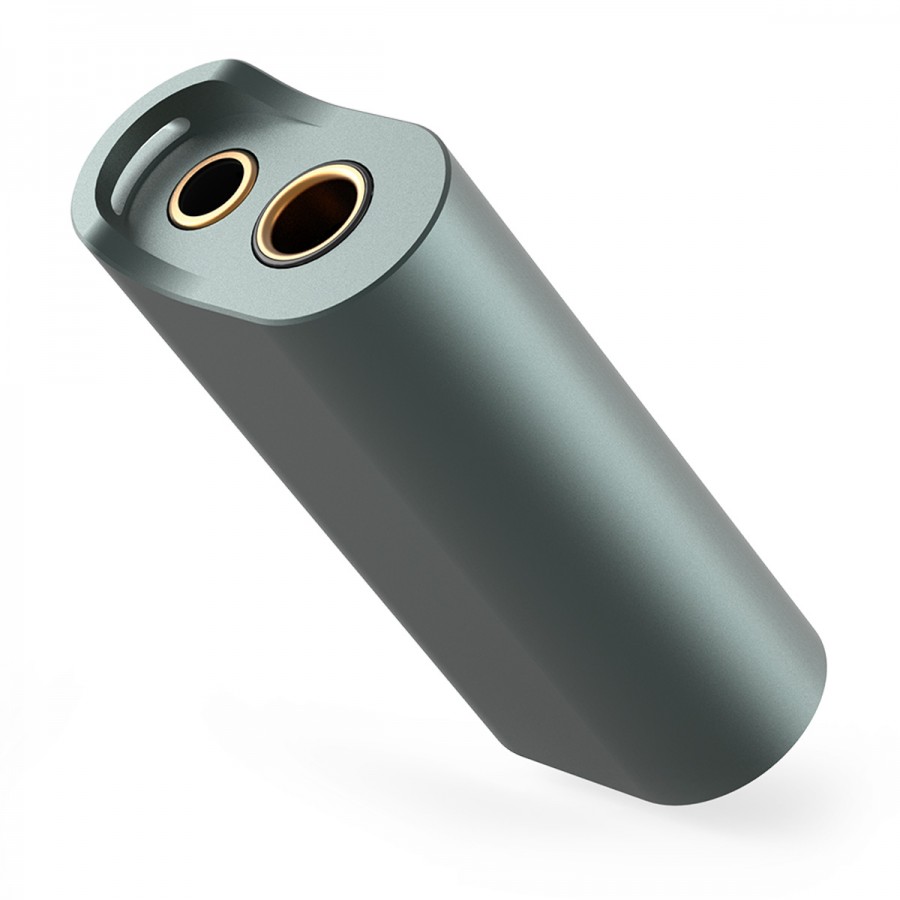

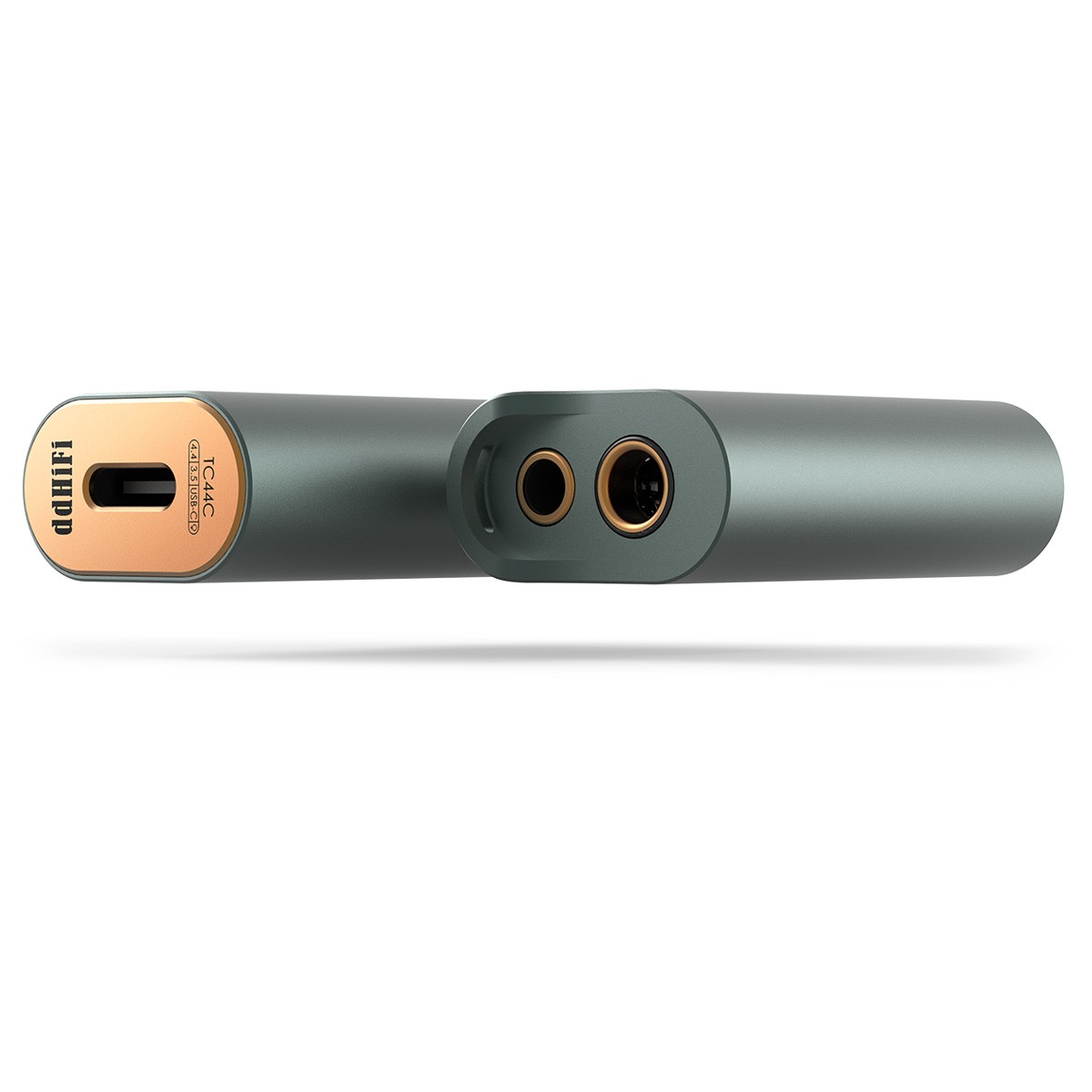

The DD TC44C is an extremely compact but very powerful portable DAC, particularly suitable for association with a smartphone. It integrates a USB-C input and a dual output on single-ended 3.5mm jack and balanced 4.4mm jack. Taking advantage of a careful design oriented audio performance, its balanced digital / analog conversion circuit embeds a pair of Cirrus Logic CS43131 DAC chips ensuring a wide dynamic range, low distortion, and supporting high sampling rates, up to 32bit 384kHz PCM and DSD256 native.

No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Reference : 16310
New product

119,00 €tax incl.

99,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

DD TC44C

Portable Balanced DAC 2x CS43131 USB-C 32bit 384kHz DSD256

DD TC44C DAC Portable Symétrique 2x CS43131 USB-C 32bit 384kHz DSD256

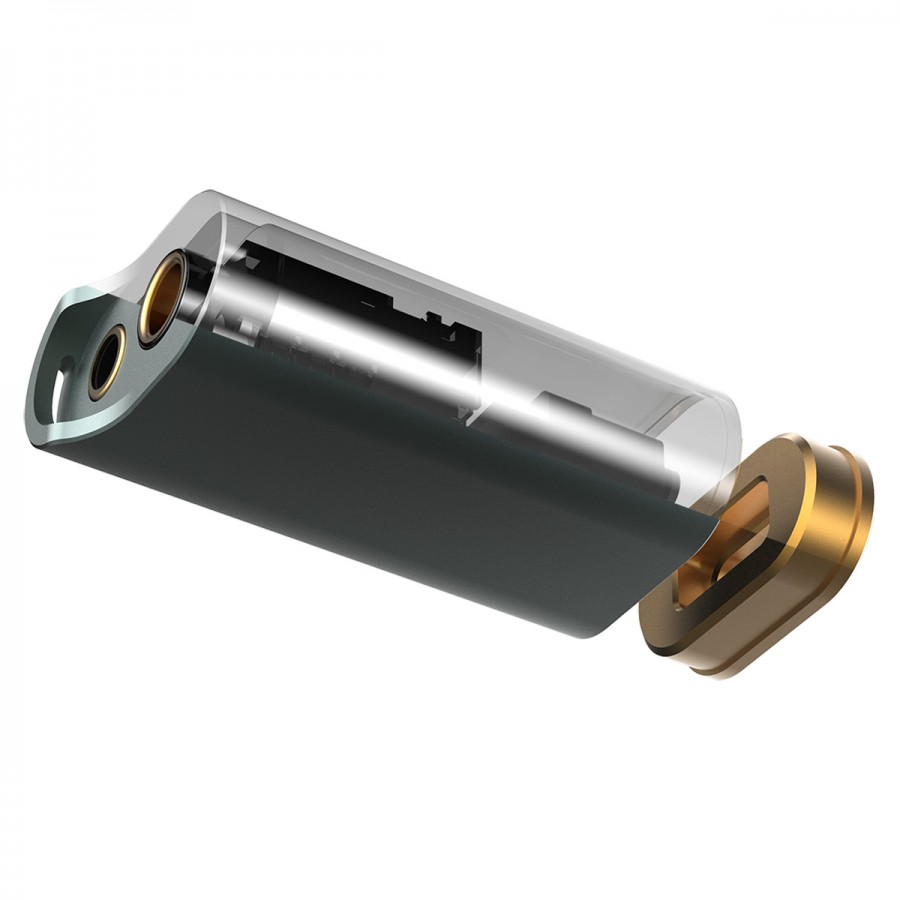

The DD TC44C is an extremely compact but very powerful portable DAC, particularly suitable for association with a smartphone. It integrates a USB-C input and a dual output on single-ended 3.5mm jack and balanced 4.4mm jack. Taking advantage of a careful design oriented audio performance, its balanced digital / analog conversion circuit embeds a pair of Cirrus Logic CS43131 DAC chips ensuring a wide dynamic range, low distortion, and supporting high sampling rates, up to 32bit 384kHz PCM and DSD256 native. Its internal wiring is also optimized, using OCC copper conductors and silver solder (3%), ensuring excellent conductivity.

The TC44C also features a handy LED indicator, positioned around its 4.4mm jack connector, indicating the type of signal received: blue for a PCM stream, green for a DSD stream. The DAC comes with a high quality TC05 USB-C cable, featuring silver-plated OCC copper conductors and double PTFE / TPU insulation.

Technical characteristics

Specifications
Product typePortable DAC
DAC Chip2x Cirrus Logic CS43131
Input1x USB-C
Outputs1x Balanced Jack 4.4mm
1x Single-ended Jack 3.5mm
Output power120mW (Jack 4.4mm)
SNR> 125dB
Dynamic range> 120dB
THD+N< -110dB
Supported sampling ratesPCM up to 32bit 384kHz
Native DSD up to DSD256
Internal wiring materialOCC Copper
LED IndicatorBlue : PCM signal
Green : Native DSD signal
General
Dimensions40.8 x 22 x 12.5mm
Weight12.9g
Package1x DD TC44C
1x TC05 USB-C Cable (Silver plated OCC Copper)

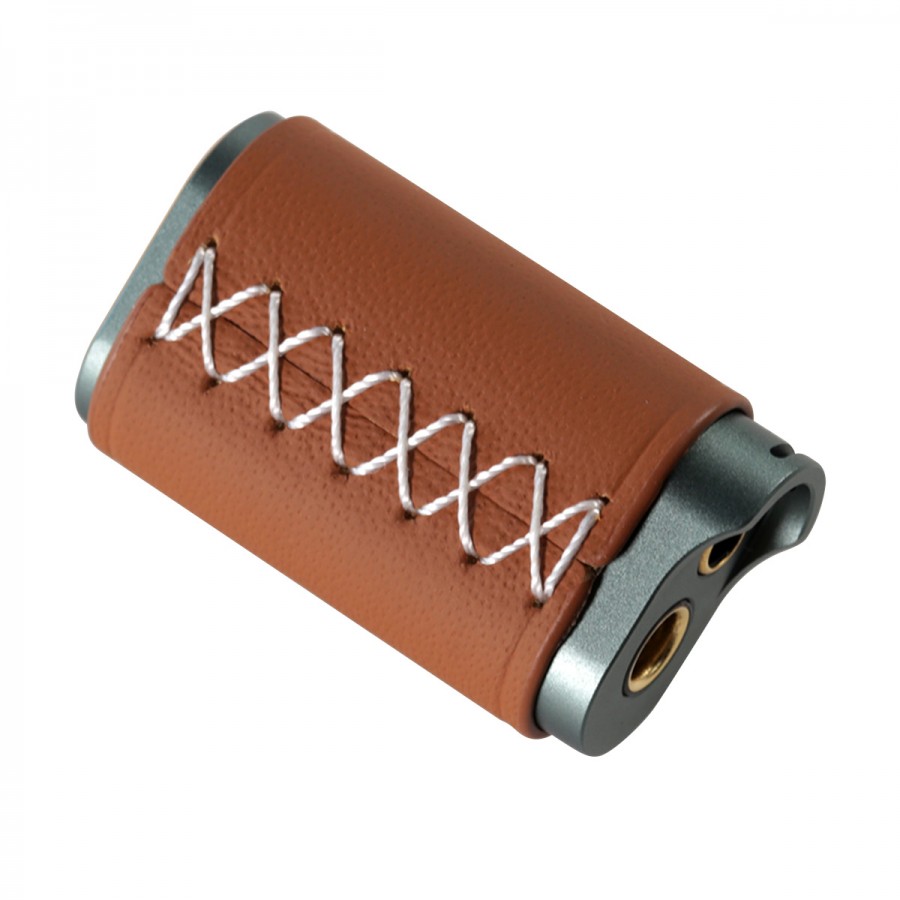

1x Leather case

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipCS43131
Max sampling rateDSD256
Max sampling rate384kHz
ColorGray
NetworkingNo
Remote ControlNo
