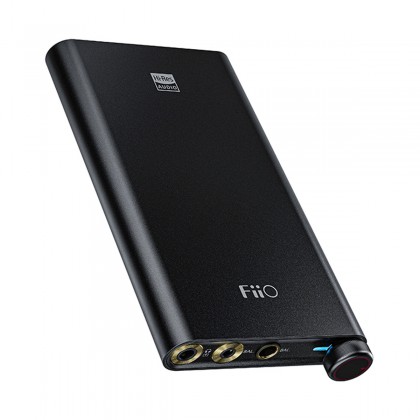

FIIO Q3 Balanced DAC Headphone Amplifier THX AAA-28 AK4462 XMOS XUF208 32bit 768kHz DSD512

AKM AK4462 Chip

The digital/analog conversion stage is entrusted to a DAC AKM AK4462 chip, integrating the proprietary Velvet Sound technology. This chip supports high sample rates up to 32bit 768kHz PCM and up to native DSD512. You will be able to enjoy your high-resolution files and the finest details of your favorite songs.

Connectors & LED Indicator

The Q3 is equipped with a complete set of connectors, with the output of the 3.5mm asymmetrical jack and the 2.5mm / 4.4mm symmetrical jack. It will therefore allow you to connect all types of helmets.

The RGB LED indicator on the volume knob changes color to quickly identify the sample rate of the file being played back.

≤ 48kHz : Blue

48kHz : Yellow

DSD : Green

Output priority: Jack 4.4mm balanced = Jack 2.5mm balanced > Jack 3.5mm unbalanced. If the balanced 4.4mm jack and the unbalanced 2.5mm jack are connected simultaneously, no output will be available.

Versatility

The Q3 adapts to all situations and all types of listening. For example, the Bass Boost function can be turned on or off with a switch. For this feature, a hardware circuit increases the gain by 6dB in the low frequencies, without affecting the mid and high frequencies.

In addition, for more convenient use, a multi-function button allows you to quickly select a gain level or filter.

Specifications
Product type	Balanced DAC & Headphone amplifier
Inputs	1x USB-C 1x Jack 3.5mm
Outputs	1x Single-ended Jack 3.5mm 1x Balanced Jack 2.5mm 1x Balanced Jack 4.4mm
Channel balance	≤ 0.2dB
Recommended headphone impedance	16~100Ω (PO) 16~300Ω (Symétrique)
Battery capacity	1800mAh
Charging time	≤ 2h
Autonomy	USB Input : PO : 10h / Balanced : 8.5h AUX Input : Balanced : 19h
Supported sampling rates	PCM up to 32bit 768kHz DSD Native up to DSD512
DAC Chip	AKM AK4462
Amplifier chip	THX-AAA28

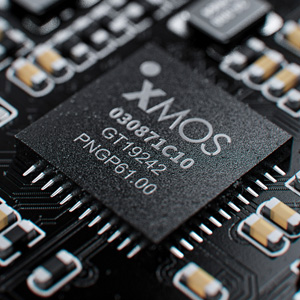

USB Interface	XMOS XUF208
LPF	AOP OPA1662

Specifications

Product type

Balanced DAC & Headphone amplifier

Inputs

1x USB-C
1x Jack 3.5mm

Outputs

1x Single-ended Jack 3.5mm
1x Balanced Jack 2.5mm
1x Balanced Jack 4.4mm

Channel balance

≤ 0.2dB

Recommended headphone impedance

16~100Ω (PO)
16~300Ω (Symétrique)

Battery capacity

1800mAh

Charging time

≤ 2h

Autonomy

USB Input : PO : 10h / Balanced : 8.5h
AUX Input : Balanced : 19h

Supported sampling rates

PCM up to 32bit 768kHz
DSD Native up to DSD512

DAC Chip

AKM AK4462

Amplifier chip

THX-AAA28

USB Interface

XMOS XUF208

LPF

AOP OPA1662

Single-ended Jack 3.5mm Headphone Output
Power	150mW @ 16Ω, THD+N < 1%, USB Input 160mW @ 32Ω, THD+N < 1%, USB Input 19mW @ 300Ω, THD+N < 1%, USB Input
Output impedance	1.2Ω (32Ω load)
Channel separation	≥ 75dB (1kHz, 32Ω load) ≥ 105dB (1kHz, no load)
Frequency response	20Hz - 20kHz (curve amplitude variation : 0.4dB) 20Hz - 65kHz (curve amplitude variation : -3dB)
Amplitude	2.26V (32Ω / THD+N < 1%) 2.38V (no load)
Noise floor	< 5.5µV (A-Weighted)
SNR	≥ 114dB (32Ω, A-Weighted)
THD+N	< 0.0012%

Single-ended Jack 3.5mm Headphone Output

Power

150mW @ 16Ω, THD+N < 1%, USB Input
160mW @ 32Ω, THD+N < 1%, USB Input
19mW @ 300Ω, THD+N < 1%, USB Input

Output impedance

1.2Ω (32Ω load)

Channel separation

≥ 75dB (1kHz, 32Ω load)
≥ 105dB (1kHz, no load)

Frequency response

20Hz - 20kHz (curve amplitude variation : 0.4dB)
20Hz - 65kHz (curve amplitude variation : -3dB)

Amplitude

2.26V (32Ω / THD+N < 1%)
2.38V (no load)

Noise floor

< 5.5µV (A-Weighted)

SNR

≥ 114dB (32Ω, A-Weighted)

THD+N

< 0.0012%

Balanced Jack 2.5mm / Jack 4.4mm Headphone output
Power	180mW @ 16Ω, THD+N < 1%, USB Input 300mW @ 32Ω, THD+N < 1%, USB Input 35mW @ 300Ω, THD+N < 1%, USB Input 190mW @ 16Ω, THD+N < 1%, AUX Input 325mW @ 32Ω, THD+N < 1%, AUX Input 100mW @ 300Ω, THD+N < 1%, AUX Input
Frequency response	20Hz - 20kHz (curve amplitude variation : 0.4dB, USB Input) 20Hz - 65kHz (curve amplitude variation : -3dB, USB Input) 20Hz - 90kHz (curve amplitude variation : 0.4dB, AUX Input)
Amplitude	3.1V (32Ω / THD+N < 1% / USB Input) 3.38V (No load, USB input) 3.2V (32Ω / THD+N < 1% / AUX Input) 5.6V (No load, AUX Input)
Noise floor	< 8µV (A-Weighted, USB Input) < 5.5µV (A-Weighted, AUX Input)
SNR	≥ 113dB (32Ω, A-Weighted, USB Input) ≥ 115dB (32Ω, A-Weighted, AUX Input)
THD+N	< 0.0015% (USB Input) < 0.0012% (AUX Input)
Output impedance	3Ω (32Ω load)
Channel separation	≥ 99dB (1kHz, 32Ω load) ≥ 103dB (1kHz, no load)

Balanced Jack 2.5mm / Jack 4.4mm Headphone output

Power

180mW @ 16Ω, THD+N < 1%, USB Input
300mW @ 32Ω, THD+N < 1%, USB Input
35mW @ 300Ω, THD+N < 1%, USB Input
190mW @ 16Ω, THD+N < 1%, AUX Input
325mW @ 32Ω, THD+N < 1%, AUX Input
100mW @ 300Ω, THD+N < 1%, AUX Input

Frequency response

20Hz - 20kHz (curve amplitude variation : 0.4dB, USB Input)
20Hz - 65kHz (curve amplitude variation : -3dB, USB Input)
20Hz - 90kHz (curve amplitude variation : 0.4dB, AUX Input)

Amplitude

3.1V (32Ω / THD+N < 1% / USB Input)
3.38V (No load, USB input)
3.2V (32Ω / THD+N < 1% / AUX Input)
5.6V (No load, AUX Input)

Noise floor

< 8µV (A-Weighted, USB Input)
< 5.5µV (A-Weighted, AUX Input)

SNR

≥ 113dB (32Ω, A-Weighted, USB Input)
≥ 115dB (32Ω, A-Weighted, AUX Input)

THD+N

< 0.0015% (USB Input)
< 0.0012% (AUX Input)

Output impedance

3Ω (32Ω load)

Channel separation

≥ 99dB (1kHz, 32Ω load)
≥ 103dB (1kHz, no load)

General
Dimensions	105 x 59 x 12.5mm
Weight	110g
Housing material	CNC machined Aluminum
Color	Black

General

Dimensions

105 x 59 x 12.5mm

Weight

110g

Housing material

CNC machined Aluminum

Color

Black

Input	Jack 3.5mm
Input	USB
Output	Jack 4.4mm
Output	Jack 2.5mm
Output	Jack 3.5mm
Color	Black
Remote Control	No
