HIDIZS DH80 Portable Balanced Amplifier DAC ES9281C Pro MQA 384kHz DSD128

HIDIZS DH80 Portable Balanced Amplifier DAC ES9281C Pro MQA 384kHz DSD128 New

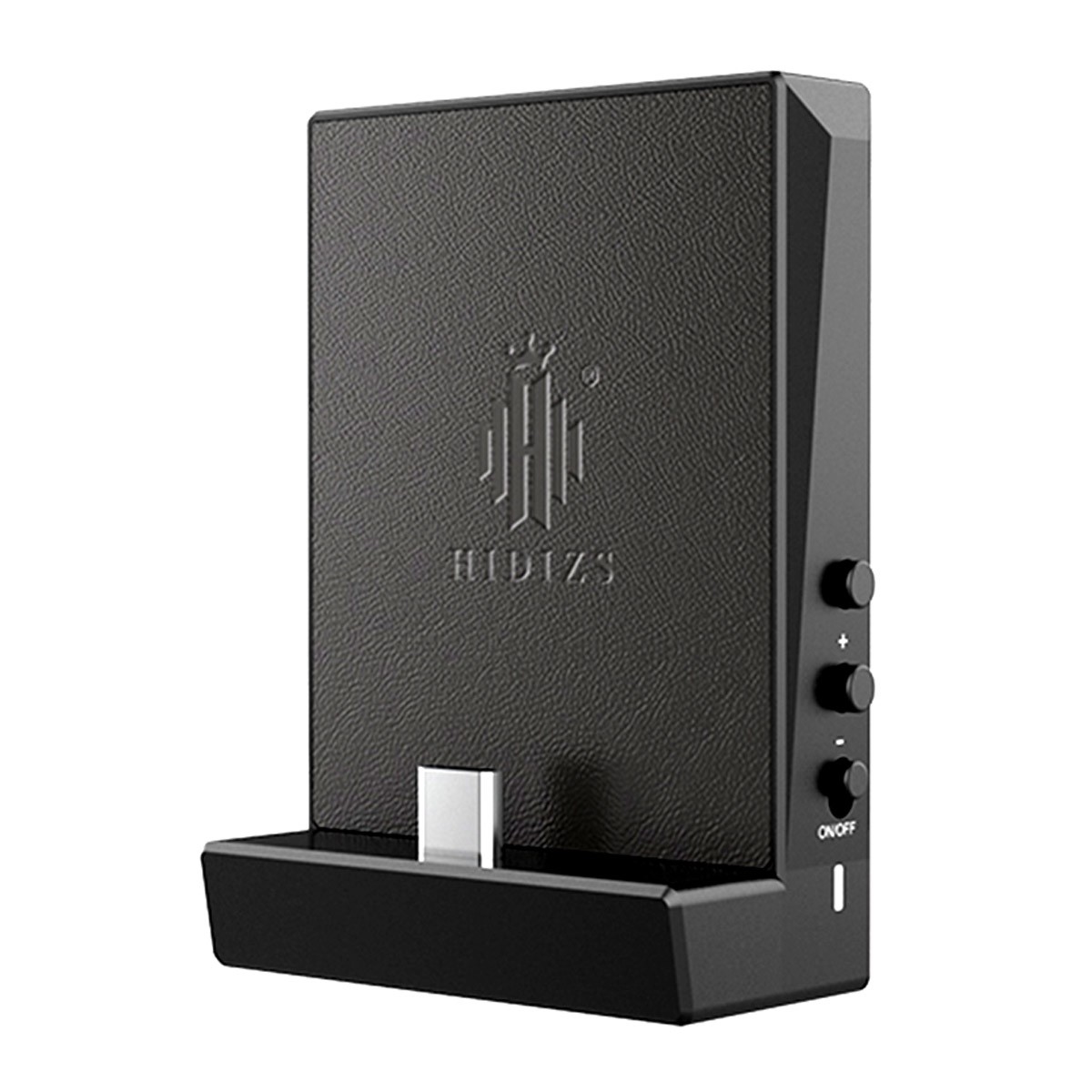

The Hidizs DH80 is a portable DAC and amplifier combo, in the form of a dock, allowing to connect a DAP such as the Hidizs AP80 but also a smartphone, a tablet, a computer or headphones. Versatile and practical, it is also extremely powerful, benefiting from a balanced circuit based on high-end components.
No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Yes, notify me when available !
Reference : 15256
New product

115,83 €tax excl.

Including 0,04 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Hidizs DH80

Portable Balanced Amplifier DAC ES9281C Pro MQA 384kHz DSD128

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

The Hidizs DH80 is a portable DAC and amplifier combo, in the form of a dock, allowing to connect a DAP such as the Hidizs AP80 but also a smartphone, a tablet, a computer or headphones. Versatile and practical, it is also extremely powerful, benefiting from a balanced circuit based on high-end components.

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

MQA Support

The DH80 supports and decodes MQA (Master Quality Authenticated) files for studio-like sound reproduction. To indicate that it is playing an MQA file, the DH80's LED lights up purple.

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

DAC ESS ES9281C Pro + Dual AOP RT6863C

The DH80's digital-to-analog conversion stage is based on an ESS ES9281C Pro chip, ensuring wide dynamic range, low power consumption, very low distortion, near-zero noise and support for MQA or DSD128.

Two RT6863C AOPs support voltages of 4Vrms for the 4.4mm balanced jack output and 2Vrms for the 3.5mm unbalanced jack output.

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128
Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

3 Gain level & High power output

The DH80 features 3 gain levels (High, Medium, Low) for extended compatibility with all types of headphones. The balanced 4.4mm jack output allows to feed headphones with an impedance of 150Ω with a power of 2x 210mW @ 32Ω. The 30-step volume control allows precise adjustment of the sound level.

High quality components

With two clocks, 4 Panasonic capacitors and two RT6863Cn AOPs the DH80 offers beautiful dynamics and excellent channel separation. An integrated 1300mAh battery allows to deliver a more natural and clear sound, without using the battery of your smartphone.

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128
Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

Sampling rate display

An LED indicator shows in a simple way the sampling rate of the file being played: Red for 44.1-48kHz, blue for 88.2-384kHz and pink for MQA.

Hidizs DH80 Amplificateur DAC Symétrique Portable ES9281C Pro MQA DSD128

Technical characteristics

Specifications
Product typeAmplifier and portable DAC
DAC ChipESS ES9281C Pro
Outputs1x Balanced Jack 4.4mm
1x Single-ended Jack 3.5mm
Supported sampling ratesPCM up to 32bit 384kHz, DSD up to DSD128, MQA
Gain levelsLow
Medium
High
OPA2x RT6863C
Power connectorUSB-C
Battery1300mAh 3.7V Li-Polymer
Charge timeAbout 2.5h
AutonomyBalanced : About 6h
Single-ended : About 8h
Supported OSWindows 10
Mac OS
iPad OS
Android
iOS
Max powerSingle-ended: 2x 125mW @ 32Ω
Balanced: 2x 210mW @ 32Ω
Frequency responseSingle-ended: 20Hz-80kHz (±0.6dB) @ 32Ω
Balanced: 20Hz-80kHz (±0.6dB) @ 32Ω
THD+NSingle-ended: 0.0006% @ 32Ω
Balanced: 0.0004% @ 32Ω
SNRSingle-ended: 116dB @ 32Ω
Balanced: 116dB @ 32Ω
CrosstalkSingle-ended: 79dB @ 32Ω
Balanced: 108dB @ 32Ω
General
Housing materialAluminum
ColorBlack
Dimensions70 x 50 x 12mm
Weight82.3g
Package1x Hidizs DH80
1x USB-C Cable
1x USB-A converter
1x Female USB-C to male USB-C cable

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipES9281C Pro
Max sampling rateDSD128
Max sampling rate384kHz
ColorBlack
