IBASSO DC04PRO Balanced DAC Headphone Amplifier 2x CS43131 32bit 384kHz DSD256 Black

IBASSO DC04PRO Balanced DAC Headphone Amplifier 2x CS43131 32bit 384kHz DSD256 Black

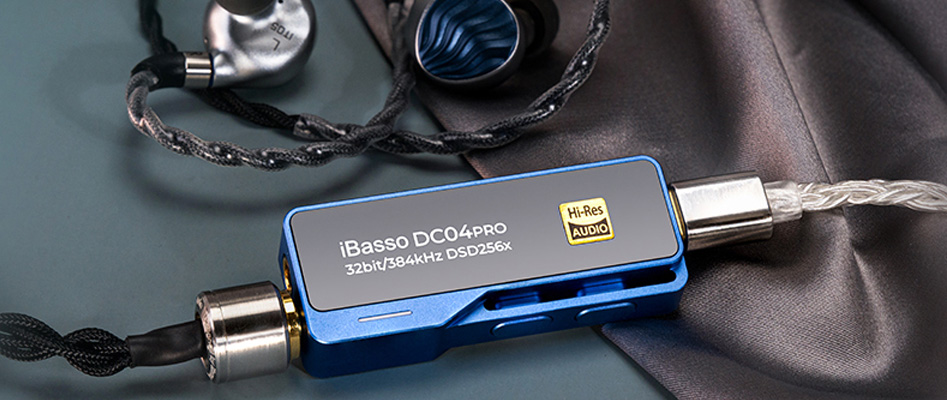

The iBasso DC04Pro portable DAC and headphone amplifier combines carefully selected components with advanced technologies to provide excellent performance and a sound reproduction that is as rich and precise as it is transparent. The DC04Pro can be used both at home and on the move to enjoy high quality music listening at all times.

No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Reference : 17364
New product

119,00 €tax incl.

99,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 27-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

iBasso DC04Pro

Balanced DAC Headphone Amplifier 2x CS43131 32bit 384kHz DSD256 Black

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

The iBasso DC04Pro portable DAC and headphone amplifier combines carefully selected components with advanced technologies to provide excellent performance and a sound reproduction that is as rich and precise as it is transparent. The DC04Pro can be used both at home and on the move to enjoy high quality music listening at all times.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir
iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

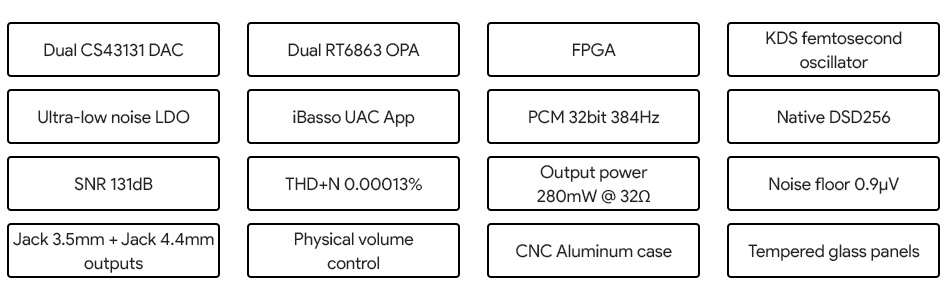

Dual CS43131 DAC

The digital to analog conversion part of the DC04Pro is entrusted to a pair of Cirrus Logic CS4313 DACs and has their Master HiFi™ technology on board, offering incredible performance and very high sound quality.

Ultra low noise synchronous DC-DC converter & LDO

As the quality of the power supply has a direct impact on the sound reproduction, the DC04Pro is equipped with a DC-DC converter and a high speed, low noise LDO to provide a clean and stable electrical signal to all the circuits.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

Two RT6863 OPAs

The DC04Pro also embeds two TR6863 OPAs, forming a fully balanced amplifier with very low distortion. This one is capable of delivering 280W of power under 32Ω.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

FPGA & KDS Femtosecond Clock

iBasso uses its own FPGA algorithm for the first time in a portable device in dongle format. In combination with a KDS femtosecond oscillator, the jitter is perfectly controlled and the sound reproduction benefits from a greatly reduced distortion level.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

A brand new application

The iBasso UAC Android mobile application has been completely revised and improved for the release of the DC04Pro. It allows, via a graphical interface, to easily control the various settings of the device: volume, digital filters, gain, output mode, balance or even power saving mode.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

Dual outputs

The iBasso DC04Pro provides two outputs. The first one is in Jack 3.5mm format for the use of single-ended headphones, the second one in Jack 4.4mm format, allowing the connection of a balanced listening device.

iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir
iBasso DC04Pro DAC Amplificateur Casque Portable Symétrique 2x CS43131 32bit 384kHz DSD256 Noir

LED indicator

The iBasso DC04Pro features a linear LED indicator, changing color depending on the status of the device and the audio format being played: red if it is in standby, blue for DSD format and green for PCM streams.

Technical characteristics

Specifications
Product typeDAC and portable headphone amplifier
Inputs1* USB-C
Outputs1* Single-ended Jack 3.5mm
1* Balanced Jack 4.4mm
DAC chips2* Cirrus Logic CS43131
Supported sampling ratesPCM up to 32bit 384kHz
Native DSD up to DSD256
THD+NBalanced: 0.00013% @ 300Ω
Single-ended: 0.00018% @ 300Ω
Output levelBalanced: 3Vrms @ 32Ω / 4Vrms @ 300Ω
Single-ended: 2Vrms @ 32Ω / 2Vrms @ 300Ω
SNRBalanced: 131dBA
Single-ended: 127dBA
Dynamic rangeBalanced: 128dBA
Single-ended: 126dBA
Frequency responseBalanced: 20Hz~40kHz ±0.5dB
Single-ended: 20Hz~40kHz ±0.5dB
Output impedanceBalanced: < 0.4Ω
Single-ended: < 0.2Ω
General
Dimensions59*23.4*12.1mm
Weight21g
ColorBlack
Package1* iBasso DC04 Pro
1* USB-C cable
1* USB-C to USB-A cable

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipCS43131
Max sampling rate384kHz
Max sampling rateDSD256
ColorBlack
ClassClass D / T
NetworkingNo
Remote ControlNo
