IBASSO DC06PRO DAC Headphone Amplifier

IBASSO DC06PRO Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x
Ibasso unveils a new version of its DC06 portable DAC/headphone amplifier, the DC06 Pro. Compact, it features 2 ES9219C DAC chips and volume control knobs, new advanced features on UAC APP and a FGPA.

Average votes for this product
5.0 / 5

By buying this product you get 11 loyalty points


Reference : 18493
New product

115,00 €tax incl.

95,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 30-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

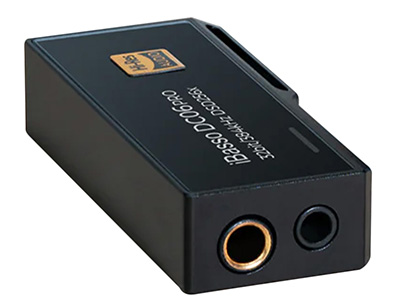

IBASSO DC06PRO

DAC / Portable Headphone Amplifier  2x ES9219C 32bit 384kHz DSD256 MQA 16x

IBASSO DC06PRO Portable DAC / Headphone Amplifier 2x ES9219C 32bit 384kHz DSD256 MQA 16x

Ibasso unveils a new version of its DC06 portable DAC/headphone amplifier, the DC06 Pro. This compact device features high-quality components such as 2 ES9219C DAC chips. These two ESS chips also take care of signal amplification. Thanks to them, the DC06 Pro delivers rich, faithful sound reproduction, whether you use it on the move or at home. This new version now incorporates volume control knobs, supports new advanced functionalities on the UAC APP and features FGPA.

IBASSO DC06PRO Portable DAC / Headphone Amplifier 2x ES9219C 32bit 384kHz DSD256 MQA 16x
IBASSO DC06PRO DAC / Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x

Dual ES9219C DACs

For its DC06 Pro, iBasso has chosen to use a pair of ES9219C digital-to-analog conversion chips, one per channel, to achieve a low noise floor for precise, transparent sound. These chips also offer amplification to deliver plenty of power. What's more, this new chip ensures low power consumption without negatively impacting performance.

A mastered architecture

Ibasso's DC06 Pro provides a clean, stable power supply, free from noise and interference. The power supply to the amplifier section is separated by a synchronous DC-DC converter, a low-noise charge pump chip and an LDO.
This allows the amplification section to operate at full capacity, reaching an output power of 320mW @ 32 ohm. Overall, the sound reproduction is dynamic and transparent.

IBASSO DC06PRO DAC / Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x

NDK femtosecond oscillator + FGPA

The DC06 Pro incorporates an NDK oscillator coupled with a FGPA algorithm specially developed by Ibasso to achieve minimal distortion and very precise, detailed sound reproduction.

IBASSO DC06PRO DAC / Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x
iBasso DC06 DAC et Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA

MQA decoding

The iBasso DC06 Pro can decode and play MQA (Master Quality Authenticated) files up to MQA 16x. This type of file allows you to enjoy excellent sound quality, as close as possible to the original studio recording, while maintaining a reasonable file size suitable for streaming.

Connectivity & LED Indicator

The input of the DC06 is simply on a USB-C connector, embedding a UAC2.0 receiver and allowing to easily connect a smartphone. For the output, the device provides unbalanced 3.5mm jack and balanced 4.4mm jack. With the USB driver installed, the DC06 can even be used as a sound card for a computer.

In addition, between its two outputs, an LED indicator displays the format of the file being played : blue for DSDgreen for PCMpurple for MQA and red ofr standby.

IBASSO DC06PRO DAC / Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x

A dedicated application

Windows 10 and Android 5.0 or later support the UAC2.0 protocol by default. However, for compatibility reasons, Android smartphones still use the SRC protocol. When the DC06 Pro is connected, the maximum volume level is set by default. To control the device's volume level, iBasso has developed a UAC2.0 mobile application offering 100-level volume control. This is available free of charge for Android devices.

IBASSO DC06PRO DAC / Amplificateur Casque Portable 2x ES9219C 32bit 384kHz DSD256 MQA 16x

Caractéristiques techniques

Specifications
Product typeDAC and headphone amplifier
Input1x Female USB-C
Outputs1x Single-ended Jack 3.5mm
1x Balanced Jack 4.4mm
DAC Chip2x ESS ES9219C
Supported sampling ratesPCM up to 32bit 384kHz
DSD up to DSD256
MQA 16x
Balanced Jack 4.4mm output
THD+N0.00035% @ 600Ω
0.0005% @ 32Ω
Output voltage3.2Vrms @ 32Ω
4Vrms @ 300Ω
SNR123dBA
Dynamic range123dBA
Frequency response20Hz ~ 40kHz -0.5dB
Output impedance< 0.5Ω
Single-ended Jack 3.5mm output
THD+N0.00056% @ 600Ω
0.0007% @ 32Ω
Output voltage2Vrms @ 32Ω
SNR120dBA
Dynamic range120dBA
Frequency response20Hz ~ 40kHz -0.5dB
Output impedance< 0.3Ω

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipES9219C
Max sampling rateDSD256
Max sampling rate384kHz
Max sampling rateMQA
ColorBlue
ClassClass D / T
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
IBASSO DC06PRO DAC
Apporte un gros + sur iPAD. Son de meilleure qualité. En revanche rien de mieux sur un Samsung S23 Ultra.
 (0)
 (0)
This review has been posted for IBASSO DC06PRO Portable DAC / Headphone Amplifier 2x ES9219C 32bit 384kHz DSD256 MQA 16x
