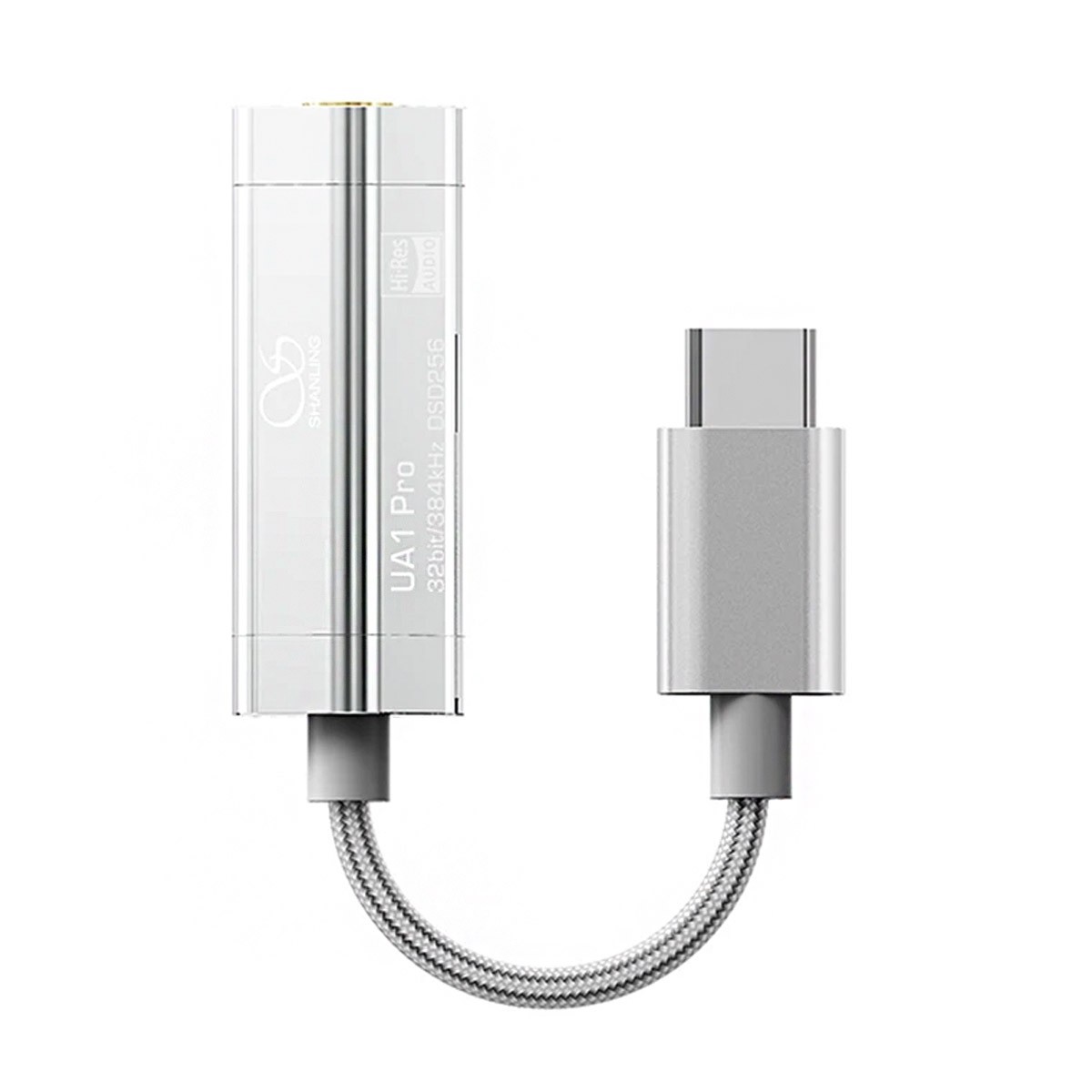

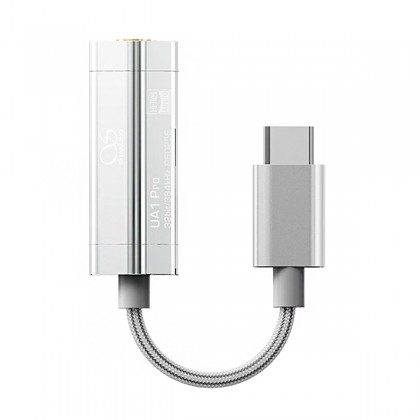

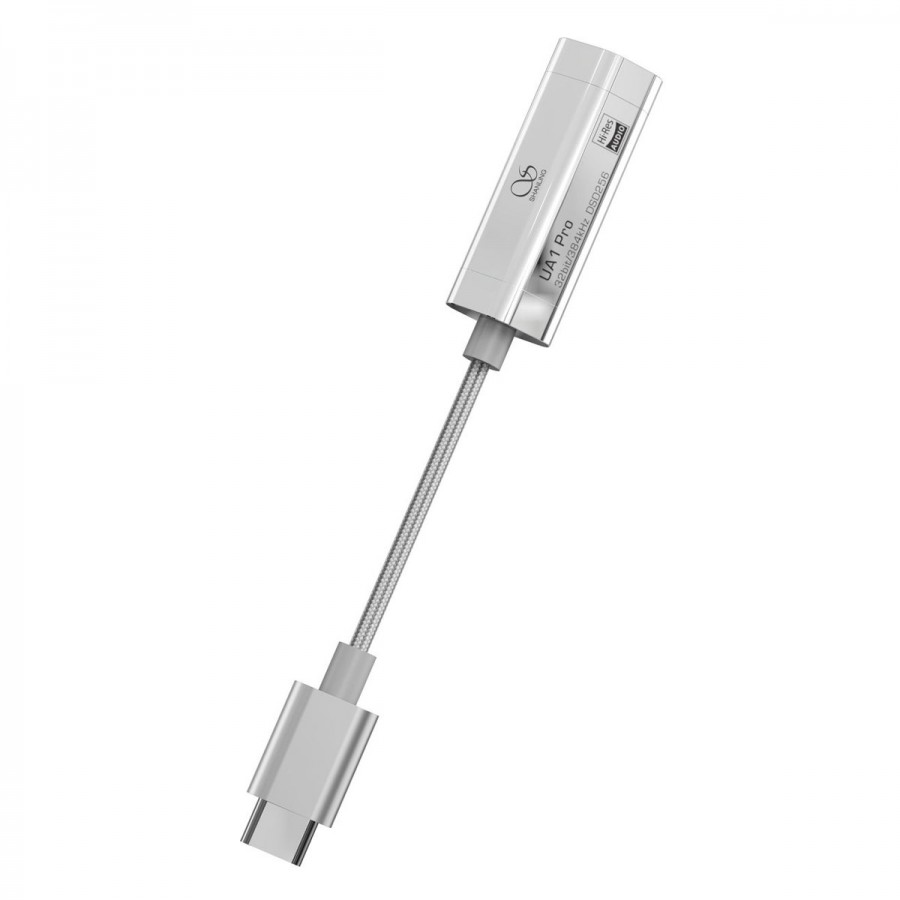

SHANLING UA1 PRO Adapter DAC USB-C ES9219C 32bit 384kHz DSD256 80mW 32 Ohm Silver

SHANLING UA1 Pro Adapter DAC USB-C ES9219C 32bit 384kHz DSD256 80mW 32 Ohm Silver New
Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 pro is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying  more than necessary.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 15746
New product

41,58 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 07-12-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Shanling UA 1 Pro

Portable DAC USB-C ES9218P 384kHz DSD256



Shanling UA1 Pro DAC USB-C ES9219C 32bit 384kHz DSD256 80mW 32 ohm


Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 pro is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying  more than necessary.

DAC ES9219C


Although very compact, the Shanling UA 1 Pro embeds a high-quality audio circuit built around an ESS ES9219C chip. This famous component for High Fidelity applications incorporates both digital to analog conversion capabilities as well as headphone amplification capabilities. This second version hence offers better performance in terms of harmonic distortion.

On the DAC side, the UA1 is capable of playing high resolution audio files up to 384kHz / 32bit and even DSD files up to DSD256. The output stage is for its part capable of developing up to 80mW of power at 32 Ohm with a minimal noise level, which represents an incomparable performance gain in comparison with the traditional audio outputs of general public portable multimedia devices.

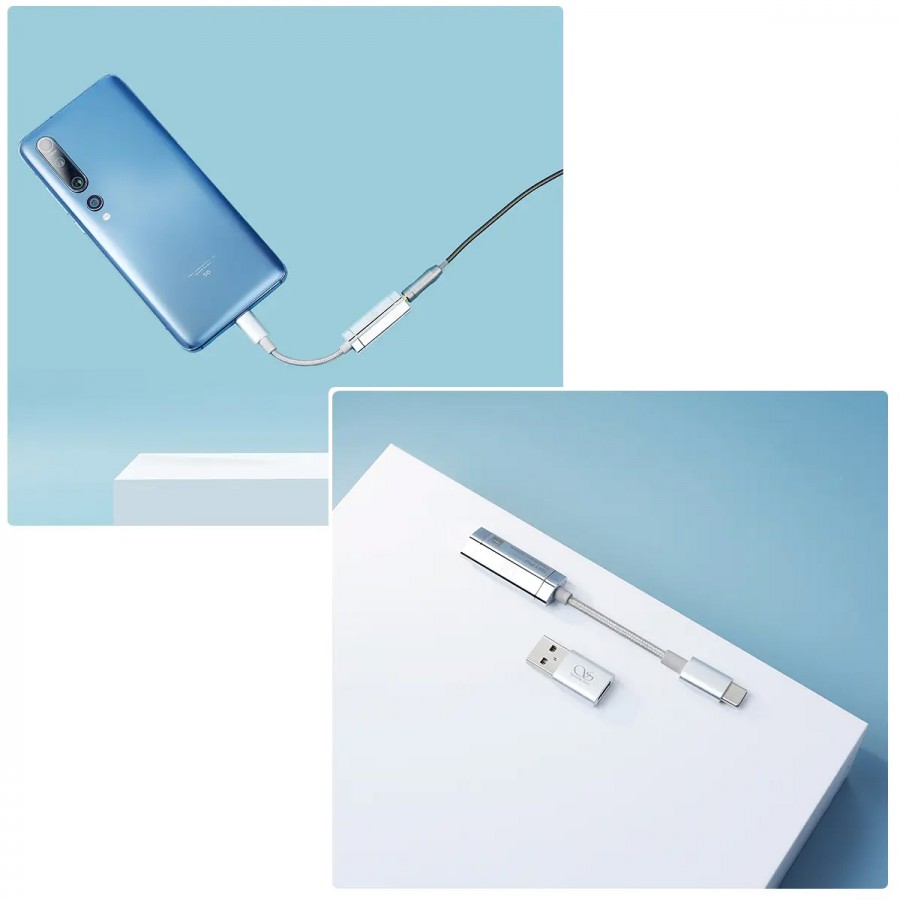

USB-A adapter


The UA1Pro portable headphone converter and headphone amplifier from Shanling comes with a USB-C female to USB-A male adapter. The latter will be particularly useful for using all the qualities and audio capabilities of the UA 1 pro with a laptop or even a PC without a satisfactory sound card (relying only on the limited audio capabilities of the motherboard).

Completely optimized for mobile use, the circuit is designed to maximize the power available for the amplified output while limiting the load on the battery of the source device. This is a suitable solution for extended listening sessions, even on devices with limited battery.

Shielded cable


The integrated cable has high purity & high section copper conductors ensuring excellent conductivity for your audio streams. It is securely protected by a robust sheath and has cotton / silver shield specially designed to limit the capture of high-frequency waves, such as those specifically present near a smartphone.

Specifications
TypePortable DAC
Inputs1x USB-C
Outputs1x Jack Stereo 3.5mm single ended
Output power80mW @ 32Ω (1.6V)
Frequency response20Hz - 50kHz (-0.5dB)
THD+N0.0006% @32Ω (A)
Dynamics119 dB @32Ω (A)
SNR119dB @32Ω (A)
Crosstalk77dB @32Ω
Output mpedance≤0.5Ω
Dimensions39x15x9 mm (corps)
77mm (cable)
Weight8.3g
Package COntents
UA1 Pro (Silver)x1
USB-C Female to USB-A mâle adapterx1
Manualx1

Data sheet
InputUSB
OutputJack 3.5mm
DAC / ADC ChipES9219C
Max sampling rate384kHz
Max sampling rateDSD256
ColorSilver
NetworkingNo
Remote ControlNo
