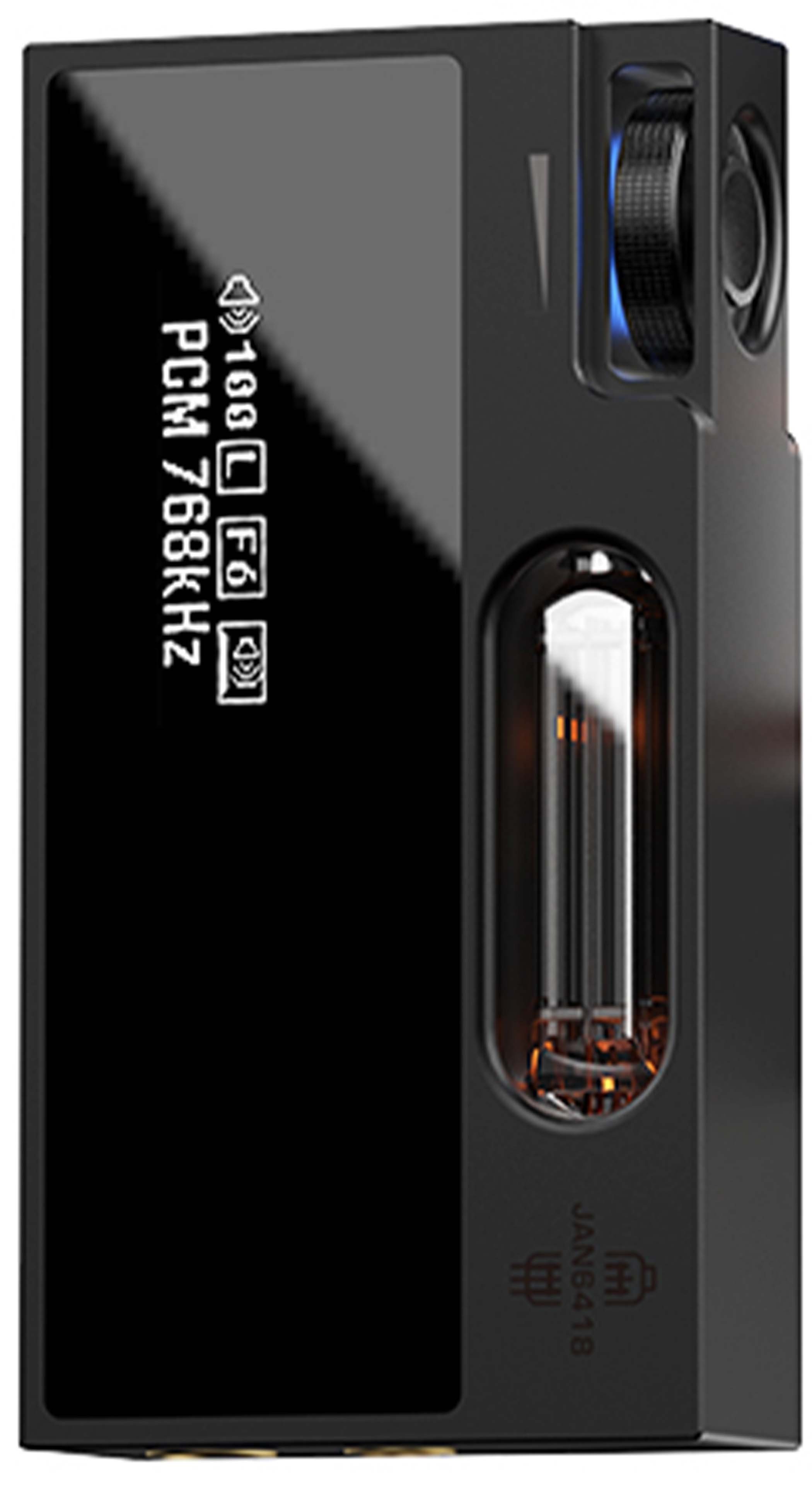

Shanling UA7 Portable DAC Balanced Headphone Amplifier ES9069 JAN6418 Tubes OPA1612 32bit 768kHz DSD512 Black
The Shanling UA7 is a high-end portable USB-C DAC featuring a hybrid headphone amplifier that combines cutting-edge digital components with visible analog tubes for a customizable sound signature. Designed to meet the needs of discerning music lovers, it supports high-resolution formats up to PCM 32bit 768kHz and native DSD512, while delivering generous output power (up to 577mW into 32Ω on the 4.4mm balanced output).
This audiophile converter is compatible with Windows, macOS, Android, and iOS via USB-C without the need for drivers, as well as with consoles supporting UAC 1.0, making it a versatile solution for music, games, or video content. Its compact machined aluminum design, intuitive OLED display, and unbalanced 3.5mm + balanced 4.4mm connectivity make it a powerful audio companion for both home and mobile use.
Shanling UA7: Hi-Res and precision
At the heart of the Shanling UA7 is the ESS Sabre ES9069 DAC, renowned for its excellent performance in terms of dynamics, precision, and low distortion. This latest-generation chip delivers extremely detailed sound reproduction that respects the micro-information and spatialization of recordings. The UA7 supports PCM audio files up to 32bit 768kHz as well as native DSD512, ensuring full compatibility with high-resolution audio libraries and Hi-Res streaming platforms. This architecture ensures smooth, natural, and balanced listening, whether you're listening to acoustic music or modern productions rich in dynamics.
Shanling UA7: Hybrid amplification, transistor or tube
One of the main advantages of the Shanling UA7 is its switchable hybrid amplification, offering two distinct sound signatures:
- Transistor mode, favoring neutral, precise, and analytical reproduction, ideal for faithful and detailed listening.
- Tube mode, using JAN6418 tubes to deliver a warmer, rounder, and more organic sound, with rich mids and a more enveloping soundstage.
This flexibility allows you to adapt the sound to the headphones you are using, the style of music, or simply your mood at the moment, making the UA7 a particularly versatile DAC.
Shanling UA7: High output power and extended headphone compatibility
Thanks to its powerful amplification, the Shanling UA7 is capable of driving both sensitive in-ear headphones and more power-hungry portable or stationary headphones. It has two headphone outputs:
- Single-ended 3.5 mm jack output, delivering up to approximately 195 mW at 32 ohms, ideal for universal compatibility.
- Balanced 4.4 mm Pentaconn output, delivering up to 577 mW into 32 ohms, for better channel separation, increased dynamics, and reduced background noise.
This dual connectivity allows you to take full advantage of high-end balanced headphones while maintaining great versatility of use.
Shanling UA7: Plug-and-play USB-C connectivity
The Shanling UA7 connects via a USB-C input, providing both power and audio data transmission. It is plug-and-play compatible with:
- Windows PCs
- macOS
- Android smartphones and tablets
- iOS devices via USB-C adapter
It also supports UAC 1.0 and UAC 2.0 modes, ensuring broad compatibility with many multimedia devices and game consoles.
Shanling UA7: Advanced customization via the Shanling Eddict Player app
In addition to the built-in controls, the UA7 can be configured via the Shanling Eddict Player app. This gives you access to advanced settings such as gain, DAC digital filters, volume control, and amplifier mode selection.
This approach offers an excellent balance between immediate ease of use and advanced customization, appealing to both novice users and seasoned audiophiles.
Shanling UA7: Compact design and high-end finishes
The Shanling UA7 features a CNC-machined aluminum chassis, ensuring robustness, efficient heat dissipation, and a premium finish. Despite the integration of vacuum tubes, its compact dimensions and light weight of approximately 48g make it perfectly suited for portable use, attached to a smartphone or slipped into a pocket.

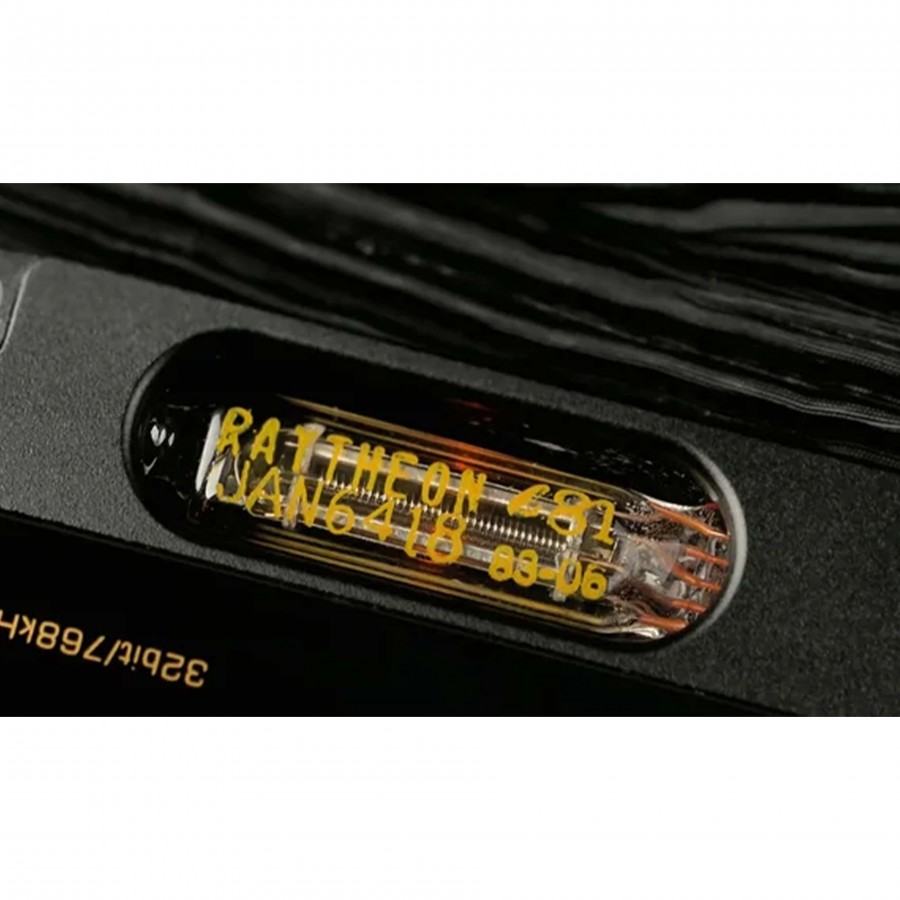

The glass front highlights the two JAN6418 tubes, the UA7's distinctive features, providing both a strong visual identity and a very real sound function. The design is completed by a 0.87" OLED screen, which is easy to read and offers good contrast, displaying essential information in real time such as volume level, the audio format being played, and the selected amplification mode.
A multifunction wheel on the side provides precise volume control and intuitive menu navigation, without having to rely on an external app.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC & headphone amplifier |
| DAC chips | ESS ES9069 |
| Tubes | 2x JAN6418 tubes |
| Op-amp | OPA1612 OPA1662 BUF634 |
| Input | USB-C |
| Outputs | 1x 3.5mm single-ended jack 1x 4.4mm balanced jack |
| Supported sampling rates | PCM up to 32bit 768kHz DSD512 |
| Display | 0.87" OLED |
| USB modes | UAC 1.0 / UAC 2.0 |
| 3.5 mm single-ended output (transistor mode) | |
|---|---|
| Output power | 2.5V @ 32Ω (195mW @ 32Ω) |
| Frequency response | 20Hz - 40kHz (-0.5dB) |
| THD+N | 0.0006% @ 32Ω |
| Dynamic range | 119dB |
| Channel separation | 73dB (A-Weight High Gain) |
| Signal-to-noise ratio | 119dB (A-Weight High Gain) |
| Noise level | 110dB (A-Weight High Gain) |
| Output impedance | 0.5Ω |
| 3.5 mm single-ended output (tube mode) | |
|---|---|
| Output power | 2.5V @ 32Ω (195mW @ 32Ω) |
| Frequency response | 20Hz - 40kHz (-0.5dB) |
| THD+N | 0.15% @ 32Ω (2V) |
| Dynamic range | 119dB |
| Channel separation | 73dB (A-Weight High Gain) |
| Signal-to-noise ratio | 119dB (A-Weight High Gain) |
| Noise level | 110dB (A-Weight High Gain) |
| Output impedance | 0.5Ω |
| 4.4 mm balanced output (transistor mode) | |
|---|---|
| Output power | 4.3V @ 32Ω (577mW @ 32Ω) |
| Frequency response | 20Hz - 40kHz (-0.5dB) |
| THD+N | 0.00095 % @ 32Ω |
| Dynamic range | 120dB |
| Channel separation | 109dB (A-Weight High Gain) |
| Signal-to-noise ratio | 119dB (A-Weight High Gain) |
| Noise level | 105dB (A-Weight High Gain) |
| Output impedance | 1Ω |
| 4.4 mm balanced output (tube mode) | |
|---|---|
| Output power | 4.3V @ 32Ω (577mW @ 32Ω) |
| Frequency response | 20Hz - 40kHz (-0.5dB) |
| THD+N | 0.15% @ 32Ω (2 V) |
| Dynamic range | 120dB |
| Channel separation | 106dB (A-Weight High Gain) |
| Signal-to-noise ratio | 119dB (A-Weight High Gain) |
| Noise level | 105dB (A-Weight High Gain) |
| Output impedance | 1 Ω |
| General | |
|---|---|
| Power supply | Via USB-C |
| Dimensions | 70 × 36 × 15 mm |
| Weight | 48.5 g |
| Color | Black |
| Package contents | 1x Shanling UA7 1x USB-C cable 1x USB-A to USB-C adapter |
| Input | USB |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| DAC / ADC Chip | ES9069Q |
| Max sampling rate | DSD512 |
| Max sampling rate | 768kHz |
| Color | Black |
| Networking | No |
| Remote Control | No |
