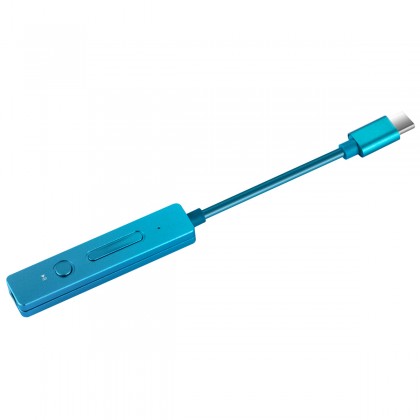

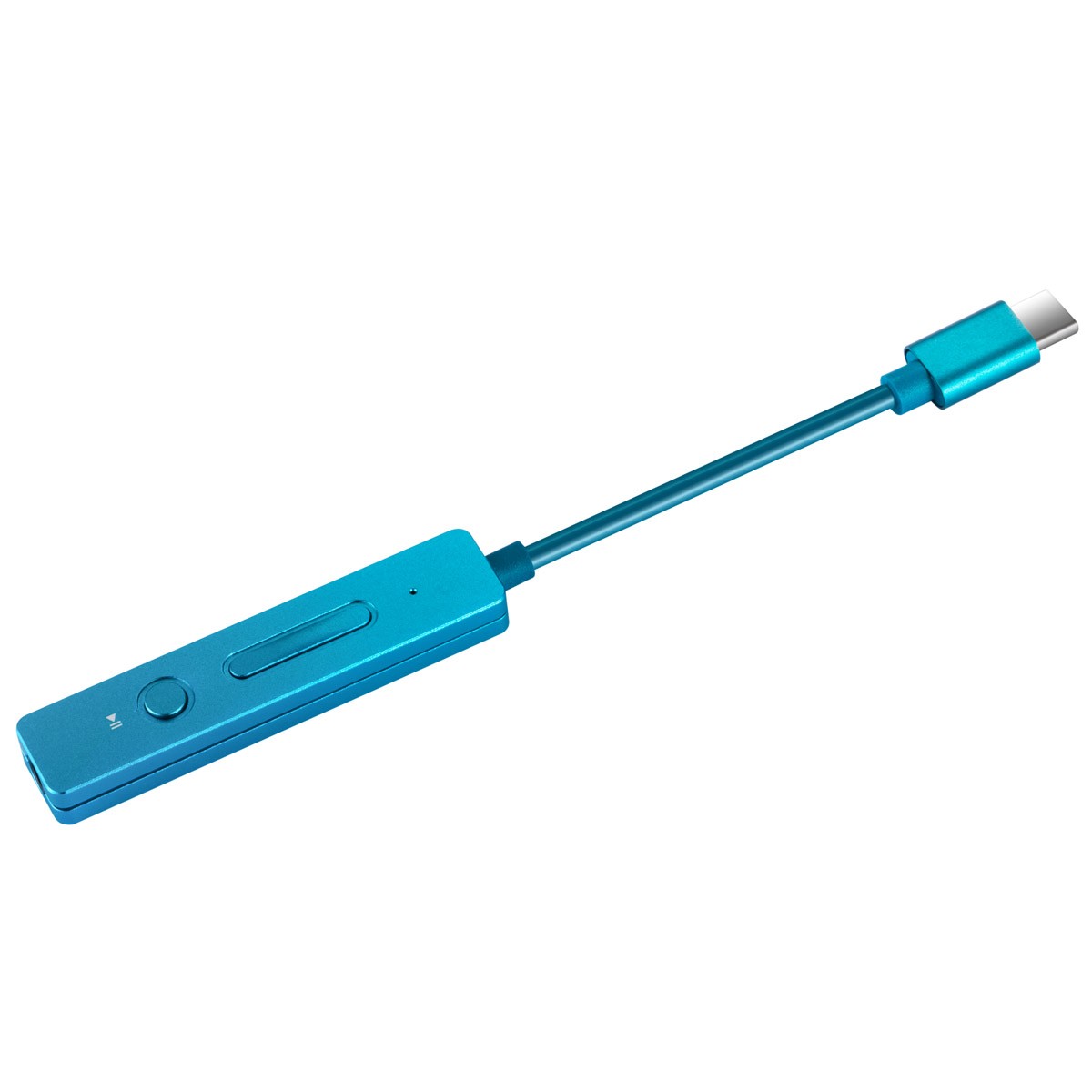

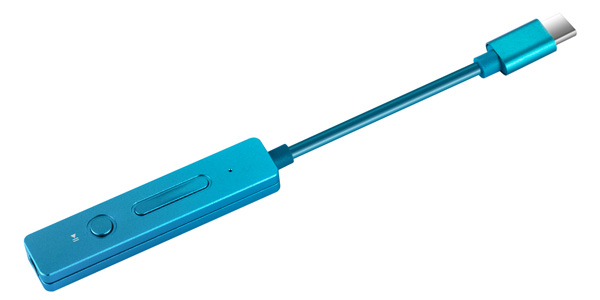

xDuoo Link V2
Portable USB DAC CS43131 32bit 384kHz DSD256
The xDuoo Link V2 portable DAC follows the design and concept of its big brother, the Link, in a version with improved performance.
Link V2
Link
DAC Chip
CS43131
ES9118
Output power
80mW @ 32 Ohm
32mW @ 32 Ohm
Supported sampling rates
PCM 32bit 384kHz, DSD256
PCM 32bit 384kHz, DSD256
Frequency response
20Hz - 20kHz
20Hz - 20kHz
SNR
125dB
115dB
THD+N
0.0010%
0.0018%
Automatic power adjustment
Yes
No
Input
USB-C
USB-C
Output
Jack 3.5mm
Jack 3.5mm
Dimensions
60 x 13 x 7.2mm
60 x 13 x 7.2mm
Weight
13g
15g
CS43131 DAC
The Link V2's digital to analog conversion stage uses a Cirrus Logic CS43131 DAC chip. This powerful chip supports high resolution audio streams up to PCM 32bit 384kHz and DSD256, while offering a precise and neutral reproduction. It also allows the Link V2 to benefit from the Hi-Res Audio certification.
Low Consumption & Adaptive Power
Le Link V2 ensures low power consumption, so you can use it for long periods of time in combination with your smartphone. In addition, it has an intelligent system that automatically adjusts the output power according to the impedance of the connected listening device.
Energy management
The Link V2 has no built-in battery and is directly powered by the smartphone to which it is connected, using only a very small amount of energy. It does not need to be recharged.
USB DAC function
Although designed for mobile use, the Link V2 can also be used as a USB DAC for computers. Just plug it into a USB port on your computer and enjoy better sound quality. The Link V2 is compatible with Mac, Windows and Linux systems.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC |
| Input | 1x USB-C |
| Output | 1x Jack 3.5mm |
| DAC chip | CS43131 |
| Output power | 80mW @ 32Ω |
| Frequency response | 20Hz ~ 20kHz (±0.5dB) |
| THD+N | 0.0018% @ 1kHz |
| SNR | 125dB |
| Crosstalk | ≥ 77dB |
| Supported sampling rates | PCM up to 32bit 384kHz, DSD up to DSD256 |
| Cable length | 90mm |
| General | |
|---|---|
| Dimensions | 60 x 13 x 7.2mm |
| Weight | 13g |
| Color | Blue |
| Input | USB |
| Output | Jack 3.5mm |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Blue |
| Networking | No |
| Remote Control | No |
