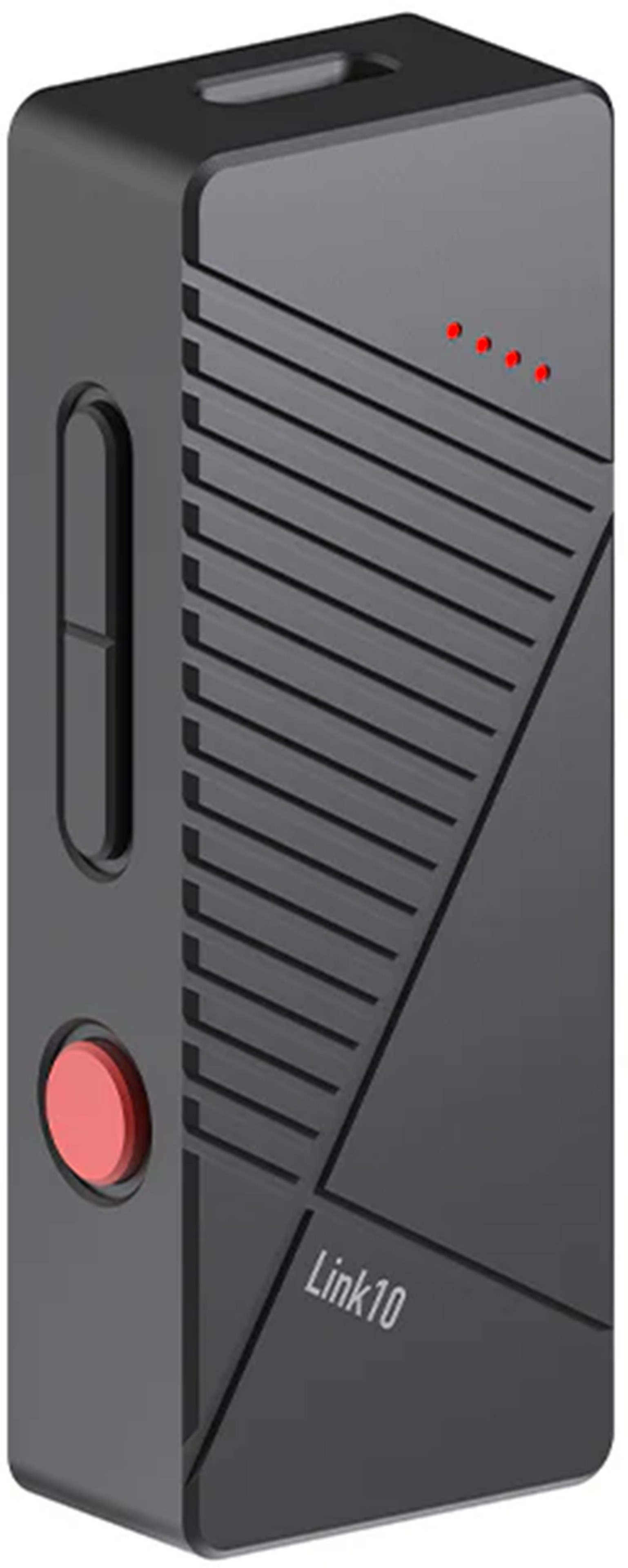

XDUOO LINK10 Portable DAC

New
The xDduoo Link10 is a compact yet powerful portable DAC. Designed around two Cirrus Logic CS43131 DAC chips, it is capable of converting signals up to 32bit 384kHz PCM and DSD256 while delivering 2x300mW of output power at 32Ω.

No customer reviews yet, login to write a review.

By buying this product you get 10 loyalty points


Yes, notify me when available !
Reference : 20922
New product

109,00 €tax incl.

90,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

xDuoo Link10 Portable DAC 2x CS43131 32bit 384kHz DSD256

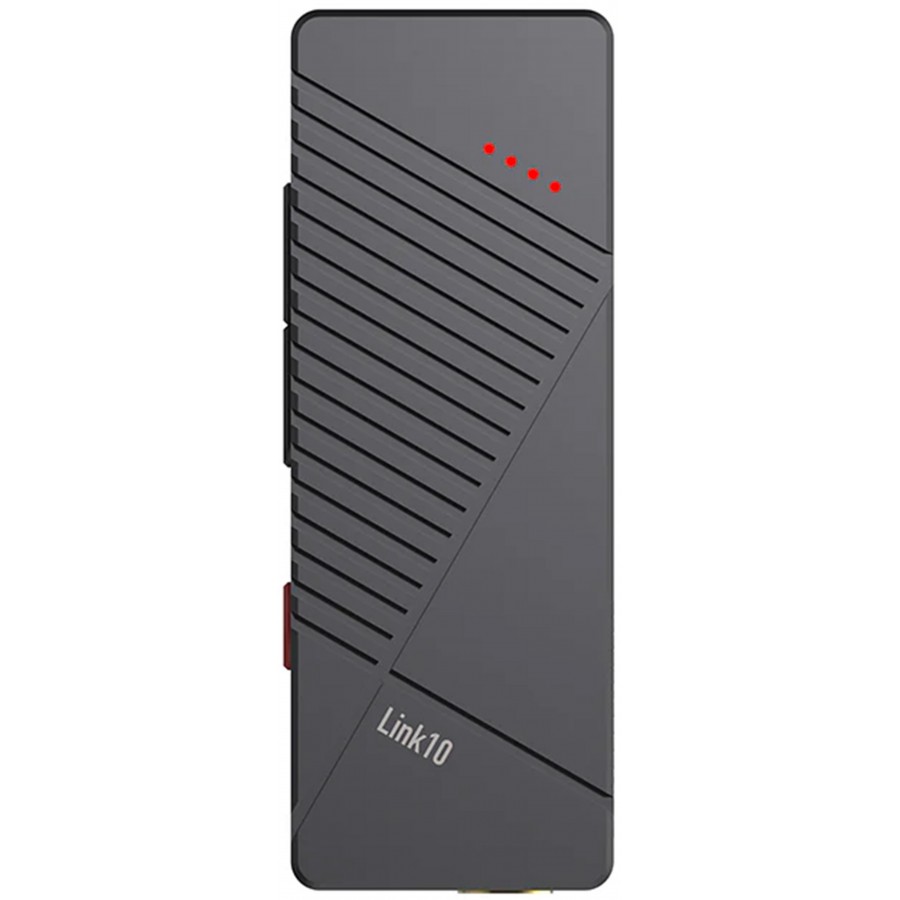

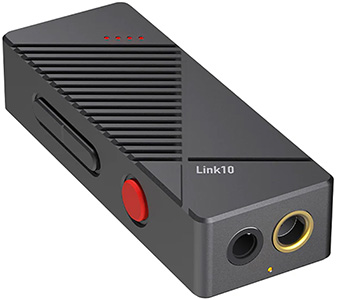

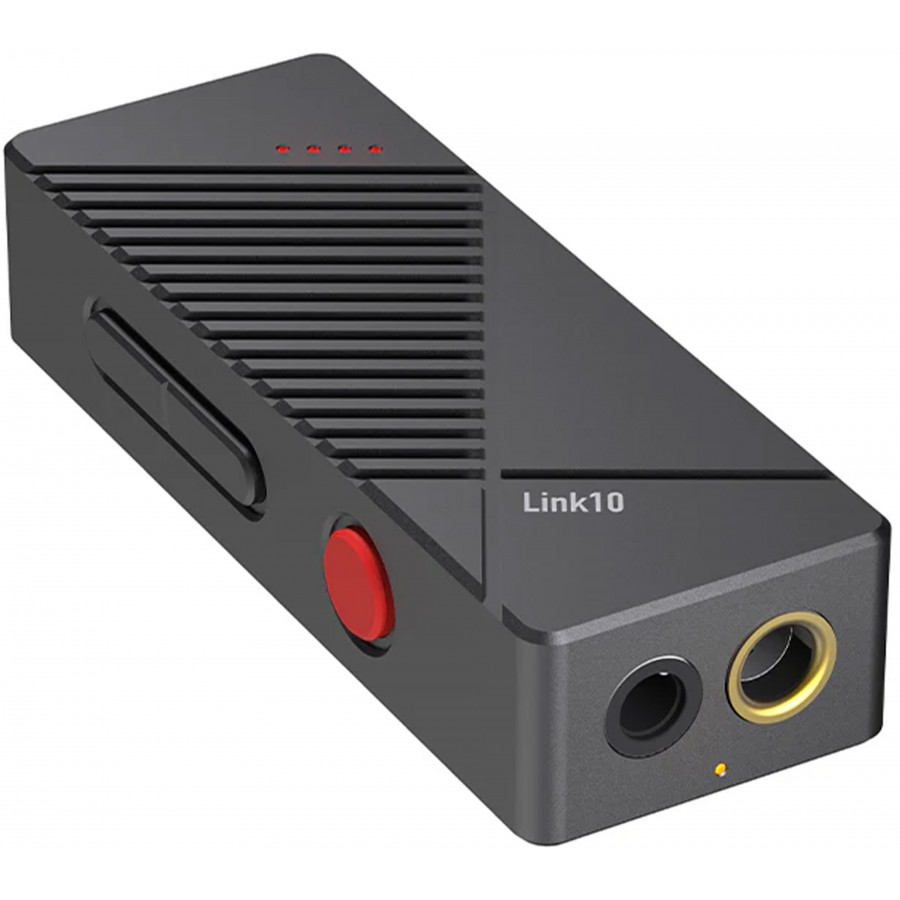

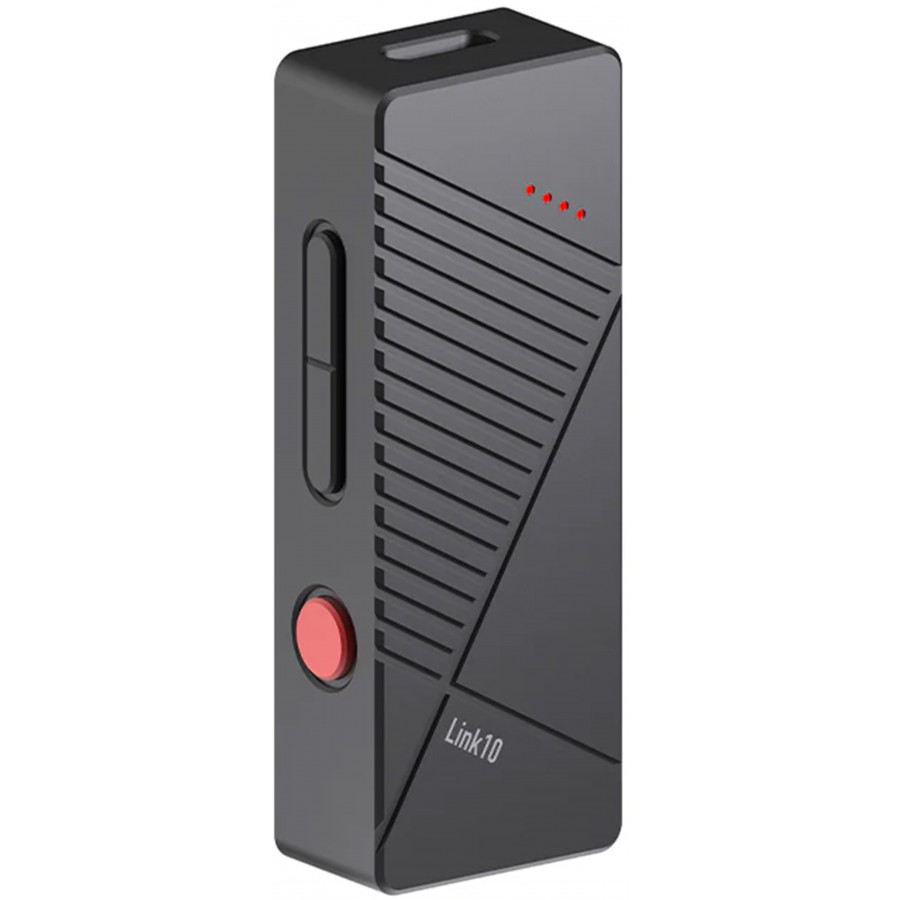

Xduoo Link 10 : Front view


The xDduoo Link10 is a compact yet powerful portable DAC. Designed around two Cirrus Logic CS43131 DAC chips, it is capable of converting signals up to 32bit 384kHz PCM and DSD256 while delivering 2x300mW of output power at 32Ω.

xDuoo Link10: Dual Cirrus Logic DAC

For its digital-to-analogue conversion stage, the Link10 relies on two Cirrus Logic CS43131 chips to support signals up to 32-bit 384kHz PCM and DSD256. These high-quality chips ensure impressive conversion accuracy, with a signal-to-noise ratio of nearly 130dB and a harmonic distortion rate of only -115dB.

Xduoo Link 10 :CS43131 DAC chips
Xduoo Link 10 : Output power of 300mW

xDuoo Link10: Output power of 300mW

With an output power of 2x300mW at 32Ω, the Link 10 is perfectly capable of driving most earphones and low-impedance headphones, making it compatible with a wide range of devices so you can always take it with you.

xDuoo Link10: Digital volume control

To manage its volume, the Link 10 uses precise 60-step digital control, ensuring that the sound rendering is not affected by the impedance and sensitivity specific to each pair of headphones or earphones.

Xduoo Link 10 : volume curve

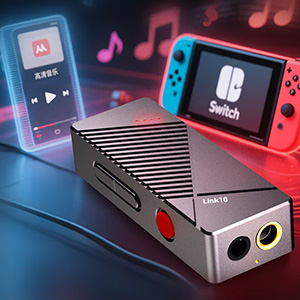

Xduoo Link 10 alongside a DAP and a gaming console

xDuoo Link10: Dual output jack and UAC 1.0 mode

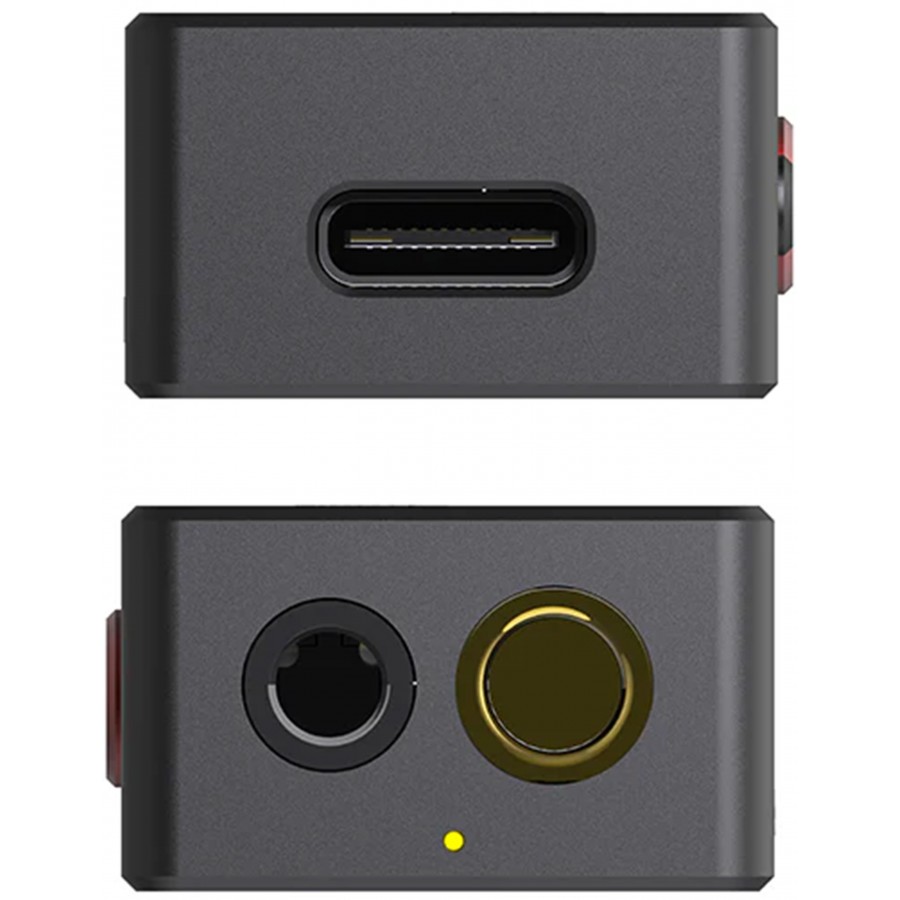

The Link10 is equipped with two output jacks: one 3.5mm and one 4.4mm, ensuring full compatibility with all existing headphone and earphone models while offering a choice between single-ended and balanced output. Furthermore, in the spirit of extended compatibility, the Link 10 also features UAC 1.0 mode for use with devices such as game consoles.

xDuoo Link10: Advanced ergonomics

Despite its minimalist design with just a few buttons, the Link10 offers a wide range of functions thanks to its shortcut keys. For example, to change the DAC filter, simply press the volume + and – buttons simultaneously for one second.

A single click on the red button pauses your music, a double click skips to the next track and a triple click returns to the previous track. Furthermore, pressing and holding the button for 3 seconds switches to GAIN mode. Finally, holding down the button while connecting a source to the USB-C input activates UAC 1.0 mode.

Technical characteristics

Specifications
Product typePortable DAC
Input1x USB-C
Outputs1x Single-ended Jack 3.5mm
1x Balanced Jack 4.4mm
Jack 3.5mm output power250mW @ 32Ω
140mW @ 75Ω
70mW @ 150Ω
45mw @ 300Ω
Jack 4.4mm output power300mW @ 32Ω
350mW @ 75Ω
270mW @ 150Ω
170mw @ 300Ω
DAC Chips2x CS43131
Supported sampling ratesPCM up to 32bit 384kHz
DSD up to DSD256
Total harmonic distorsion more noise (THD+N)Single-ended output: 106dB @ 1kHz
Balanced output: 108dB @ 1kHz
Signal-to-noise ratio (SNR)Single-ended output: ≥ 126dB
Balanced output: ≥ 130dB
CrosstalkSingle-ended output: ≥ 75dB
Balanced output: ≥ 112dB
Frequency response20Hz - 20kHz (±0.5dB)
General
Dimensions60 x 23 x 13mm
Weight25g
ColorBlack
Package1x xDuoo Link 10
1x USB-C cable
1x USB-A to USB-C adapter

Data sheet
InputUSB
OutputJack 3.5mm
OutputJack 4.4mm
DAC / ADC ChipCS43131
Max sampling rate384kHz
Max sampling rateDSD256
ColorBlack
NetworkingNo
Remote ControlNo
