ALPS 24-position digital rotary encoder EC12E24

ALPS Encodeur numérique rotatif 24 positions EC12E24

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 6806
New product

3,90 €tax incl.

3,25 € tax excl.

- +


Shipping date: 13-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

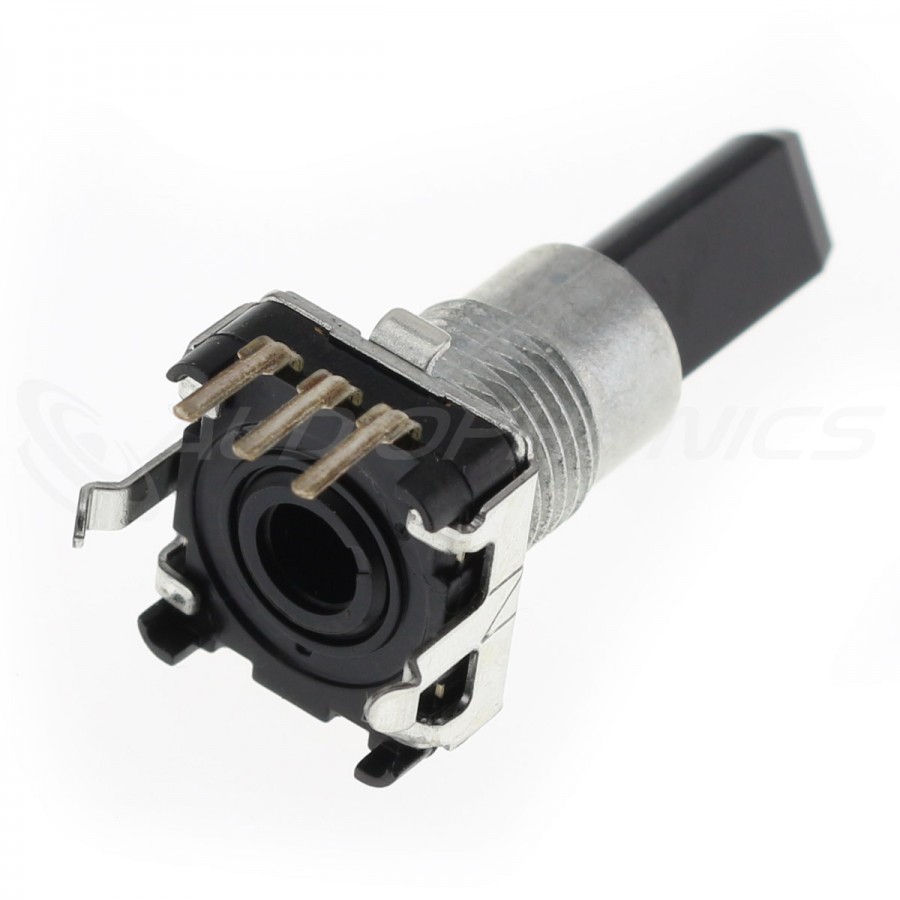

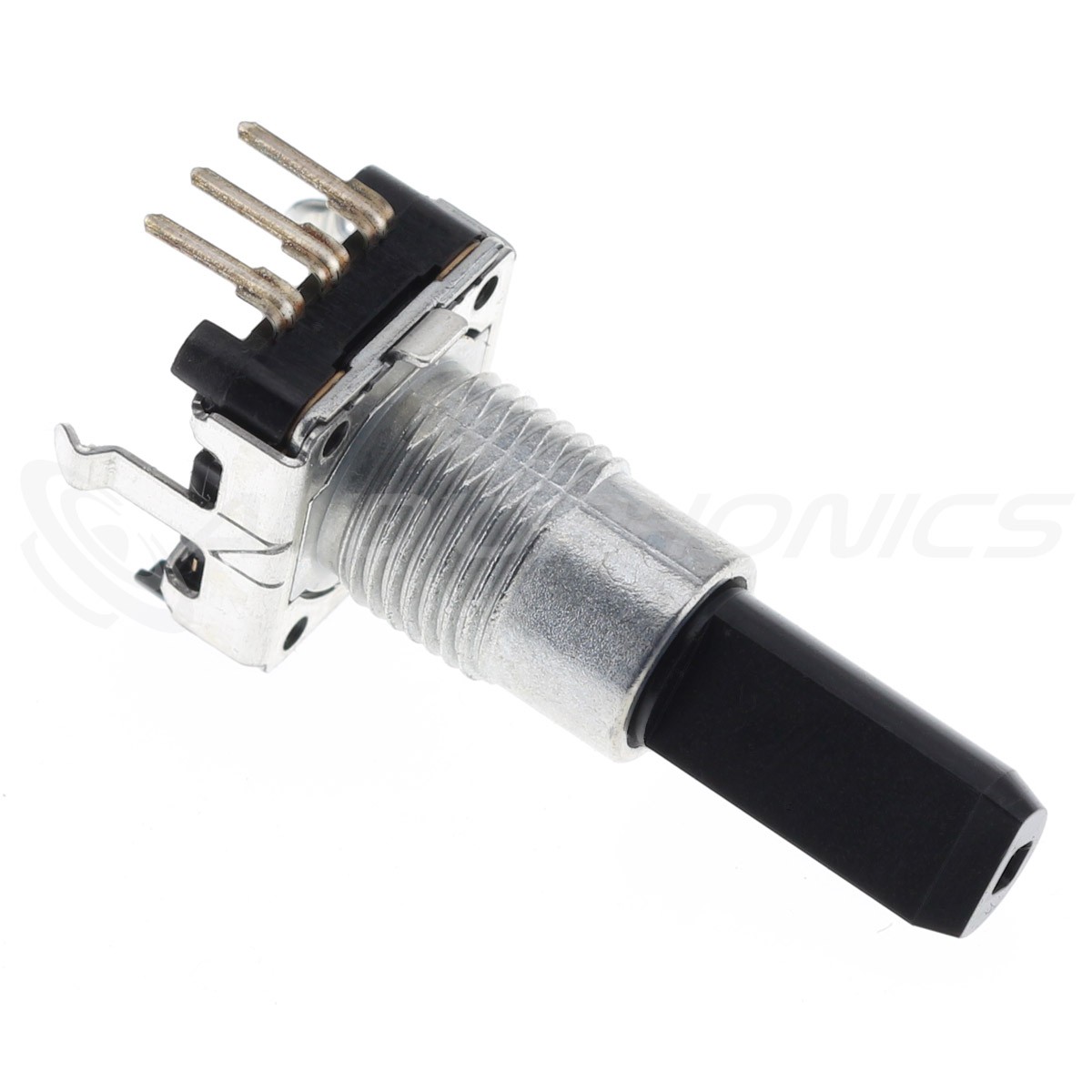

ALPS 24-position digital rotary encoder EC12E24 with thread (without nut)

Features:

  • Manufacturer: ALPS
  • Product Category: Encoder
  • RoHS Compliant
  • Pulses per revolution: 24 PPR
  • Number of notches: 24
  • Termination Style: Solder Pin
  • Output: Incremental
  • Type of tree: Isolated
  • Operating temperature range: -10 ℃ to + 70 ℃
  • Maximum operating current (Resistive load) 10mA
  • Electrical Performance Ratings 0.5mA 5V DC

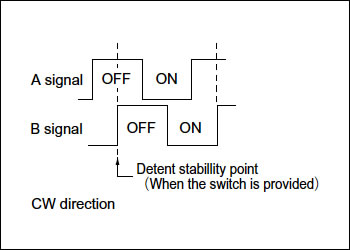

  • Output signal Output of A and B signals, proportionate to phase difference
  • Insulation resistance 10MΩ min. 50V DC
  • Voltage proof 50V AC for 1 minute
  • Mechanical performance Detent torque 3 to 20mN · m
  • Push-pull strength 80N
  • Resistance to soldering heat Manual soldering 350 ℃ max. 3s max.
  • Dip soldering 260 ± 5 ℃, 3 ± 1s
  • Durability Operating life 30,000 cycles
  • Environmental Performance Cold -40 ± 3 ℃ for 10h
  • Dry heat 85 ± 3 ℃ for 10h
  • Damp heat 60 ± 2 ℃, 90 to 95% RH for 10h

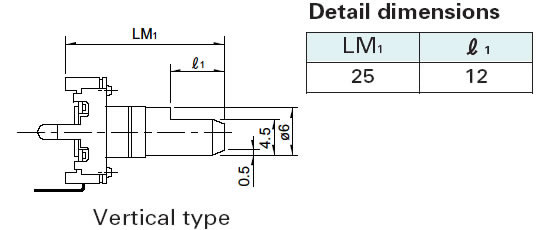

https://www.audiophonics.fr/images2/6806/6806_ALPSE12_2.jpg

https://www.audiophonics.fr/images2/6806/6806_ALPSE12_3.jpg

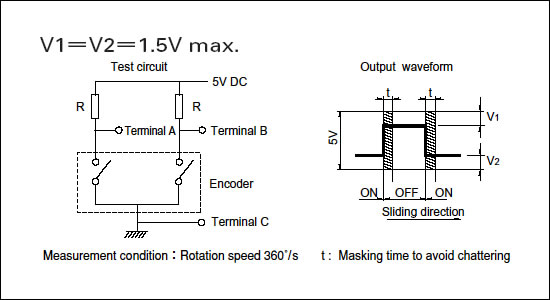

https://www.audiophonics.fr/images2/6806/6806_ALPSE12_4.jpg

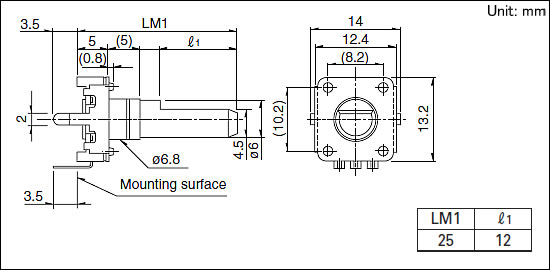

https://www.audiophonics.fr/images2/6806/6806_ALPSE12_5.jpg

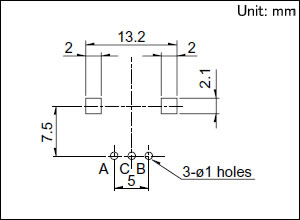

https://www.audiophonics.fr/images2/6806/6806_ALPSE12_6.jpg


Data sheet
ShaftFlat
ChannelN/A
Resistance (Ohm)N/A
Tolerance (%)N/A
