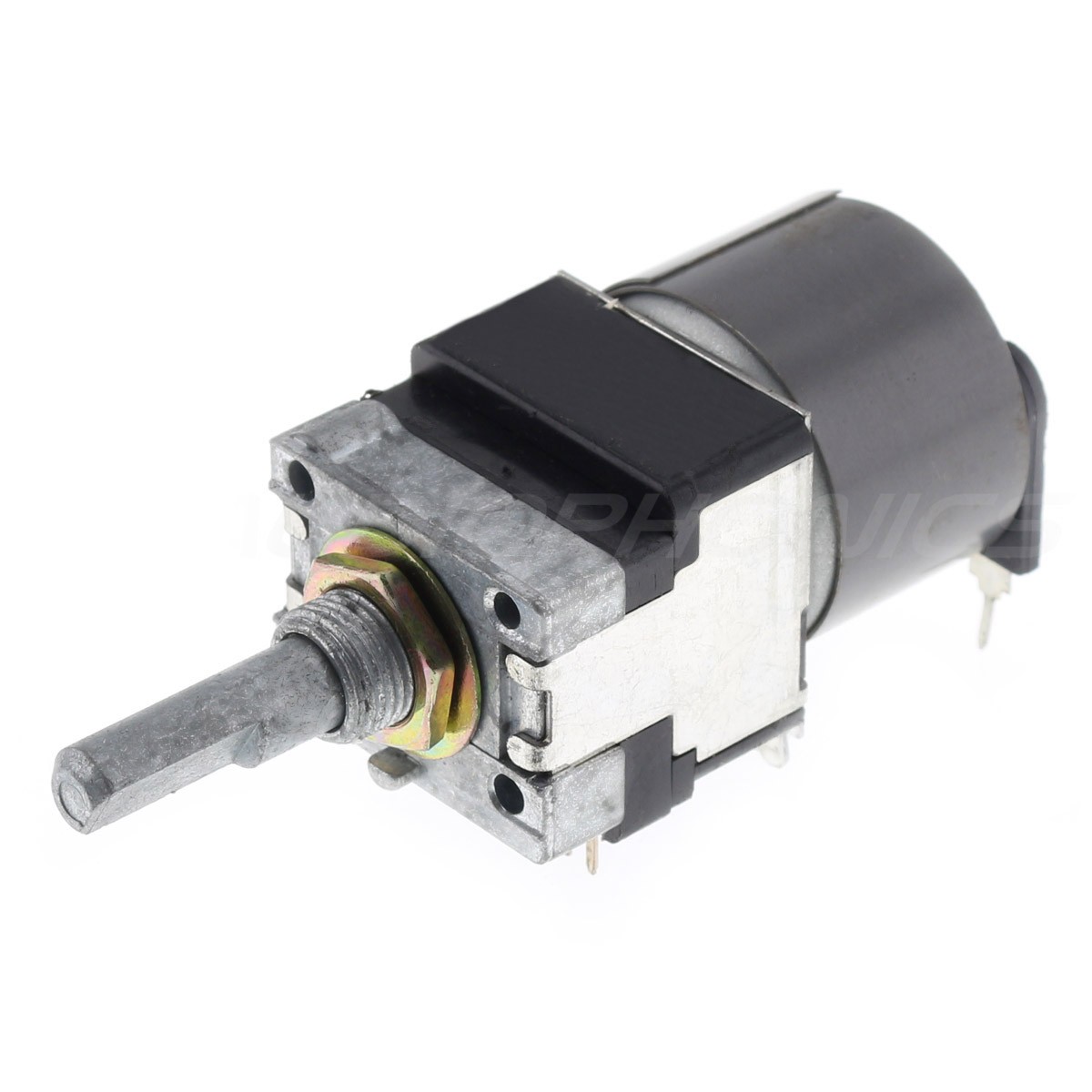

ALPS RK16812MG 2 Way Motorized Potentiometer D-Log 100k
This ALPS RK16817MG potentiometer is ideal for integration into a HiFi device. Its motorization can offer the possibility of remote control via remote control. Compact and dust-resistant, this model has CI connections in series (two channels on a single level). Its curve is logarithmic (D-Log).
No customer reviews yet, login to write a review.
By buying this product you get 1 loyalty point
Reference : 5028
New product
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
ALPS RK16817MG
2-Way Motorized Potentiometer D-Log 100k
This ALPS RK16817MG potentiometer is ideal for integration into a HiFi device. Its motorization can offer the possibility of remote control via remote control. Compact and dust-resistant, this model has CI connections in series (two channels on a single level). Its curve is logarithmic (D-Log).
Technical characteristics
| Specifications | |
|---|---|
| Product type | Motorized potentiometer |
| Output | Stereo |
| Mounting direction | Horizontal |
| Shaft type | D-Shaft |
| Shaft length | With screw thread: 25mm Without screw thread: 18mm |
| Shaft diameter | 6mm |
| Screw thread diameter | 9mm |
| Total resistance | 100kΩ |
| Resistance curve | 3B |
| Motor voltage | 4 à 6VDC (standard: 4.5V) |
| Potentiometer rotation speed | 12 +/-3s/300° (4.5VDC) |
| Min / Max Operating temperature | -10°C / +70°C |
| Total resistance tolerance | +/-20% |
| Nominal power | 0.05W |
| Max operating voltage | 50V AC |
| Max attenuation | 100dB |
| Insulation resistance | 100MΩ min. 250V DC |
| Total rotation angle | 300° +/-5° |
| Operating life | 15000 cycles |
| Dimensions | 69.9 x 25 x 29.7mm |
