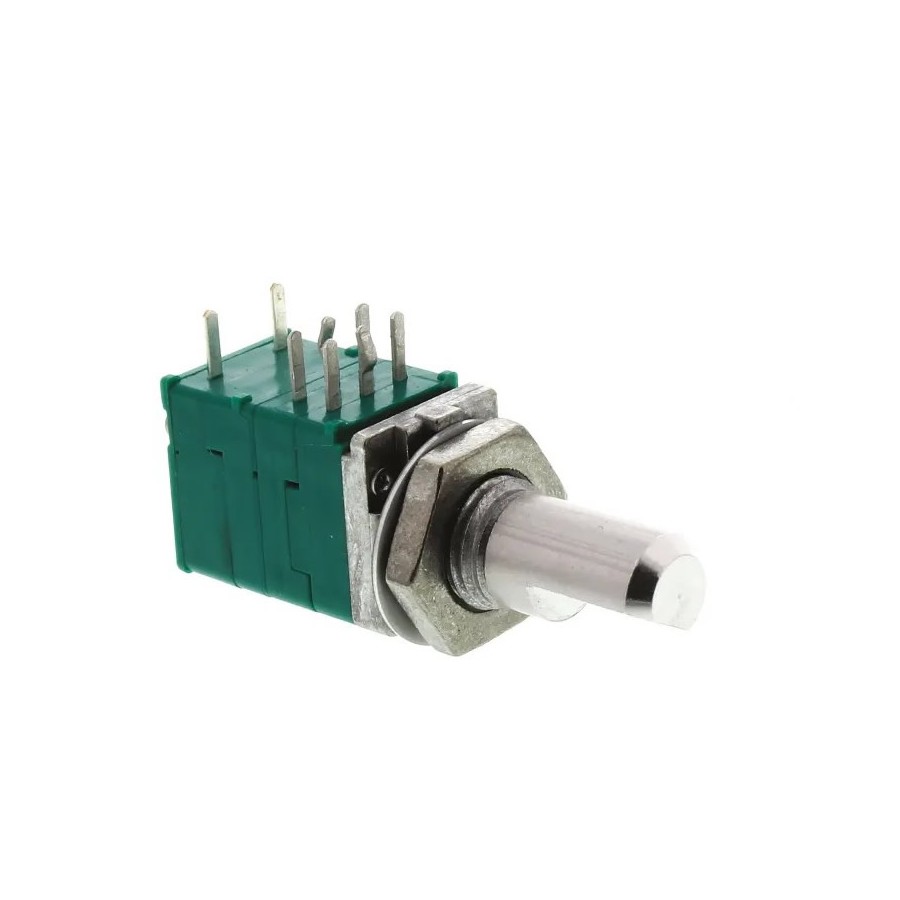

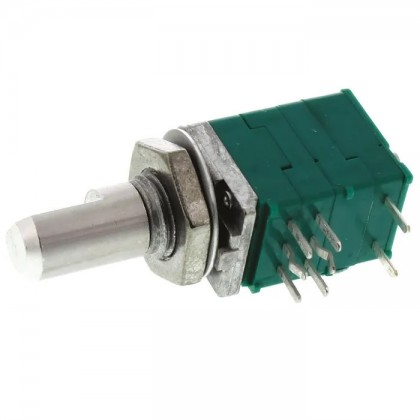

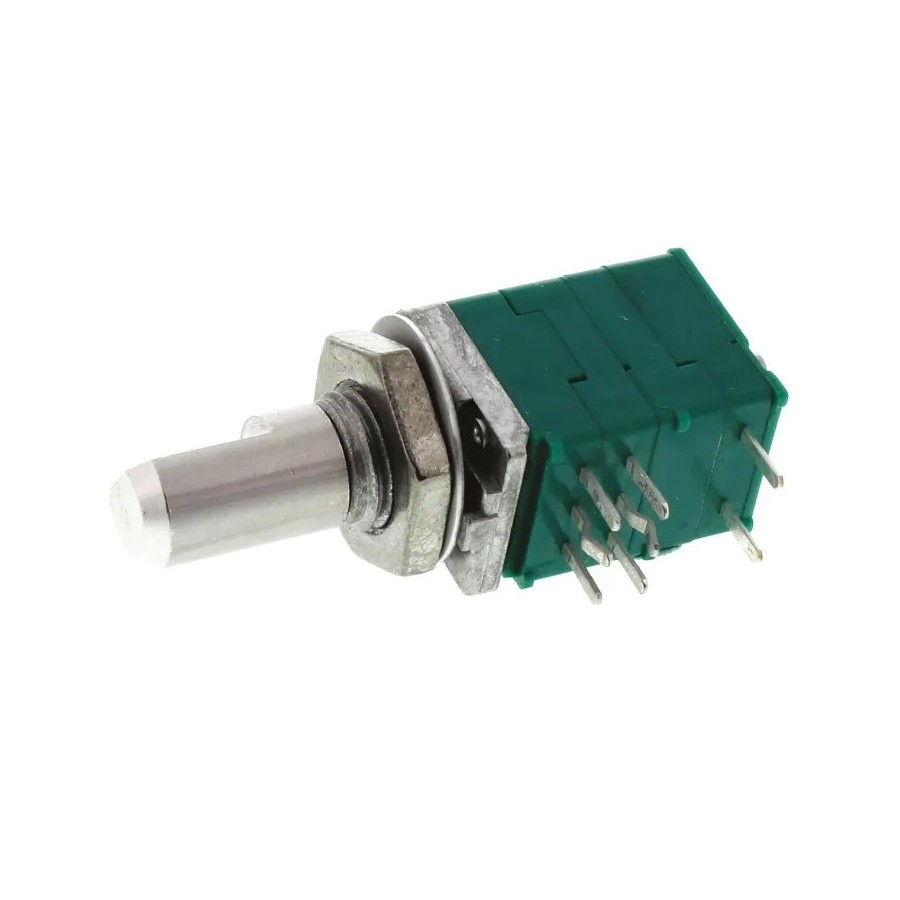

Potentiometer ALPS RK09 10k 2 way + Switch 3A

Potentiomètre ALPS RK09 10k 2 voies + Interrupteur 3A
No customer reviews yet, login to write a review.

No loyalty points for this product.


5806
New product

4,90 €tax incl.

4,08 € tax excl.
Available

- +

Shipping date: 23-01-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Potentiometer ALPS RK0971221Z05 10k 2 way + Switch

Logarithmic potentiometer with 3A switch

Number of resistor elementsDual-unit
Mounting directionHorizontal type
Shaft typesFlat
Length of the shaft15mm
Center detentWithout
Total resistance10kΩ
Resistance type3B

Operating temperature range-20 ℃ to + 70 ℃
Electrical PerformanceTotal resistance tolerance± 20%
Rated power0.05W
Maximum operating voltage50V AC, 10V DC
Maximum attenuation80dB min.
Gang error-40dB to 0dB 3dB max.
Insulation resistance100MΩ min. 250V DC
Voltage proof300V AC for 1 minute
Mechanical PerformanceTotal rotational angle300 ± 5 °
Rotational torque2 to 25mN · m
Stopper strength0.5N · m
Push-pull strength100N max.
Vibration10 to 55 to 10Hz / min., The amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z and for 2 hours respectively
Solder heat resistanceManual soldering350 ℃ max. 3s max.
Dip soldering260 ± 5 ℃, 5 ± 1 s
durabilityOperating life15,000 cycles
Environmental testingCold-30 ± 2 ℃ for 96h
Dry heat70 ± 2 ℃ for 96h
Damp heat40 ± 2 ℃, 90 to 95% RH for 96h
SpecificationsContact arrangementSPST
Changeover angle50 ° max.
Operation torque50mN · m max.
Ratings3A 16V DC
Contact resistance (Initial period / After operating life)100mΩ / 200mΩ
Insulation resistance100MΩ min. 250V DC
Voltage proof300V AC for 1 minute
Operating life10,000 cycles min.
