ALSOZONE GAN MONO Power Amplifier

New
The ALSOZONE GaN Mono is a power amplifier monoblock mono amplifier with GaN technology, designed for modern Hi-Fi systems and capable of delivering up to 300 W at 4 Ohm and 150 W at 8 Ohm.

Average votes for this product
5.0 / 5

By buying this product you get 13 loyalty points


Reference : 22568
New product

139,00 €tax incl.

115,83 € tax excl.
dont 0,90 € d'éco-participation

- +


Shipping date: 18-11-2026.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

ALSOZONE GAN MONO GaN Power Amplifier PCM1808 + ACM8816 300W 4 Ohm Black

ALSOZONE GAN MONO

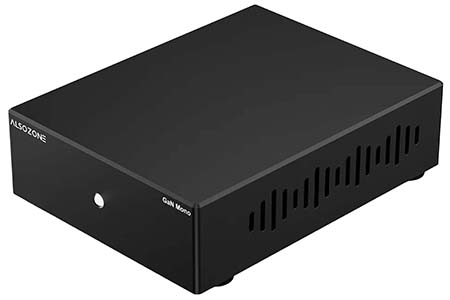

The ALSOZONE GaN Mono is a power amplifier monoblock mono amplifier with GaN technology, designed for modern Hi-Fi systems and capable of delivering up to 300W at 4 Ohm and 150W at 8 Ohm. Its GaN architecture combines high efficiency and optimized thermal management in a particularly compact format measuring only 118 × 90 × 35mm. It features RCA and XLR/TRS inputs, several adjustable gain modes as well as control functions including a 12V Trigger, Auto Standby mode and One-Key control. The amplifier accepts a 24 to 48V DC power supply.

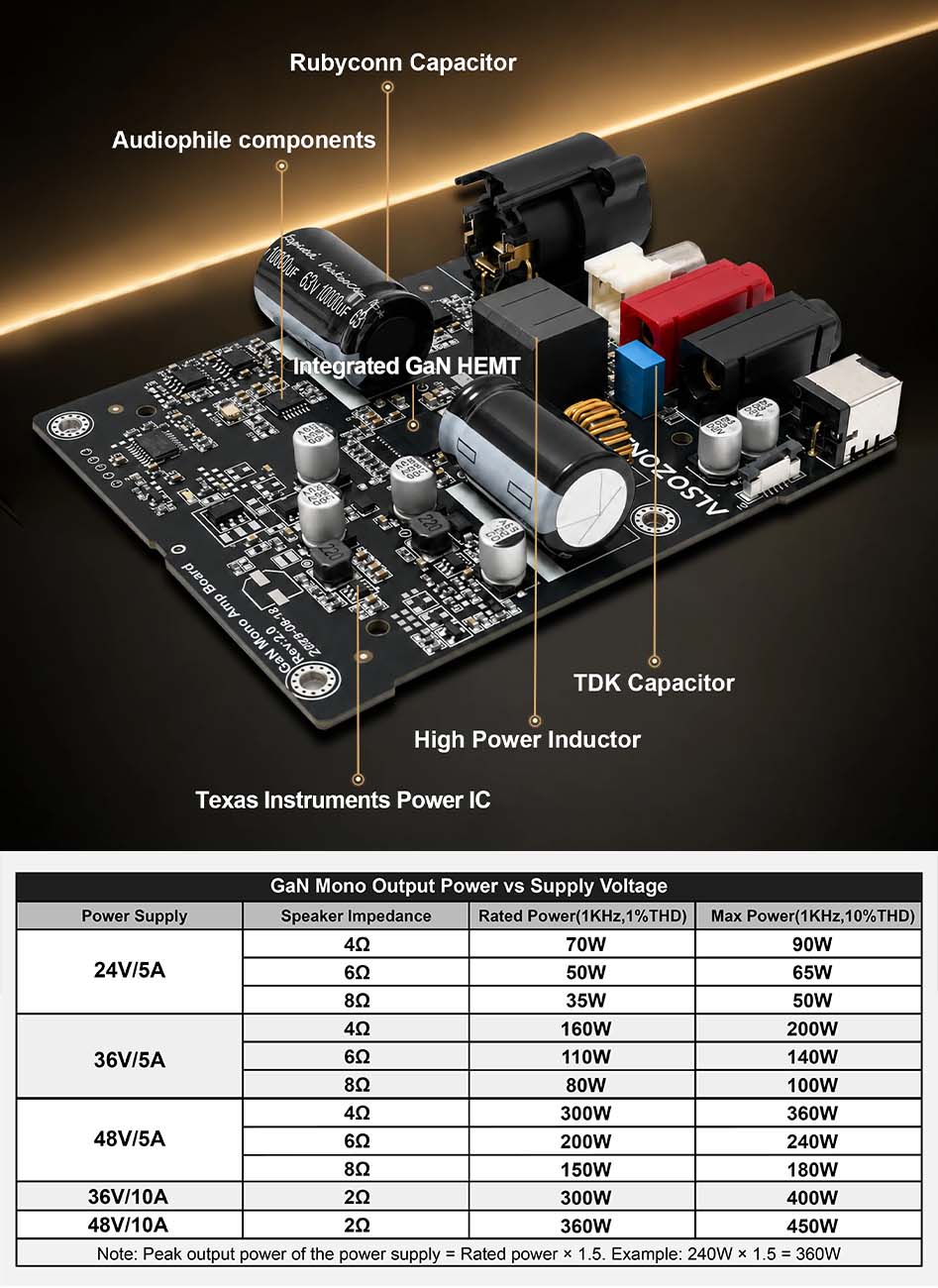

ALSOZONE GAN MONO: GaN Technology and 300W Power

The GaN Mono features amplification with GaN transistors, designed to provide high efficiency and optimized thermal management. Mono GaN is based, in particular, on the combination of a GaN FDA ACM8816 and a PCM1808 ADC. This design allows the monoblock amplifier to deliver up to 300W at 4 Ohm or 150W at 8 Ohm, to power a passive speaker with significant power despite its small footprint. Its 118 × 90 × 35 mm format allows it to be integrated into compact Hi-Fi systems or configurations requiring a low-volume power amplifier.

ALSOZONE GAN MONO : Technologie GaN Class D et puissance de 300W

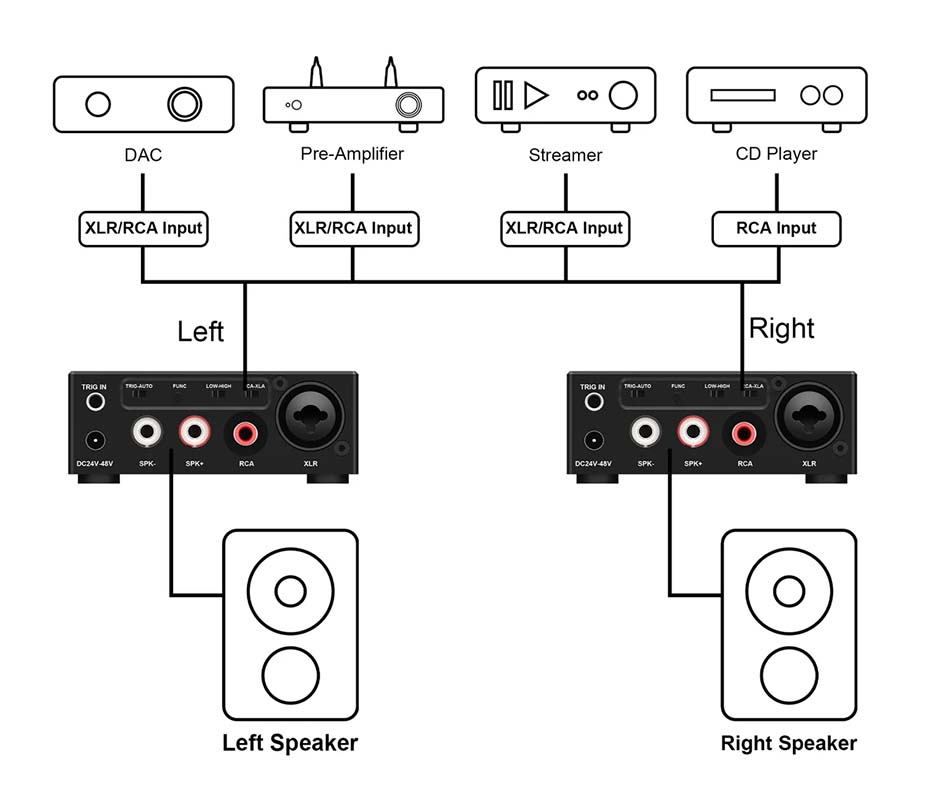

ALSOZONE GAN MONO: XLR/TRS and RCA Inputs and Control Functions

The ALSOZONE GaN Mono offers audio connectivity including RCA and XLR/TRS inputs, allowing it to be integrated into different Hi-Fi configurations. Several functions also make it easy to use on a daily basis, with adjustable gain modes, a 12V Trigger, Auto Standby mode and One-Key control. The amplifier operates with a 24 to 48V DC power supply; the configuration supplied with a 48V / 5A power supply allows the use of an external power supply suitable for the amplifier.

ALSOZONE GAN MONO : Entrées XLR/TRS et RCA et fonctions de contrôle

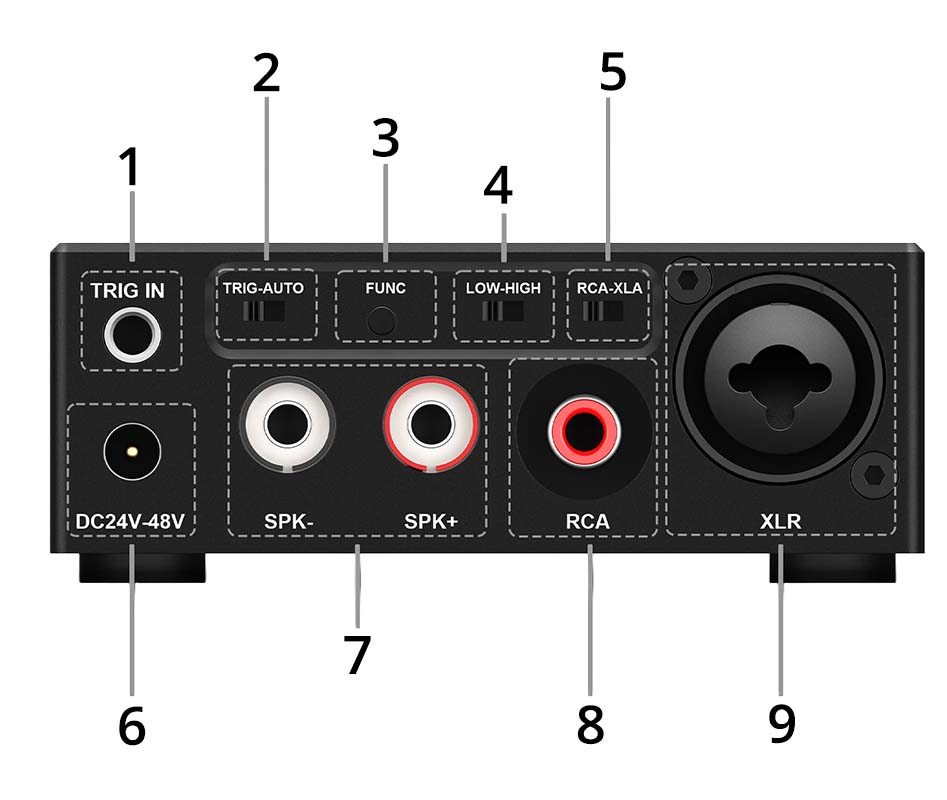

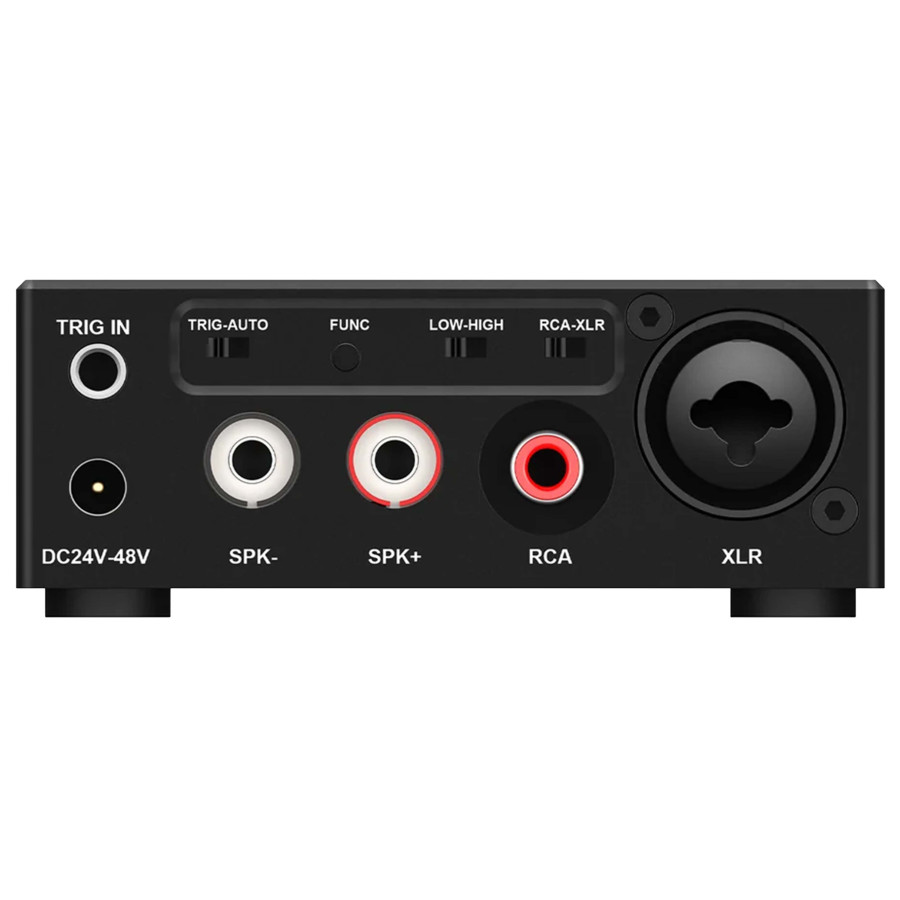

ALSOZONE GAN MONO Overview

Aperçu du ALSOZONE GAN MONO
112V Trigger 3.5mm Jack
2Trigger / Auto Mode
3LED brightness intensity selection
4LOW-HIGH gain selection
5RCA-XLR input selector
6Power supply via 24-48V DC jack
7Speaker output (Banana plugs)
8RCA input
9Balanced XLR/6.35 TRS Jack combo input

Technical Specifications

Specifications
Product TypePower amplifier
ChannelsMono (1)
Amplification ChipGaN transistors
>Inputs1x RCA
1x Balanced XLR/6.35mm TRS Jack combo
Output1x Speaker Output (Banana Plug)
Trigger3.5mm TS Jack, 12V
Input ImpedanceRCA: 10Kohm
XLR/6.35mm TRS Jack: 20Kohm
Input Sensitivity (48V Power Supply)Low Gain: RCA = 1.8Vrms / XLR/6.35mm TRS Jack = 3.6Vrms
High Gain: RCA = 0.9Vrms / XLR/6.35mm TRS Jack = 1.8Vrms
Gain (Low/High)RCA: 27dB/33dB ; XLR/TRS: 21dB/27dB
Output Power300W @ 4 ohm @ 1% THD+N
150W @ 8 ohm @ 1% THD+N
SNR108dB
Key FunctionsTrigger ON/OFF, MUTE, LED Intensity, Auto Sensitivity, Factory Reset
LED Intensity5 Levels
Auto Mode SensitivityRCA: Low = 500uVrms ; High = 250UVrms
XLR/TRS: Low = 1000uVrms ; High = 500UVrms
General
Power Supply24V-48V DC / 5A-10A via 5.5/2.5mm DC jack
Dimensions118 x 90 x 35mm
ColorBlack

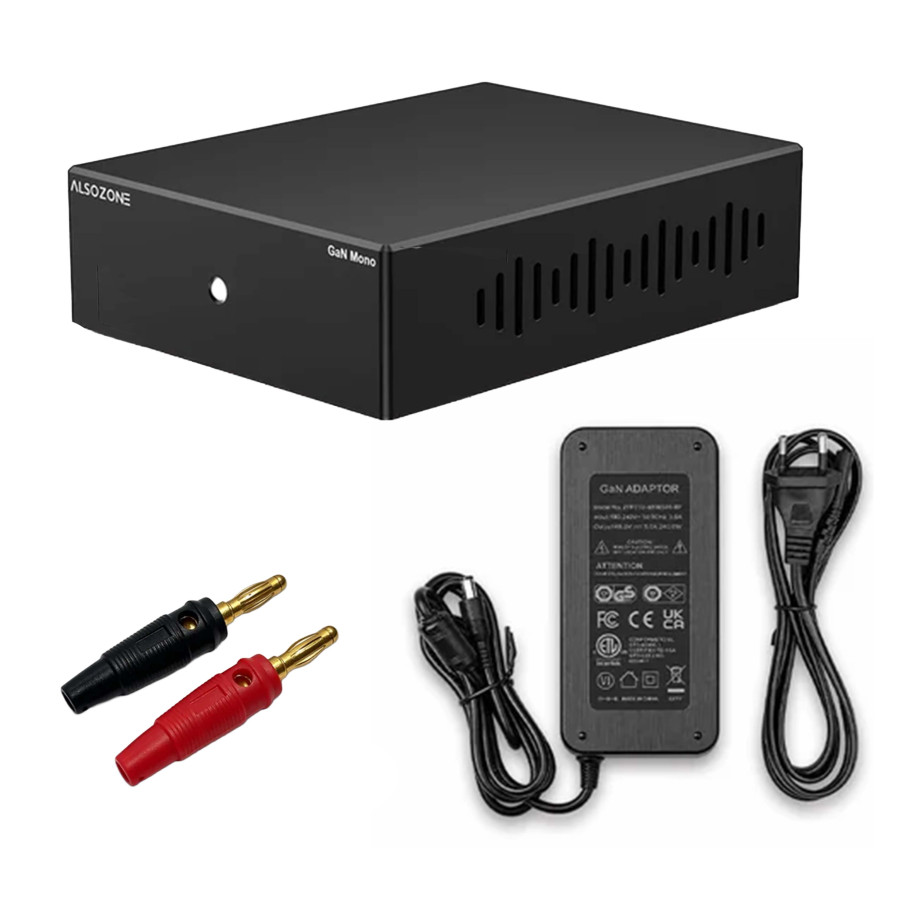

Package1x ALSOZONE GAN MONO Amplifier
2x Banana Plugs
1x 48V 5A Power Adapter

Data sheet
InputRCA
InputXLR
InputJack 6.35mm
OutputSpeaker terminal
ColorBlack
Channel1 (Mono)
ClassClass D / T
Amplifier chipTransistors
Power (W)300.0
Remote ControlNo
