AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm

AUDIOPHONICS MPA-S252NC XLR Class D Stereo Amplifier Ncore 2x150W 8 Ohm
The Audiophonics MPA-S250NC XLR is a stereo amplifier based on an amplification module Hypex Ncore NC252MP. This solution is ideal for anyone who wants to have a large power reserve (2x250W) without sacrificing sound reproduction quality.

Average votes for this product
4.9 / 5

By buying this product you get 47 loyalty points


Reference : 14185
New product

479,00 €tax incl.

399,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 29-11-2023.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Audiophonics MPA-S250NC XLR

Class D Stereo Amplifier Ncore NC252MP 2x250W 4 Ohm

Audiophonics MPA-S252NC XLR Amplificateur Stéréo Class D Ncore 2x150W 8 Ohm

The Audiophonics MPA-S250NC XLR is a stereo amplifier based on an amplification module Hypex Ncore NC252MP. This solution is ideal for anyone who wants to have a large power reserve (2x150W) without sacrificing sound reproduction quality. This amplifier block will be suitable for example to accompany demanding speakers, to sound large listening rooms or for studio applications requiring a large headroom without compromising the accuracy and richness of the audio message.

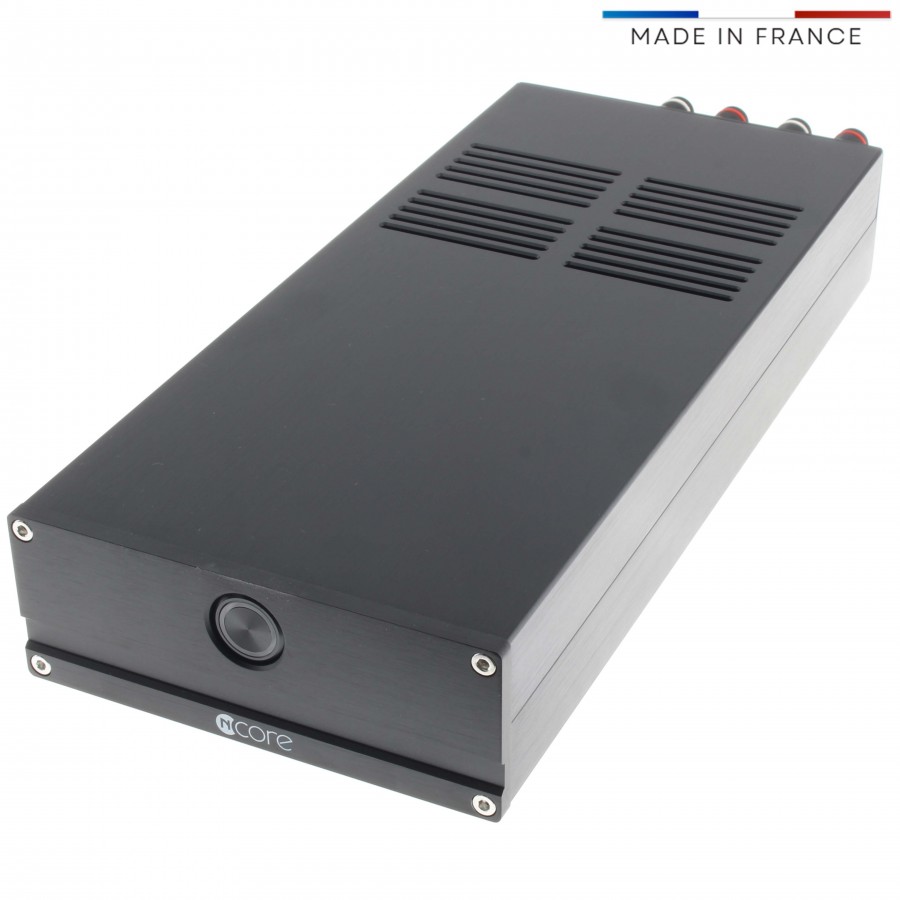

All components are integrated in a simple and robust 100% Aluminium housing with openings to facilitate heat dissipation. Its design also allows it to limit the impact of interference on the signal.

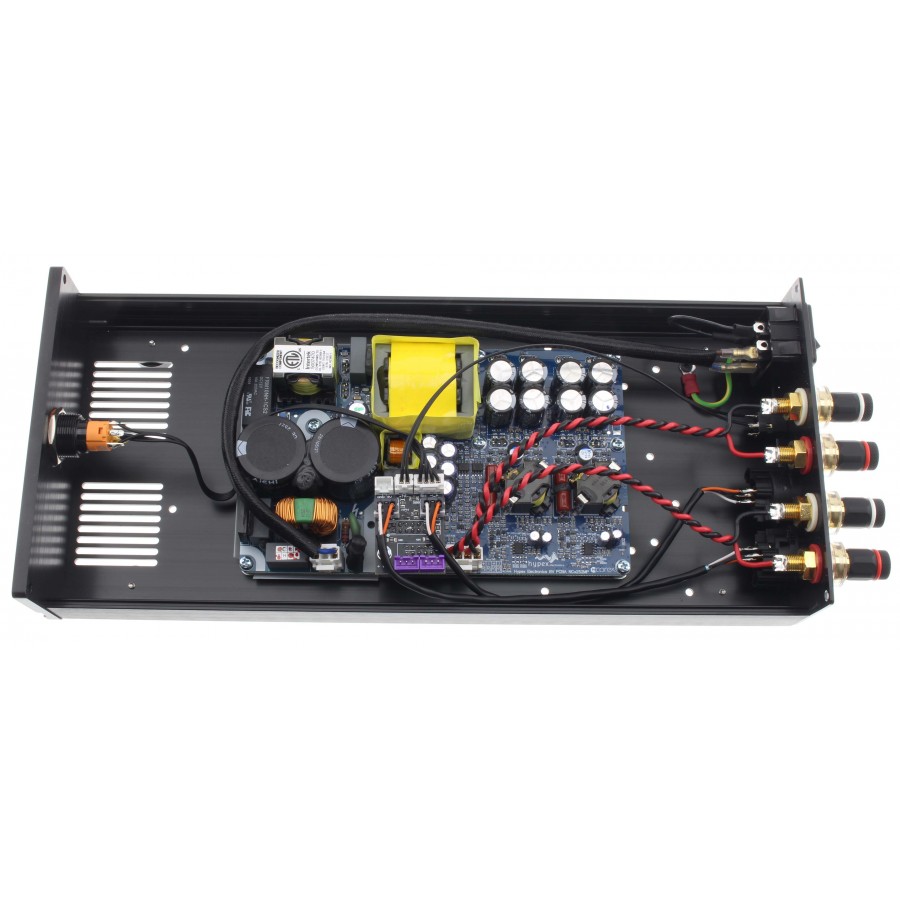

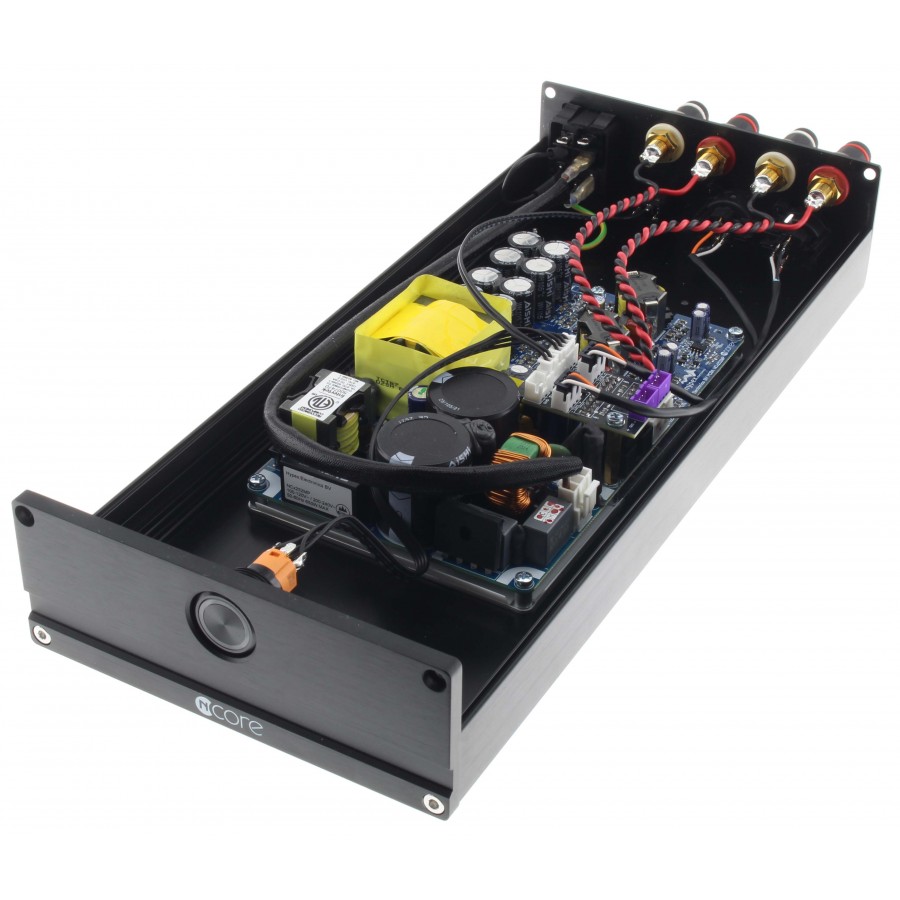

Hypex Ncore NC252MP Amplification Board

The amplification circuit uses a module Hypex Ncore NC252MP. It is a versatile, high-performance Class D amplifier. It offers a very comfortable power of 2x150W at 8Ω while taking advantage of the high efficiency of Class D amplifiers.

Its main characteristics are its flat frequency response regardless of load impedance, its almost frequency-independent level of distortion and its ability to reject EMI interference. Its operation is based on a self-oscillating loop controlled by phase shift and taking into account feedback only at the speaker output.
Audiophonics MPA-S252NC XLR Amplificateur Stéréo Class D Ncore 2x150W 8 Ohm

SMPS Power Supply

The NC252MP module also integrates the amplification stage. This consists of a regulated half-bridge switching power supply (SMPS) with synchronous rectification on the main output rails. Compact, powerful and efficient, this power supply is particularly suitable for supplying a Class D amplifier cleanly.

In addition, to offer complete compatibility with the voltages delivered by the various electrical networks, the power supply is equipped with an automatic input voltage doubler. The NC252MP module also has an overload protection system.

Audiophonics MPA-S252NC XLR Amplificateur Stéréo Class D Ncore 2x150W 8 Ohm

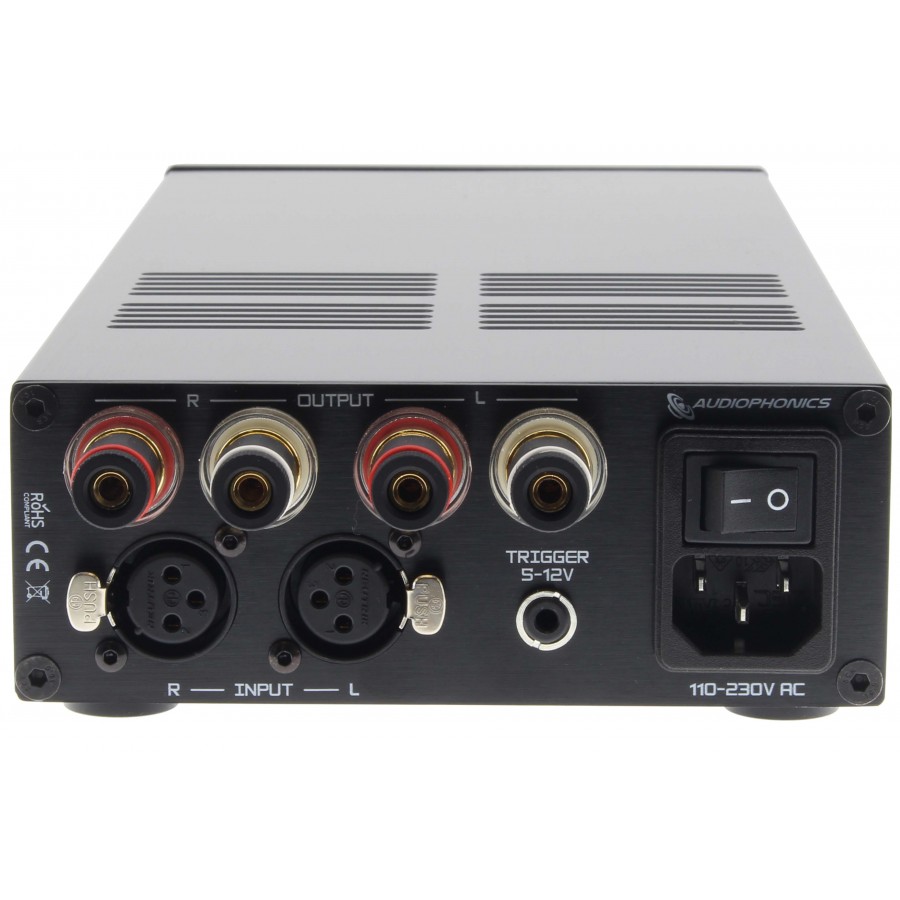

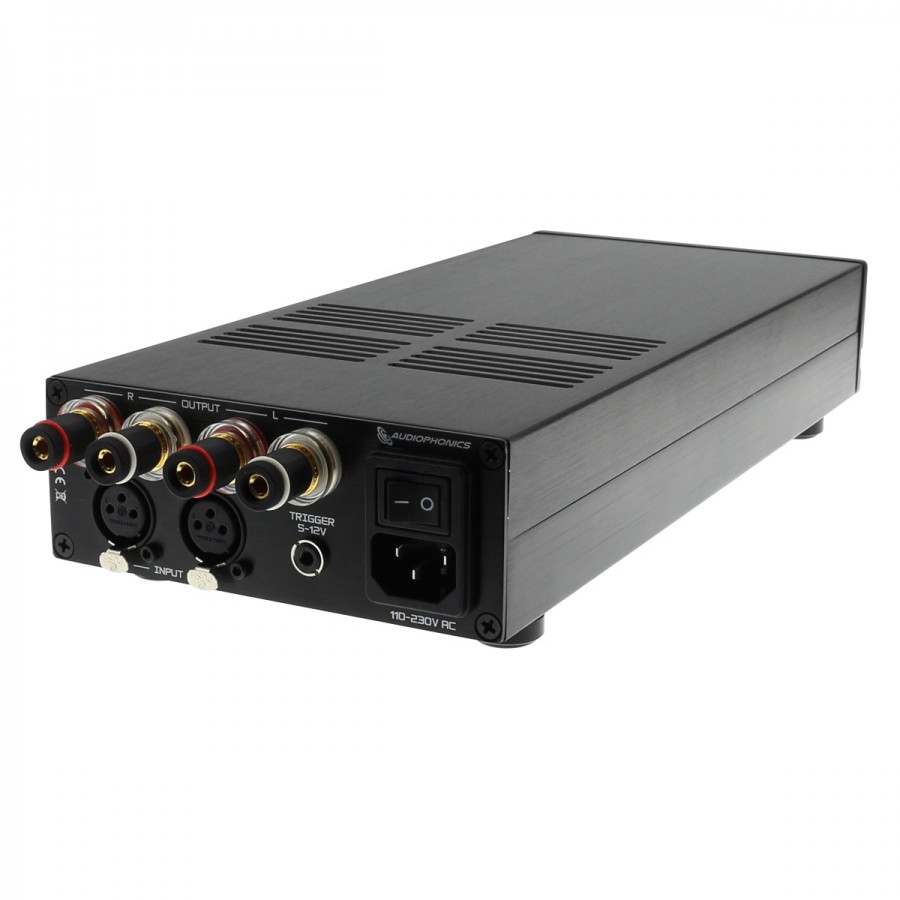

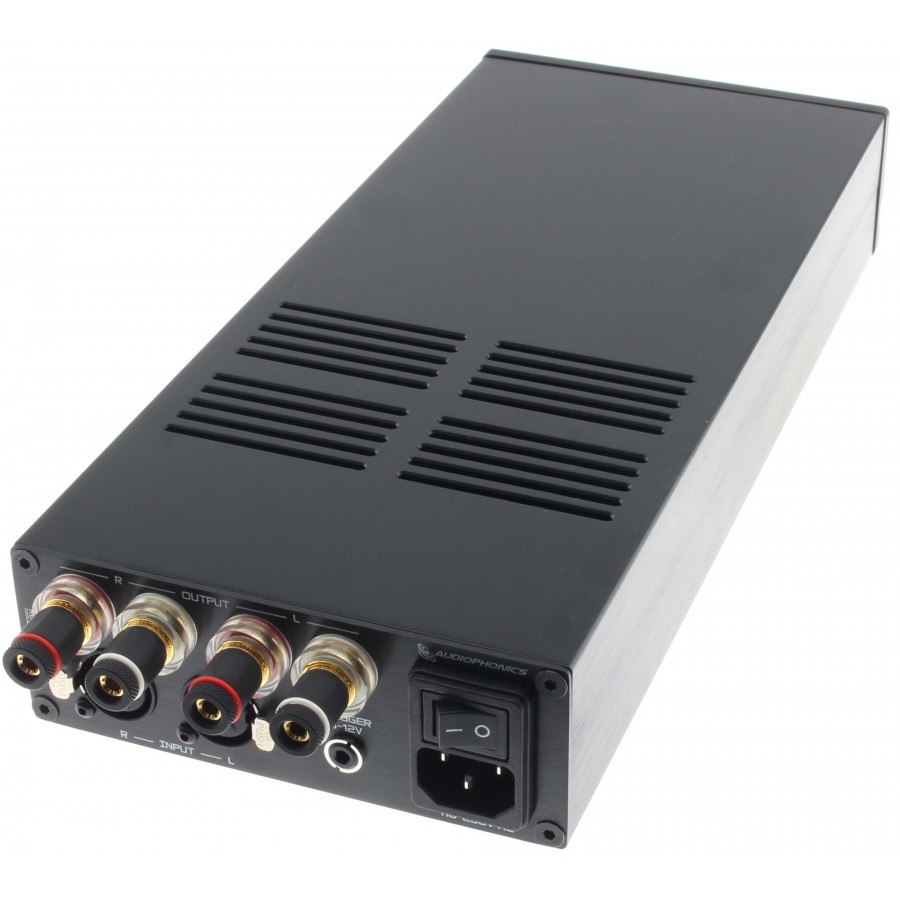

Connectivity

The MPA-S250NC amplifier has a 3-pole stereo XLR input on Neutrik NC3FAV2 sockets. The amplifier output is made on Elecaudio BP-209 24k gold-plated speaker terminals. They also accept banana plugs or forks for quick and easy connections. A 5-12V trigger connector in 3.5mm Jack format allows to control the automatic ignition of the amplifier when integrated in a compatible system. Finally, a bistable button allows the device to be switched on.

Audiophonics MPA-S252NC XLR Amplificateur Stéréo Class D Ncore 2x150W 8 Ohm

Test du Audiophonics MPA-S250NC par AudioScienceReview (Amir)

Audiophonics has produced one adorable stereo amplifier! I just want to sit there and look at it. :) Fortunately beauty goes beyond the skin, sporting a performance Hypex class D amplifier, producing top class results in all the measurements. You get near state of the art performance at bargain prices with scant space needed to dedicate to the amplifier. "
Test du Audiophonics MPA-S250NC par AudioScienceReview (Amir)

Technical characteristics

Specifications
Product typeAmplifier
ClassD
Number of channelStereo (2)
Max. power (@ 1kHz, THD=1%)2x150W @ 8Ω
2x250W @ 4Ω
2x180W @ 2Ω
Input1x Balanced Stereo XLR
OutputSpeaker terminals
Trigger5-12V
THD+N0.0015%
SNR121dB
Output noise30µV
Output impedance1.5mΩ
Frequency response10Hz - 50kHz
Efficiency92%
Input sensitivityMax Power at 1.66V RMS (2x0.83V MRS)
General
Supply voltage230V / 110V (automatic switch)
Case materialBrushed Aluminium
Dimensions141 x 357 x 65mm
Weight1860g
ColorBlack
Package1x Audiophonics MPA-S250NC XLR
1x Power cable

Data sheet
InputXLR
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipHypex Ncore
Power (W)150.0
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.9 / 5
30 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Works beautifully
...the Amp is absolutely stunning. I use it for mastering in my home studio. Never had such transparent Stereo separation and controlled Bass before. I Use it with a pair of ATC SCM12 Pro. 250W are enough to play music very loudly with my ATC's

Thank you!
 (1)
 (0)
This review has been posted for AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm
Note :
 5/5
Date :
Perfect amp
I have this driving a pair of KEF Q350s and they are perfect. Noise free. Incredible detail at any volume.
 (0)
 (0)
This review has been posted for AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm
Note :
 5/5
Date :
Impressive.
Very fast delivery - ordered on thursday, package was delivered on monday morning. Nice! What was not that nice was the way amplifier was packed. I was amazed that my amp was in one piece since there was virtually no padding in the outer box.

What comes to the sound and overall build quality of this amp, is pretty amazing and impressive, especially considering the price. So far very pleased with the product itself. Time will tell how durable it is.
 (0)
 (0)
This review has been posted for AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm
Note :
 5/5
Date :
AUDIOPHONICS MPA-S250NC xlr
J'ai cet ampli depuis 2 ans maintenant et il me satisfait toujours autant !
Il fonctionne tous les jours de 15h à 22h30 et du matin jusqu au soir les week-ends.

Dès que vous changez de source, cela s'entend donc pour moi cet ampli est transparent .
Tres bonne dynamique avec de beaux medium et une spacialisation que j'apprecie !
Zero bruit de fonctionnement et de souffle dans mes enceintes de 95db (magnat transpuls 1500)
Si je devais changer aujourd'hui cela serai pour le nc 400 / 500 ou 600 pour etre sûr de ne rien perdre en voulant me faire plaisir et peut etre gagner encore ! la puissance apporte normalement plus de détails et de peps !

Merci audiophonics pour cette petite boîte qui embarque juste le principale pour faire de la musique.
 (0)
 (0)
This review has been posted for AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm
Note :
 5/5
Date :
So Far So Good!
I am from the US (east coast). Ordered on a Wednesday (before 11 am UTC) and got it Friday morning!!! Unbelievable delivery speed!!! Ordered some cables at the same time from Amazon (I have Prime) and got them Saturday...
Regarding the amplifier, too soon to tell, but so far it's working great. Amazing audio and excellent built quality! Congratulations AudioPhonics!
 (1)
 (0)
This review has been posted for AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm

AUDIOPHONICS MPA-S250NC XLR Power Amplifier Class D Stereo Ncore NC252MP 2x250W 4 Ohm
The Audiophonics MPA-S250NC XLR is a stereo amplifier based on an amplification module Hypex Ncore NC252MP. This solution is ideal for anyone who...
