Audiophonics offers here a kit based on the excellent new Elecaudio driver married to proven and recognized Furutech connectors.

All necessary components are provided to build a complete high end power cable.

This kit includes:

  • 1m ELECAUDIO CS-361B Power Cable OCC PTFE 3x2.50mm² Ø 17mm
  • 1x FURUTECH FI-11CU IEC connector
  • 1x FURUTECH FI-E11CU Plug SCHUKO

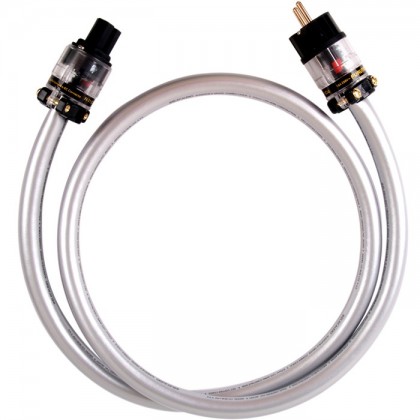

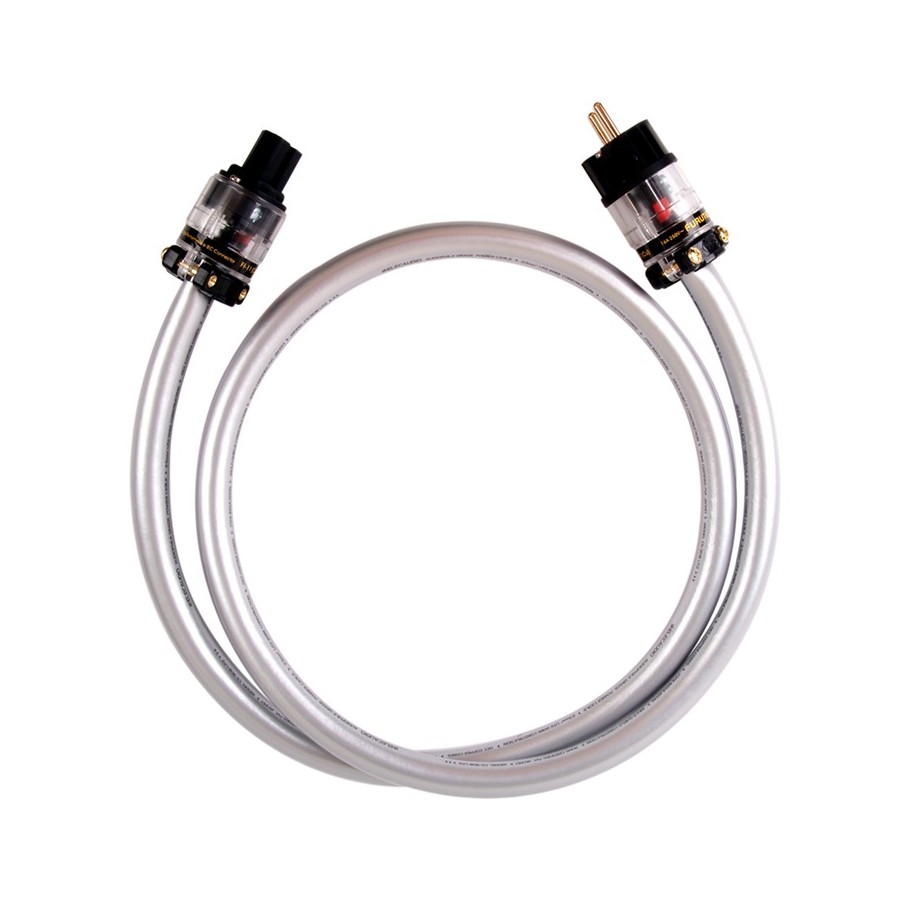

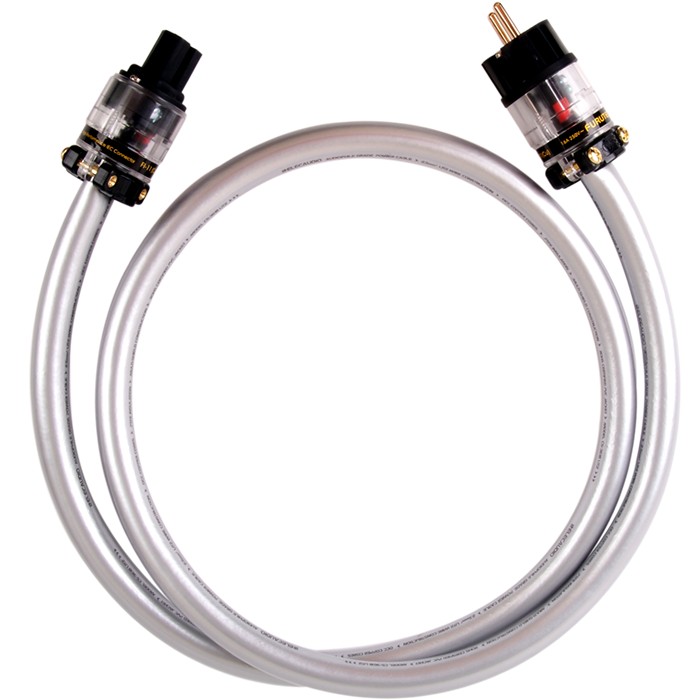

Result when mounted:

https://www.audiophonics.fr/images2/7978/7978_ELECAUDIO_FURUTECH_DIY_KIT_1.jpg

https://www.audiophonics.fr/images2/7978/7978_ELECAUDIO_FURUTECH_DIY_KIT_2.jpg

If you want this cable mounted, we offer a mounting package.
Please go to
the following cardto take advantage of our offer:

https://www.audiophonics.fr/images2/5188/5188_CABLE_ASSEMBLY_5.jpg

ELECAUDIO CS-361B Triple Shielded Cable 3x2.50mm²

The ELECAUDIO team has devised a mains cable capable of upsetting the established order as it implements materials and technologies usually reserved for products at much higher prices.

TheCS-361B is a mains cable developed according to a famous structure of Audiophile conductors namely the wire of Litz, using wires of the strands of copper wires individually it allows to control the skin effect of its structure.

Caracharacteristics:

  • 3 OFC Copper Conductors / OCC of Each Section 2.5mm²
  • Triple Shielding and Protection: Aluminum Sheath, Copper Braid Sheath, Copper Drain OFC
  • Exterior PVC Sheath of Forte Thickness Resistant to Wear and Shock
  • Cotton Trim
  • High-end Finish Color Silver Pearl

Specifications:

  • Conductor Diameter + Single Pipe PVC: 5.50 mm
  • Total Cable Diameter: 17 mm


Cable also sold at the cut

IEC connector specifications :

  • Conductors: Copper alloy treated with the "Furutech Alpha α" anti-magnetism process
  • Insulation: Nylon / Fiberglass
  • Housing: Polycarbonate
  • This connector adapts to an external cable diameter of 6.6mm up to 18mm
  • 250V / 10A
  • Dimensions:
    • Diameter: 38mm
    • Body Length: 48.2mm
    • Overall Length: 74mm

https://www.audiophonics.fr/images/furutech_fi_11cu.jpg

IEC connector also sold individually

Connector specifications schuko :

  • Connectors Schuko 3 Screw Connectors
  • Plating:Or 24k 3μ
  • Maximum Driver Section:16mm² (4.5mm of Diameter)
  • Maximum Cable Diameter: 16.5mm
  • T/ Voltage: 16A / 250V
  • Overall Length: 89 mm
  • Diameter: 38 mm
  • Weight: 75 g

https://www.audiophonics.fr/images/furutech_FI-E-11cu.jpg

Schuko connector also sold individually


https://www.audiophonics.fr/images2/DIY_CS-331B_THUMB.gif

Cable Mounting Tutorial
