EMIKON SERIES CBF 2565 - 4050 Filter Linky sector

EMIKON SERIES CBF 2565 - 4050 Filter Linky sector

No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Reference : 13186
New product

115,83 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 25-11-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

  Emikon sector Filter Linky

>50dB Attenuation on a bandwidth of 35-95kHz


This filter is designed to apply high attenuation on CENELEC-A EN50065 frequency bands that suffer from noise generated by household smart meters (starting with the recently introduced Linky meters in french households).

These new generations of smart meters are accompanied by wide parasites on 63.4kHz and 74kHz frequencies.

They are the result of the way smart meters operate : via powerline communication (PLC). Nevertheless, this unwanted signal is not filtered by the meter and is thus recceived by your whole domestic power line. This can bring considerable flaws in your audio equipment performances.

EMIKON filter sectors are exactly designed for this type of scenario. They filter the electricity network between the meter and your home installation, which relieves your most sensitive electrical devices, starting with your audio system.

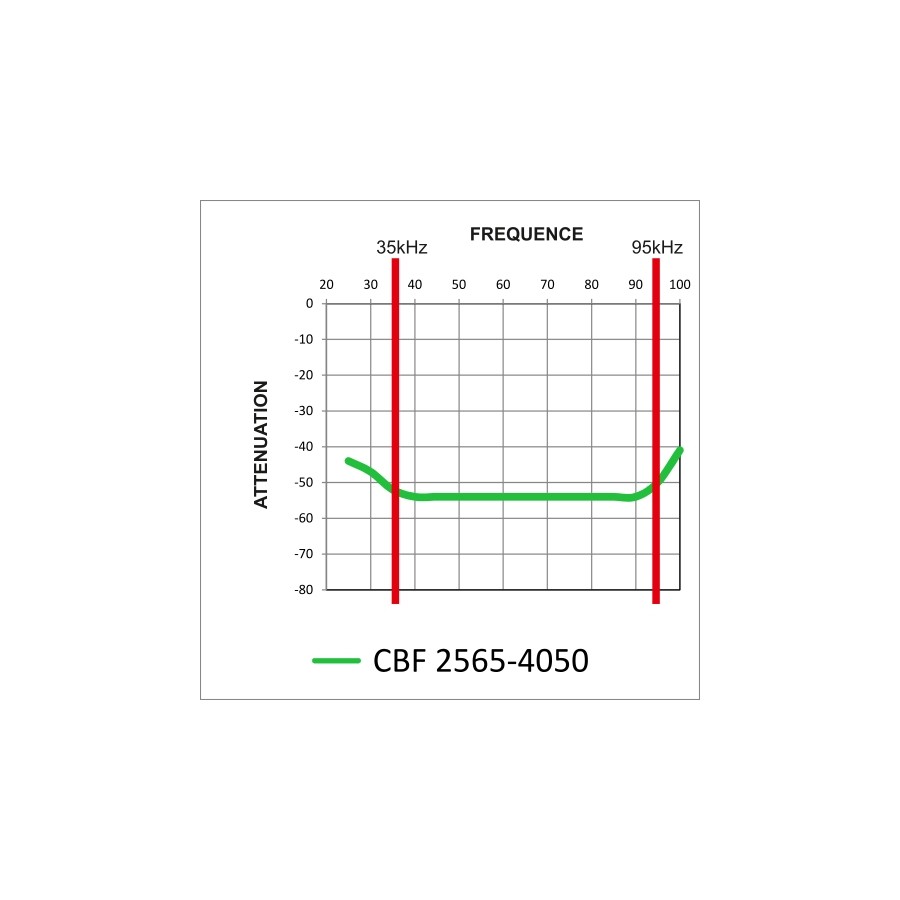

graphic curve attenuation levels: gentle slope of -42 to -52dB approximately 35kHz / -52dB attenuation constant between 40 and 90kHz and steep -52 to -40 dB at 95kHz

More than 50dB attenuation

CPL 2565-4050 CBF filter applies a considerable attenuation of more than 50 dB on the frequency bands used by your new smart meter.

This high amplitude filtering over an extended frequency band  allows a very effecitve reduction of unwanted noise from your meter to almost imperceptible levels for your sensitive electronic equipment.

Maximum current rating is 40A. Which is enough for most regular-sized household powergrid.

Secure housing

Designed to be mounted directly by your electrical panel just after the electric meter, the filter is encased in a standard casing with 4 units.
It can be installed on a hook with a regular 4 DIN mouting rail.

The cables are firmly held in place thanks to dual screw attachment.

The locations may support various wirings from 6 to 16 mm² cross section.

This device's installation needs a modification of your electric panel. Such a modification must be done by a professional following your city electrical norms.

Filter EMIKON CBF 2565-4050

Selective filter

counter parasite PLC filter facility Linky

CPL filters EMIKON does not affect in any way the operation of smart meters from the electric prodivder point of view. All functions continue their normal course and this filter can not be used to prevent the Linky meters to collect information about the details of your power consumption.

A CPL filter EMIKON merely alleviate (make less audible)  frequencies that the counters use to communicate within your domestic power grid.  This process has no effect on the meter which uses these frequency bands to communicate outside of your network.

Specifications
TypePower filter
Maximum operating voltage1x 110 / 275VAC
Frequency50-60Hz
Current40A
Attenuation> 50dB
StandardIP51
Voltage testP-> P / N 2250VDC P / N> E 3000VDC
Operating voltage-25ºC + 100ºC
Supported cross sections6-16 mm²
NormsEN-50065-1 - IEC-60950-1 - IEC-62052-31 - 2004/108/EC UNE 20324 - UNE EN-50102 - UNE EN-61709 - EN-50022 EN 60939-2 - UL 1283 - IEC 60950-1 - ROHS 2011/65/EU
Width72mm
Weight0.760kg
