Power Supply Module
2 Snap-In Sockets

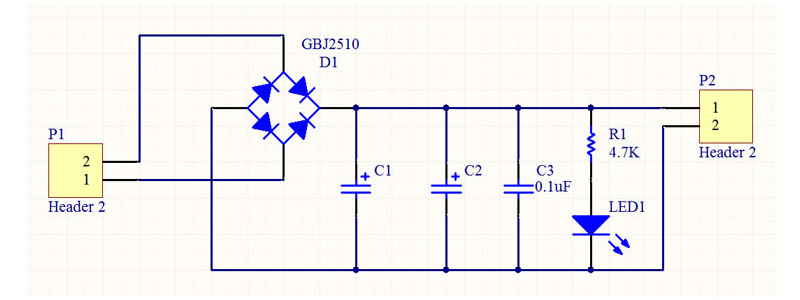

This power supply circuit module has two 30mm diameter slots to install Snap-In capacitors with a capacity of 10000µF and a voltage of 63V. The input and output have screw terminals for quick and easy mounting. The module integrates a 25A rectifier bridge.
Capacitors are sold separately.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power supply module |
| Number of capacitor slots | 2 |
| Diameter of capacitor slots | Ø30mm |
| Solder pad spacing for capacitors | 10mm |
| Capacity / Voltage of the capacitors to be installed | 10000µF / 63V |
| Dimensions | 97 x 33mm |
| Input | Screw terminals |
| Output | Screw terminals |
| Output voltage (V) | NC |
| Output current (A) | NC |
| Input voltage (V) | N/A |
| Power Supply | NC |
