Power Adapter Ultra Low Noise 2x5V 3.5A

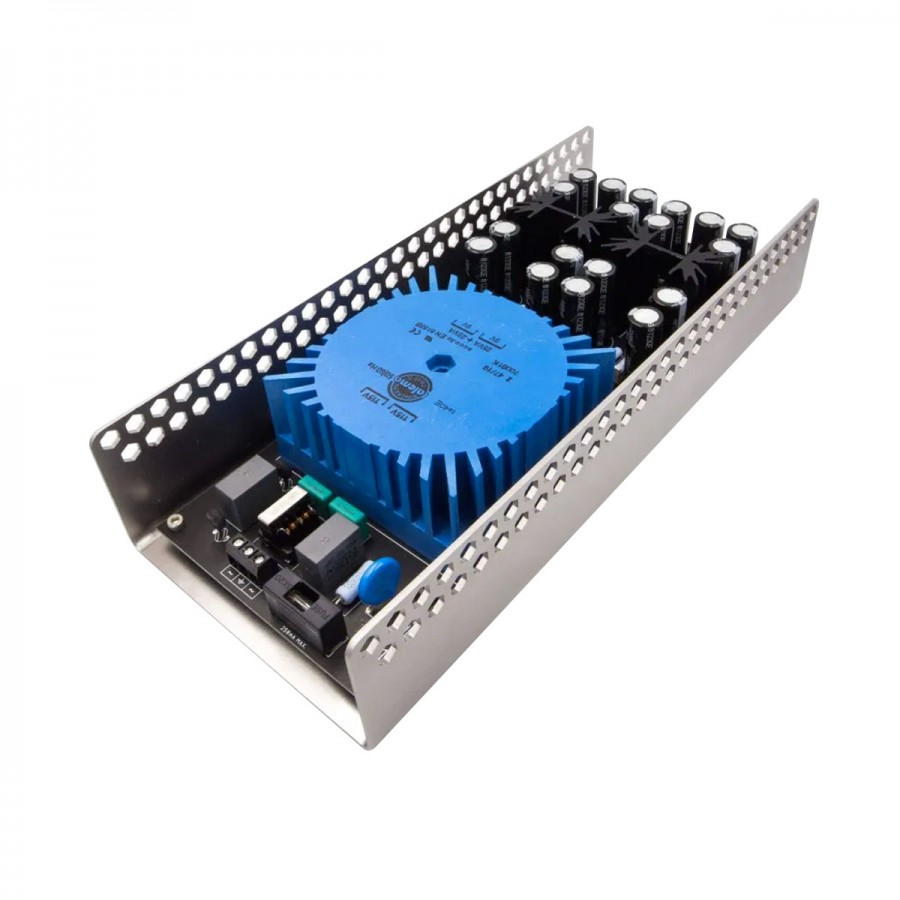

The ULPS1225A from OSA Electronics is a high-performance audiophile AC adapter. It incorporates an EMI filter to attenuate EMI interference to provide a clean electrical signal. The output stage delivers ultra-low voltage ripple and dropout.
This model delivers a voltage of 2x5V and a current of 2x ~1.6-1.8A.
Points clés :
Input EMI filtering
Ultra-fast diodes MUR860
Excellent thermal performance
Specifications | |
---|---|
Product type | Power adapter |
Input voltage | 115/230VAC 50/60Hz |
Output voltage | 2x5V DC |
Output current | 2x ~1.6-1.8A |
Noise RMS (10Hz à 10kHz) | ≤ 0.00015Vrms |
Noise PP (10Hz à 100kHz) | ≤ 0.0005Vpp |
PSRR @ 1MHz | 75dB |
Transformer | Audio Grade, Shielded, 25VA |
Main filter | High Performance dual stage filter |
Input filtering capacitors | 12x 1800µF Ultra low ESR |
Output filtering capacitors | 6x 2700µF Ultra low ESR |
General | |
---|---|
Housing material | Aluminum |
Color | Silver |
Dimensions | 270 x 115 x 60mm |
Weight | 1.5kg |
