Stereo Preamplifier Module ALPS RK27 Potentiometer 2x AOP NE5534N DIP8

Stereo Preamplifier Module ALPS RK27 Potentiometer 2x AOP NE5534N DIP8

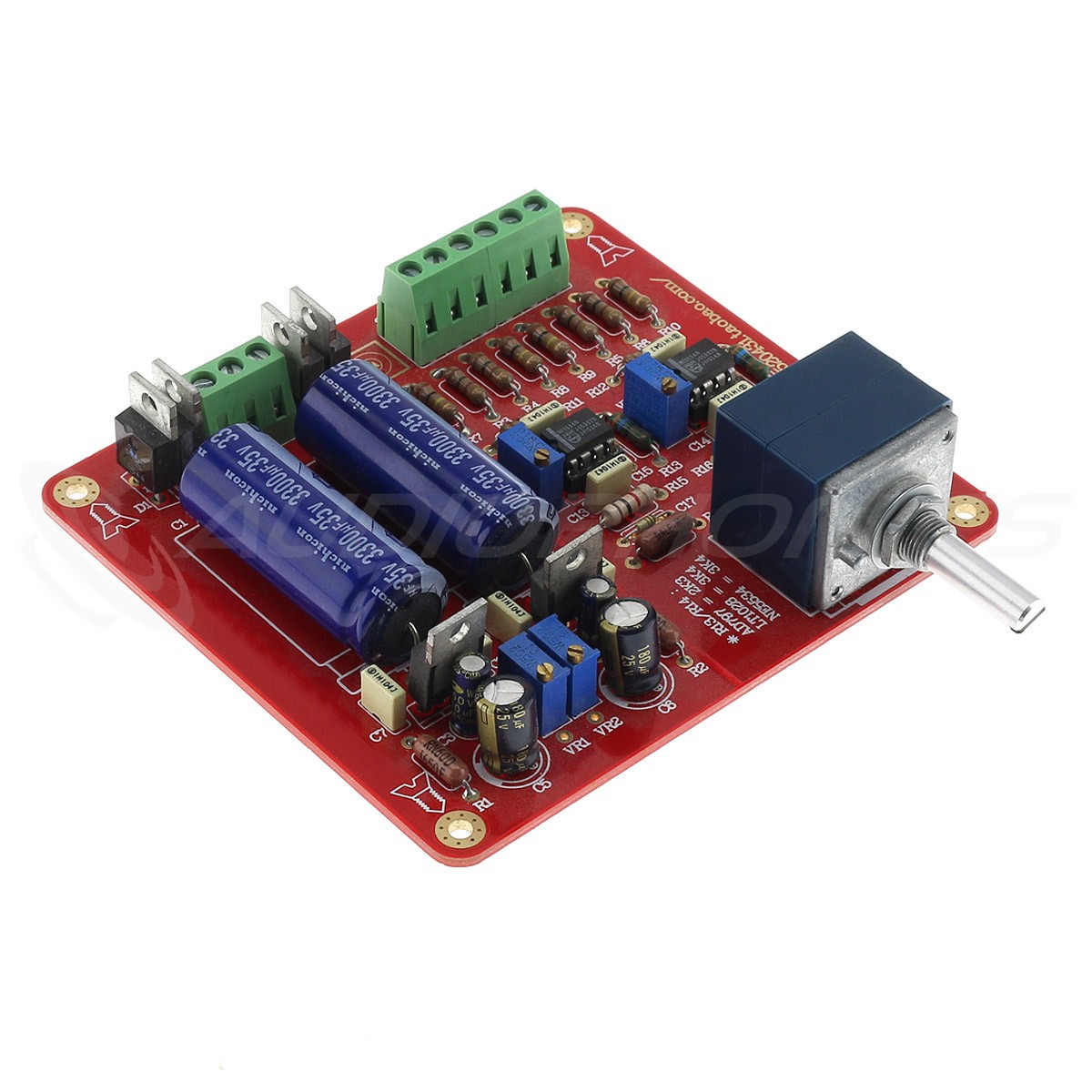

This stereo preamplifier module, similar to the excellent MBL 6010, integrates a quality architecture, offering a beautiful sound reproduction as well as precise volume control. The preamplification stage is notably composed of an ALPS RK27 potentiometer associated with two AOP NE5534N AOPs mounted on DIP8 and two variable resistors and ensures a faithful and rich reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 14117
New product

49,90 €tax incl.

41,58 € tax excl.

- +


Shipping date: 28-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Preamplifier Module

Stereo Preamplifier Module ALPS RK27 Potentiometer 2x AOP NE5534N DIP8

Module Préamplificateur Stéréo Potentiomètre ALPS RK27 2x AOP NE5534N DIP8

This stereo preamplifier module, similar to the excellent MBL 6010, integrates a quality architecture, offering a beautiful sound reproduction as well as precise volume control. The preamplification stage is notably composed of an ALPS RK27 potentiometer associated with two AOP NE5534N AOPs mounted on DIP8 and two variable resistors and ensures a faithful and rich reproduction.

The power supply section is mainly composed of 4 MUR820 rectifiers, two Nichicon 3300µF 35V capacitors, two LM317T / LM337T voltage regulators and two variable resistors. It provides the preamplifier stage with a clean and stable power supply, which is essential to ensure high quality audio reproduction.

On the connector side, there are simply screw terminals for the stereo RCA input and output as well as for the 18-0-18V AC power supply.

Module Préamplificateur Stéréo Potentiomètre ALPS RK27 2x AOP NE5534N DIP8

Technical characteristics

Specifications
Product typePreamplifier module
ChannelsStereo (2)
Input1x Stereo RCA on screw terminal
Output1x Stereo RCA on screw terminal
PotentiometerALPS RK27, 2x 50KA
AOP2x NE5534N (sur DIP8)
Voltage regulators1x LM317T
1x LM337T
Potentiometer shaftSmooth/Slotted, Ø6mm
Power supply18-0-18V AC on screw terminal (sold separately)
Dimensions (LxPxH)107 x 96.5 x 29mm
Depth with potentiometer shaft121mm
Distance between fixation holes96.5 x 86.3mm

Data sheet
InputScrew terminals
OutputScrew terminals
Channel2 (Stereo)
