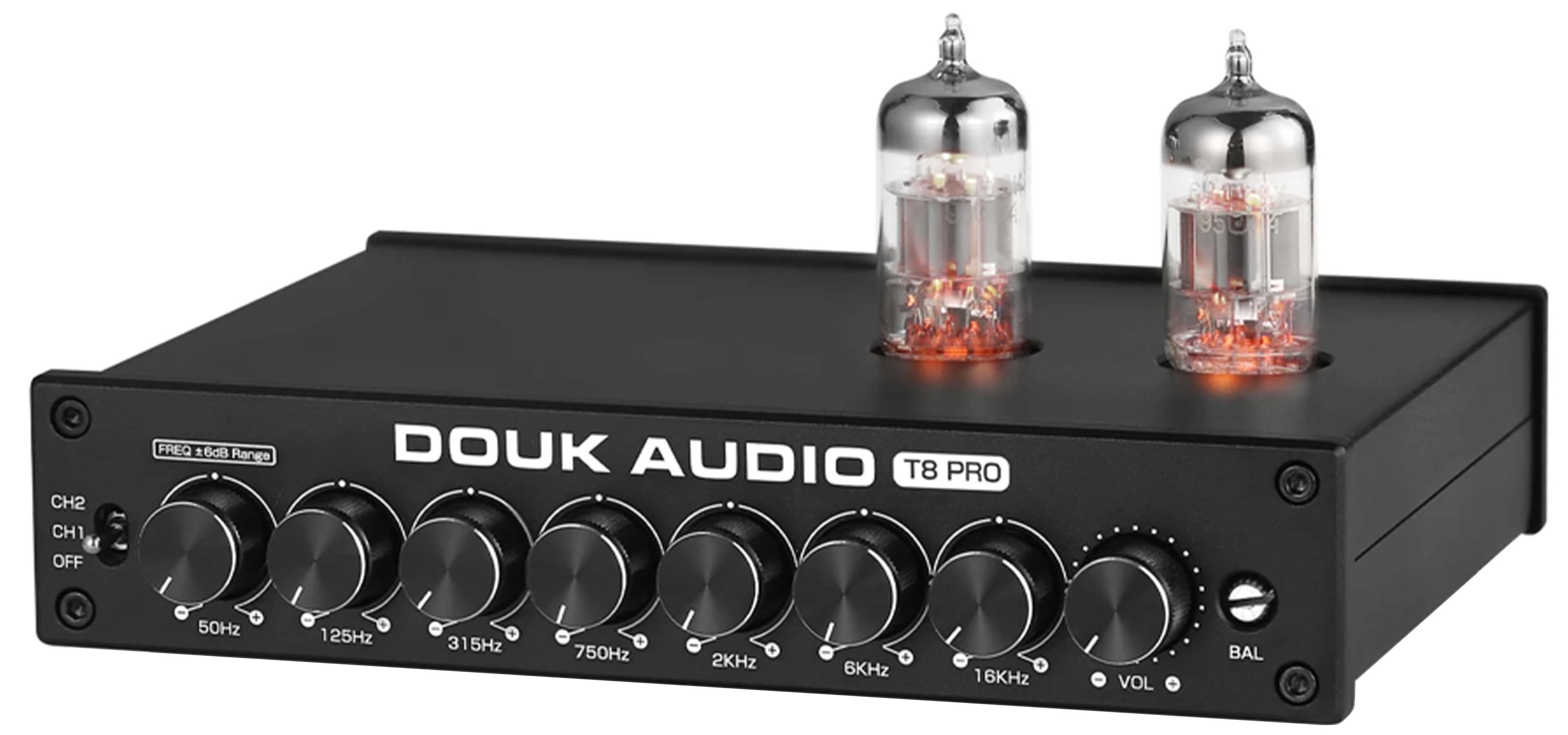

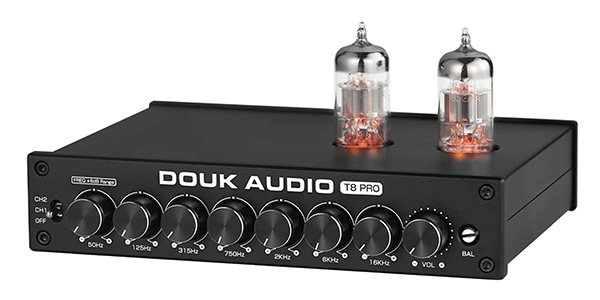

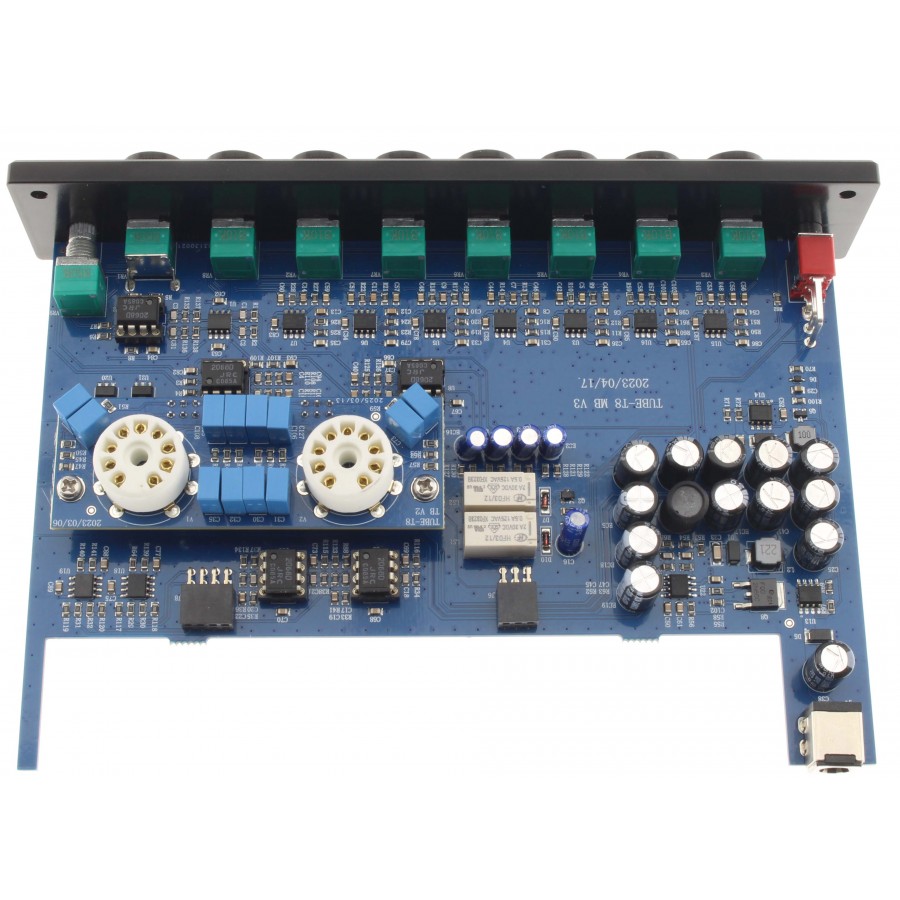

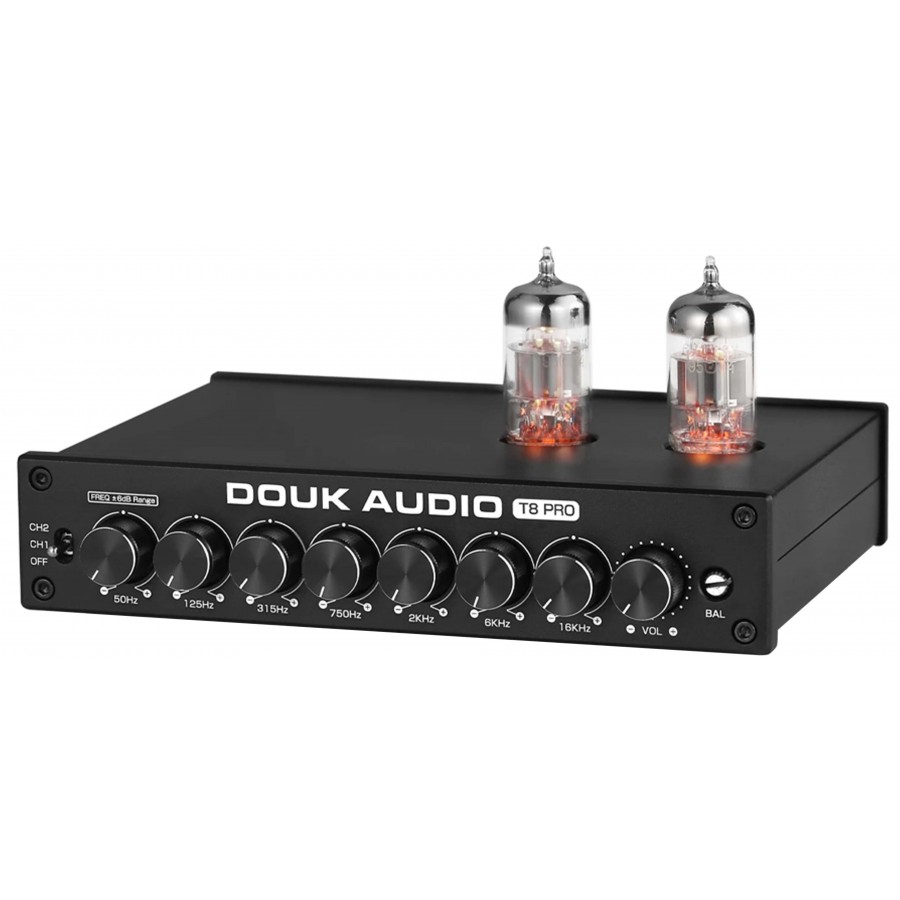

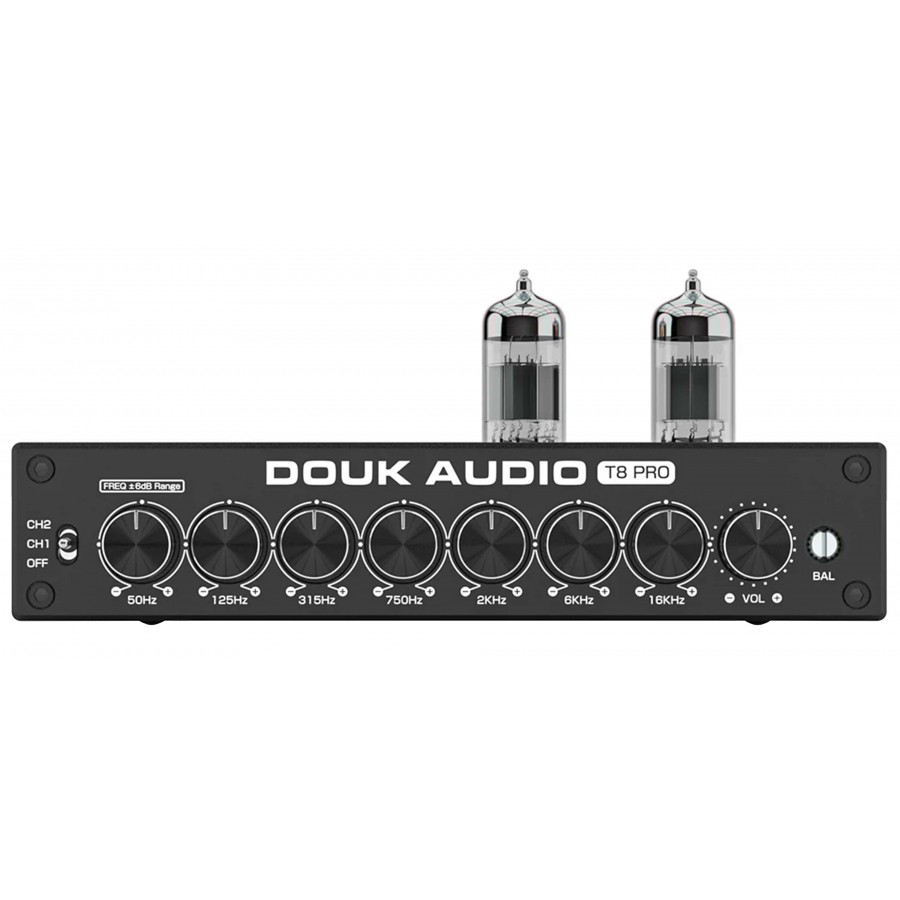

The DOUK Audio T8PRO is a tube preamplifier featuring a 7-band equalizer. The T8PRO is therefore able to precisely control each frequency band (50Hz / 125Hz / 315Hz / 750Hz / 2KHz / 6KHz / 16KHz) for highly personalized sound reproduction. The equalization is managed by a network of resistors and NE5532 OPAs for precise and reliable sound reproduction. In addition, the T8PRO uses two 6H1N-BN tubes coupled with JRC 2068D DIP8 OPAs, offering preamplification with a warm and smooth sound. Added to this is the ability to balance the channels using a potentiometer located on the far right of the front panel. In terms of connectivity, it has all the essentials with an RCA input, a balanced XLR output, and two outputs of the same type. Accessible and powerful, this tube equalizer preamplifier will delight music lovers looking for a warm and customizable sound.

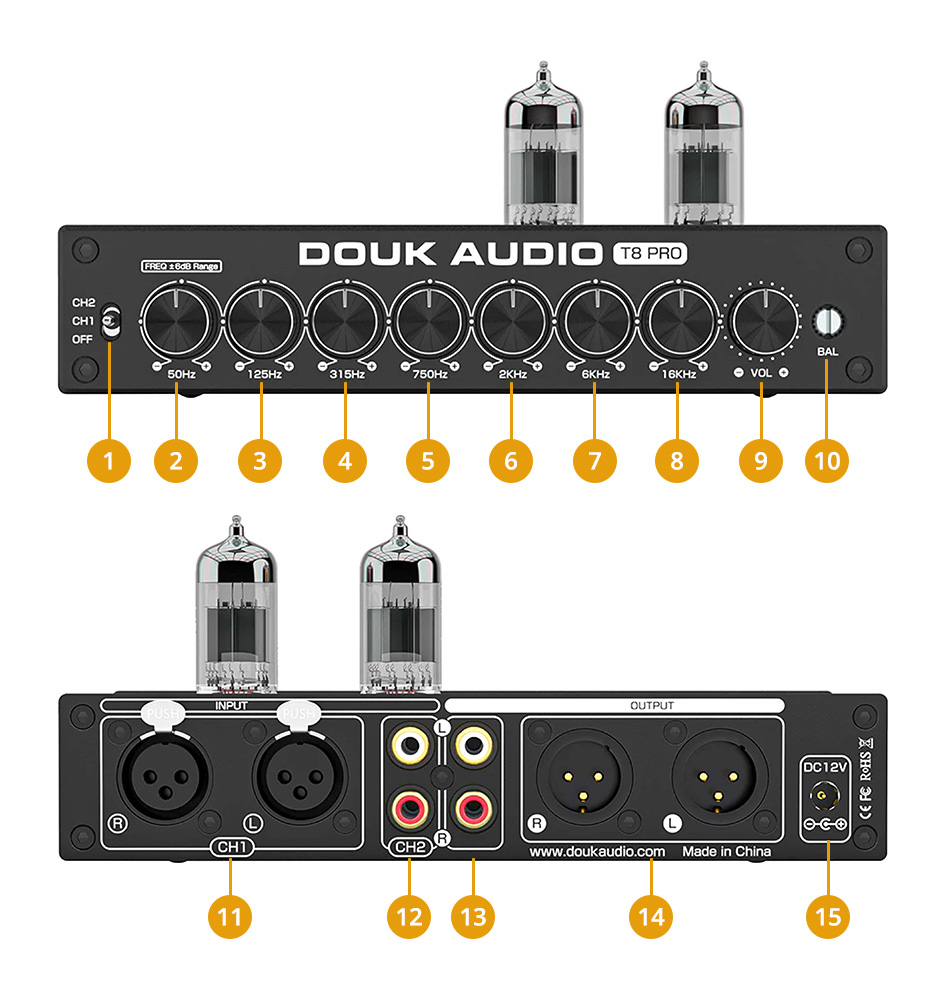

1 | Power supply / Input selector |
2 | 50Hz frequency equalization (±6dB) |
3 | 125Hz frequency equalization (±6dB) |
4 | 315Hz frequency equalization (±6dB) |
5 | 750Hz frequency equalization (±6dB) |
6 | 2kHz frequency equalization (±6 dB) |
7 | 6KHz frequency equalization (±6dB) |
8 | 16kHz frequency equalization (±6 dB) |
9 | 50Hz frequency equalization (±6dB) |
10 | Volume control |
11 | Channel balance |

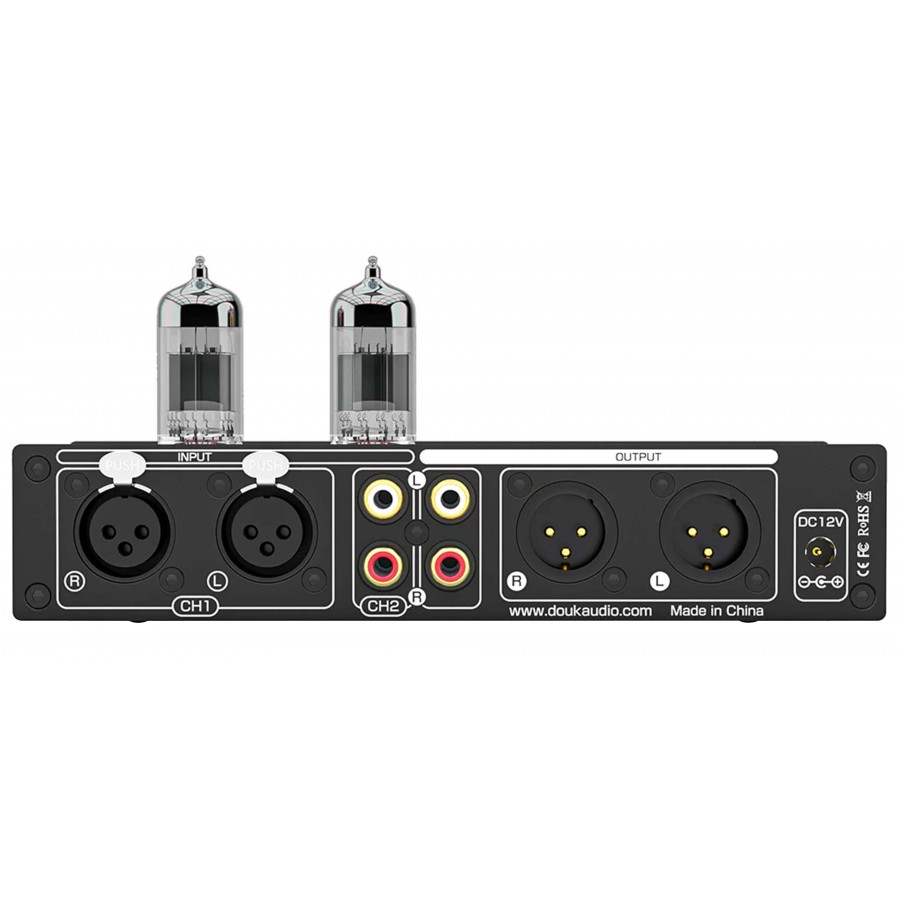

12 | XLR input |
13 | RCA input |
14 | RCA output |
15 | XLR output |
16 | 12V DC power supply |
Technical characteristics
Specifications | |
---|---|
Product type | Preamplifier Equalizer |
Tubes | 2x 6H1N-BN |
OPA | JRC 2068D |
OPA equalizer | NE5532 |
Inputs | 1x RCA input 1x Balanced XLR input |
Outputs | 1x RCA output 1x Balanced XLR output |
Frequency response | 20Hz-20KHz (±1dB) |
Equalization frequencies | 50Hz / 125Hz / 315Hz / 750Hz / 2KHz / 6KHz / 16KHz |
Input sensitivity | RCA : 0.775Vrms XLR : 1.5Vrms |
Output level | RCA : 1.2Vrms XLR : 2.4Vrms |
THD | 0.01% |
SNR | ≥98dB |
General | |
---|---|
Power supply | DC 12V (≥2A) |
Dimensions | 186 x 128 x 38mm |
Weight | 685g |

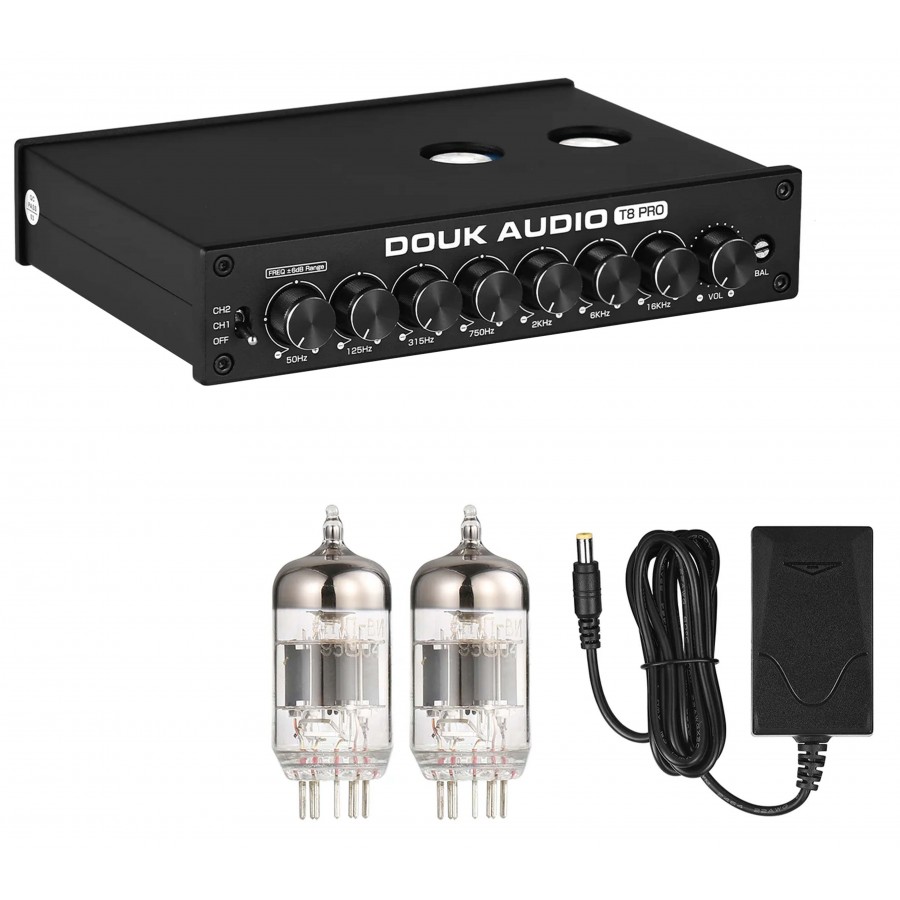

Package | 1x DOUK AUDIO T8PRO preamplifier 2x 6H1N-BN tubes 1x 12V 2A DC jack power adapter |
