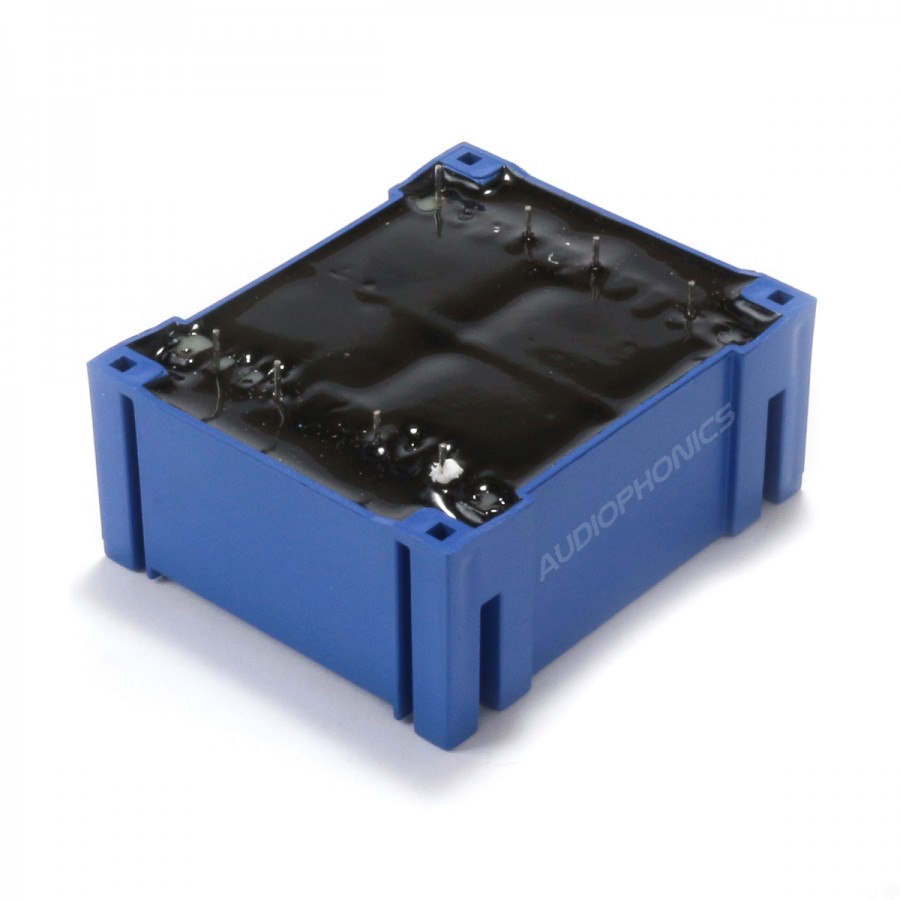

Transformer for PCB UI 39/13,5 2x6V 1.67A 18VA

Transformateur Moulé UI 39/10,2 - 6V 3A
This molded transformer is particularly suitable for PCB integration. It will allow you to feed small systems properly.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 12651
New product

10,75 €tax excl.

Including 0,01 € for green tax
Available

- +

Shipping date: 23-07-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Encapsulated Transformer

UI 39/13,5 2x6V 1,67A 18VA

transformer

This encapsulated transformer is ideal for PCB mounting. It will allow you to provide your system with quality food, offering a two-compartment internal design.

Technical characteristics

Specifications
Power18VA
Input voltage2x115V / 1x130V
Frequency50/60Hz
Output voltage2x6V 1,67A
Dimensions68 x 28mm

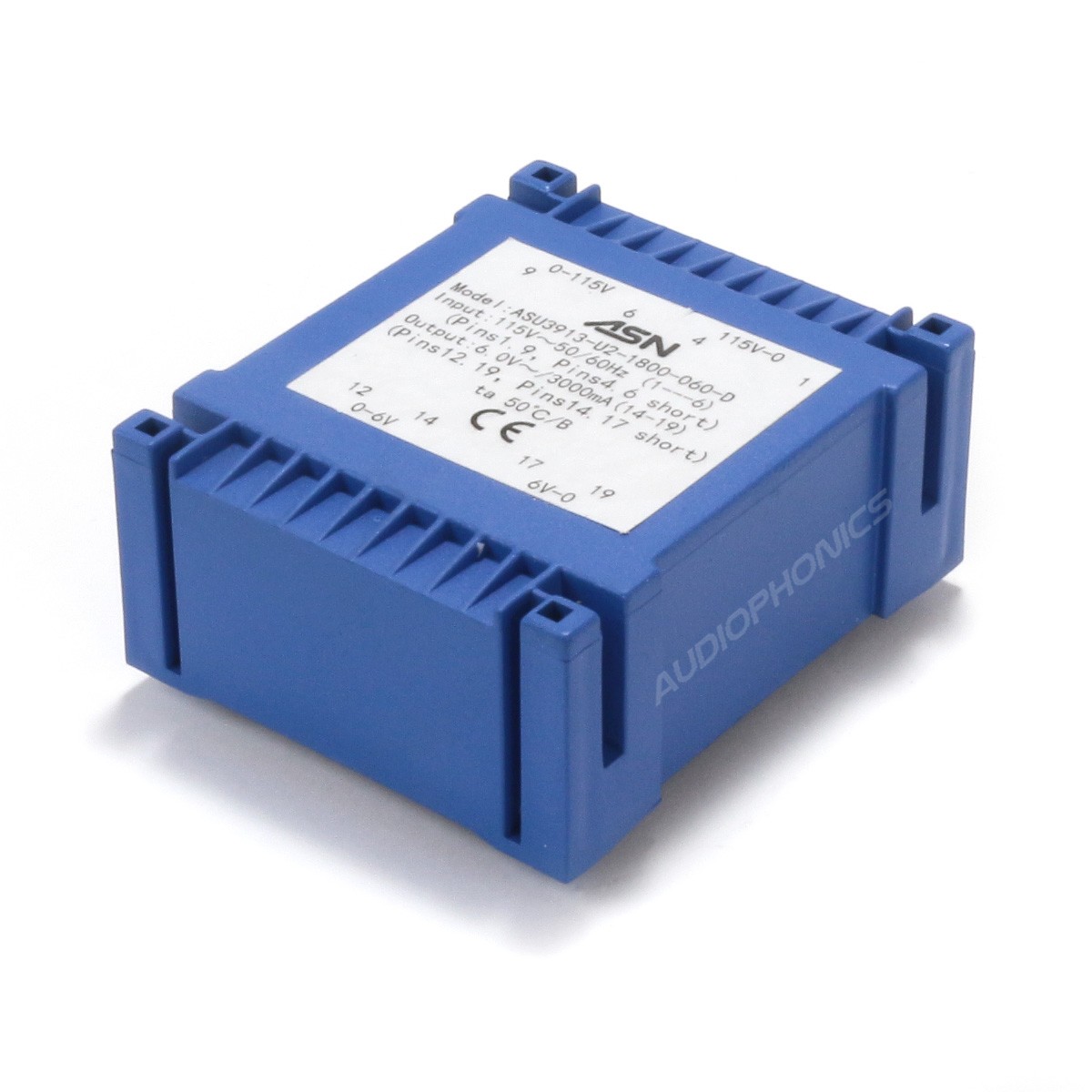

Possible assemblies

Caution: for 230V installation it is absolutely necessary to connect the 115V pins.

Schema 1
Input 230V / Output 2x6V


Schema 2
Input 230V / Output 1x6V


Schema 3
Input 115V / Output 2x6V


Schema 4
Input 115V / Output 1x6V


Data sheet
ColorBlue
Output voltage (V)2x6
Output current (A)3
