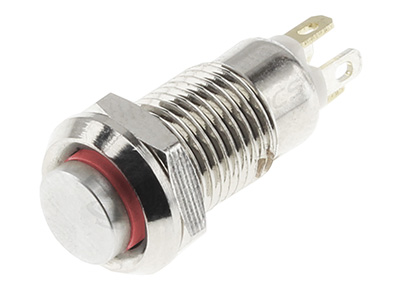

Push button
With Red Circle Light 1NO 36V 1A Ø8mm Silver
This 1NO pushbutton is made from PA66, with a brass-plated copper body for perfect corrosion resistance, and silver-alloy contacts. It operates from a monostable mechanism and features a red indicator light (LED).
The connectors dedicated to the signal/power supply can support a maximum voltage of 36V. Those dedicated to powering the indicator light (LED) will accept a voltage of between 9 and 24V with the 5kΩ or 4.7kΩ resistor supplied.
This push-button is an ideal part for your DIY assembly projects, to repair/improve an existing device or build a control panel from scratch.
Not suitable for main power switching. LED voltage values must be taken into account with the 5kΩ resistor supplied.
Technical characteristics
| Spécifications | |
|---|---|
| Product type | Monostable 1NO pushbutton |
| LED | Color: Red Voltage: 9-24V 5kΩ or 4.7kΩ resistor supplied |
| Total dimensions | 22*Ø10mm |
| Screw thread diameter | Ø8mm |
| Number of contacts | 4 |
| Mounting | To solder |
| Maximum switching voltage | 36V 1A |
| General | |
|---|---|
| Color | Silver |
| Package | 1* Push button 1* 5kΩ resistance |
