100VA 2x115V to 2x15V 3A
The values of the secondary voltages of the transformers are the nominal load voltages. No-load voltages will be slightly higher than those stated.

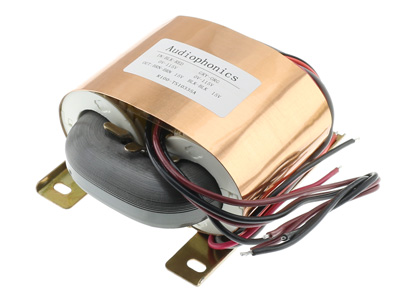

This R-Core transformer is ideal to feed a DAC or preamplifier. It has a primary of 2x115V. Provided that the appropriate wiring is done, it will work as well on the European as on the American electrical network.
With its two secondary windings, it can supply several devices requiring the indicated voltages and intensities. There are two 15V windings with a maximum intensity of 3.5A for each. Moreover, it is equipped with a magnetic screen and an electrostatic screen.
Each cable is identified by a color code. This color code is detailed on a label glued directly on the body of the transformer.
Specifications | |
---|---|
Product type | Transformer |
Format | R-Core |
Power | 100VA |
Primary winding (input voltage) | (230V) 0-115V 0-115V |
Secondary winding (secondary voltage) | 15V 3.5A 15V 3.5A |

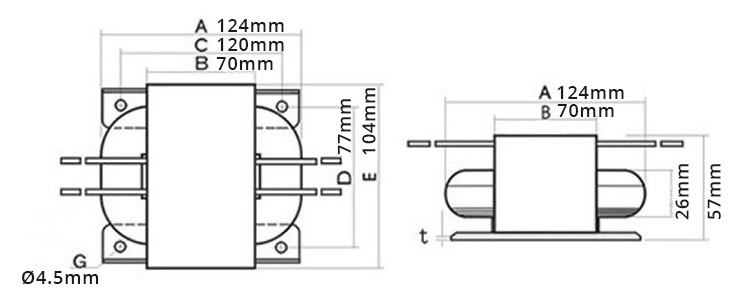

Dimensions | 124 x 104 x 57mm |
Cables | Flexible 24cm |
Weight | 1890g |
Mounting plate | Included Already mounted |
Primary voltage (V) | 230.0 |
Primary voltage (V) | 2x 115.0 |
Secondary voltage (V) | 15.0 |
Power (VA) | 100.0 |
