SUPTRONICS X820 V3.0 Shield SATA 2.5" HDD/SSD for Raspberry PI

X820 V3.0 2.5 "SATA HDD / SSD Shield

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points

Reference : 13288
New product

29,08 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 22-10-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans
More info

SUPTRONICS X820 Shield V3.0 SATA for Raspberry Pi

Compatible HDD / SSD 2.5 inch

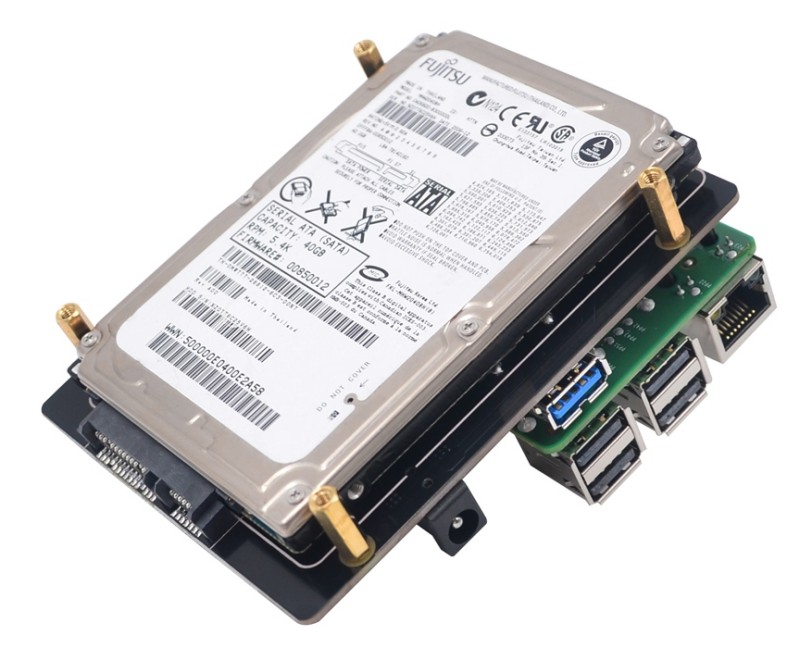

This accessory makes the installation of a hard disk can be 2.5 inches on your Raspberry Pi with all the advantages this represents: up to 4TB of storage space, ability to boot directly to the hard drive, SSD compatibility ... the hard disk access is done through a USB 3.0 port a connected to Pi by a SATA bridge 6Gb / s. In the case of Fixed domestic installations based on RPI (audio or not) this extension allows to pass at top speed and explode the storage capacity of your system based on RPI without losing performance.

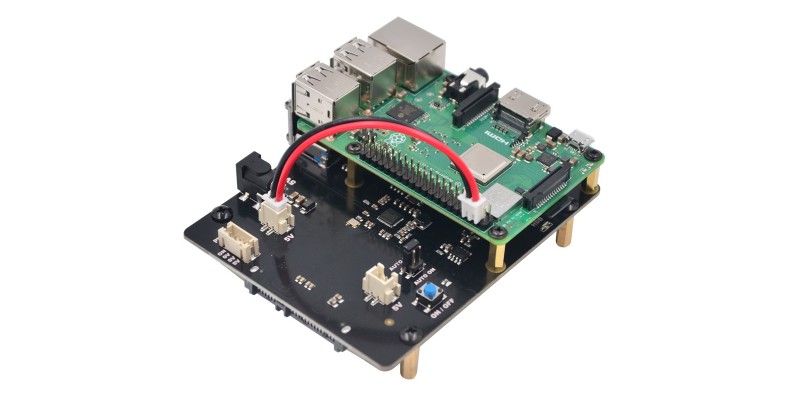

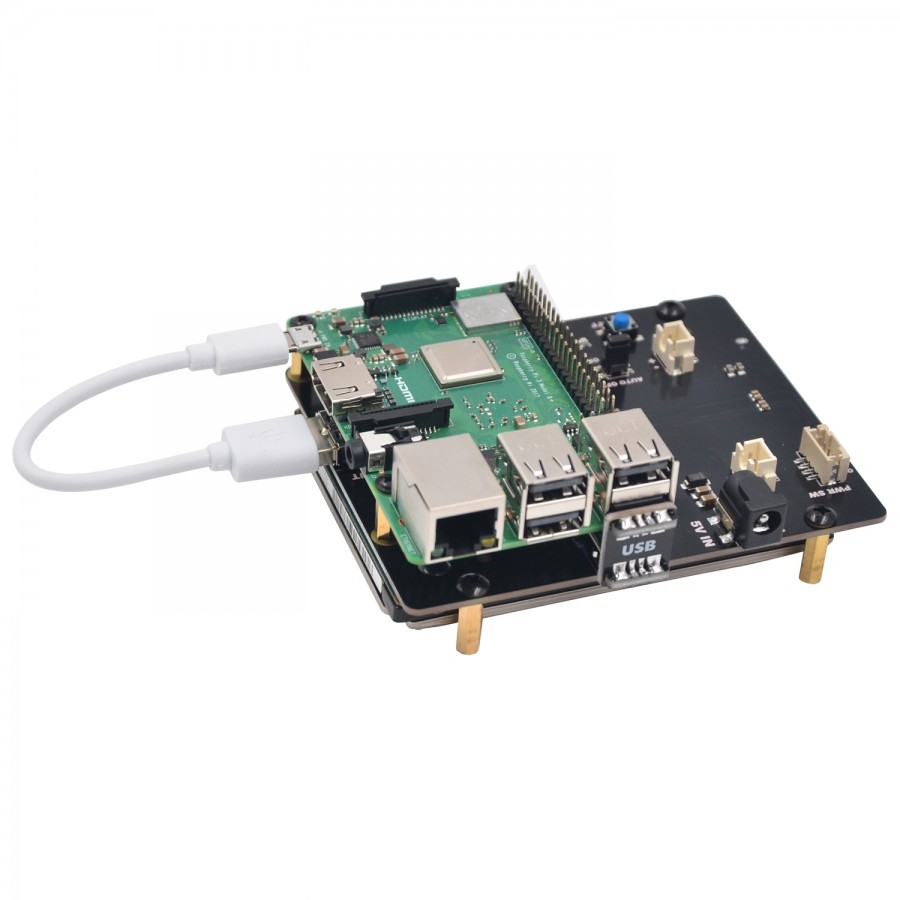

A USB bridge connects the USB-A port SATA 3 Shield with the USB-A port Raspberry Pi lower right.

This connection consumes no port GPIO and remains extremely simple to install.

It is also a very reliable method since all connectors are also maintained by the spacers, which will prevent false contacts of the connector after a bump or fall.

sturdy mounting


Shield of SATA sized to mount and fix the Raspberry Pi directly on the surface. Screws and spacers are included for this purpose. This promotes a clean install, durable and easy installation in housing.

Similarly, the Shield has its own entrance DC jack for food. It can power the Raspberry micro-USB or GPIO through a XH2.54 cable. (Note, not feeding the same time in the Pi by Micro-USB and GPIO).

An LED indicates power and a second LED provides information about the disk activity status.

TypeSHIELD Raspberry Pi
Raspberry Pi models supported1B +
3B +
Supported hard drive modelsHard Drive SATA 2.5 "Up to 4TB
SSD SATA 2.5 "Up to 4TB
Bootable DiskYes
USB bridgeSATA 6Gb / s
Food5VDC 4A +/- 5%
DC Jack 5.5 / 2.5mm
Supply of Raspberry PIPort H
Dimensions107.5 x 85mm
