Refurbished product - Grade S
Cable drop of 1.6m.
Thanks to its expertise in the production of customised Audio/Video cables, the ELECAUDIO team has imagined a power cable capable of overturning the established order as it uses materials and technologies usually reserved for products at very high prices, even inaccessible.

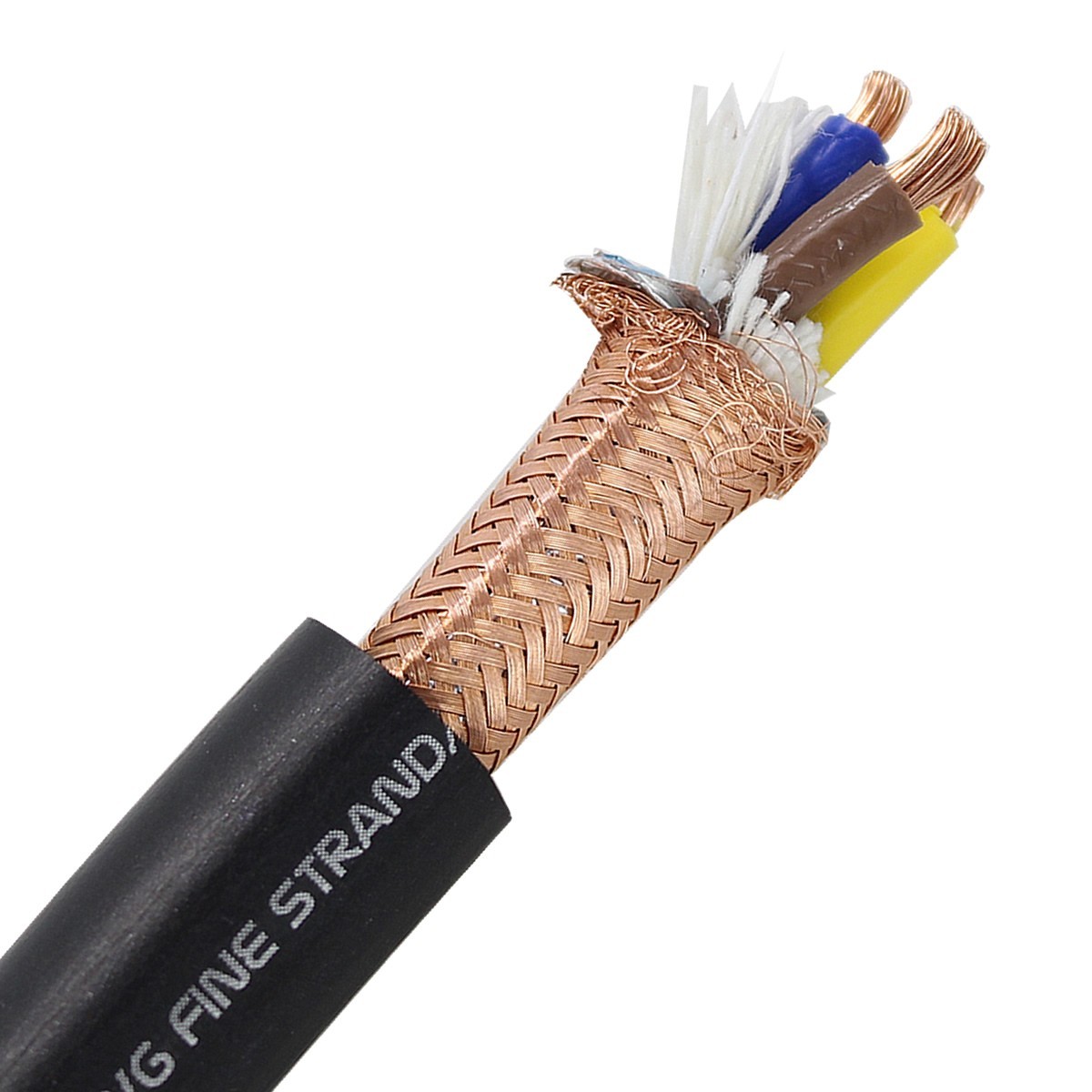

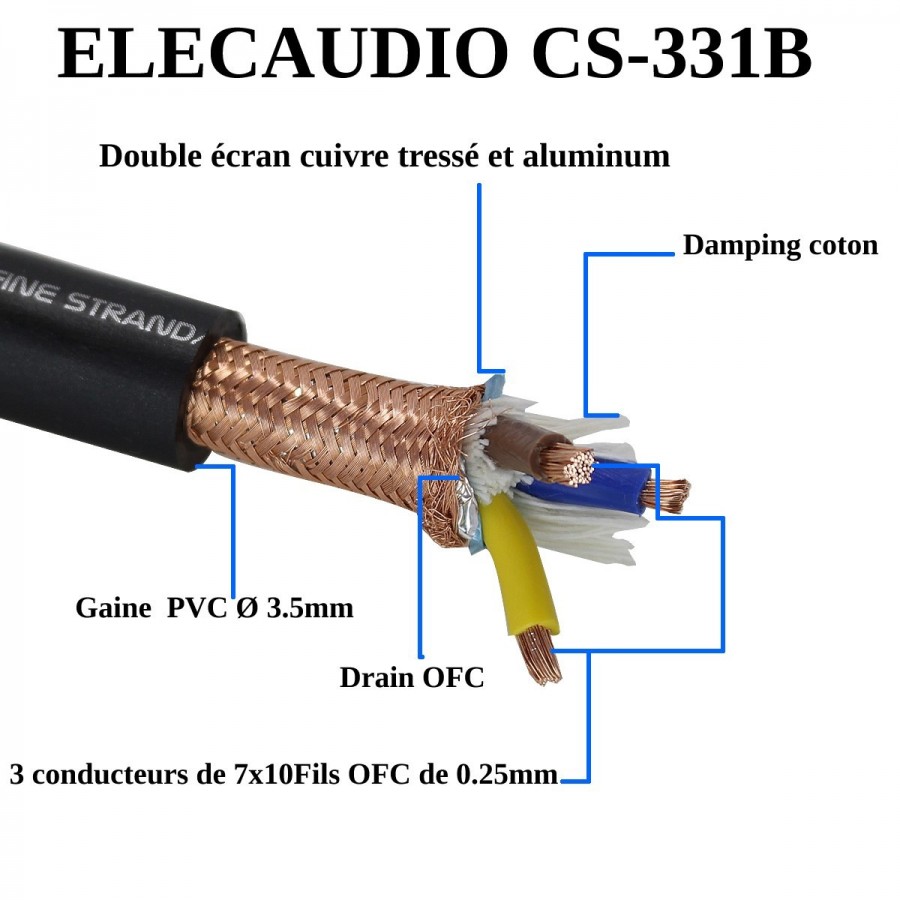

Thus each conductor of the CS-331B is made up of 7 strands made up of 10 strands of OFC deoxygenated copper each 0.25mm in diameter, i.e. a section of 3.5mm² per conductor.
These 3 conductors are individually encapsulated in PVC sheaths marked with a black/white/green colour code. The 3 bundles thus formed are themselves insulated from each other and kept in order by means of a cotton pad which provides both flexibility and firmness to the whole.

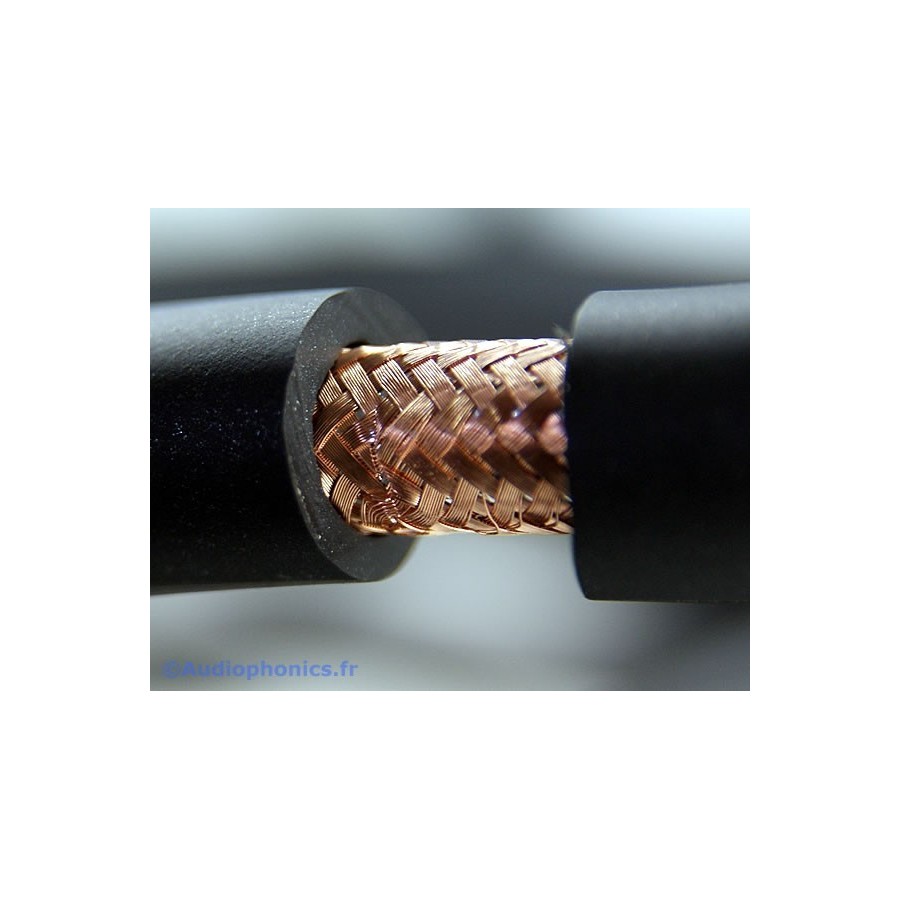

Next comes a first shielding made from an aluminium strip, then a second one in finely braided copper, made from 24 groups of 9 wires, each 0.12mm in diameter. An OFC copper drain wire is also inserted between these two lines of defence, running from one end of the cable to the other to ensure linear earthing, which provides enhanced protection against radio interference (RFI) and electromagnetic interference (EMI).

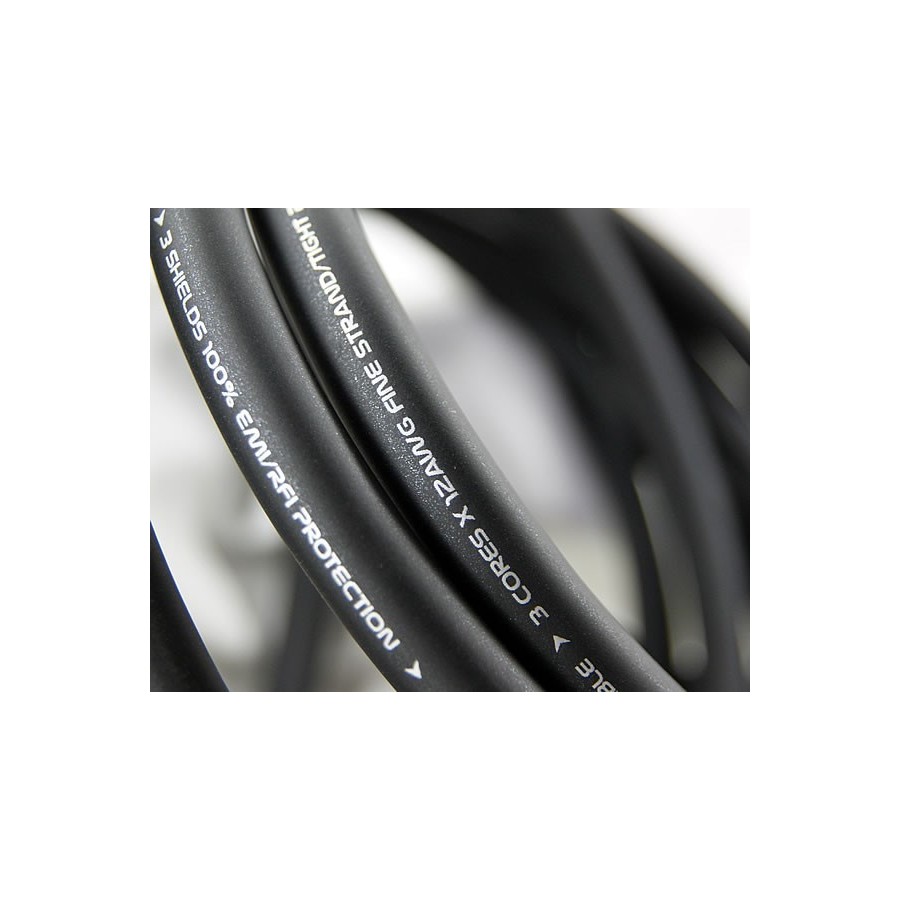

A 3.5mm thick PVC protective sheath completes this work, making the CS-331B particularly resistant to the harsh conditions of the outside world while giving it a unique look thanks to its slightly glittering black colour.
Schéma de Câblage
Use of 4mm² Crimp Ends
|Number of conductors||3|
|Conductors material (Cable)||Copper|
|Refurbished Grade||Grade S|
