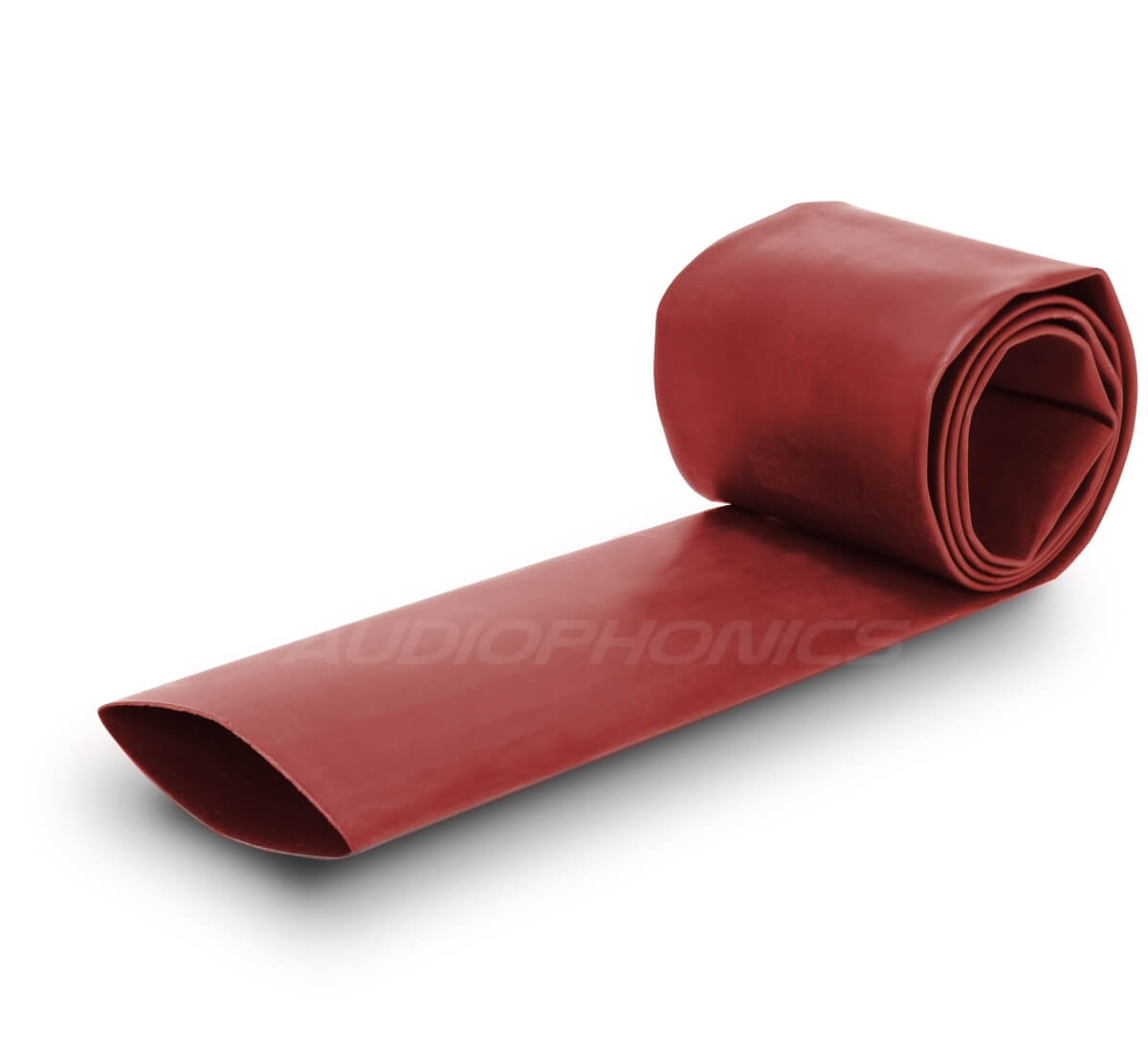

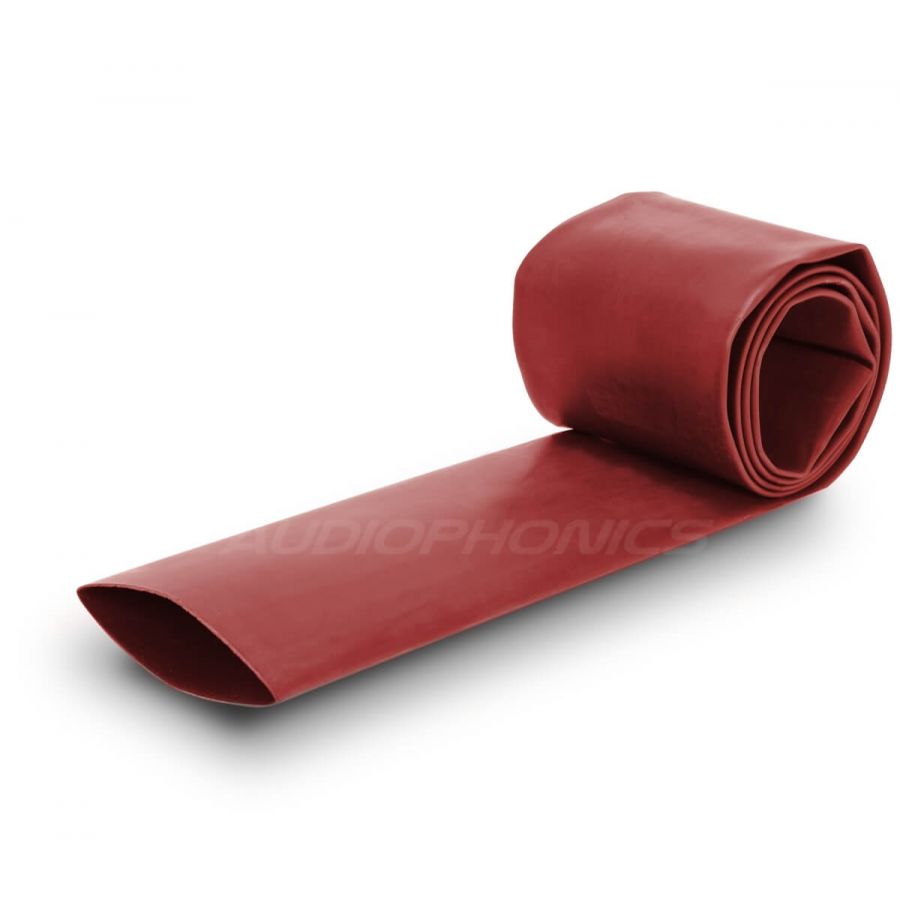

[GRADE S] Heat-Shrink Tubing 2:1 Ø9mm 70cm Red

70cm long pre-cut sleeve

Heat-shrinkable tubing with a 2:1 ratio. Intermediate thickness designed to ensure excellent mechanical strength, while retaining a high degree of flexibility. Adapts to irregular shapes and provides a high degree of insulation and sealing. Halogen-free, flame-retardant and RoHS-certified.
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 17909
Refurbished

0,77 €tax incl.

0,64 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info
Heat-shrinkable tubing with a 2:1 ratio. Intermediate thickness designed to ensure excellent mechanical strength, while retaining a high degree of flexibility. Adapts to irregular shapes and provides a high degree of insulation and sealing. Halogen-free, flame-retardant and RoHS-certified.

A ratio of 2:1 means that the diameter of the sheath once heated will be divided by 2. For example, for a 12mm sheath, after being heated its diameter will be 6mm.
Diameter: 9.0mm => approx. 4.5mm after shrinkage

Specifications:

  • Retractable Ratio: 2: 1
  • Longitudinal Retracting Ratio: ± 8%
  • Shrink Temperature: 70 - 115 ° C
  • Sheath Thickness Retractable : +/- 0.30mm
  • Sheath Thickness After Retraction: +/- 0.60mm
  • Temperature Resistance: -45 to + 125 ° C
  • Rigidity Dielectric: ≥15 Kv / mm (IEC243)
  • Certifications: RoHS
  • Diameter: 9mm
  • Length: 70cm
  • Color Red

Data sheet
ColorRed
MaterialN/A
Length (m)0.7
Max cable diameter (mm)9.0
Refurbished GradeGrade S
