Refurbished product - Grade S
Cable drop of 1.3m.
Interconnect cable UP-OCC silver triple shielding 1.3m

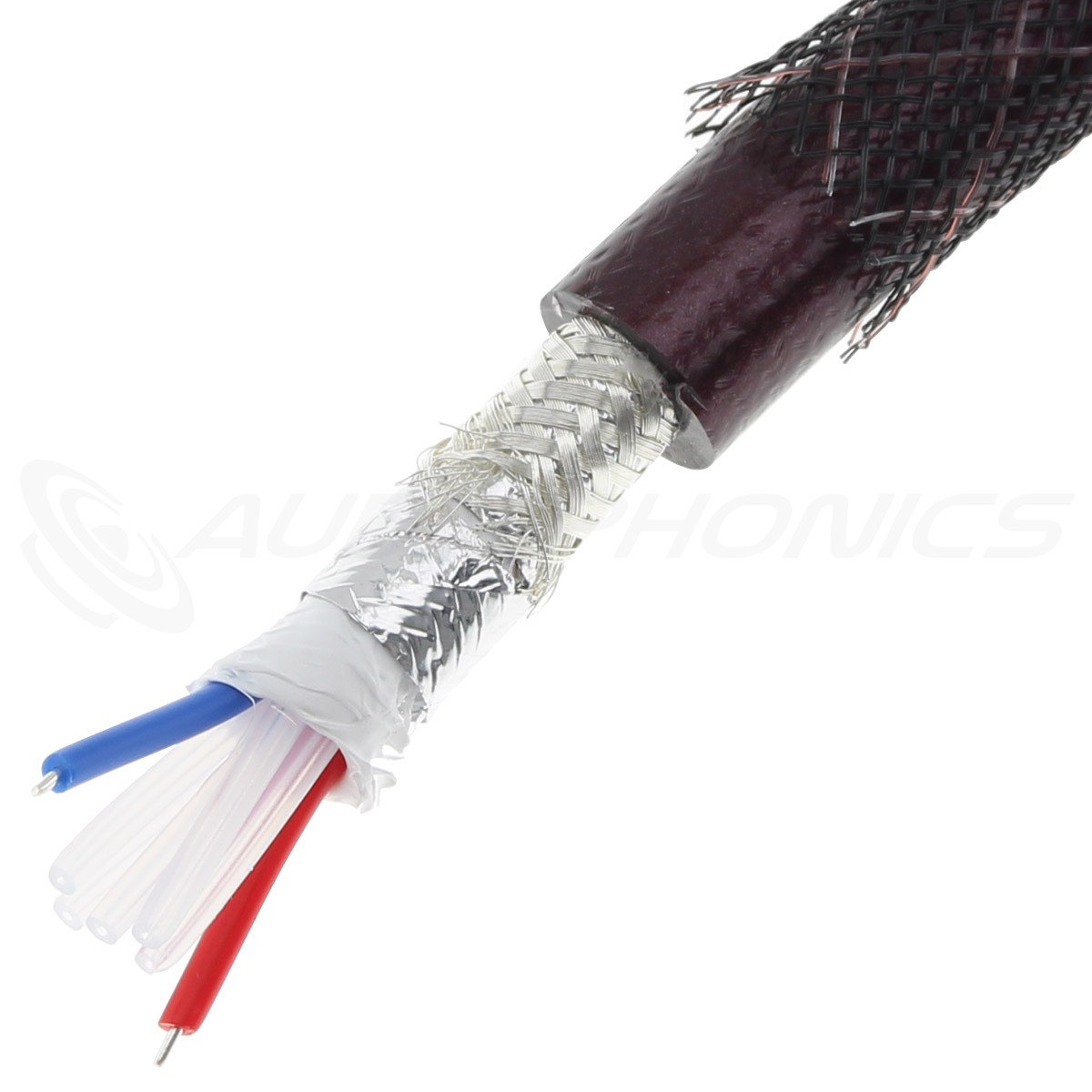

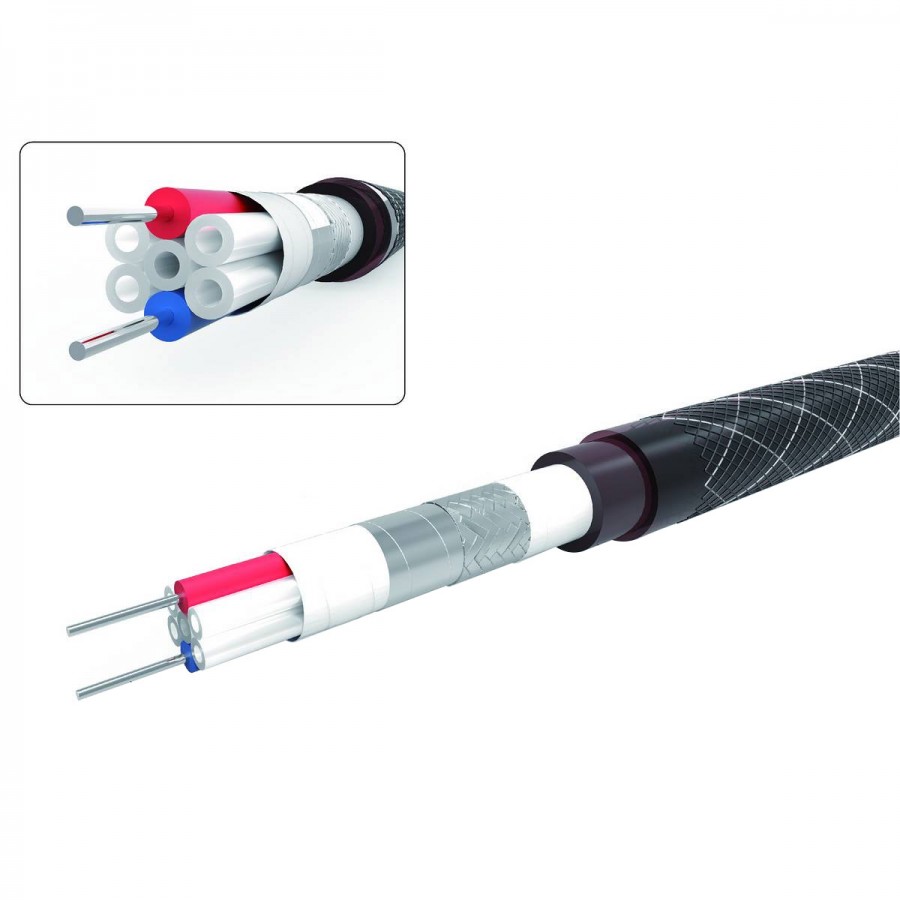

The Neotech NEI-1002 is a modulation cable consisting of two single crystal UP-OCC silver conductors. These conductors are maintained at equidistance thanks to the use of PE tubes and insulated with PE jackets. A triple shielding drastically limits the impact of interference, with a PTFE layer, an Al-Mylar foil and a silver-plated copper braid. The cable is finally covered by a PVC sheath and dressed with a Nylon braided sheath.
specifications | |
---|---|
Product type | Interconnect cable |
Conductors material | UP-OCC silver |
Conductors section | 2x AWG22 (0,33mm²) |
Shielding | Feuille Al-Mylar Braided silver plated copper PTFE foil |
Sleeve | PVC |

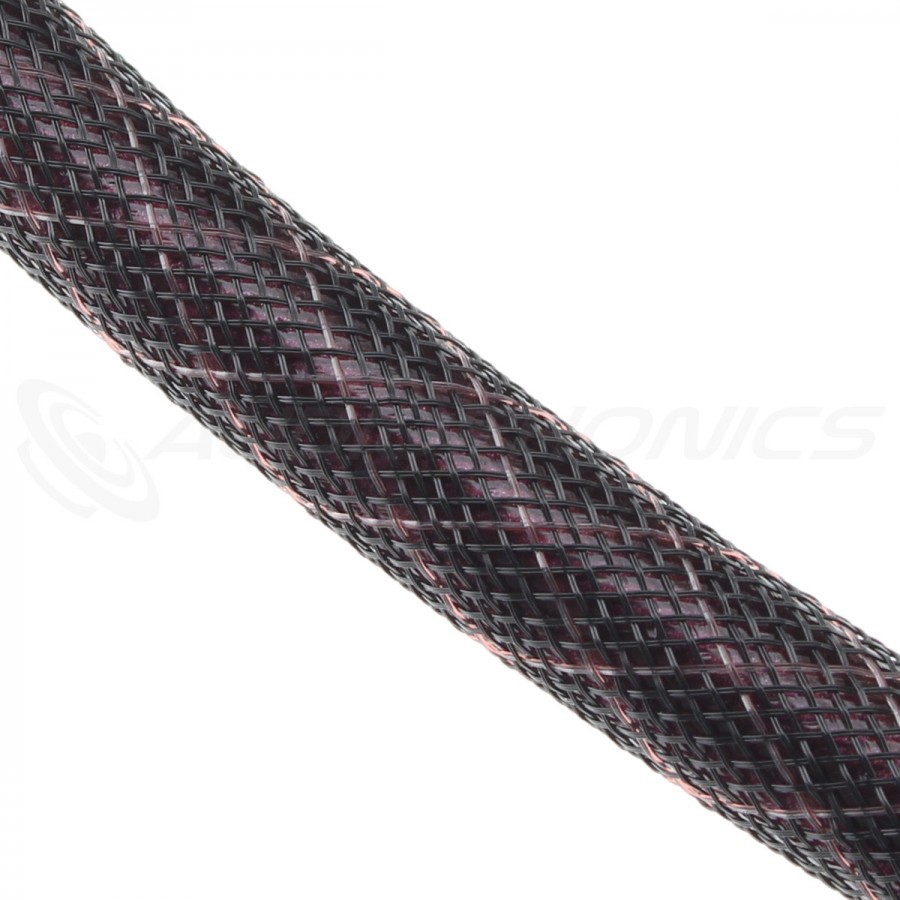

Covering sleeve | Braided nylon |
external diameter | Ø11.5mm |
Length | 1.3m |
Diameter (mm) | 11.5 |
Length (m) | 1.3 |
Separated conductors | Yes |
Number of conductors | 3 |
Shielding | Yes |
Section (mm²) | 1.17 |
Conductors material (Cable) | Silver |
Conductors Plating (Cable) | None |
Refurbished Grade | Grade S |
