Refurbished product - Grade B
Damaged cardboard box. White trace on the contour of the frame (mounting circle) and scratch.

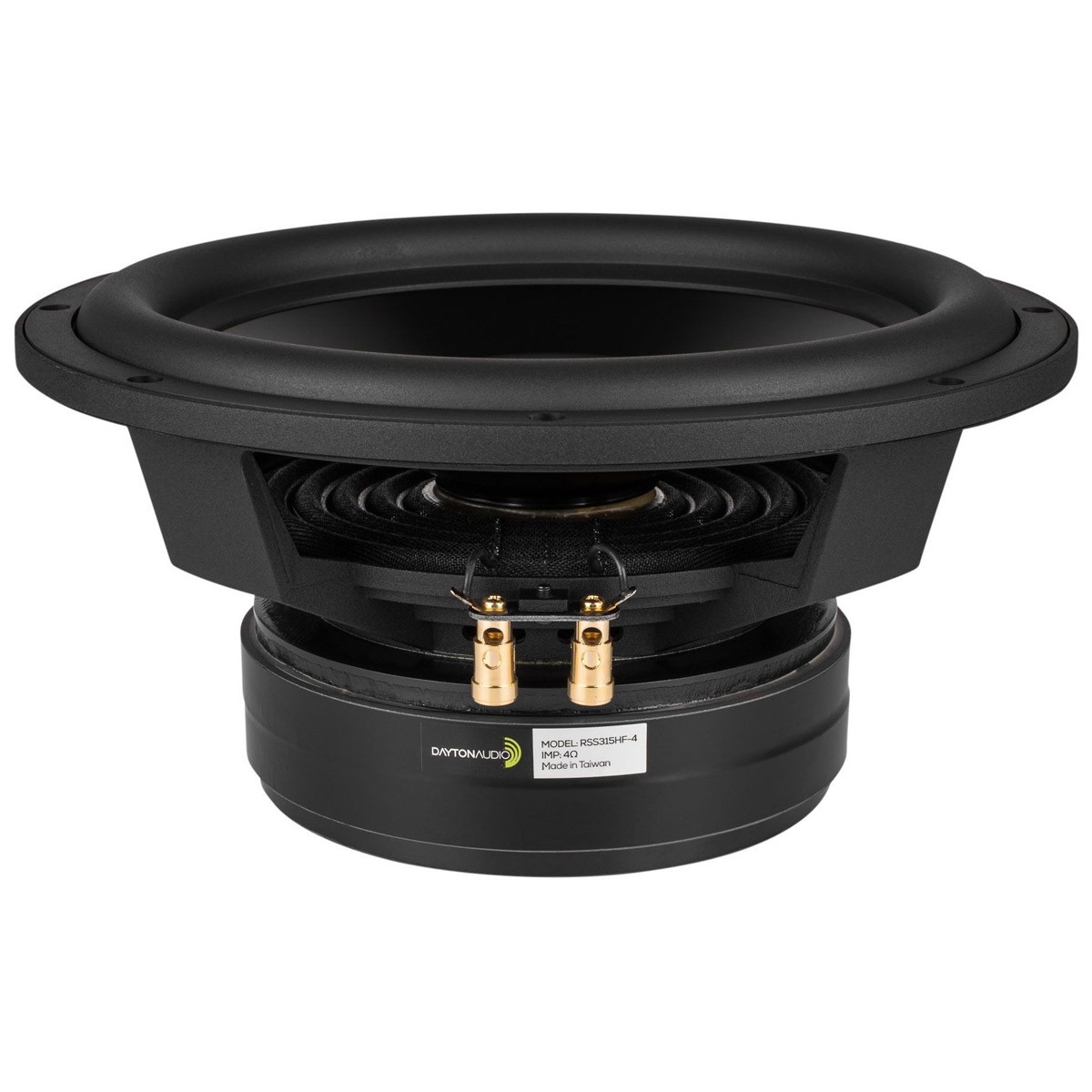

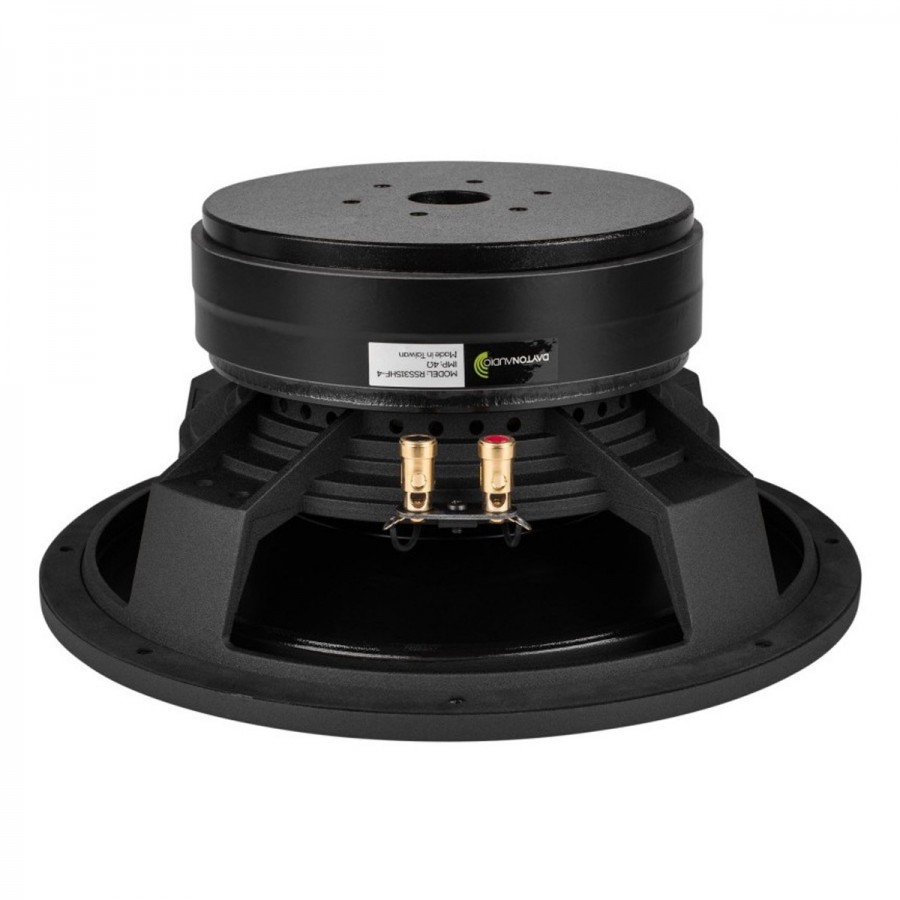

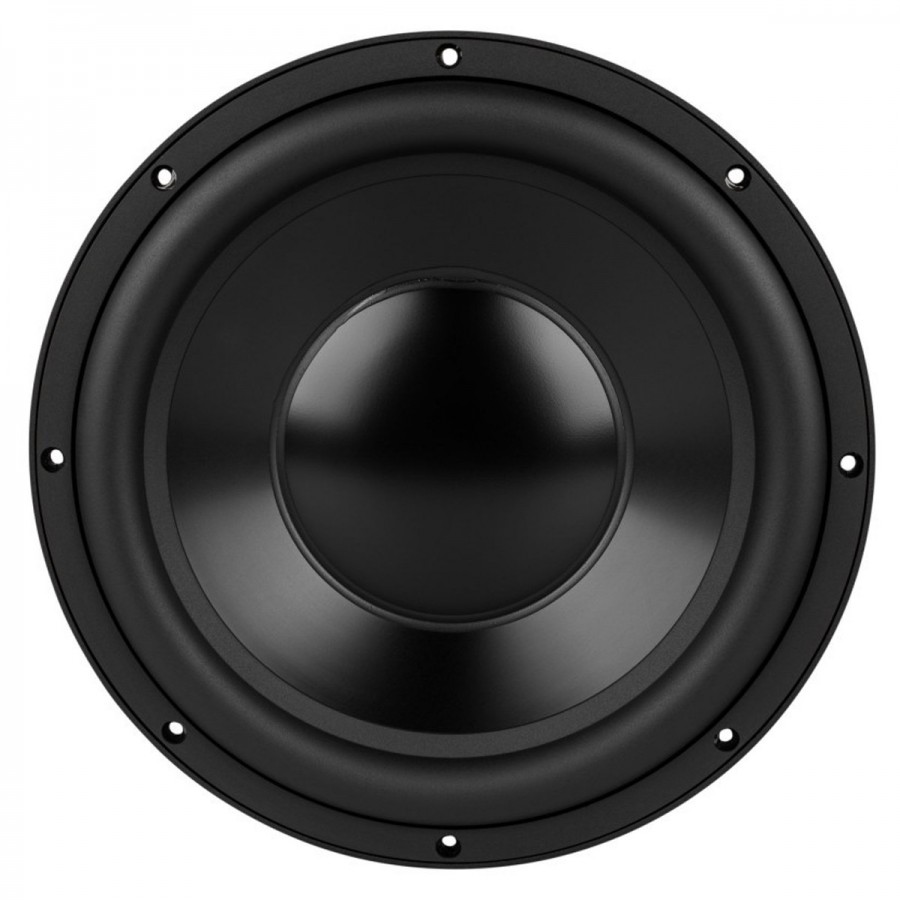

Speaker Driver Subwoofer Aluminium 400W 4Ω 90.3dB 23Hz-1000Hz Ø30.5cm
The Dayton Audio Reference Series subwoofers bring the quality and performance of the RS Series into subwoofers. As with the rest of the line, the primary goal of these subwoofers is to achieve ultra-low distortion. Second-order, third-order and intermodulation distortions are kept extremely low by the use of three shorting paths in the motor structure. A durable aramid fiber spider and extensive venting ensure a quiet, even excursion. The anodized aluminum diaphragm, rubber surround and steel frame give this speaker a unique design. This high-fidelity version offers clean, accurate bass and is ideal for integration into large speaker cabinets.
Specifications | |
---|---|
Product type | Subwoofer |
Nominal diameter | Ø30.5cm (12") |
Power handling | RMS : 400W Max : 800W |
Impedance | 4Ω |
Frequency response | 23Hz - 1000Hz |
Sensitivity | 90.3dB @ 2.83V/1m |
Voice coil diameter | Ø64mm |
Poids | - |
Overall external dimensions | Ø314 x 146mm |
Magnet weight | 4.252kg |
Thiele-Small Parameters | |
---|---|
Resonant frequency (fS) | 24.2Hz |
DC Resistance (RE) | 3.1Ω |
Voice coil inductance (LE) | 0.96mH |
Mechanical Q (QMS) | 2.83 |
Electrical Q (QES) | 0.45 |
Total Q Factor (QTS) | 0.39 |
Suspension equivalent air volume (VAS) | 84.1L |
Suspension mechanical compliance (CMS) | 230µm/N |
Force factor (B·l) | 13.99T·m |
Suspension mechanical resistance (RMS) | 10.1N·s/m |
Moving mass including airload (MMS) | 188g |
Moving mass (MMD) | 179.6g |
Maximum linear excursion (XMAX) | ± 14.3mm |
Displacement volume at Xmax (VD) | 736cm³ |
Efficiency (η₀) | 0.26% |
Efficiency bandwidth product (EBP) | 53 |
Surface of the diaphragm (SD) | 514.7cm² |
Materials | |
---|---|
Diaphragm material | Anodized aluminum |
Surround amterial | Rubber |
Coil material | Copper |
Former material | Aluminum |
Frame material | Steel |
Magnet | Ferrite |
Mounting informations | |
---|---|
Overall diameter | Ø314mm |
Baffle hole diameter | Ø282mm |
Overall depth | 146mm |
Mouting bolt diameter | 295mm |
Number of mounting holes | 8 |
Optimum cabinet size (Measured with BassBox 6 Pro) | |
---|---|
Sealed volume | 20.1L (0.71ft³) |
Sealed F3 | 53Hz |
Vented volume | 57.8L (2.04ft³) |
Vented F3 | 30Hz |
Speaker Power (W RMS) | 400.0 |
Speaker Type | Subwoofer |
Impedance (Ω) | 4 |
Loudspeaker diameter (mm) | 305.0 |
Diaphragm type | Aluminium |
Efficiency / Sensitivity (dB) | 86.0 |
Max Linear Excursion (Xmax) (mm) | 14.0 |
Lowest frequency (Hz) | 23 |
Highest frequency (Hz) | 1000 |
Refurbished Grade | Grade B |
