[GRADE A] AUNE S10N Streamer WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Silver

AUNE S10N Streamer WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Silver
-14%
Refurbished product - Grade A

The S10N represents the next generation of Aune streamer, adopting an architecture based on five core: NXP Freescale™ processor, MediaTek™ WiFi streamer, LDAC / aptX HD Bluetooth receiver, PLL clock and asynchronous FPGA. A quality structure perfectly optimized to deliver high fidelity sound reproduction, both locally and wirelessly. And if the performance is there, the S10N is not left behind on the functionality side and will meet the vast majority of needs.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 17735
Refurbished
Limited special offer

699,00 €tax incl.

-14%

599,00 €tax incl.

499,17 € tax excl.
Including 0,05 € for green tax

- +


Last items in stock !
Shipping date: 15-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Refurbished product - Grade A

Product in perfect condition. Packaging box damaged.

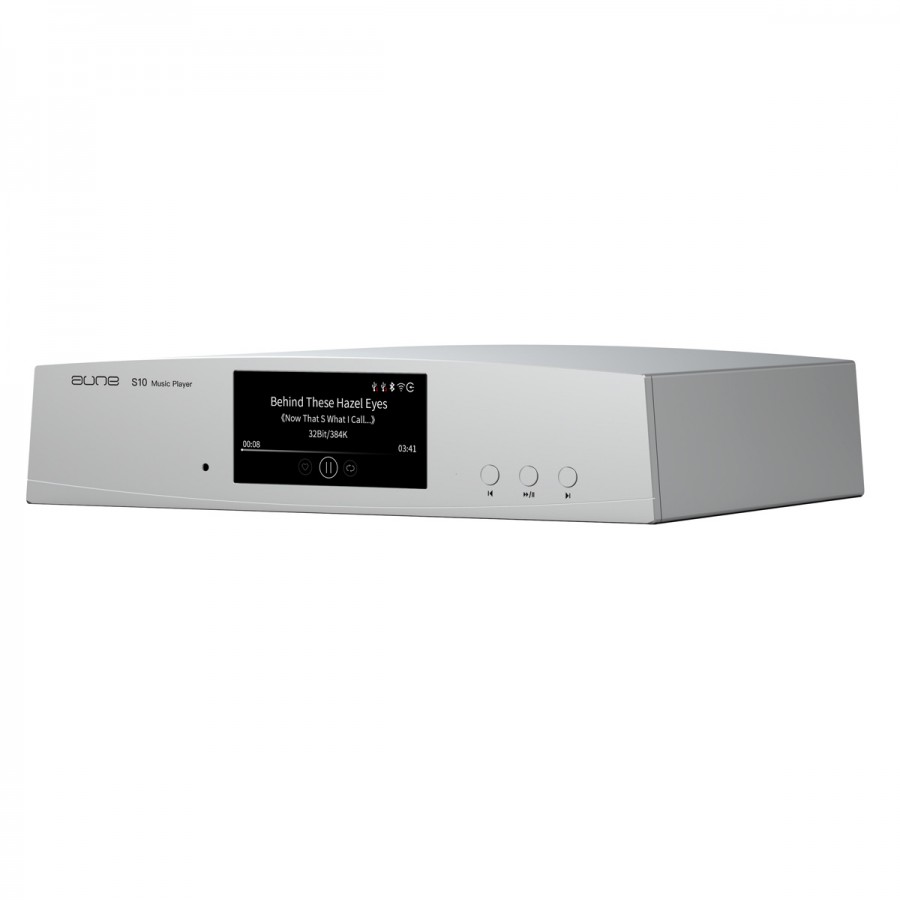

Aune S10N

Streamer WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Silver

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

The S10N represents the next generation of Aune streamer, adopting an architecture based on five core: NXP Freescale™ processor, MediaTek™ WiFi streamer, LDAC / aptX HD Bluetooth receiver, PLL clock and asynchronous FPGA. A quality structure perfectly optimized to deliver high fidelity sound reproduction, both locally and wirelessly. And if the performance is there, the S10N is not left behind on the functionality side and will meet the vast majority of needs.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

MediaTek streamer & Control app

As a central element of this Aune S10N, the section in charge of WiFi network playback uses a MediaTek™ controller. This one allows a stable and fast broadcast of the audio stream. The S10N is also extremely easy to control remotely using the free iEast mobile app, available on both Android and iOS. The latter allows easy interaction with your device, via an ergonomic and intuitive graphical interface.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

ARM Cortex-M7 Processor

The S10N is powered by a powerful ARM Cortex-M7 processor, ensuring fast and reliable data processing but also in charge of hardware decoding of audio streams. It allows the reading of high resolution files, up to PCM 32bit 768kHz and DSD512, ensuring a formidable sound precision.

Bluetooth HD Qualcomm QCC5125 receiver

In addition to its WiFi network connectivity, the Aune S10N is equipped with a Bluetooth 5.0 receiver. It incorporates a Qualcomm QCC5125 chip for high-quality wireless audio transmission, including support for aptX, aptX HD and LDAC codecs.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

PLL Clock

The S10N's complex PLL clock provides a highly accurate signal. This signal is then fed to the asynchronous FPGA to generate ultra-low jitter digital signals for the most transparent and faithful sound possible. The S10N also allows the use of an external clock through its 10M input.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

Asynchronous FPGA

After decoding the audio stream, the ARM processor passes the signal to the FPGA and its oscillators. The FPGA then uses its own algorithm to regenerate the digital signals with extremely low jitter and provide a signal of absolute precision.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

Power supply

Pour fournir un signal électrique propre et stable à ses différents circuits, l'Aune S10N s'appuie sur un étage d'alimentation avec deux transformateurs à faible bruit et des régulateurs de tension à faible ondulation.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent

File reader

A network player but also a file player, the Aune S10N offers two USB-A ports to connect USB storage devices up to 2TB (not included). An additional way to access your music for maximum versatility.

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent
1Previous
2Play/Pause/OK
3Next
4IR receiver
5Screen
6ON/OFF LED indicator
710M clock input
8Coaxial output
9Bluetooth antenna
10WiFi antenna
11Balanced XLR output
12Single-ended RCA output
13I2S HDMI output
14AES/EBU output
15Optical Toslink output
16USB-A inputs
17Power button
18Power input



Technical characteristics

Specifications
Product typeStreamer
InputsBluetooth 5.0
WiFi 2.4G
2* USB-A
1* 10M clock input on BNC connector
Outputs1* Balanced stereo XLR
1* Single-ended stereo RCA
1* I2S via HDMI
1* AES/EBU
1* Coaxial
1* Optical Toslink
ConnectivityWiFi 2.4G
Bluetooth 5.0
Supported sampling ratesI2S / RCA: PCM up to 32bit 768kHz, DSD up to DSD512
Coaxial / AES: PCM up to 32bit 384kHz, DSD DoP up to DSD128
Optial: PCM up to 24bit 192kHz, DSD DoP up to DSD64
THD+N (digital output)-147.6dB
Jitter (digital output)181ps (700Hz-100kHz)
Frequency response (analog output)20Hz-20kHz ±0.5dB
Output level (analog output)4.39µV
Noise floor (analog output)0.00068%
Supported Bluetooth codecsSBC, AAC, aptX, aptX HD, LDAC
General
Dimensions288*211*63mm
ColorSilver

Analog output:

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent


Digital output:

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent


I2S pinout:

Aune S10N Lecteur réseau WiFi Bluetooth aptX HD LDAC 32bit 768kHz DSD512 Argent<span id=" />
