Refurbished product - Grade A
Product in perfect condition. Packaging box damaged.

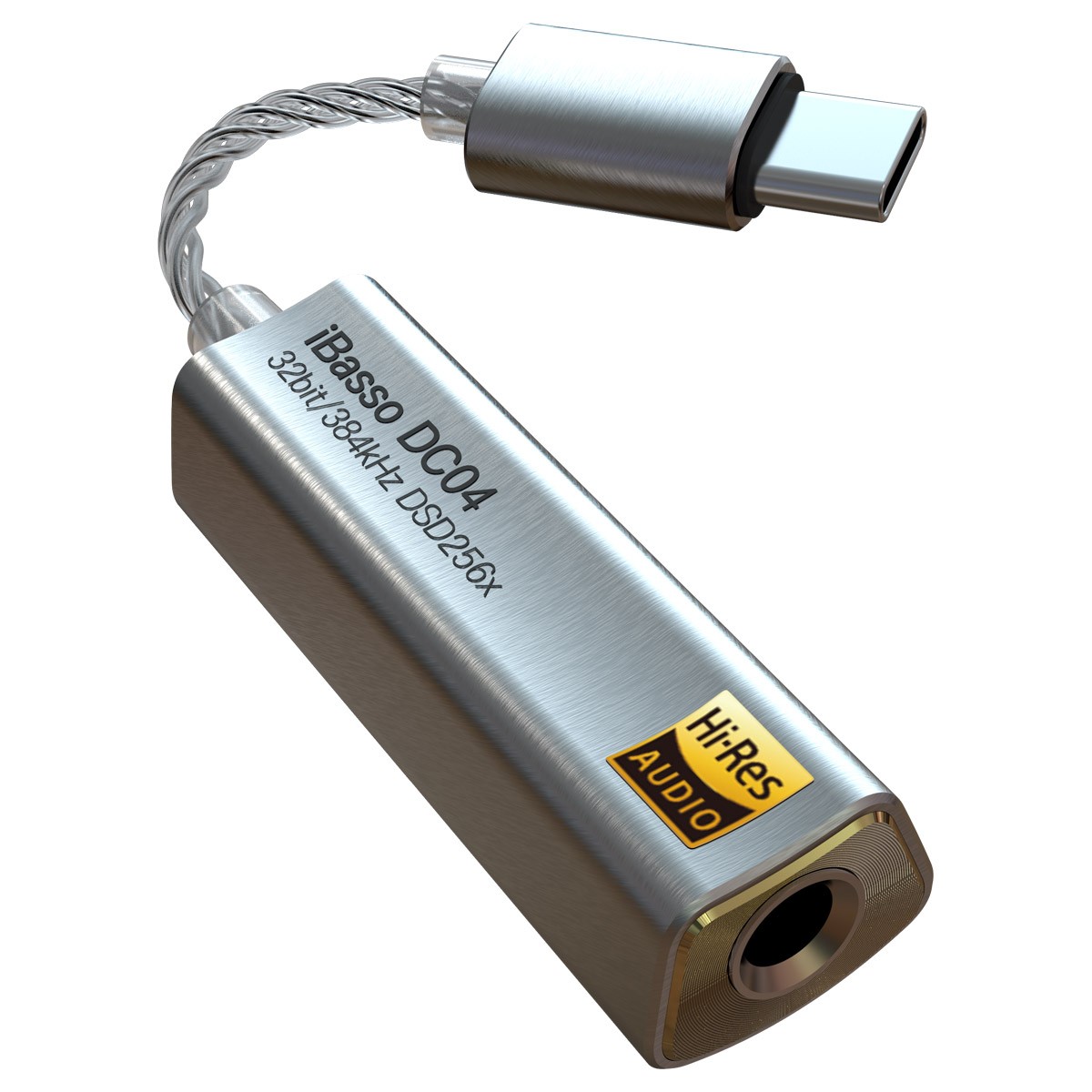

Balanced Headphone Amplifier DAC Adapter USB-C Hi-Res 2x CS43131 32bit 384kHz DSD256 Silver
The DC04 from iBasso is an affordable and high-performance portable DAC and balanced headphone amplifier combo. Ideal for enjoying high quality sound reproduction with your smartphone or computer, the DC04 is equipped with a pair of DAC CS43131 chips ensuring a THD+N of 0.00032% (@ 300Ω), an SNR of 133dB and a background noise of only 0.9µV. It is also capable of developing a power of 2x 192mW (@ 32Ω). This integration also allows it to support high resolution files up to 32bit 384kHz PCM and DSD256 Native.
The DC04 has a balanced 4.4mm jack output connector. This output contributes to the sound quality of the DC04.
Supplied with a USB-C to USB-A adapter, the DC04 can also be used with a computer as a high-end sound card.
A smartphone usually uses a software volume control with 10 levels, which does not allow for precise volume adjustment. The DC04 offers an output level of 4Vrms. The volume control is done via a proprietary application supporting UAC 2.0 offering 64 levels for precise hardware adjustment.
Specifications | |
---|---|
Product type | Balanced DAC & Headphone amplfiier |
DAC Chip | 2x CS43131 |
Input | 1x Male USB-C |
Output | 1x Female Balanced Jack 4.4mm |
THD+N | -110dB / 0.00032% @ 300Ω -108dB / 0.00039% @ 32Ω |
Output level | 4Vrms @ 300Ω 2.5Vrms @ 32Ω |
Power output | 192mW @ 32Ω |
SNR | 133dB |
Frequency response | 20Hz - 40kHz ±0.5dB |
Noise floor | < 0.9µV |
Output impedance | < 0.12Ω |
Supported sampling rates | PCM up to 32bit 384kHz Native DSD up to DSD256 |
General | |
---|---|
Dimensions | 110 x 43.5mm |
Weight | 12g |
Color | Silver |
Package | 1x iBasso DC04 1x USB-C to USB-A adapter |
Input | USB |
Output | Jack 4.4mm |
DAC / ADC Chip | CS43131 |
Max sampling rate | 384kHz |
Max sampling rate | DSD256 |
Color | Silver |
Networking | No |
Remote Control | No |
Refurbished Grade | Grade S |
