[GRADE B] ARMATURE PHOBOS AB Integrated Amplifier 2x300W / 4 Ohm USB DAC Pre-out

ARMATURE PHOBOS Amplificateur DAC USB 24bit/192khz

Refurbished product - Grade B

The PHOBOS armature amplifier fits in with its time. Featuring a generous power stage with a high current capacity Phobos faces the most complex loads.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 139 loyalty points


Reference : 16776
Refurbished

1 390,00 €tax incl.

1 158,33 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Refurbished product - Grade B

Some scratches. A shock on the back left corner of the case. Works perfectly.

Armature Phobos

Armature Audio Phobos

2 x 300W Class AB Amplifier + DAC 24bits 192kHz Armature Phobos

Power and control

The PHOBOS armature amplifier fits in with its time. Featuring a generous power stage with a high current capacity Phobos faces the most complex loads. High-performance loudspeaker enthusiasts or faithful studio monitor libraries, Phobos is the answer with a large number of analog and digital inputs.

Armature Phobos

Qobuzissime for the ARMATURE PHOBOS

Discover the complete and detailed test of the PHOBOS amplifier, which has been awarded a Qobuzissime for its quality and high performance (click on the banner below).

Qobuzissime Armature Phobos

A true digital HUB of 2x300W under 4 Ohm

The PHOBOS Audio Armature is the aliasing of digital and analog. It has a 24 bit 192kHz DAC with USB input CMEDIA, SPDIF coaxial, BNC, optical and 3 analog inputs including a balanced XLR input. It also has a variable pre-out output and a fixed DAC-out output.

The Phobos amplifier meets all operating scenarios. Armature Phobos
Armature Phobos

A genuine DAC 24bit 192kHz

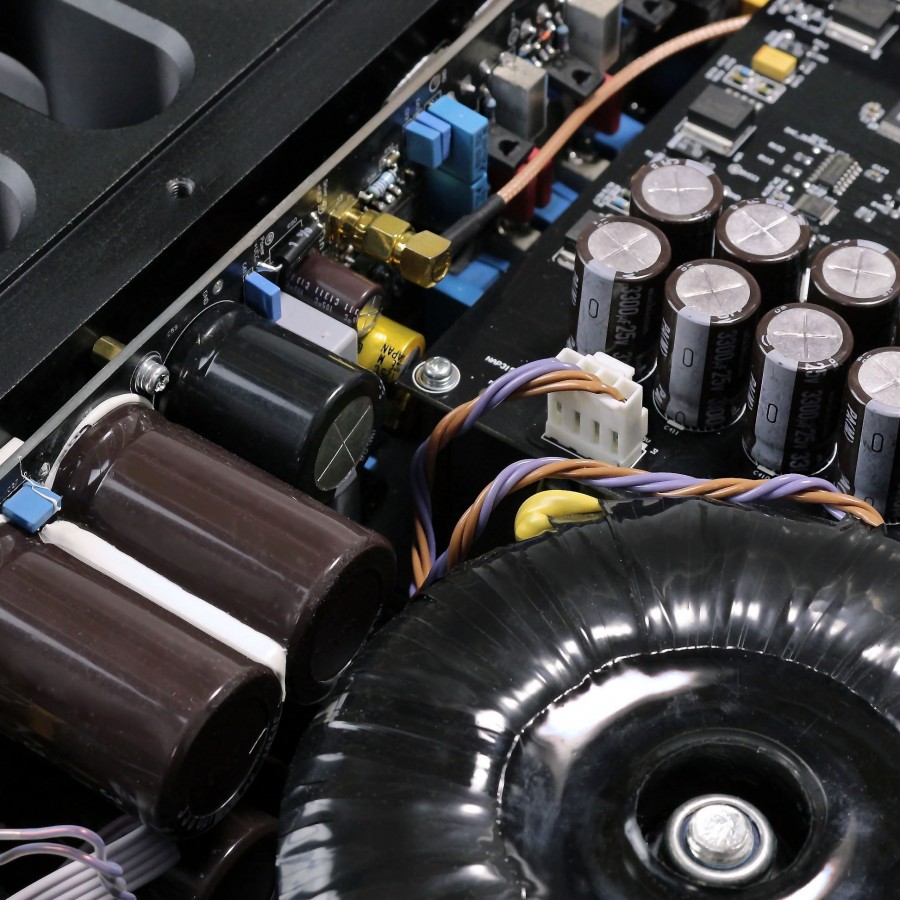

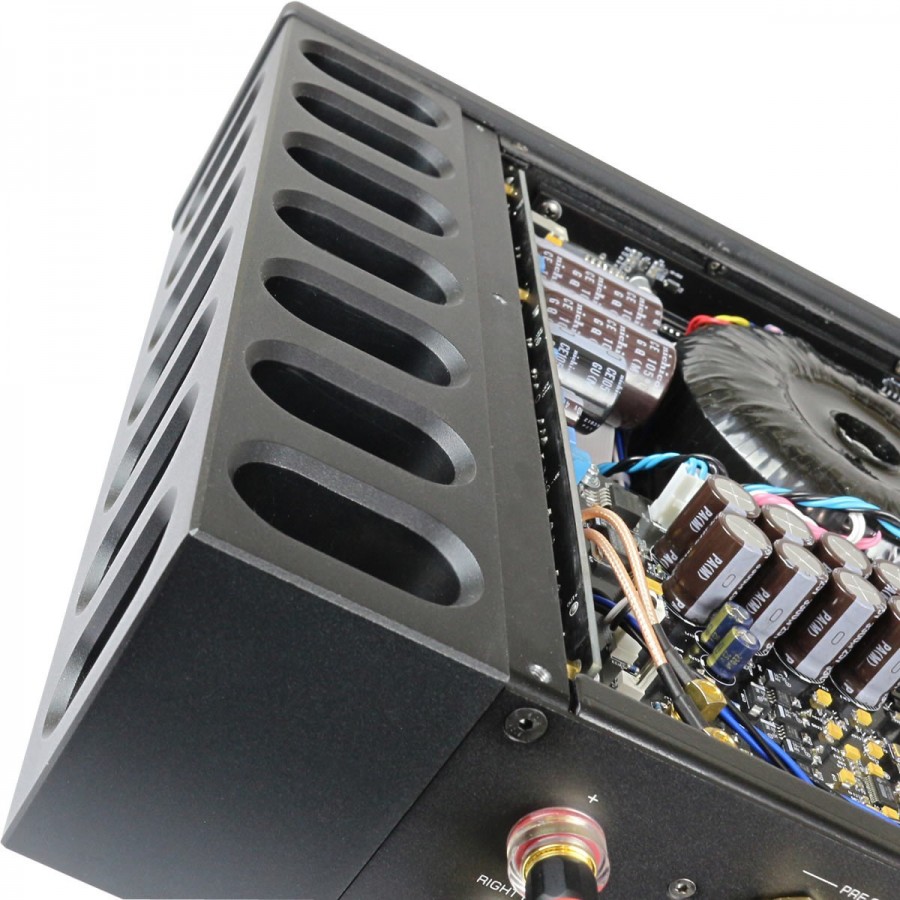

The central card of the phobos includes a DAC Ti PCM1794 ensuring true digital analog conversion work of quality. Featuring a symmetrical dedicated power supply with a filtering capacity of 52800μF to 35V, a jitter bucker SRC4392, four LDO regulators and analogue output AOP LT1028, the Phobos DAC concentrates the best of technology in a single device .

A real comfort of use.

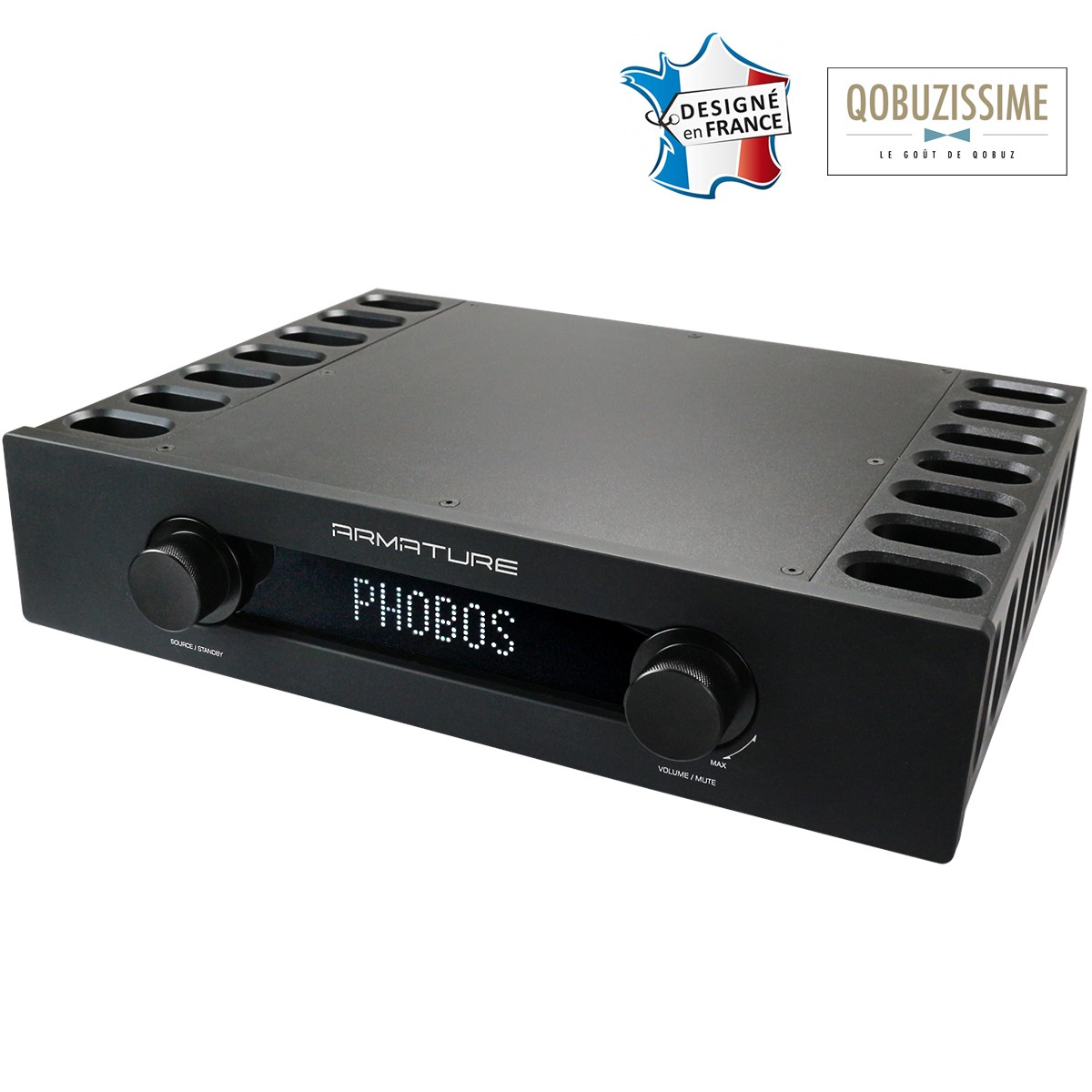

Thoughtfully, the Phobos remote control allows full control with pre-out, or an integrated amplifier mode, or both simultaneously. The PHOTO's DOT Matrix LED display provides real legibility without the aggressiveness of the main functions of the amplifier.

Armature Phobos
Armature Phobos

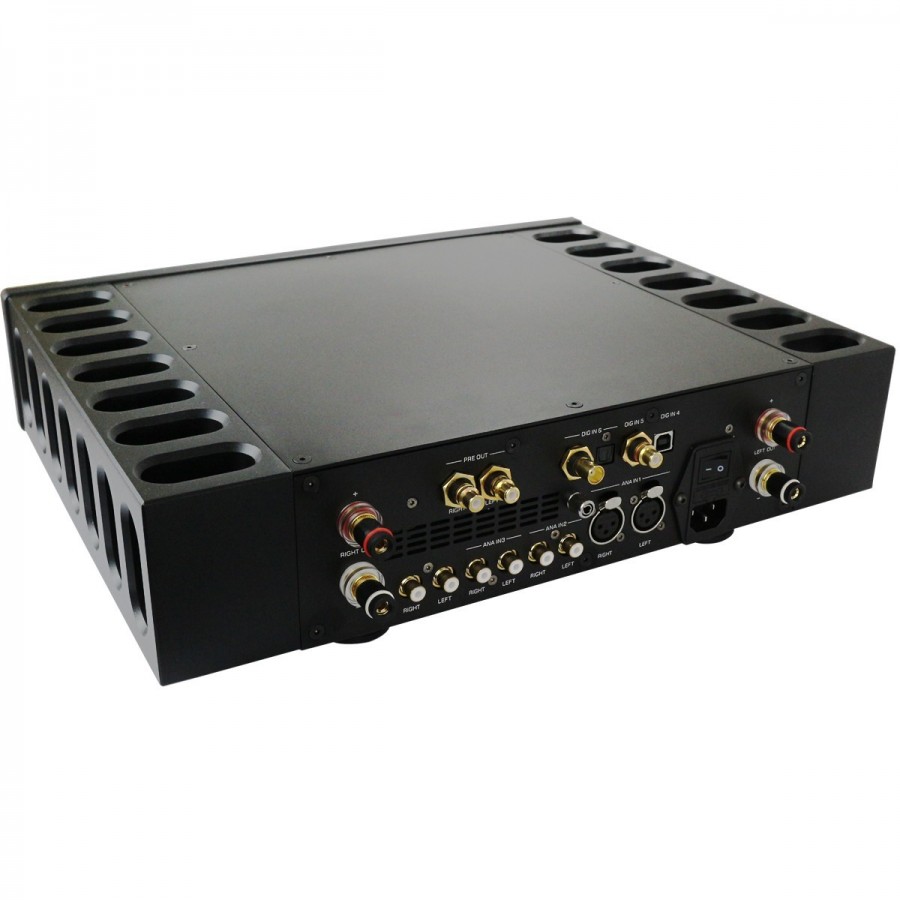

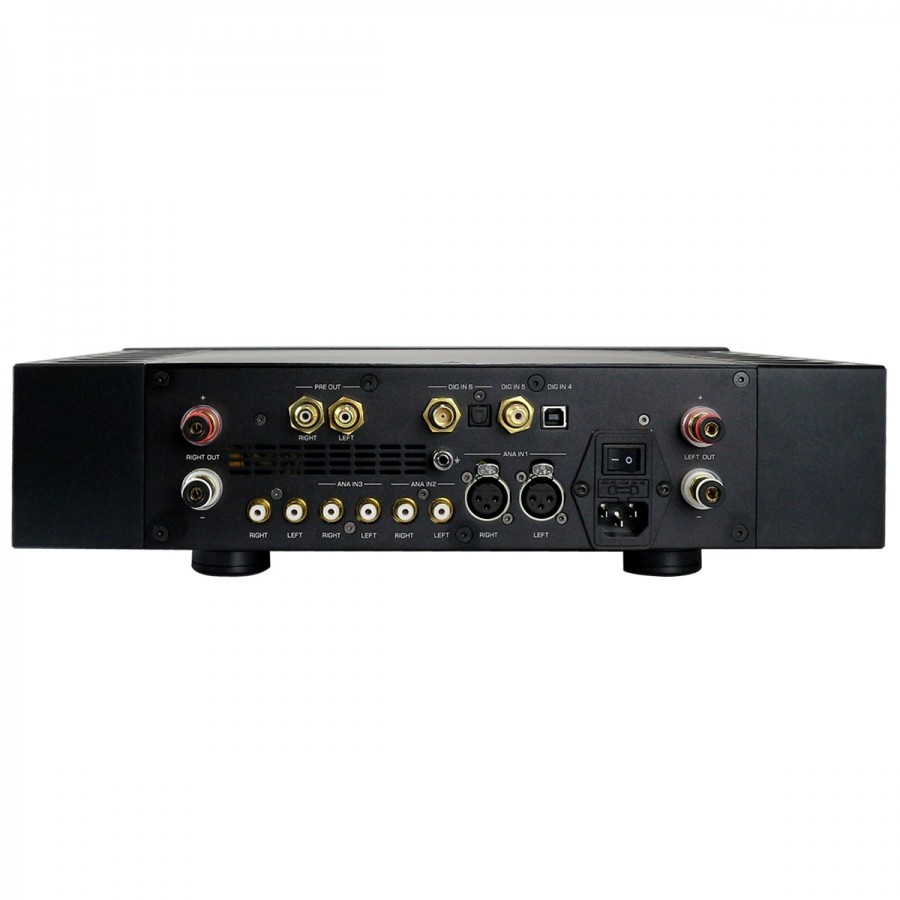

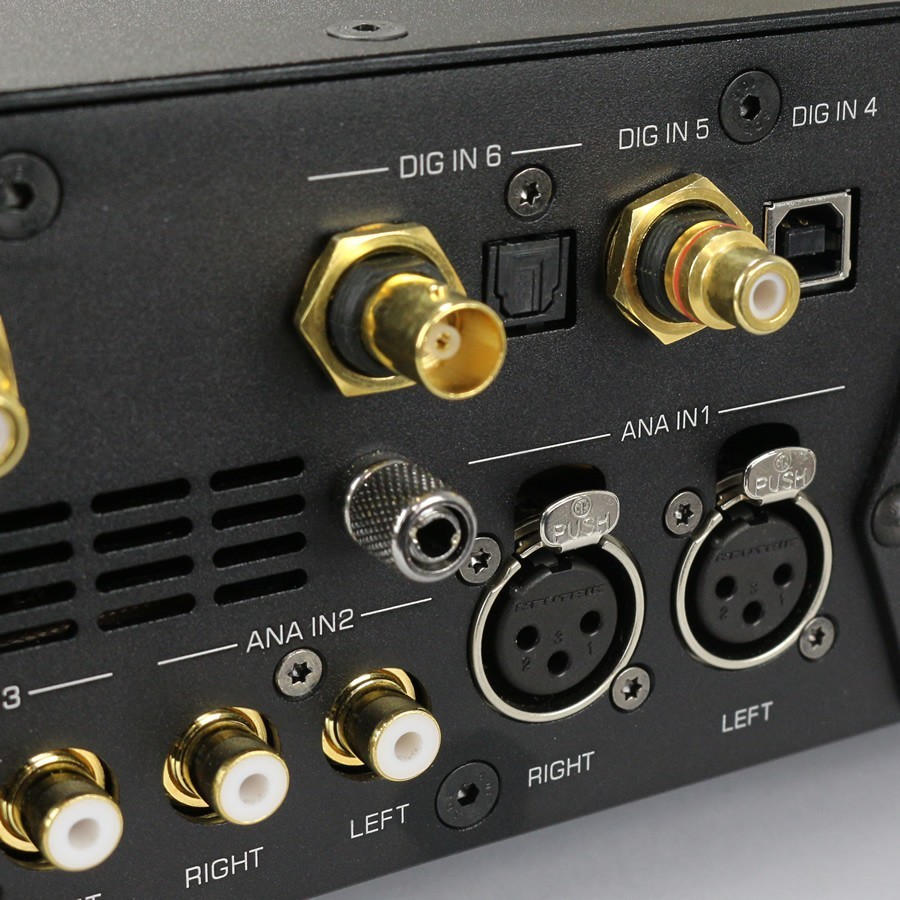

Connectors: Digital Inputs
RCA SPDIF1x
BNC SPDIF1x
Optical Toslink1x
USB 2.01x
Connectors: Analog Inputs
RCA 2x
XLR balanced1x

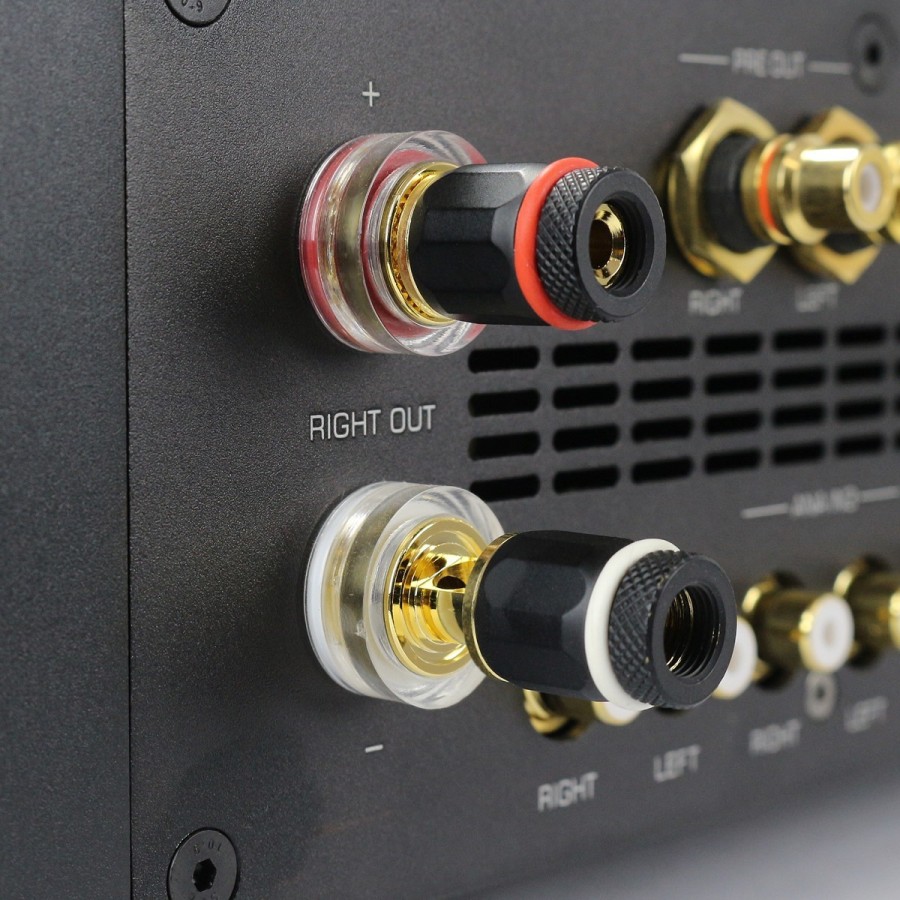

Connectors: Outputs
Pre OutStereo RCA (variable)
Line Outputs DAC LineNot affected by input selected (Fixed volume)
Specifications
Power output2 x 300W 4ohm
2 x 150W 8ohm
Signal Ratio> 115dB
THD0.004%
Frequency Response20Hz - 70kHz (at -3dB)
Output Impedance0.025 ohms / Damping Factor : 160 @4ohm - 320 @8ohm
Max Output Level2.5V (RCA) / 4.5 XLR Symmetrical
Input sensitivity0.5Vp-p (Coaxial, 75Ω) / 19dBm (Optical)
24-bit sampling
USB (CM6631A)44.1kHz up to 192khz
Coaxial44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
Optical44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
Miscellaneous
Dimensions425 x 325 x 105mm
chassis100% Aluminum
Weight18.6kg
AccessoriesPower cord, aluminum remote control

Data sheet
InputSPDIF
InputBNC
InputXLR
InputOptical
InputRCA
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipN/A
Power (W)300.0
Refurbished GradeGrade B

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
