[GRADE S] SHANLING M1 Digital Audio Player DAP DAC AK4452 32bit 192kHz DSD128

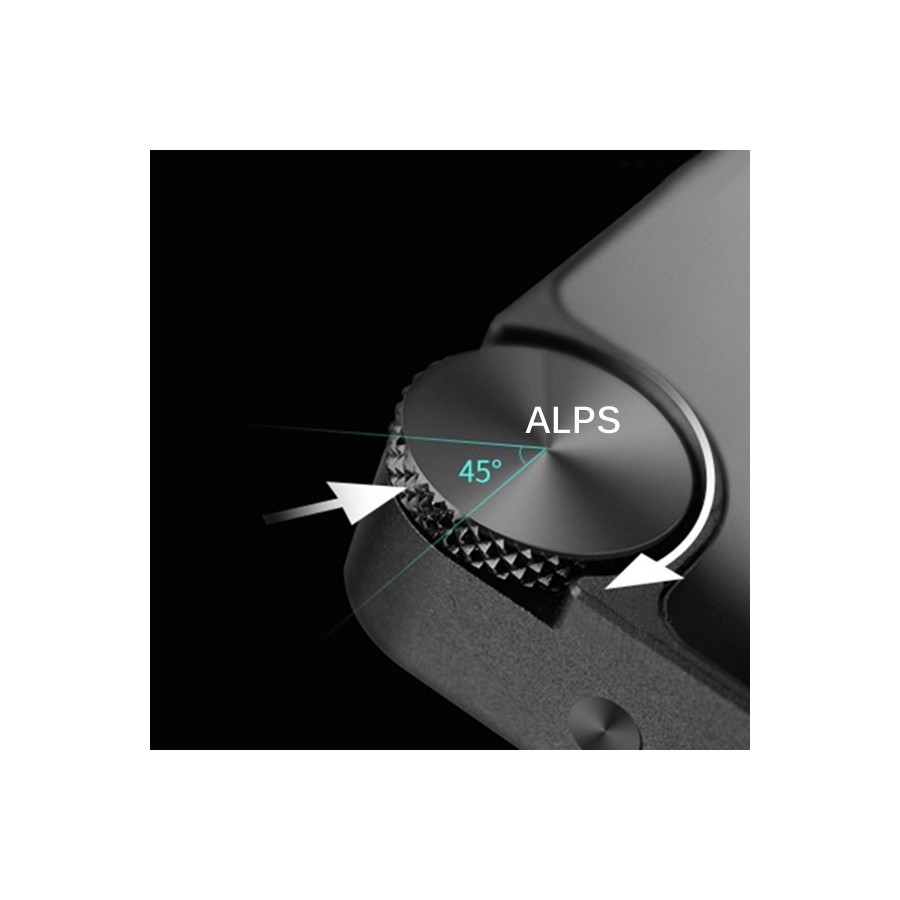

The famous Shanling brand is offering the DAP M1, a high-fidelity Bluetooth 4.0 aptX portable music player. Designed around a sober, elegant design, its compact size brings audiophile sound into pocket format. The ideal companion for listening on the move, this full-featured high-fidelity music player can play virtually all high-resolution PCM audio files up to 32bit 192kHz or DSD 64 and 128. What's more, the analogue section features an original ALPS potentiometer for enhanced reliability and sound fidelity.

This DAP uses an AKM AK4452 DAC and a high-performance MAXA97220 headphone amplifier chip, resulting in great musicality. Its highly ergonomic design and meticulous electronics make it an accomplished product that represents an alternative to larger portable digital music players.

Characteristics:

• Screen: 2.35" TFT (360x400)
• DSD support: Supported and converted to PCM by software
• Bluetooth receiver: 4.0 version, aptX
• DAC chip: AK4452
• Headphone amplification chip: MAX97220
• Two level gain setting (High / Low)
• Supported formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DFF
• Supported sampling rates: PCM 44.1-192kHz
• Headphone output power: 35mW @ 32Ω
• Frequency response: 20Hz to 20kHz (-0.5dB)
• Distortion: 0.006% (A-weighting, 500mV output)
• S/N : > 105dB (A-weighting)
• Dynamic range: > 105dB
• Output impedance: 0.1Ω
• Channel separation: >70dB (1 kHz)
• Jitter: 30ps (Typ)
• Reference clock: 200 femtoseconds
• Battery: 950mAh, 9-10h battery life, 3-4h charging time
• OS: Windows XP, 7, 8, 10 (32/64 bit), Mac OS X 10.7 or above

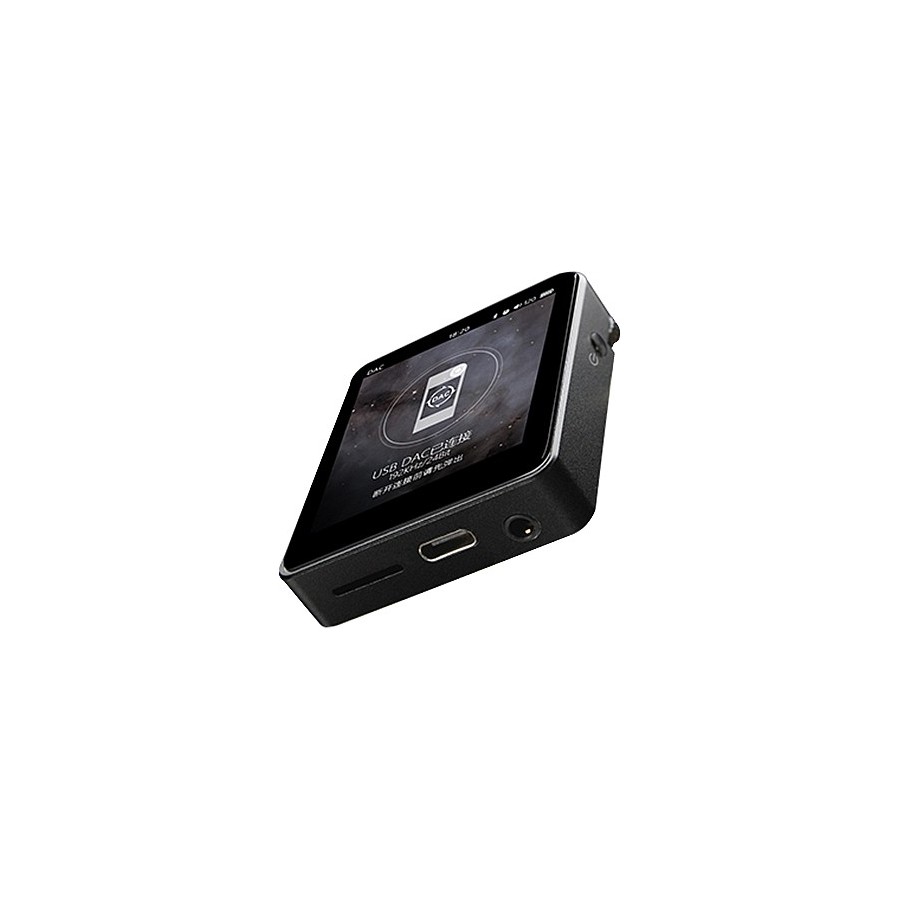

Connectors:

• USB: Type-C
• Headphone output: Jack 3.5mm
• Micro SD slot (up to 200GB)

Dimensions and weight:

• Width: 60mm
• Depth: 12.8mm
• Height: 50mm
• Weight: 60g
• Color: Black
• Supplied with 3 screen protectors / USB-C to USB-C 15cm cable / USB-C to USB-B 15cm cable / USB-C to USB-C angled 15cm cable
